For pin arrangement and wire connection refer to Output Circuits.
Type
M12
Features
5 wires
Material
Nut
CuZn
Cable
PVC 2 m
PUR 2 m
PVC 5 m
PUR 5 m
Model
Straight
XS2F-M12PVC5S2M
XS2F-M12PUR5S2M
XS2F-M12PVC5S5M
XS2F-M12PUR5S5M
Angled
XS2F-M12PVC5A2M
XS2F-M12PUR5A2M
XS2F-M12PVC5A5M
XS2F-M12PUR5A5M
2
F3ET2
Discrete Output Light Grid

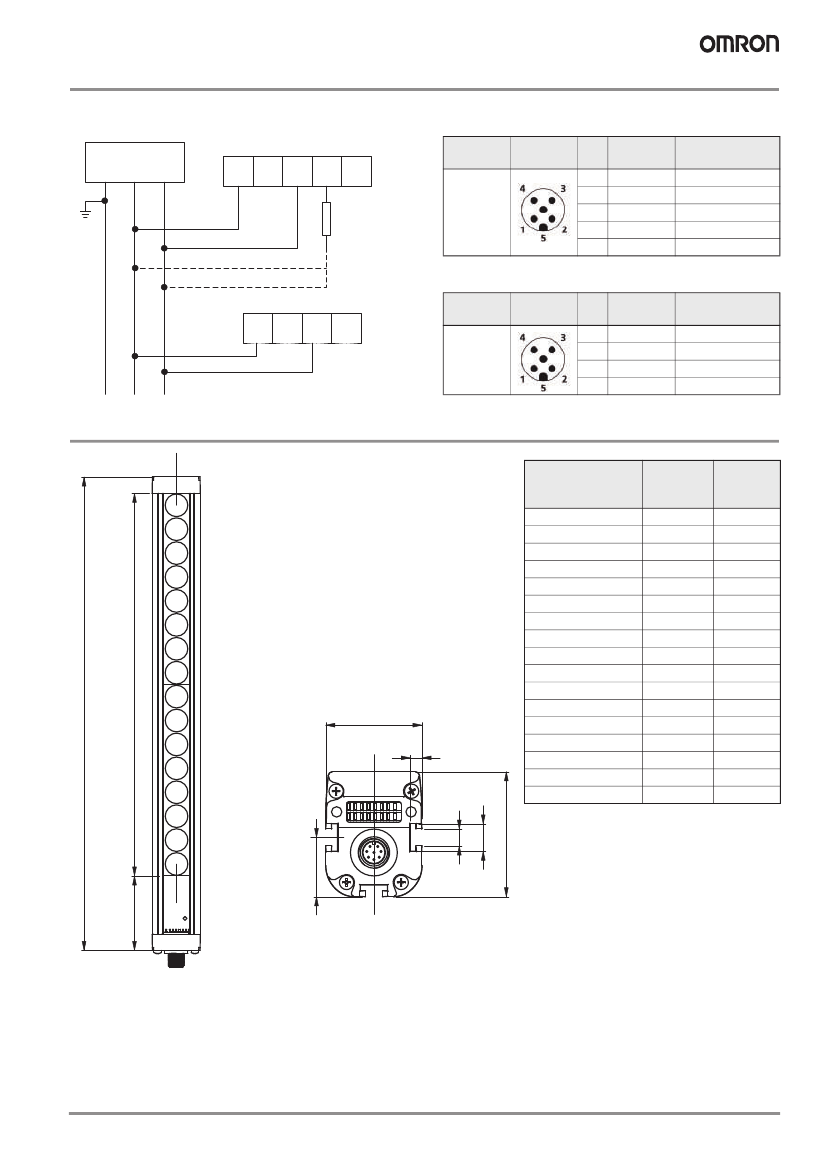

Output circuits
Please connect the light grid as described below:
Variable
Power Supply
Earth
Ground +24 VDC 0 VDC
Connector PIN assignment - Receiver
Type
Gr
RECEIVER
Br
Wh
BL
Bk
Internal
wiring
Pin Color
1
2
3
4
5
Brown
White
Blue
Black
Gray
Signal name
+Vs
not used
0V
PNP/NPN output
not used
M12
n4 pole
Connector PIN assignment - Transmitter
TRANSMITTER
Br
Wh
BL
Bk
Type
M12
n4 pole
Internal
wiring
Pin Color
1
2
3
4
Brown
White
Blue
Black
Signal name
+Vs
not used
0V
Not used
Dimensions
Model
F3ET2-005-150
F3ET2-018-150
F3ET2-005-300
F3ET2-018-300
F3ET2-005-450
F3ET2-018-450
F3ET2-005-600
F3ET2-018-600
F3ET2-005-900
F3ET2-018-900
F3ET2-005-1200
F3ET2-018-1200
F3ET2-005-1500
F3ET2-018-1500
F3ET2-005-1800
F3ET2-018-1800
F3ET2-018-2100
Detection
zone E
(mm)
159
147
318
294
477
441
636
588
954
882
1272
1176
1590
1470
1908
1764
2058
Total
length L
(mm)
218
217
277
364
536
511
695
658
1013
952
1331
1246
1649
1540
1967
1834
2128
A: Dead zone without detection capability
E
37
4.5
L
E: Detection zone
L: Total length
A
F3ET2
Discrete Output Light Grid
22.75
All dimensions shown are in mm
10.5
6.5
48
3

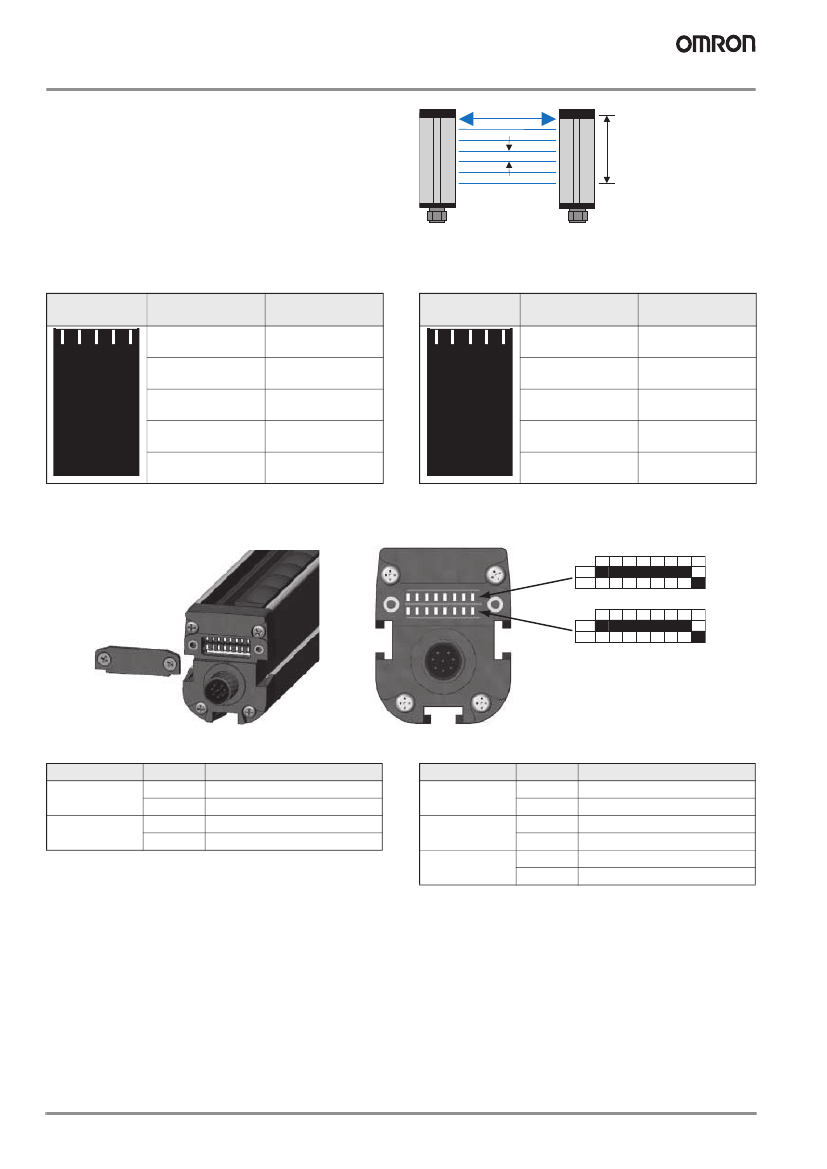

Operation
The F3ET light grid features optical synchronization. This
function is provided by the upper beam located on the oppo-
site side of the connector (see illustration on the right). During
operation this beam must always be kept free (unblocked).
Otherwise it will result in a longer response frequency of the
light grid.
SYNCHRONISM
D
S
S: Sensing area
D: Beam axis pitch
Indicator LEDs
For functions of indicator LEDs please refer to the tables below:
Status of Receiver is displayed by 5 LEDs:
Disposition of
indicator
Name of indicator
POWER
RUN
Color
Green
Status of Transmitter is displayed by 5 LEDs:
Disposition of
indicator
Name of indicator
POWER
Color
Green
Yellow
Green
POWER
STATUS 1
RANGE
POWER
RUN
FREE
BREAK
STATUS
FREE
BREAK
STATUS
Green
Red
Yellow
STATUS 2
Yellow
STATUS 1
RANGE
Not used
STATUS 2
RX
TX
Yellow
Selector Switches
Operation mode and distance setting can be changed by selector switches. To access selector switches, unscrew the end cap of
the receiver unit:
OFF
ON
1
2
3
4
5
6
7
8
OFF
ON
1
2
3
4
5
6
7
8
Transmitter
Dip-SW
1, 2, 3, 4, 7, 8
5
Status
OFF
ON
OFF
ON
Function
Not USED
Not USED
FAR (Default)
NEAR
Receiver
Dip-SW
1, 4, 5, 7, 8
2
3
Status
OFF
ON
OFF
ON
OFF
ON
Function
Not USED
Not USED
PNP operation (Default)
NPN operation
Dark on (Default)
Light on
Note: Selector setting must only be carried out when the receiver is NOT connected to the power supply. There are two lines of dip switches in each transmitter
and receiver. The settings must be done for both lines.
4
F3ET2
Discrete Output Light Grid

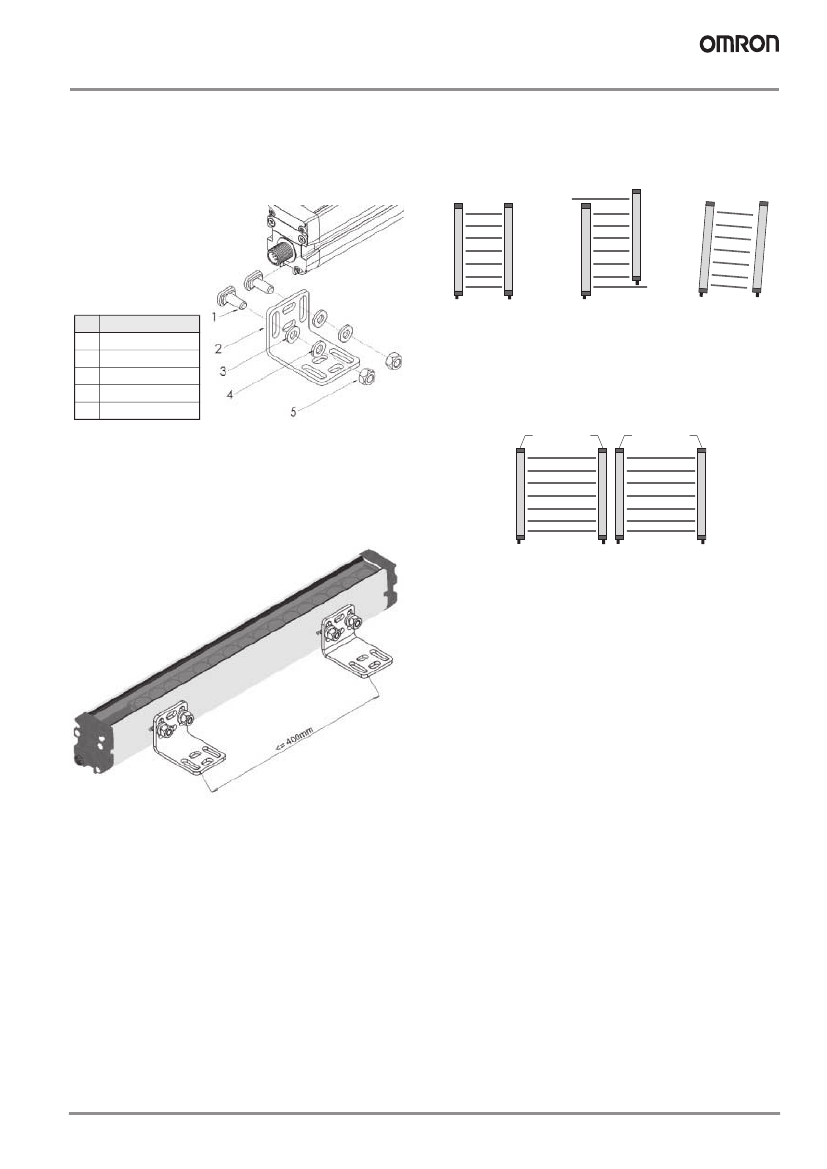

Mounting
Mounting accessories
The F3ET2 system is mechanically installed by using the T-
slots on the two sides or the back-side of the housing.
Use the movable bolts, washers, spacers and nuts to attach
the mounting brackets as shown in the picture
Mechanical Mounting
Please mount the light grids in proper alignment as shown
in the pictures below by using the brackets provided with the
light grids.
ID
1
2
3
4
5
Description
M6 bolt
bracket
M6 washer
M6 spacer
M6 nut
OK
NG
NG
If several light grids are installed close to each other, interference
of the light grids must be avoided. In this case the assembly
should be carried out as follows:
Note: Shipments contain a different quantity of brackets, depending on the length
of the light grid. Longer light grids contain a higher number of brackets,
following the rule of one bracket every 400 mm.
TX
RX
RX
TX
Additional mounting rigidity
It is recommended that the distance between the mounting
brackets is 400 mm or less for optimum performance of the
