TFT LCD Module
Product Specification
DT035BTFT-PTS1
3.5” (320(RGB) x 240 DOTS) TFT Module
with Capacitive Touch Screen
October 28, 2016
Remark:
Contents in this document are subject to change without notice. No part of this document
may be reproduced or transmitted in any form or by any means, electronic or mechanical,
for any purpose, without the express written permission of Displaytech Ltd.
Displaytech Ltd.
Tel: (852) 2311 2080 ; Fax: (852) 2722 6998 ; Email:
sales@displaytech.com.hk
Address: 31E Billion Plaza 2, No. 10 Cheung Yue Street, Cheung Sha Wan, Kowloon,
Hong Kong.
Website:
http://www.displaytech.com.hk
Displaytech Ltd.
DT035BTFT-PTS1
Rev 0.0
Revision Record
REV
0.0
(Ref. 1.0
20160930)
CHANGES
First release
DATE
Oct 28, 2016
1
Displaytech Ltd.
DT035BTFT-PTS1
Rev 0.0
Table of Content
Revision Record ...........................................................................1
1.
2.
3.
4.
5.
6.
7.
8.
9.
Scope .....................................................................................3
Application ............................................................................3
General Information ..............................................................3
Outline Drawing ....................................................................4
Interface Signals ...................................................................5
Absolute Maximum Ratings .................................................5
Electrical Specifications .......................................................6
Command / AC Timing ..........................................................7
Optical Specification........................................................... 10
10. Environmental / Reliability Tests ....................................... 13
11. Precautions for Use of LCD Modules ................................ 13
2
Displaytech Ltd.
DT035BTFT-PTS1
Rev 0.0
1. Scope
This data sheet is to introduce the specification of DT035BTFT-PTS1, active matrix
TFT module. It is composed of a color TFT-LCD panel, driver ICs, FPC, capacitive
touch panel and a backlight unit. The 3.5” display area contains 320 (RGB) x 240
pixels.
2. Application
Digital equipment which need color display, mobile phone, mobile navigator/video
systems.
3. General Information
Item
Size
Resolution
Interface
Technology Type
Pixel Configuration
Pixel Pitch
Outline Dimension (W x H x D)
Active Area
Display Mode
Backlight Type
Driver IC for PCAP
Weight
3.5
320(RGB) x 240
CPU
a-Si TFT
R.G.B. Vertical Stripe
0.219 x 0.219
76.90 x 64.00 x 4.8
70.08 x 52.56
Transmissive, Normally White
LED
FT5346
TBD
g
Contents
Unit
inch
/
/
/
/
mm
mm
mm
/
/
3
Displaytech Ltd.
DT035BTFT-PTS1
Rev 0.0

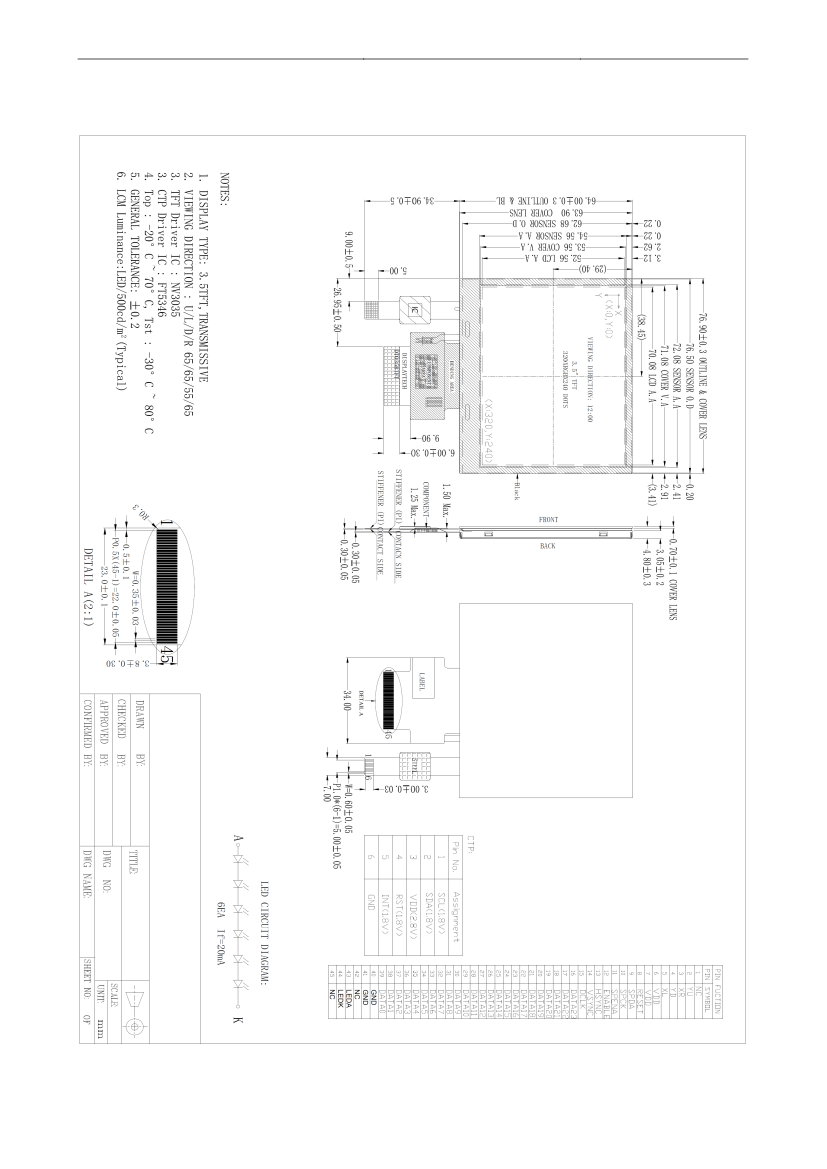

4. Outline Drawing
Displaytech
4
DT035BTFT-PTS1
