507-4961-3333-500F datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 507-4961-3333-500F

507-4961-3333-500F: DescriptionD-Sub Contacts SOCKET CONTACT 24-20 gold over copper; CategoryLED optoelectronic/LED photoelectric; File Size36KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

507-4961-3333-500F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	507-4961-3333-500F	-	-	View	Buy Now

507-4961-3333-500F Overview

D-Sub Contacts SOCKET CONTACT 24-20 gold over copper

507-4961-3333-500F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	YELLOW
Configuration	SINGLE
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	22.86 mm
method of packing	BULK
shape	CYLINDRICAL
size	6.99 mm
surface mount	NO
Terminal pitch	4.06 mm
Base Number Matches	1

Preview

Download Datasheet

View All

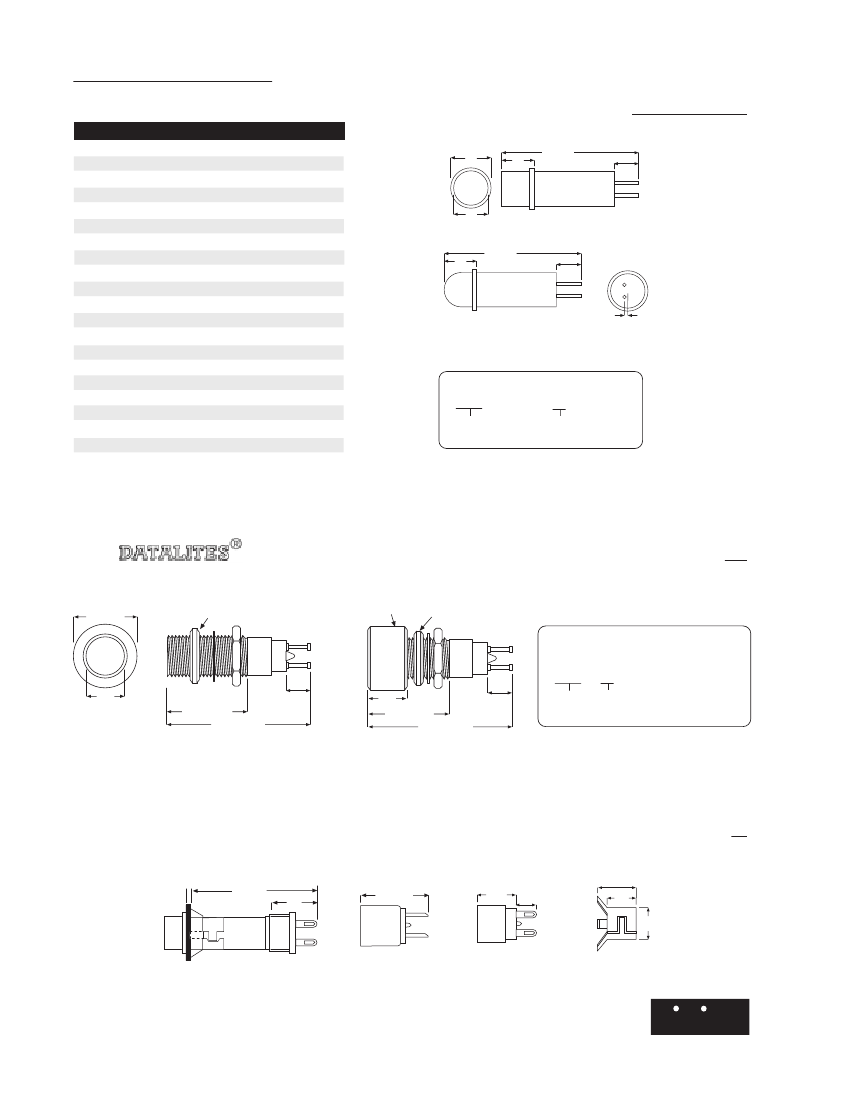

LED PANEL MOUNT INDICATORS

507 SERIES CARTRIDGES FOR USE WITH HOLDERS & CLIPS

507-4762-3331-500

507-4862-3332-500

507-4962-3333-500

507-5062-3334-500

507-4757-3331-500

507-4857-3332-500

507-4957-3333-500

507-5064-3334-500

507-4759-3331-500

507-4859-3332-500

507-4959-3333-500

507-5066-3334-500

507-4760-3331-500

507-4860-3332-500

507-4960-3333-500

507-5067-3334-500

507-4761-3331-500

507-4861-3332-500

507-4961-3333-500

507-5068-3334-500

PART NO.

COLOR V

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

2.1

mA mcd† FIG.

100

8.38

[.330]

6.73

[.265]

FIG. 3

28.96 [1.140]

5.16

[.203]

7.14

[.280]

FIG. 4

28.96 [1.140]

6.73

[.265]

5.16

[.203]

.51

[.020]

Polarity: To facilitate proper installation of the cartridge, the cartridge is

marked on the cartridge housing and the terminal base is keyed.

PART NUMBER ORDERING CODE

507 – xxxx – xx3x – 500

Series

Lens Shape:

33 – Fig 3 = Cylindrical

37 – Fig 4 = Stovepipe

† mcd intensity of LED

* Blue mcd rating with cylindrical cap is 100 mcd;

stovepipe cap is 275 mcd

250

13.1

[.515]

FLANGE

NUT

& 508 SERIES HOLDERS FOR 3/8" MOUNTING HOLE

HOLDER WITHOUT COLLAR

HOLDER WITH COLLAR

COLLAR

FLANGE

NUT

PART NUMBER ORDERING CODE

250 – xx38 – 14 – 504

508 – xx38 – 504

7.90

[.310]

15.90 [.625]

29.70 [1.170]

5.00

[.197]

7.10

[.280]

15.90 [.625]

29.70 [1.170]

5.00

[.197]

Series

Terminal Type:

87 = Turret Terminals

74 = Solder Blade (Not Shown)

75 = Solder Cups (Not Shown)

508-8738-504

Material & Finish: Housing, Cartridge and Holder - Black Anodized Aluminum. Cap -High Impact Plastic

Terminals of holders marked A and B. A = Positive

515 SERIES CONNECTORS & SPEED CLIPS FOR 9/32" MOUNTING HOLE

CARTRIDGE WITH SPEED CLIP & CONNECTOR

1.59 [.06]

PANEL

30.02 [1.19]

15.88

[.625]

CONNECTOR

515-0012

15.88 [.625]

CONNECTOR

515-0074

13.89

[.547]

4.76

[.188]

SPEED CLIP 515-0051

9.14

[.360]

6.86

[.270]

7.49

[.295]

† mcd intensity of LED

Material & Finish: Housing, Cartridge and Holder - Black Anodized Aluminum. Cap -High Impact Plastic

Dimensions in mm [inches]

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com

Dialight

507-4961-3333-500F Related Products

	507-4961-3333-500F	507-4860-3332-500F	507-4959-3333-500F	507-4857-3732-500F	507-4757-3731-500F	BLU1206ER-1104-BB50
Description	D-Sub Contacts SOCKET CONTACT 24-20 gold over copper	Circuit Breakers 3A PUSH TO RESET	Panel Mount Indicator Lamps LED DATALITE	Varistors 150V 1600pF	Panel Mount Indicator Lamps LED DATALITE	Fixed Resistor, Thin Film, 0.25W, 1100000ohm, 150V, 0.1% +/-Tol, 50ppm/Cel, 1206,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Number of terminals	2	2	2	2	2	2
method of packing	BULK	BULK	BULK	BULK	BULK	Bulk
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	-
color	YELLOW	GREEN	YELLOW	GREEN	RED	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	-
Number of functions	1	1	1	1	1	-
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-
total height	22.86 mm	22.86 mm	22.86 mm	22.86 mm	22.86 mm	-
shape	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	ROUND	ROUND	-
size	6.99 mm	6.99 mm	6.99 mm	7.16 mm	7.16 mm	-
surface mount	NO	NO	NO	NO	NO	-
Terminal pitch	4.06 mm	4.06 mm	4.06 mm	4.06 mm	4.06 mm	-
Base Number Matches	1	1	1	1	1	-
