CLD-DS44 rev 7H
Product family data sheet
Cree
®
XLamp
®
XM-L™ HVW LEDs
ProDuCt DEsCriPtion
The Cree XLamp
®
XM-L™ High-voltage
White
(HvW)
LeD
provides
the
lighting-class performance and reliability
of Cree XLamp LeDs in the standard
XM package. The XM-L HvW LeD is an
order of magnitude smaller than other
high-voltage LeD arrays, allowing easy
implementation
of
space-constrained
lighting applications with smaller, more
efficient high-voltage drivers. Among
these applications are lamps such as A19,
B10, GU10, MR16, PAR30 and E17.
FEAturEs
• Binned at 85 °C
• Typical forward voltage of 46 V @
44 mA, with Vf binning available
•
Cree-standard XM mechanical
footprint, with electrically neutral
thermal path
• Low thermal resistance: 3.5 °C/W
• Wide viewing angle: 110°
• Maximum drive current: 125 mA
•
Maximum junction temperature:
150 °C
• Unlimited floor life at ≤ 30 ºC/85% RH
• Reflow solderable
• Available in standard CRI and
80-minimum CRI configurations
•
roHS compliant
• UL
®
recognized component (E349212)
tAbLE oF ContEnts
Characteristics ......................................
2
Flux Characteristics ..............................
2
Relative Spectral Power Distribution
...
3
relative Flux vs. Junction
Temperature ..........................................
3
electrical Characteristics ...................... 4
relative Flux vs. Current ....................... 4
Typical Spatial Distribution................... 5
Thermal Design ..................................... 5
Reflow Soldering Characteristics
.........
6
Notes ..................................................... 7
Mechanical Dimensions ....................... 8
Tape and reel ........................................
9
Packaging
............................................
10
www.CRee.CoM/XLAMp
Copyright © 2011-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are
registered trademarks and the Cree logo and XM-L™ are trademarks of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
Xm-L™ HVW LED
CHArACtEristiCs
Characteristics
Thermal resistance, junction to solder point
Viewing Angle (FWHM)
Temperature coefficient of voltage
ESD Classification (HBM per Mil-Std-883D)
DC Forward Current
reverse Current
Forward voltage (@ 44 mA, 85 °C)
LeD Junction Temperature
mA
mA
v
°C
46
unit
°C/W
degrees
mV/°C
Minimum
typical
3.5
110
-35
Class 2
125
0.1
55
150
Maximum
FLuX CHArACtEristiCs (t
J
= 85 °C)
The following table provides several base order codes for XLamp XM-L HVW LEDs. It is important to note that the base order codes listed
here are a subset of the total available order codes for the product family. For more order codes, as well as a complete description of the
order-code nomenclature, please consult the XLamp XM-L LeD Binning and Labeling document.
CCt range
Color
Minimum
Maximum
Minimum Luminous Flux @ 44 mA
Group
T3
Cool White
5000 K
8300 K
T4
T5
T2
Neutral White
3700 K
5000 K
T3
T4
S6
Warm White
2600 K
3700 K
T2
T3
Flux (lm) @
85 °C
220
240
260
200
220
240
182
200
220
Flux (lm) @
25 °C*
255
278
301
231
255
278
211
231
255
order Code
XMLHVW-Q0-0000-0000LT351
XMLHVW-Q0-0000-0000LT451
XMLHVW-Q0-0000-0000LT551
XMLHVW-Q0-0000-0000LT2E5
XMLHVW-Q0-0000-0000LT3E5
XMLHVW-Q0-0000-0000LT4E5
XMLHVW-Q0-0000-0000LS6E7
XMLHVW-Q0-0000-0000LT2E7
XMLHVW-Q0-0000-0000LT3E7
Notes:
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on
CRI measurements. See the Measurements section (page 7).
•
Typical CRI for Cool White (5000 K – 8300 K CCT) is 68.
•
Typical CRI for Neutral White (3700 K – 5000 K CCT) is 75.
•
Typical CRI for Warm White (2600 K – 3700 K CCT) is 82.
*
Flux values at 25 °C are calculated and for reference only.
Copyright © 2011-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo and XM-L™ are
trademarks of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
XLamp
®
Xm-L™ HVW LED

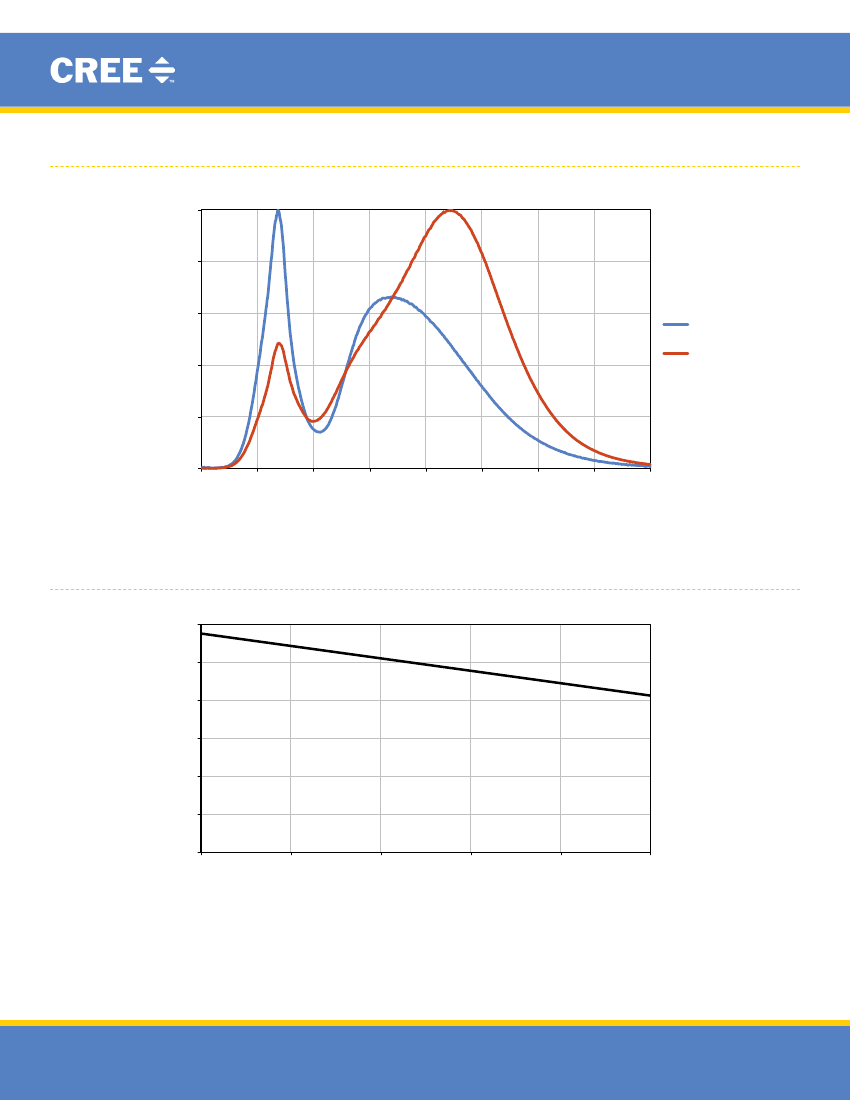

rELAtiVE sPECtrAL PoWEr Distribution
Relative Spectral Power
100%
80%
Relative Radiant Power
60%
5000 K - 8300 K CCT
2600 K - 3700 K CCT
40%
20%
0%
380
430
480
530
580
630
680
730
780
Wavelength (nm)
Relative Flux Output vs. Junction Temperature
rELAtiVE FLuX Vs. JunCtion tEMPErAturE (i
F
= 44 mA)
120%
100%
Relative Luminous Flux
80%
60%
40%
20%
0%
25
50
75
100
125
150
Junction Temperature (ºC)
Copyright © 2011-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo and XM-L™ are
trademarks of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
XLamp
®
Xm-L™ HVW LED
ELECtriCAL CHArACtEristiCs (t
J
= 85 °C)
Electrical Characteristics (Tj = 85ºC)
140
120
100
80
60
Forward Current (mA)
40
20
0
40
42
44
46
48
50
52
Forward Voltage (V)
Relative Intensity vs. Current (Tj = 85ºC)
rELAtiVE FLuX Vs. CurrEnt (t
J
= 85 °C)
250%
Relative Luminous Flux
200%
150%
100%
50%
0%
0
25
50
75
100
125
Forward Current (mA)
Copyright © 2011-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo and XM-L™ are
trademarks of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
Xm-L™ HVW LED
Typical Spatial Radiation Pattern
tyPiCAL sPAtiAL Distribution
100%
Relative Luminous Intensity
80%
60%
40%
20%
-90
-70
-50
-30
-10
0%
10
30
50
70
90
Angle (º)
tHErMAL DEsiGn
Thermal Design
140
120
Maximum Current (mA)
100
80
60
40
20
0
Rj-a = 10 °C/W
Rj-a = 15 °C/W
Rj-a = 20 °C/W
Rj-a = 25 °C/W
0
20
40
60
80
100
120
140
160
Ambient Temperature (ºC)
Copyright © 2011-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo and XM-L™ are
trademarks of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
