SOLID STATE LED LAMP
RECTANGULAR 2 X 5 mm LED LAMPS
MV52123
AlGaAs Red
MV57123
HER
PACKAGE DIMENSIONS
MV53123
Yellow
MV5B123
Blue
MV54123
Green
0.205 (5.2)
0.189 (4.8)
0.085 (2.2)
0.071 (1.8)
0.307 (7.8)
0.283 (7.2)
1.039 (26.4)
MIN
(anode)
0.040 (1.0)
0.100 (2.54)
0.020 (0.5)
NOTES:
1. Dimensions for all drawings are in inches (mm).
2. Lead spacing is measured where the leads emerge from the
package.
3. Protruded resin under the flange is 1.5 mm (0.059") max.
4. Tolerance is ±0.12" (0.3 mm) unless otherwise noted.
DESCRIPTION
This rectangular LED lamp provides a lighted surface area of 2 X 5 mm. The high efficiency red and yellow solid state lamps
contain a GaAsP on GaP light emitting diode. The green lamps utilize a GaP light emitting diode. The blue lamps have a GaN/SiC
chip.
FEATURES
• General purpose indicator
• Selected minimum intensities
• Color diffused lens
• Standard 100 mil. lead spacing
• Long life solid-state reliability
© 2004 Fairchild Semiconductor Corporation
Page 1 of 4
3/24/04
SOLID STATE LED LAMP
RECTANGULAR 2 X 5 mm LED LAMPS
MV52123
AlGaAs Red
MV57123
HER
MV53123
Yellow
MV5B123
Blue
MV54123
Green
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified)
Parameter
Continuous Forward Current - I
F
Peak Forward Current - I
F
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage - V
R
(I
R
= 10 µA)
Power Dissipation - P
D
Operating Temperature - T
OPR
Storage Temperature - T
STG
Lead Soldering Time - T
SOL
BLUE
MV5B123
30
100
10
115
HER
MV57123
30
150
5
100
GREEN
MV54123
30
150
5
100
-40 to +100
-40 to +100
260 for 5 sec
YELLOW
MV53123
25
150
5
100
AlGaAs RED
MV52123
30
150
5
100
Units
mA
mA
V
mW
°C
°C
°C
ELECTRICAL / OPTICAL CHARACTERISTICS
(T
A
=25°C)
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Spectral Line Half Width (nm)
Viewing Angle (°)
4.5
3.8
430
65
100
3.0
2.0
635
35
100
3.0
2.2
565
30
100
3.0
2.1
585
45
100
2.4
1.7
660
40
100
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
2.0
6.0
1.0
4.0
1.0
4.0
1.0
4.0
1.5
5.0
I
F
= 20mA
MV5B123
BLUE
MV57123
HER
MV54123
GREEN
MV5B123
YELLOW
MV5B123
AlGaAs RED
Condition
© 2004 Fairchild Semiconductor Corporation
Page 2 of 4
3/24/04
SOLID STATE LED LAMP
RECTANGULAR 2 X 5 mm LED LAMPS
MV52123
AlGaAs Red
MV57123
HER

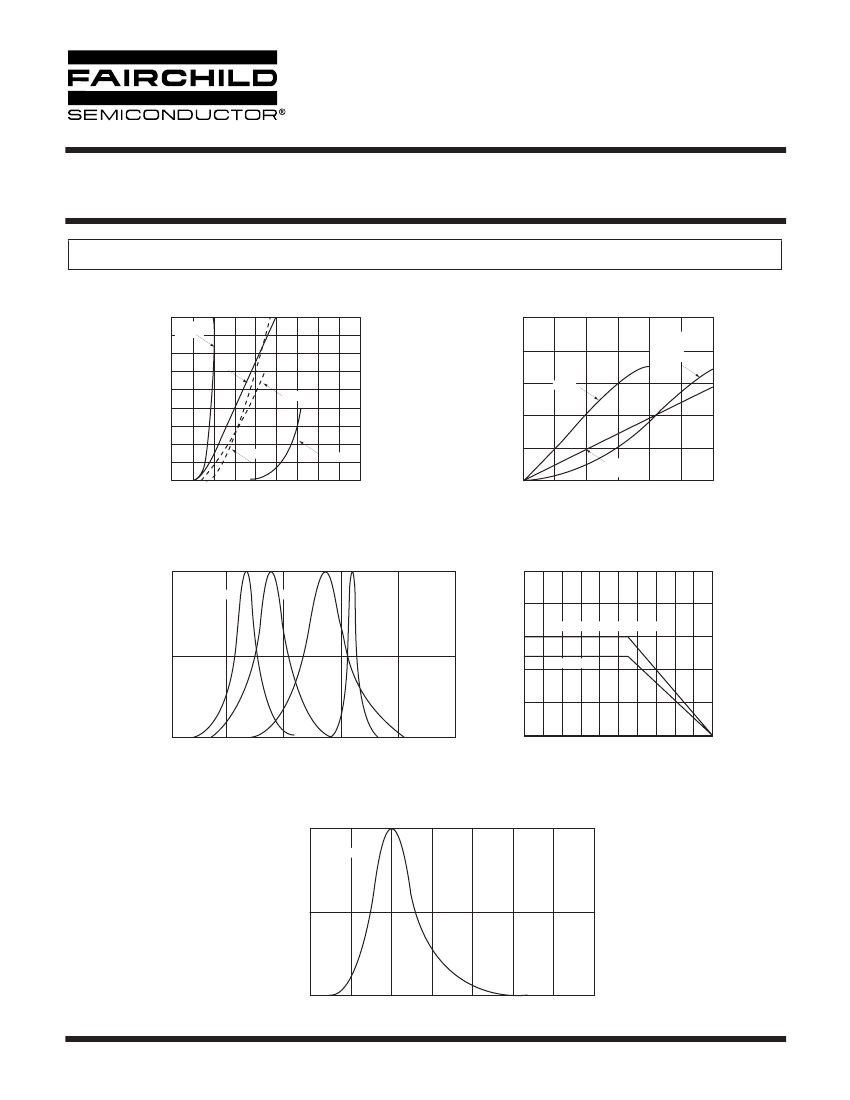

TYPICAL PERFORMANCE CURVES
Fig. 1 Forward Current vs. Forward Voltage
90
2.5
MV53123
Yellow
MV5B123
Blue
MV54123
Green
Fig. 2 Relative Luminous Intensity vs.
DC Forward Current
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
80
AlGaAs
RED
I
F
- FORWARD CURRENT (mA)
70
60
50
YELLOW
40
30
20
10
0
1.0
2.0
3.0
4.0
5.0
GREEN
BLUE
HER
2.0
HER
YELLOW
GREEN
1.5
BLUE
1.0
0.5
AlGaAs
RED
0
5
10
15
20
25
30
0.0
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 3a Relative Intensity vs. Peak Wavelength
1.0
50
Fig. 4 Current Derating Curve
GREEN
YELLOW
AlGaAs RED
I
F
- FORWARD CURRENT (mA)
40
RELATIVE INTENSITY
HER, GREEN, AlGaAs RED, BLUE
30
0.5
20
YELLOW
HER
10
0
500
550
600
650
700
750
0
0
20
40
60
85
100
WAVELENGTH (nm)
T
A
- AMBIENT TEMPERATURE (˚C)
Fig. 3b Relative Intensity vs. Peak Wavelength
1.0
BLUE
RELATIVE INTENSITY
0.5
0
330
380
430
480
530
580
630
680
WAVELENGTH (nm)
© 2004 Fairchild Semiconductor Corporation
Page 3 of 4
3/24/04
SOLID STATE LED LAMP
RECTANGULAR 2 X 5 mm LED LAMPS
MV52123
AlGaAs Red
MV57123
HER
MV53123
Yellow
MV5B123
Blue
MV54123
Green
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body, or
(b) support or sustain life, and (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in a significant injury of the user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
© 2004 Fairchild Semiconductor Corporation
Page 4 of 4
3/24/04
