MTAN7115M-11A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MTAN7115M-11A

MTAN7115M-11A: DescriptionMarktech 1.50 8x8 Dot Matrix; CategoryLED optoelectronic/LED photoelectric; File Size38KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric Compare View All

MTAN7115M-11A Overview

Marktech 1.50 8x8 Dot Matrix

MTAN7115M-11A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
color@wavelength	Red
Display height	33.32 mm
Maximum forward voltage	2.2 V
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	8 X 8 DOT MATRIX LED DISPLAY
peak wavelength	660 nm
Base Number Matches	1

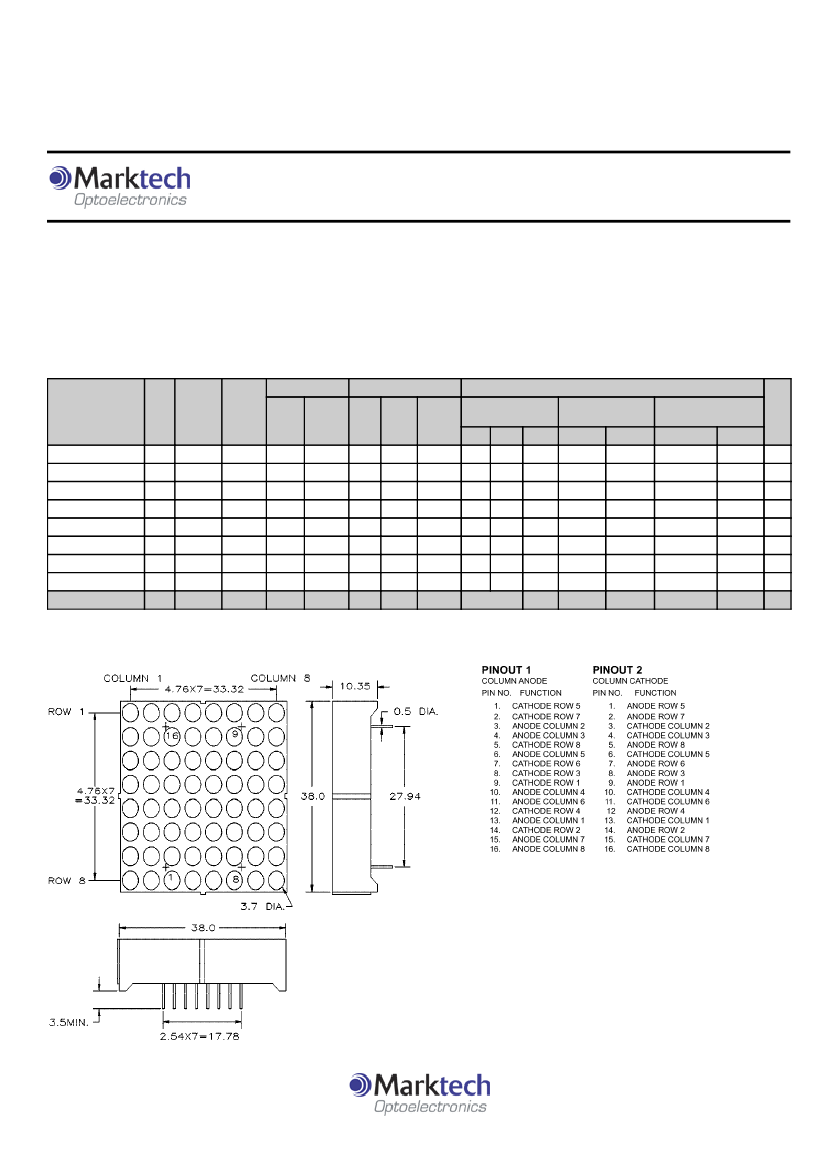

Preview

Download Datasheet

View All

Marktech 1.50" 8x8 Dot Matrix

Features

Additional Colors/Materials Available

Excellent Character Appearance

High Light Output

IC Compatible

Low Current Requirments

Other face/epoxy colors are available

Applications

Message Signs

VMS

Notes

All Dimensions are in millimeters.

Tolerance is ±0.25mm unless otherwise stated.

The slope angle of any pin may be ±5.0° MAX.

Operating Temperature: −25 ~ +85

Storage Temperature: −25 ~ +100

Specifications subject to change without notice.

Part Number

PWL Material Emitted

λp

Color

Face Colors

Epoxy Surface

Color

Maximum Ratings

Optical and Electrical Characteristics

Forward Voltage

typ.

max.

3.00

2.20

IF@

20mA

−

Reverse Current

max.

100

µA

VR@

−

Luminous Intensity

typ. dot

4.00

4.60

18.00

mcd

IF@

10mA

−

Out

MTAN2115−11A

MTAN2115−21C

MTAN4115−11A

MTAN4115−21C

MTAN4115R−11A

MTAN4115R−21C

MTAN7115M−11A

MTAN7115M−21C

Units

567

635

660

GaP

GaAsP

GaAlAs

−

SBUR

−

White

Red

White

−

Gray

Red

Black

−

5.00

4.00

85.00

70.00

2.10

1.70

−

Package Dimensions and Pin Functions

Company Headquarters

3 Northway Lane North

Latham,

New York 12110

Toll Free: 800.984.5337

Fax: 518.785.4725

Web: www.marktechopto.com | Email: info@marktechopto.com

West Coast Sales Office

950 South Coast Drive, Suite 265

Costa Mesa, California 92626

Toll Free: 800.984.5337

Fax:

714.850.9314

MTAN7115M-11A Related Products

	MTAN7115M-11A	MTAN2115-11A	MTAN2115-21C	MTAN4115-11A	MTAN4115-21C	MTAN7115M-21C	MTAN4115R-21C	MTAN4115R-11A
Description	Marktech 1.50 8x8 Dot Matrix	Marktech 1.50 8x8 Dot Matrix	Marktech 1.50 8x8 Dot Matrix	Marktech 1.50 8x8 Dot Matrix	Marktech 1.50 8x8 Dot Matrix	Marktech 1.50 8x8 Dot Matrix	Marktech 1.50 8x8 Dot Matrix	Marktech 1.50 8x8 Dot Matrix
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	-
color@wavelength	Red	Gree	Gree	Orange-Red	Orange-Red	Red	Orange-Red	-
Display height	33.32 mm	33.32 mm	33.32 mm	33.32 mm	33.32 mm	33.32 mm	33.32 mm	-
Maximum forward voltage	2.2 V	3 V	3 V	3 V	3 V	2.2 V	3 V	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-
Optoelectronic device types	8 X 8 DOT MATRIX LED DISPLAY	8 X 8 DOT MATRIX LED DISPLAY	8 X 8 DOT MATRIX LED DISPLAY	8 X 8 DOT MATRIX LED DISPLAY	8 X 8 DOT MATRIX LED DISPLAY	8 X 8 DOT MATRIX LED DISPLAY	8 X 8 DOT MATRIX LED DISPLAY	-
peak wavelength	660 nm	567 nm	567 nm	635 nm	635 nm	660 nm	635 nm	-
