LSP-6WW015 Overview

LED Lighting Modules LUMISPOT 6 W WHT W 1 5 DG OPTIC

LSP-6WW015 Parametric

Parameter Name	Attribute value
Product Category	LED Lighting Modules
Manufacturer	DIALIGHT
RoHS	Details
Product	LED Light Engines
Number of LEDs	6
Illumination Color	White (Neutral White)
Wavelength/Color Temperature	3300 K
Luminous Flux/Radiant Flux	20 lm
If - Forward Current	350 mA
Vf - Forward Voltage	3.42 V
Packaging	Bulk
Color Temperature	3300 K
Diameter	69 mm
Height	15.5 mm
Housing Material	Aluminum
Mounting Style	Screw, Adhesive
Power Rating	7.2 W
Size	69 mm x 15.5 mm
Factory Pack Quantity	1
Type	LED Single Point Lighting
Viewing Angle	15 deg

Preview

Download Datasheet

View All

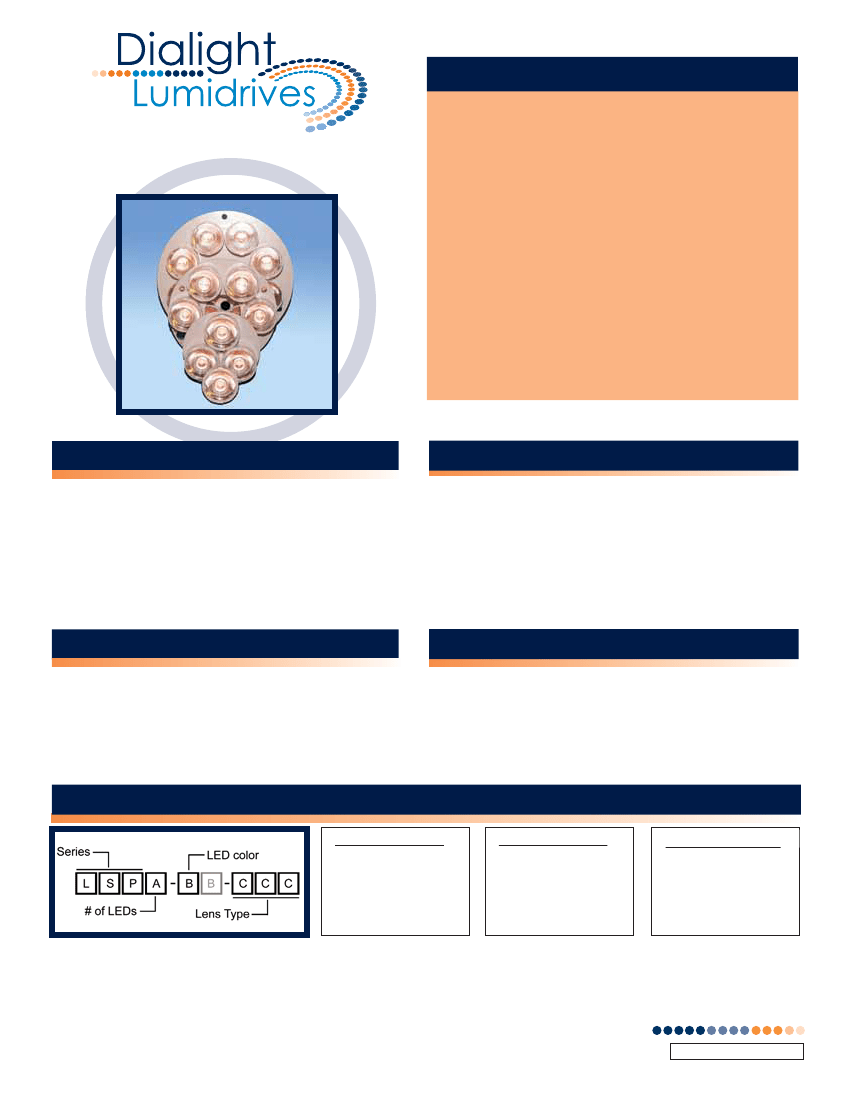

FEATURES / BENEFITS

Extremely long life of 50,000 hours at 55ºC PCB

temperature

Durable F-Form optics holder allow for easy changing

of 4 lens options (5, 15, 25 degree + 5x20 degree

oval)*

Available in 6 colors (cool white, warm white, red,

blue, green, amber)

Aluminium based PCB for easier heat dissipation

and more efficient operation

Units with production dates of 8/07 or later come

with 22 AWG 12” lead wires pre-attached

(red+ / black-)

LUMISPOT

LED LIGHT ENGINES

SINGLE COLOR

Patents pending

OPERATING CONDITIONS

Recommended PCB temp=55ºC

Maximum PCB temp = 105ºC

LED Life @ 55ºC PCB temp = 50,000 hours

For maximum performance efficiency and longevity,

all “LumiSpot” LED Light Engines should be screwed

or affixed using thermal adhesive to an appropriate

heat sink

Maximum current = 350mA

Thermal conductivity = 1.3W/m-k

Breakdown voltage = 2kV

APPLICATIONS

Any application requiring efficiency & long life in a circular,

flood, spot or oval light pattern.

MECHANICAL DIMENSIONS

Height (all models including lens) = 15.5mm (0.61”)

Spot1, Diameter = 21.5mm (0.85”)

Spot3, Diameter = 48.0mm (1.89”)

Spot6, Diameter = 69mm (2.72”)

(inside diameter = 23mm) (0.91”)

Spot9, Diameter = 90mm (3.54”)

Lead wire length 12” (on equipped models)

MATERIALS/FINISH

LUXEON

I LEDS

1.6mm Aluminium clad PCB substrate

White solder resist finish

PART NUMBERS

# of LEDs (A)

1 = 1 LED / Spot 1

3 = 3 LEDs / Spot 3

6 = 6 LEDs / Spot 6

9 = 9 LEDs / Spot 9

LED Color (B)

W = Cool White

WW = Warm White

R = Red

G = Green

B = Blue

A = Amber

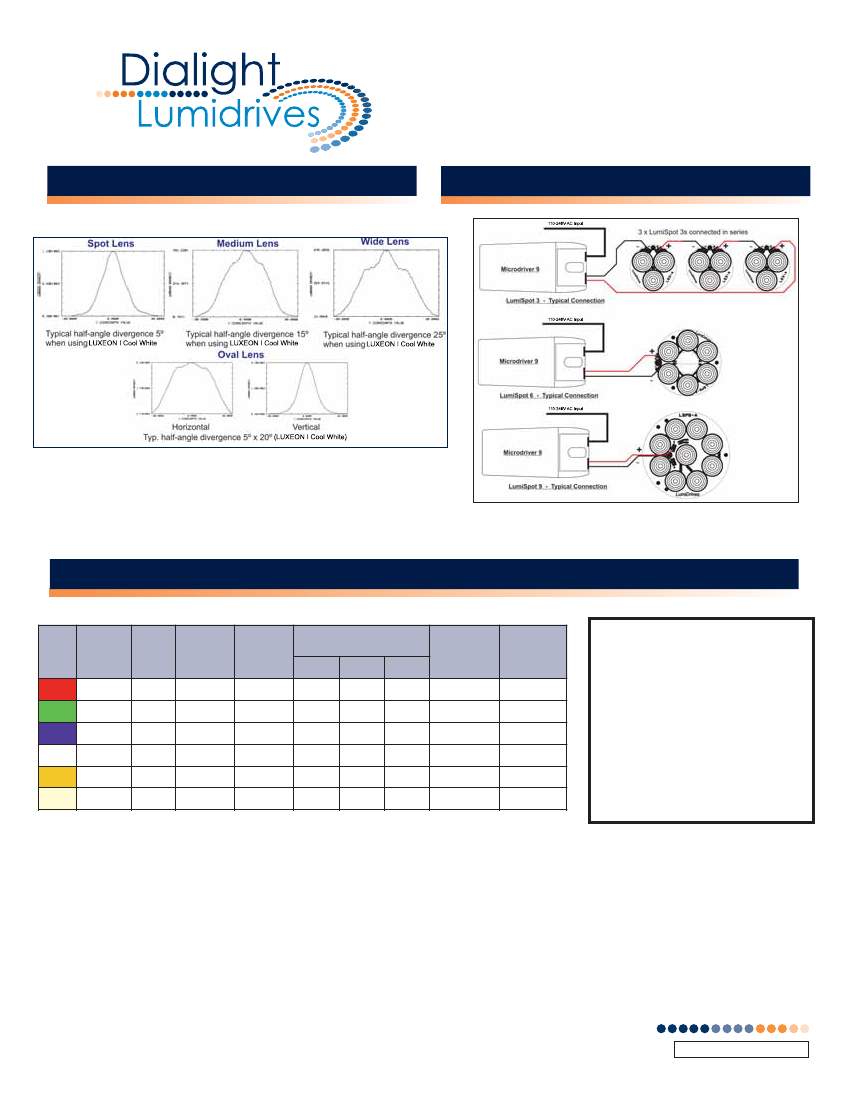

LENS Type (CCC)**

005 = 5 Degree

015 = 15 Degree

025 = 25 Degree

520 = 5 X 20 Degree

XXX = no lens*

* This figure indicates half-divergence angle

** Lens to be purchased and installed seperately

Dialight Corporation

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEXLUMSPOT_D
