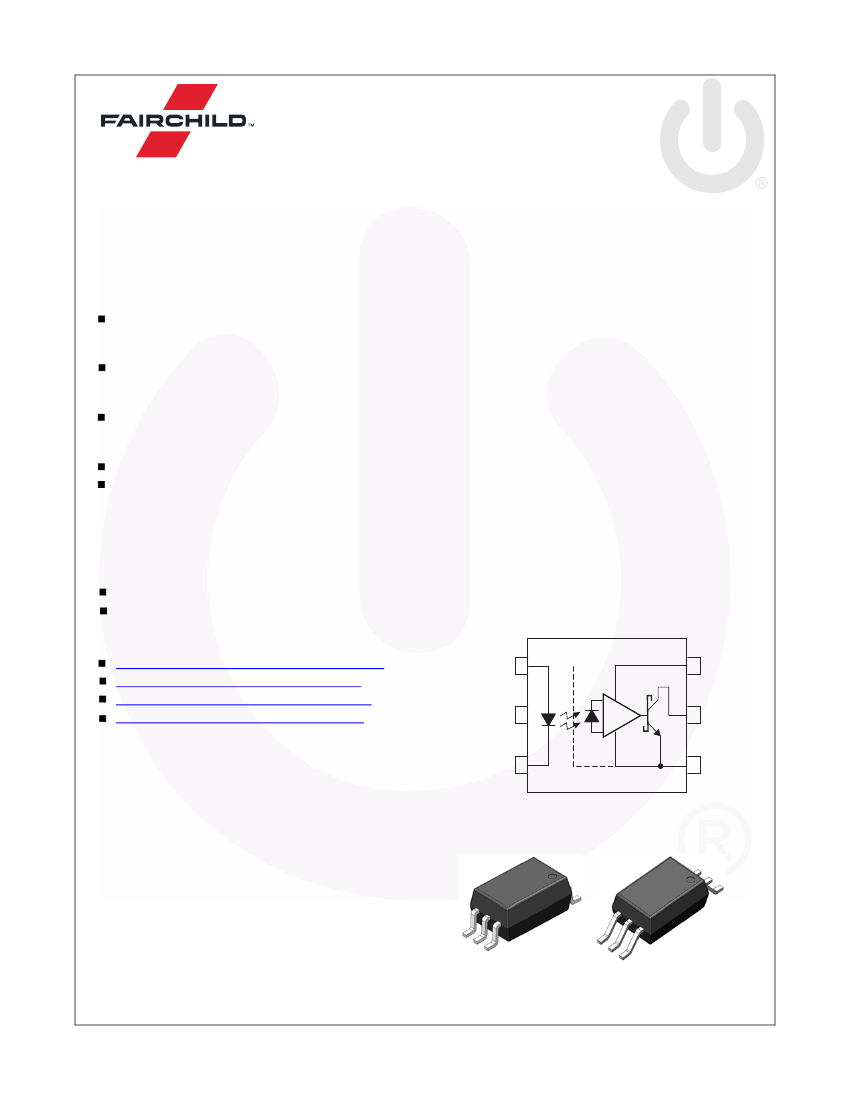

FOD8163, FOD8163T — 3.3 V / 5 V, 10 Mbit/sec, Logic Gate Optocoupler in Stretched Body SOP 6-Pin
March 2016
FOD8163, FOD8163T
3.3 V / 5 V, 10 Mbit/sec, Logic Gate Optocoupler in
Stretched Body SOP 6-Pin
Features
• 8 mm Creepage and Clearance Distance, and
0.4 mm Insulation Distance to Achieve Reliable and
High Voltage Insulation
• High Noise Immunity Characterized by Common
Mode Transient Immunity (CMTI)
– 20 kV/s Minimum CMTI
• Specifications Guaranteed Over 3 V to 5.5 V Supply
Voltage and -40°C to 100°C Extended Industrial
Temperature Range
• High-Speed, 10 Mbit/s Data Rate (NRZ)
• Safety and Regulatory Approvals
– UL1577, 5,000 VAC
RMS
for 1 Minute
– DIN-EN/IEC60747-5-5, 1,140 V Peak Working
Immunity Insulation Voltage
Description
The FOD8163 series is a 3.3 V / 5 V high-speed logic
gate optocoupler with open-collector output, which
supports isolated communications allowing digital
signals to communicate between systems without
conducting ground loops or hazardous voltages.
The FOD8163 series utilizes stretched body package to
achieve 8 mm creepage and clearance distances
(FOD8163T), and optimized IC design to achieve reliably
high-insulation voltage and high-noise immunity.
The FOD8163 series consists of an aluminium gallium
arsenide (AlGaAs) light emitting diode and an integrated
high-speed photodetector. The output of the detector IC
is an open collector schottky-clamped transistor. The
electrical and switching characteristics are guaranteed
over the extended industrial temperature range of -40°C to
