Application:

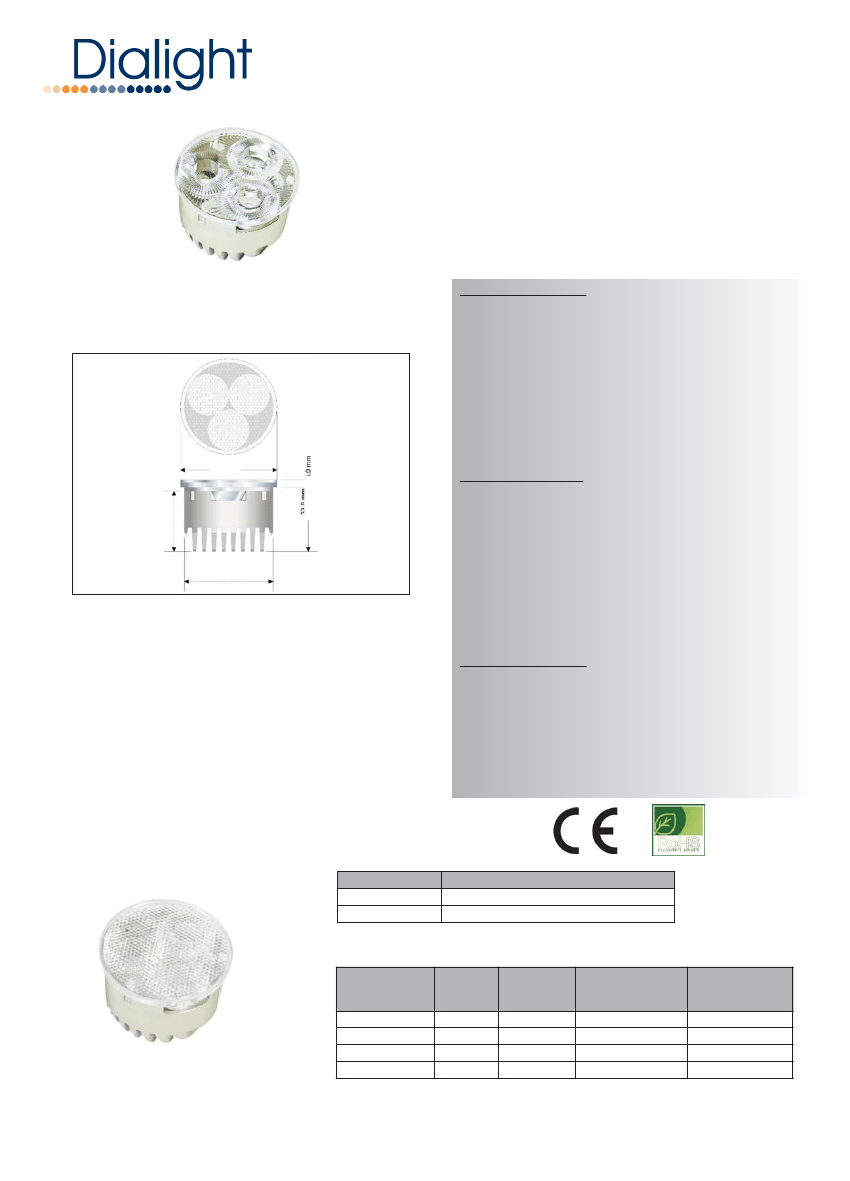

Dialight's HL16 modules feature 3 high flux LEDs complete with heatsink.
Comparable to a traditional MR16 size, the HL16 modules can also be
easily retrofitted into existing MR16 housings. The HL16 works well in
exterior architecture, landscape, accent and display case applications
HL16 LED LIGHT ENGINE
Mechanical Information
Container Dimensions:
Diameter = 50.0mm (1.97”)
Height = 36.0mm (1.42”), 37.5mm
(1.48”) with sub lens attached
Lead length = 150mm (5.91
94g
MR16 type housings
(supplied by others)
Container Weight:
4.0mm
Mounting:
50mm
31.5mm
35.5mm
Electrical specifications
Power Consumption:
Operating Temperature:
3.6 watts
-10ºC to +40ºC
350mA
Die cast heatsink
Acrylic lens
46mm
Drive Current:
Housing:
Lens:
Features & Benefits:
w
Easy plug and play wiring options
w
Long operating life typically 50,000 hours
w
Optimised thermal management
w
Onboard driver option
w
Selectable beam angles
w
Full range of light output colours
w
Low heat
w
No UV
Photometric Information
CCT:
6,500K (cool white)
3,200K (neutral white
Cool White - 300lm
Warm White - 180lm
Intial Lumen Output:
All values typical unless otherwise stated
HL16 with Wide Lens
Order Codes:
Part Number
HL16-W
HL16-WW
Description
LED light engine, cool white
LED light engine, warm white
Compatible Drivers:
Part Number
MDU93570
MLD8-C-35170
MDU-18-V-25-100
MND70
Maximum
number of
HL16s
3
2
4
3
Supply
Voltage
Dimming
Dimensions
100 x 40 x 25 mm
111 x 52 x 23.5 mm
110 x 49 x 25 mm
99 x 39 x 23.5mm
110-240VAC
X
230VAC
X
230VAC
Via 0-10V dimmer
110 – 240VAC Trailing edge dimmer
www.dialight.com
Operating Characteristics
Wide Optic
Spot Optic

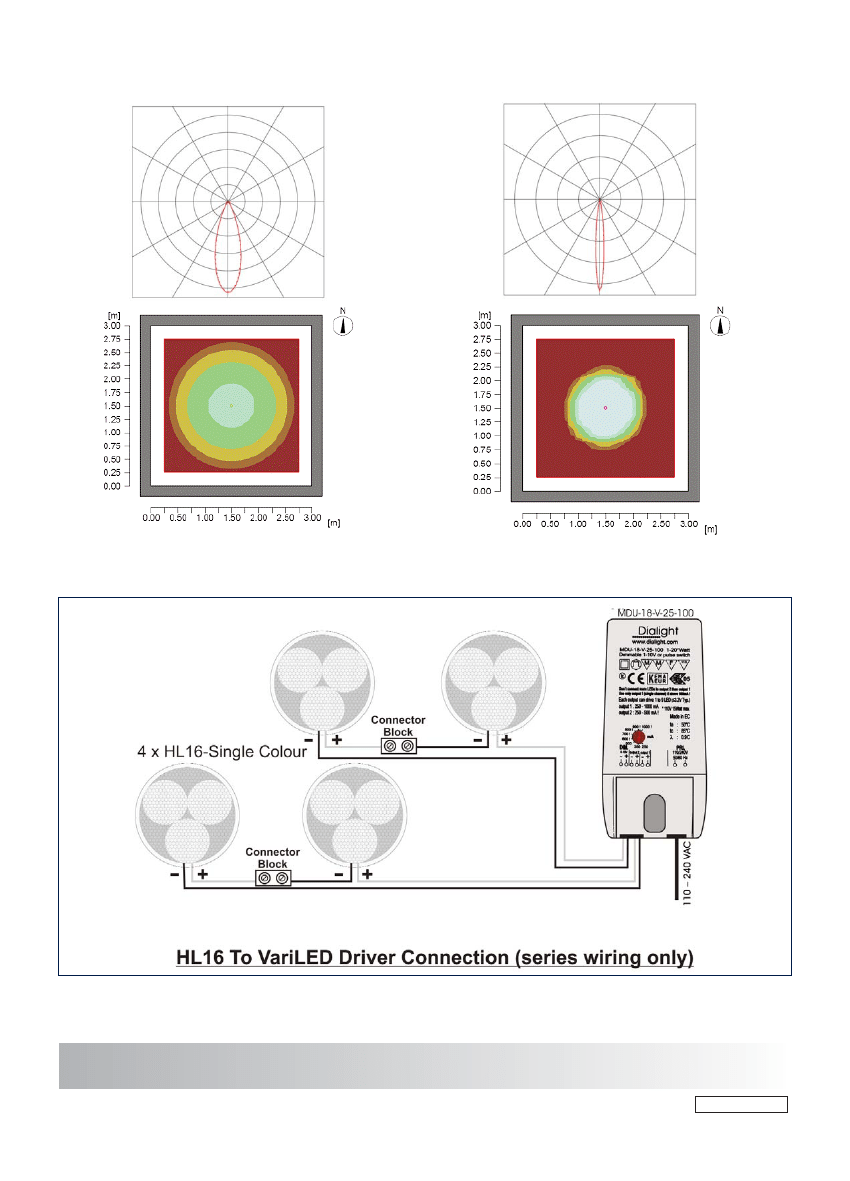

Typical Wiring Examples
Dialight reserves the right to make changes at any time in order to supply the best product possible.
The most current version of this document will always be available at:
www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXLUMHL16.pdf
MDEXLUMHL16_D
