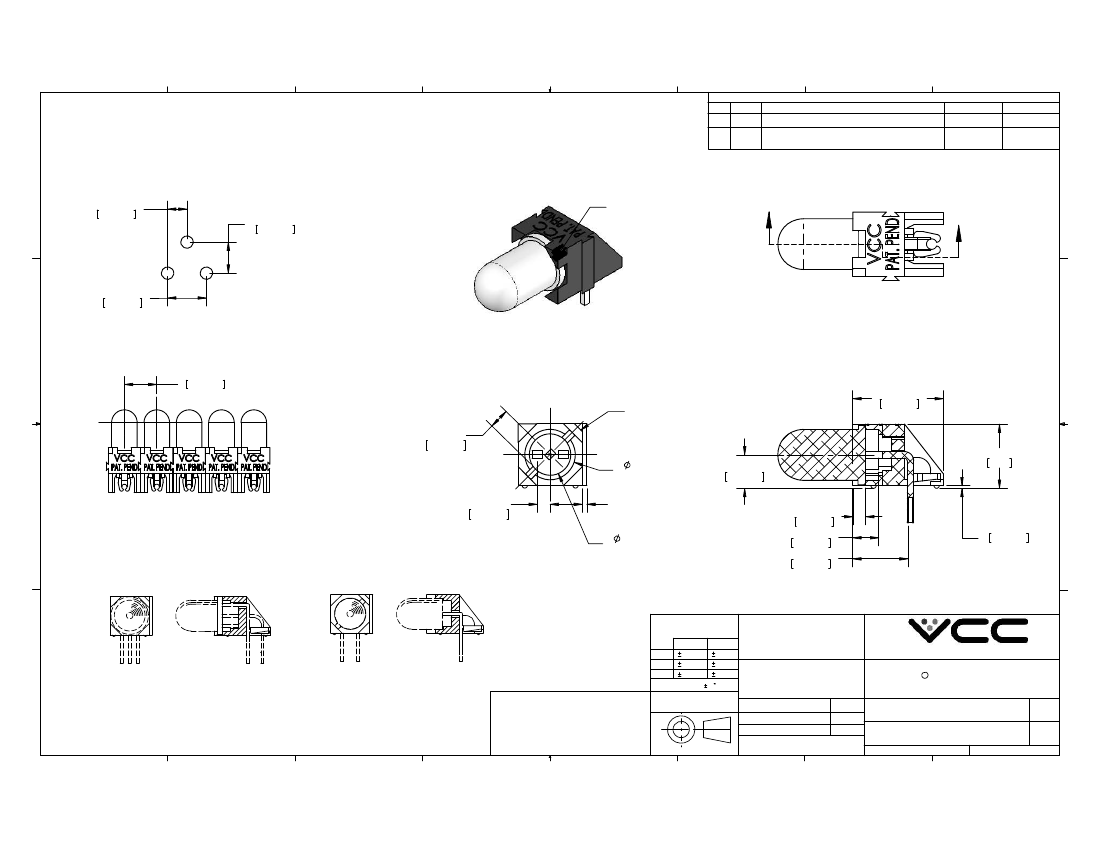

NOTES:
1.
LED MOUNTING: for 5mm LEDs - round or rectangular shape with or without flange. Bi-lead,
standard .100 [2.54mm] lead spacing. Tri-lead, either .050 [1.27mm] or .100 [2.54mm] lead
spacing. Both the bi-lead and tri-lead LEDs can also be combined in arrays with one another.
2.
ASSEMBLY: Can be used as a single LED mount or banded together in an array with its dove-
tail interlocking feature. When banded together with the PCH 175 the LEDs are on .250
[6.35mm] centers.
3.
MATERIAL: Housing - Nylon 6/6, U.L. 94 V0 Rating, Color black (unless otherwise spec.)
4.
U.S. & Foreign Pat. Issued & Pend.
5.
LED shown for illustrative purposes.
.050
1.27mm
POLARITY
REF.
D
.080
2.03mm
A
A
.100
2.54mm
PCB HOLE
PATTERN
C
C
.250
6.35mm
TYP
2X
.100
2.54mm
POLARITY
REF.
.350
8.89mm
.195
[4.95mm]
B
.125
3.18mm
.248
6.30
ARRAY MOUNTING
2X
.050
1.27mm
.20
[0.51mm]
.156
[3.96mm]
B
.050
1.27mm
.100
2.54mm
.220
5.59mm
.010
0.25mm
TYP
SECTION A-A
SCALE 4 : 1
DIMENSION STYLE: INCHES [MM]
GENERAL TOLERANCES UNLESS
OTHERWISE SPECIFIED
MATERIAL
NYLON 6/6, UL 94-V0, BLACK
(UNLESS OTHERWISE SPEC.)
FINISH
A
TRI - LEADS
BI - LEADS
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
VISUAL COMMUNICATIONS COMPANY, LLC.
ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF VISUAL COMMUNICATIONS
COMPANY, LLC IS PROHIBITED.
.X
.XX
.XXX
INCHES
.020
.010
.005
ANGLE 1
MM
.508
.254
.127
12780 DANIELSON CT, SUITE A, POWAY, CA 92064 U.S.A
PHONE: (800) 522-5546 EMAIL: vccsales@vcclite.com
TITLE:
P-C-LITE
APPROVAL
DRAWN:
SMU
DATE
6/20/10
6/20/10 DRAWING #
SCALE: 1:1
PART #
R
A
RT ANGLE MOUNT
SIZE
BREAK ALL CORNERS AND
SHARP EDGES .030 MAX
PCH_175
PCH 175
1
B
REV
CHECKED:
DZ
THIRD ANGLE PROJECTION
002
SHEET 1 OF 1
DO NOT SCALE DRAWING
8
7
6
5
4
3
2
