7.6mmX7.6mm SUPER FLUX LED LAMP
WP7676CSEC/H
HYPER ORANGE
Features
SUPER FLUX OUTPUT.
DESIGN FOR HIGH CURRENT OPERATION.
OUTSTANDING MATERIAL EFFICIENCY.
RELIABLE AND RUGGED.
RoHS COMPLIANT.
UV RATED EPOXY.
Description
This devices are made with TS InGaAIP.

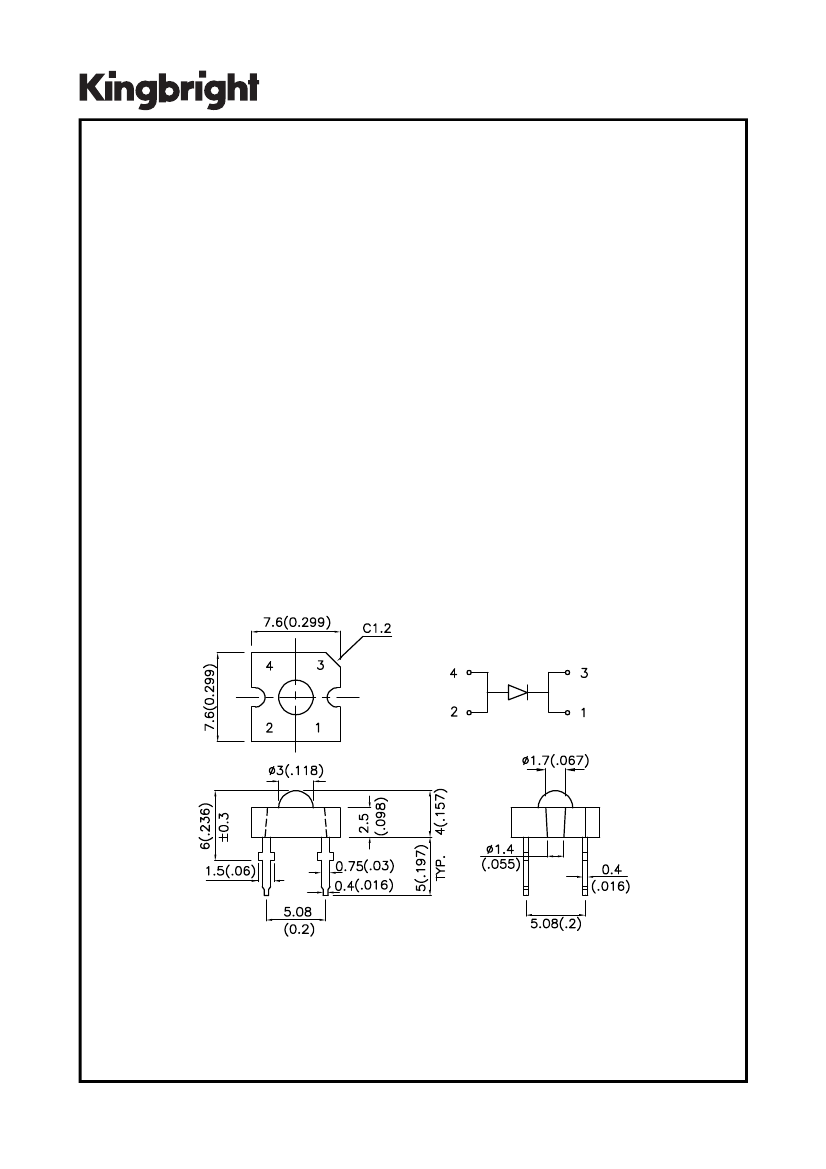

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAF2275
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/15/2005
DRAWN: B.H.LI
PAGE: 1 OF 4
ERP: 1101010222
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA*70mA
Min.
1500
WP7676CSEC/H
HYPER ORANGE (InGaAlP)
WATER CLEAR
*4700
Notes:
1.θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. * Luminous intensity with asterisk is measured at 70mA under 40ms pulse width.
3.Drive current between 10mA and 30mA are recommended for long term performance.
4.Operation at current below 10mA is not recommended.
Viewing
Angle
2
θ
1/2
70°
Typ.
1800
*7000
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Orange
Hyper Orange
Hyper Orange
Hyper Orange
Hyper Orange
Hyper Orange
Typ.
640
630
25
27
2.2
2.8
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Hyper Orange
196
70
150
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAF2275
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/15/2005
DRAWN: B.H.LI
PAGE: 2 OF 4
ERP: 1101010222

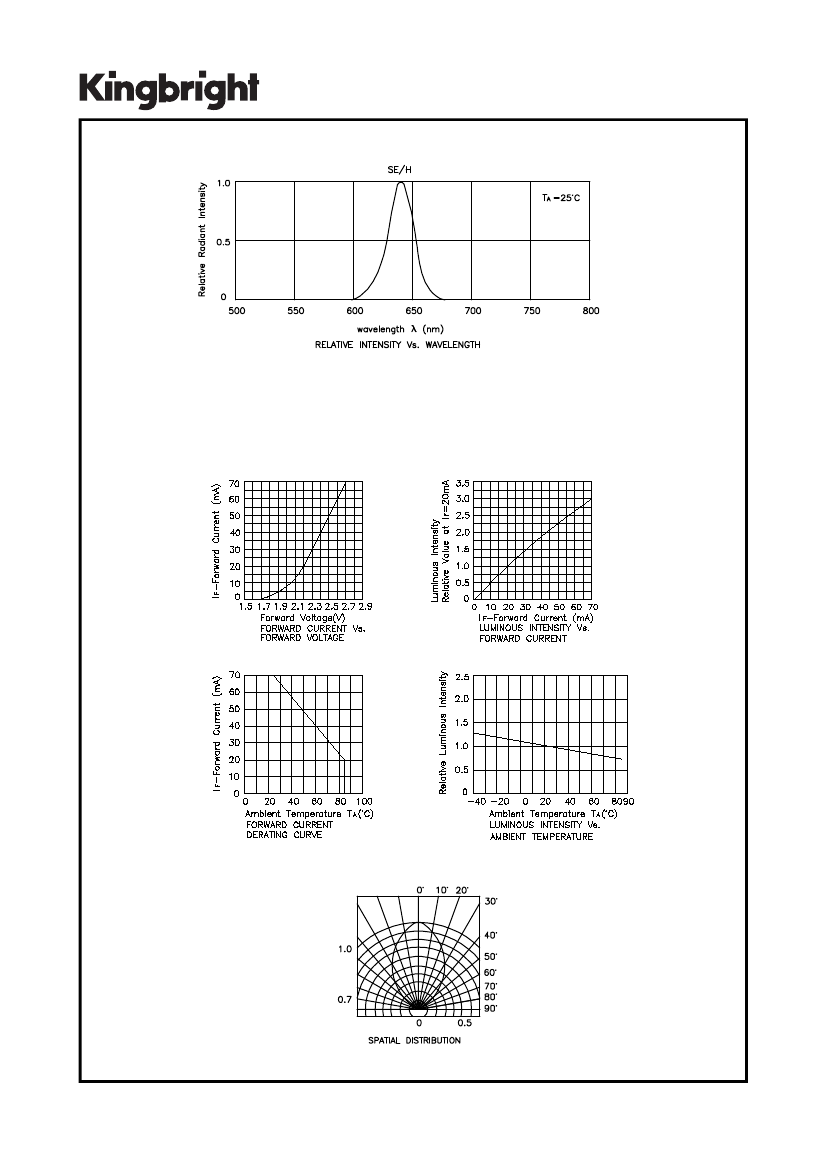

Hyper Orange
WP7676CSEC/H
SPEC NO: DSAF2275
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/15/2005
DRAWN: B.H.LI
PAGE: 3 OF 4
ERP: 1101010222
PACKING & LABEL SPECIFICATIONS
WP7676CSEC/H
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAF2275
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/15/2005
DRAWN: B.H.LI
PAGE: 4 OF 4
ERP: 1101010222
