Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow solder process.
․Multi-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
22-23 SMD LED is much smaller than lead frame type components, thus enable smaller board size,
higher packing density, reduced storage space and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for miniature applications. etc.
Applications
• Backlighting in dashboard and switch.
• Telecommunication: indicator and backlighting in telephone and fax.
• Flat backlight for LCD, switch and symbol.
• General use.
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : 29-Apr-2013 Issue No: DSE-0002063 Rev:5
www.everlight.com
DATASHEET
SMD
B
22-23/R6GHBHC-A01/2C
Device Selection Guide
Chip
Materials
AlGaInP
InGaN
InGaN
Emitted Color
Brilliant Red
Brilliant Green
Blue
Water Clear
Resin Color
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Operating Temperature
Storage Temperature
Electrostatic Discharge(HBM)
Soldering Temperature
Symbol
V
R
I
F
I
FP
Rating
5
R6:25
GH:25
BH:25
R6:60
GH:95
BH:100
R6:60
GH:95
BH:95
-40 ~ +85
-40 ~ +90
R6:2000
GH:2000
BH:2000
Unit
V
mA
mA
Pd
T
opr
Tstg
ESD
HBM
T
sol
mW
℃
℃
V
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : 29-Apr-2013 Issue No: DSE-0002063 Rev:5
www.everlight.com
DATASHEET
SMD
B
22-23/R6GHBHC-A01/2C
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
Min.
R6 45.0
GH 112
BH
28.5
-----
R6 -----
GH -----
BH
-----
R6 615
GH 510
BH
460
R6 -----
GH -----
BH
-----
R6 1.7
GH 2.7
BH
2.7
R6 -----
Typ.
-----
-----
-----
120
632
518
468
-----
-----
-----
20
35
25
2.0
3.3
3.3
-----
Max.
180
450
112
-----
-----
-----
-----
630
540
480
-----
-----
-----
2.4
3.7
3.7
10
Unit
Condition
Luminous Intensity
Viewing Angle
Peak Wavelength
Iv
2θ
1/2
λp
mcd
deg
nm
Dominant Wavelength
λd
nm
I
F
=20mA
Spectrum Radiation Bandwidth
Δλ
nm
Forward Voltage
Reverse Current
V
F
I
R
V
μA
V
R
=5V
Note:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : 29-Apr-2013 Issue No: DSE-0002063 Rev:5
www.everlight.com
DATASHEET
SMD
B
22-23/R6GHBHC-A01/2C
R6
Bin Range of Luminous Intensity
Bin Code
P
Q
R
Min.
45.0
72.0
112
Max.
72.0
112
180
Unit
mcd
Condition
I
F
=20mA
GH
Bin Range of Luminous Intensity
Bin Code.
R
S
T
Min.
112
180
285
Max.
180
285
450
Unit
mcd
Condition
I
F
=20mA
BH
Bin Range of Luminous Intensity
Bin Code
N
P
Q
Note:
Tolerance of Luminous Intensity: ±11%
Min.
28.5
45.0
72.0
Max.
45.0
72.0
112
Unit
mcd
Condition
I
F
=20mA
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : 29-Apr-2013 Issue No: DSE-0002063 Rev:5
www.everlight.com
DATASHEET
SMD
B
22-23/R6GHBHC-A01/2C

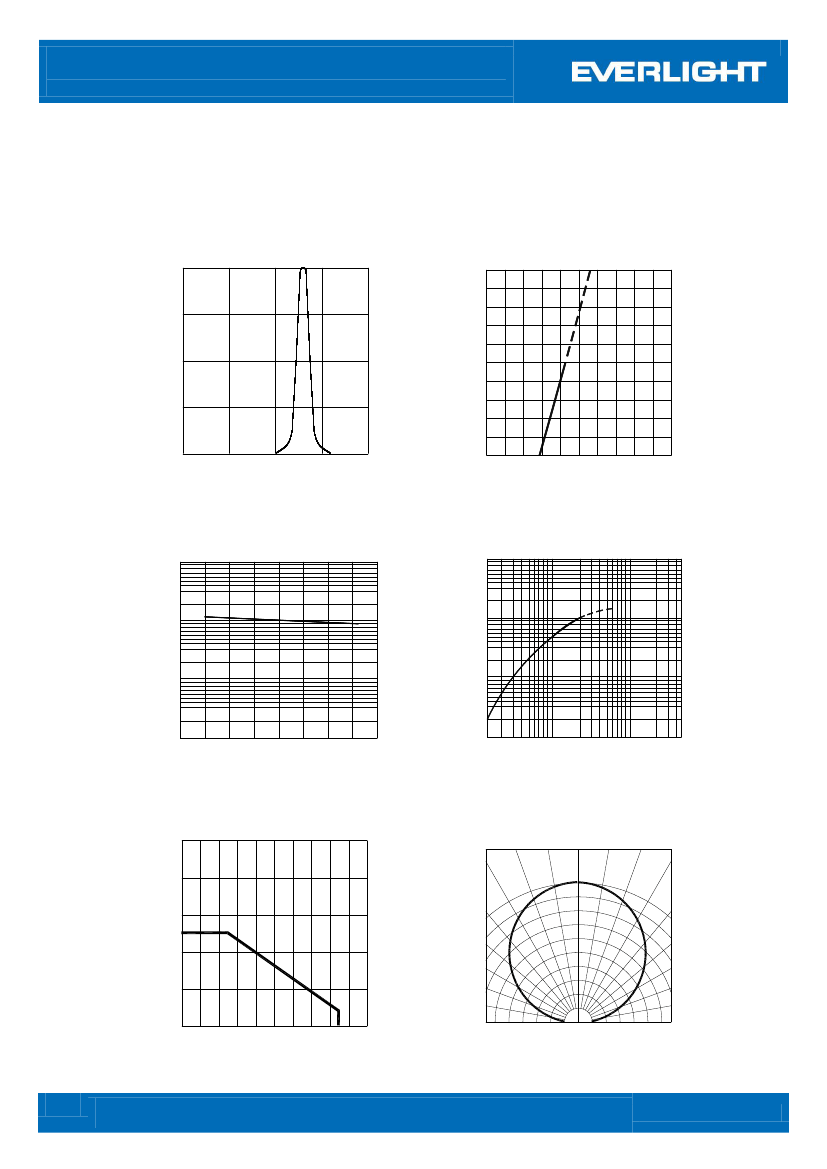

Typical Electro-Optical Characteristics Curves
R6
Spectrum Distribution
Forward Current I
F
(mA)
Forward Current vs.
Forward Voltage
Ta=25°C
50
40
30
25
20
10
Ta=25°C
Relative luminous intensity (%)
100
75
50
25
0
500
550
600
650
Wavelength λ (nm)
700
0
1.2
1.6 2.0
2.4 2.8 3.0
Forward Voltage V
F
(V)
Luminous Intensity vs.
Forward Current
Ta=25°C
Luminous Intensity vs.
Ambient Temperature
Relative luminous intensity (%)
Relative luminous intensity (%)
1000
1000
100
100
10
10
1
-60 -40 -20
0 20 40 60 80 100
1
0
10
10
1
10
2
Ambient Temperature Ta (°C)
Forward Current Derating Curve
Forward Current I
F
(mA)
Forward Current I
F
(mA)
Radiation Diagram
0°
Ta=25°C
30°
50
40
30
25
20
10
0
0
20
1.0
0.9
0.8
0.7
10° 20°
40°
50°
60°
70°
80°
90°
0.5 0.3
0.1 0.2 0.4 0.6
40
60
85
100
Ambient Temperature Ta (°C)
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : 29-Apr-2013 Issue No: DSE-0002063 Rev:5
www.everlight.com
