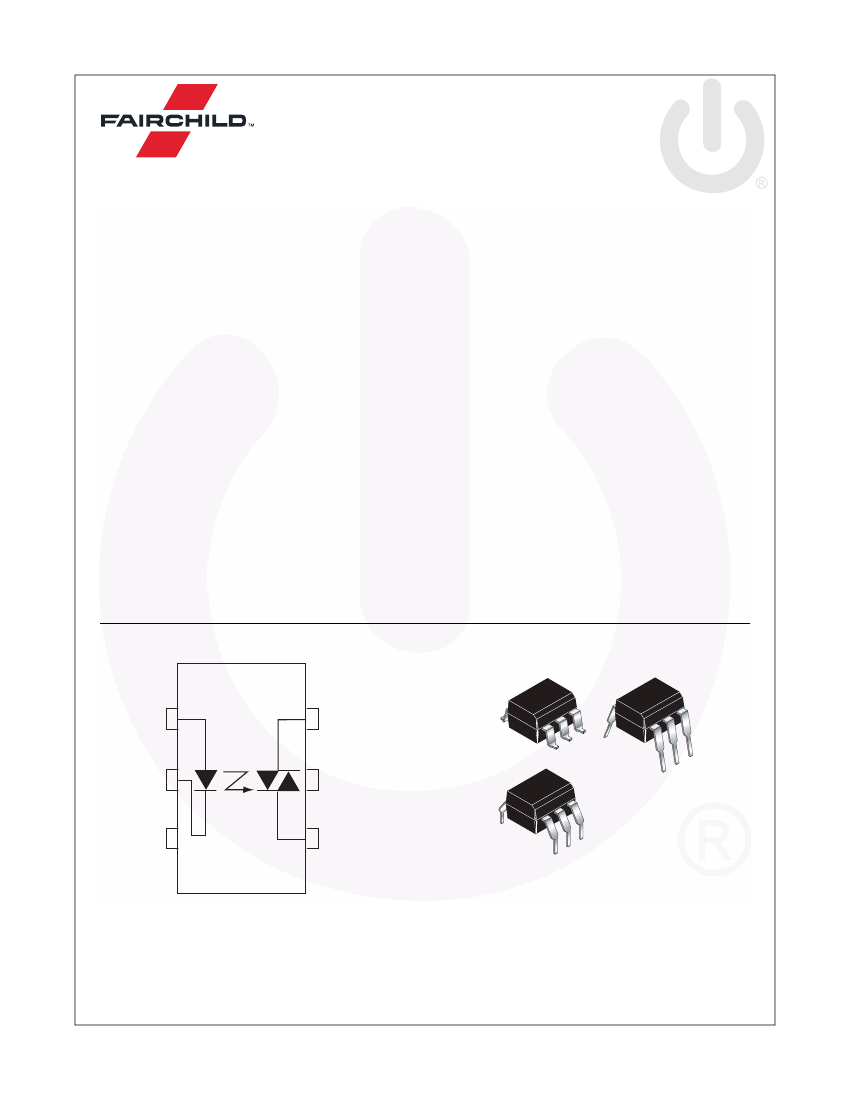

FOD420, FOD4208, FOD4216, FOD4218 — 6-Pin DIP High dv/dt Random Phase Triac Drivers
October 2016
FOD420, FOD4208, FOD4216, FOD4218
6-Pin DIP High dv/dt Random Phase Triac Drivers
Features
• 300 mA On-State Current
• High Blocking Voltage
– 600 V (FOD420, FOD4216)
– 800 V (FOD4208, FOD4218)
• High Trigger Sensitivity
– 1.3 mA (FOD4216, FOD4218)
– 2 mA (FOD420, FOD4208)
• High Static dv/dt (10,000 V/μs)
• Safety and Regulatory Approvals:
– UL1577, 5,000 VAC
RMS
for 1 Minute
– DIN-EN/IEC60747-5-5
Description
The FOD420, FOD4208, FOD4216 and FOD4218
devices consist of an infrared emitting diode coupled to a
hybrid random phase triac formed with two inverse paral-
lel SCRs which form the triac function capable of driving
discrete triacs. The FOD4216 and FOD4218 utilize a
high efficiency infrared emitting diode which offers an
improved trigger sensitivity. These devices are housed in
