SPECIFICATION
Aug-21-2009
OF
LIQUID CRYSTAL DISPLAY MODULE
CUSTOMER :
Model No. :
Model version :
UMSH-3267MD-UB
0
0
TENTATIVE
Document Revision :
CUSTOMER APPROVED SIGNATURE
This specification need to be signed by purchaser or customer as a specification of products
production and delivery from Microtips. Without signature of this specification , any purchase
order for this model no. will be treated and considered that this specification is automatically
acknowledged and accepted by purchaser or customer.
MICROTIPS USA TECHNOLOGY
Allen Wang
APPROVED
George Tseng
CHECKED
Angus Chiu
CHECKED
Sharon Tsai
PREPARED
Aug-21-2009
Date
COMPANY :
3504 Lake Lynda Drive, Ste. 110, Orlando, FL 32817. USA
TEL: 407-273-0204
Revision 0 ; UMSH-3267MD-UB Ver. 0 ; August-21-2009
Page: 1
This document has been signed by Digital Signature Approval System
Revision record
Document
Revision
0
Model No.
Version No.
UMSH-3267MD-UB
(UBSH-M150EN)
Version No. 0
Description
Revision
by
Ken Lin
Wen-Chie Chi
21-Aug-2009
Revision 0 ; UMSH-3267MD-UB Ver. 0 ; August-21-2009
Page: 2
CONTENTS:
No.
1
Item
BASIC SPECIFICATION
1.1 Mechanical Specification
1.2 Display Specification
1.3 Outline Dimension
1.4 Block Diagram
1.5 Interface Pin
ELECTRICAL CHARACTERISTICS
2.1 Absolute Maximum Ratings
2.2 Command Sequence
2.3 Standard Character Pattern
2.4 DC Characteristics
2.5 Back-light Characteristics
2.6 AC Characteristics
OPTICAL CHARACTERISTICS
3.1 Condition
3.2 Definition of Optical Characteristics
Page
4
4
5
6
7
2
8
9
10
11
12
13~14
3
15
16
4
RELIABILITY
17
5
PRODUCT HANDING AND APPLICATION
18
6
DATECODE
19
7
PACKING & LOTNO
20~21
8
INSPECTION STANDARD
22~25
Revision 0 ; UMSH-3267MD-UB Ver. 0 ; August-21-2009
Page: 3
1. BASIC SPECIFICATION
1.1 Mechanical specifications
Items
Character Line
Module Size (W x H x T)
Viewing Area (W×H )
Active Area (W x H)
Character Font ( W × H )
Character Size ( W × H )
Character Pitch ( W × H )
Dot Size (W×H)
Dot Pitch (W x H)
Driving Method
Driving IC Package
Module Weight
Nominal Dimension
20×2 Chars
37.0 x 116.0 x 17.2
73.8 x 16.5
70.8 x 11.5
5×8 dots
3.065 × 5.56
3.565 × 5.94
0.585 x 0.66
0.62 x 0.7
1/ 8
1/ 4
COB
46
Unit
Pixel
mm.
mm.
mm.
mm.
mm.
mm.
mm.
mm.
Duty
Bias
-
g
1.2 Display specification
Display
LCD Type
LCD Mode
Polarizer Mode
Polarizer UV - Cutting
Polarizer Surface
Backlight Type
Backlight Color
Viewing Direction
Descriptions
2.95” UB
Negative
Transmissive
Without
Normal
LED
White
6 O'clock Direction
Note
-
-
-
-
-
-
Color tone is slightly changed by temperature and driving voltage.
Revision 0 ; UMSH-3267MD-UB Ver. 0 ; August-21-2009
Page:
4

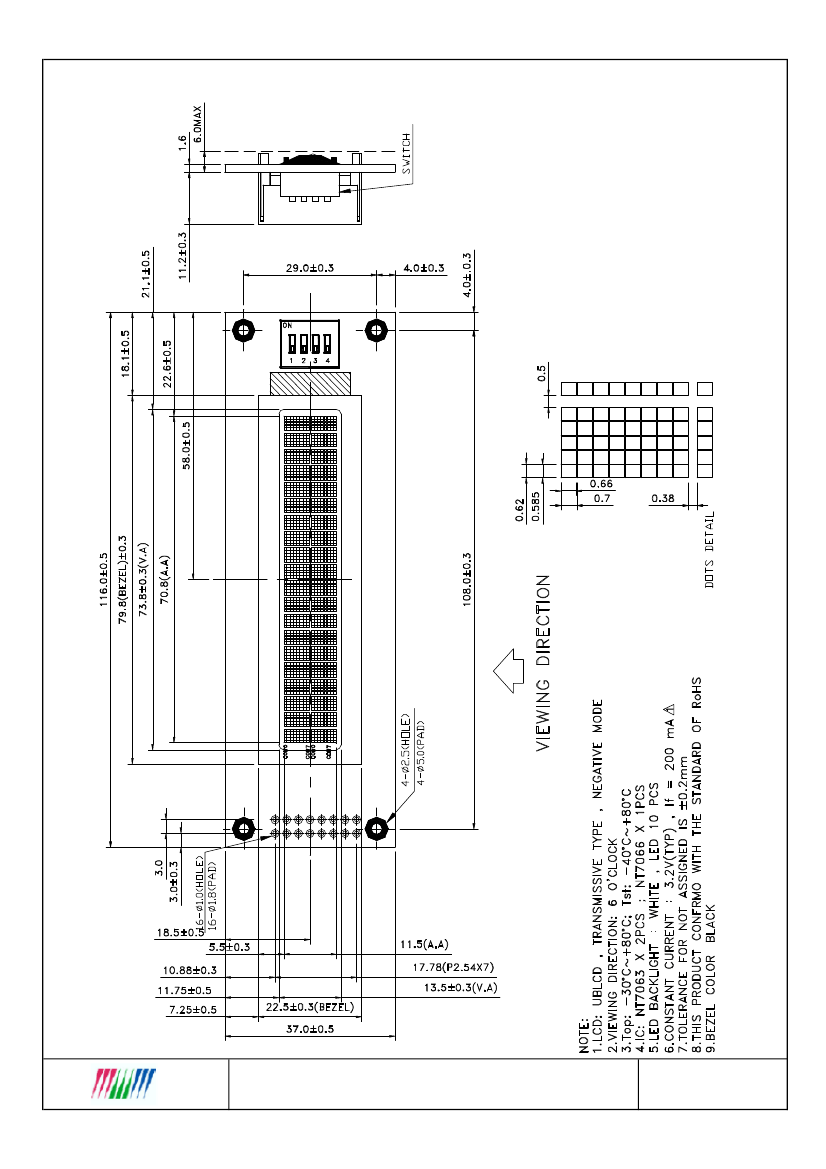

1.3 Outline dimension
15(NC)
16(NC)
2(VCC)
1(GND)
Revision 0 ; UMSH-3267MD-UB Ver. 0 ; August-21-2009
Page: 5
：
