1.6x0.8mm SMD CHIP LED LAMP
Part Number: APHK1608ZGC
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
1.6mmx0.8mm SMT LED, 0.7mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Various colors and lens types available.

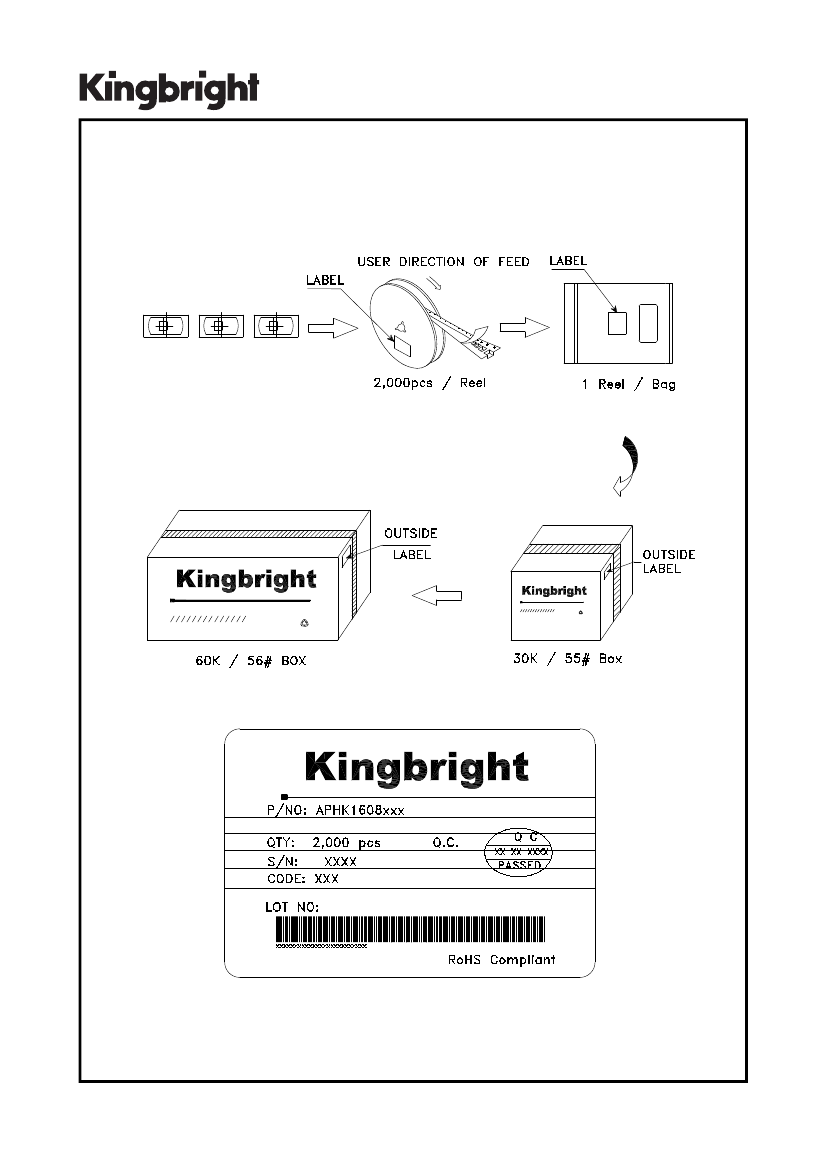

Package : 2000pcs / reel.
Moisture sensitivity level : level 4.
RoHS compliant.
Description
The Green source color devices are made with InGaN
on Sapphire Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

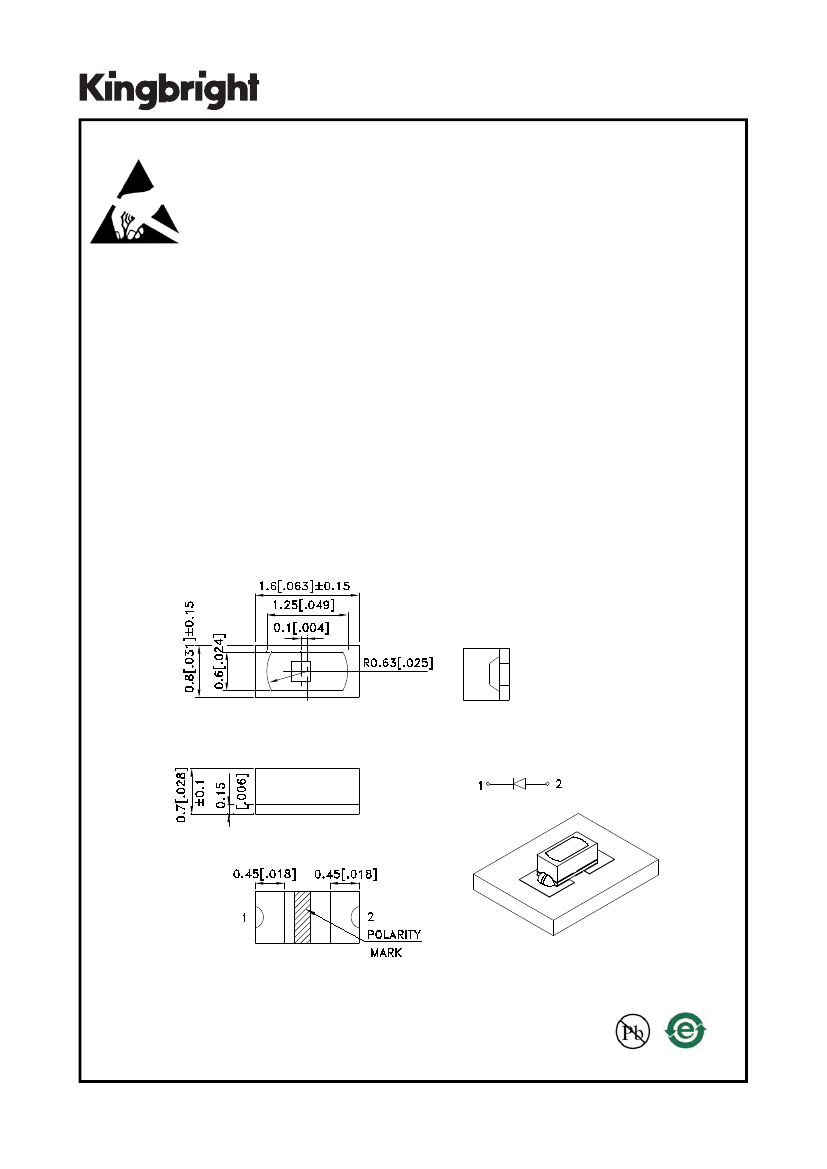

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.1(0.004") unless otherwise noted.
3.Specifications are subject to change without notice.
4.The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH3759
APPROVED: WYNEC
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/26/2009
DRAWN: X.J.Guo
PAGE: 1 OF 5
ERP: 1204000530
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
APHK1608ZGC
Green (InGaN)
WATER CLEAR
180
Typ.
500
Viewing
Angle [1]
2θ1/2
90
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.

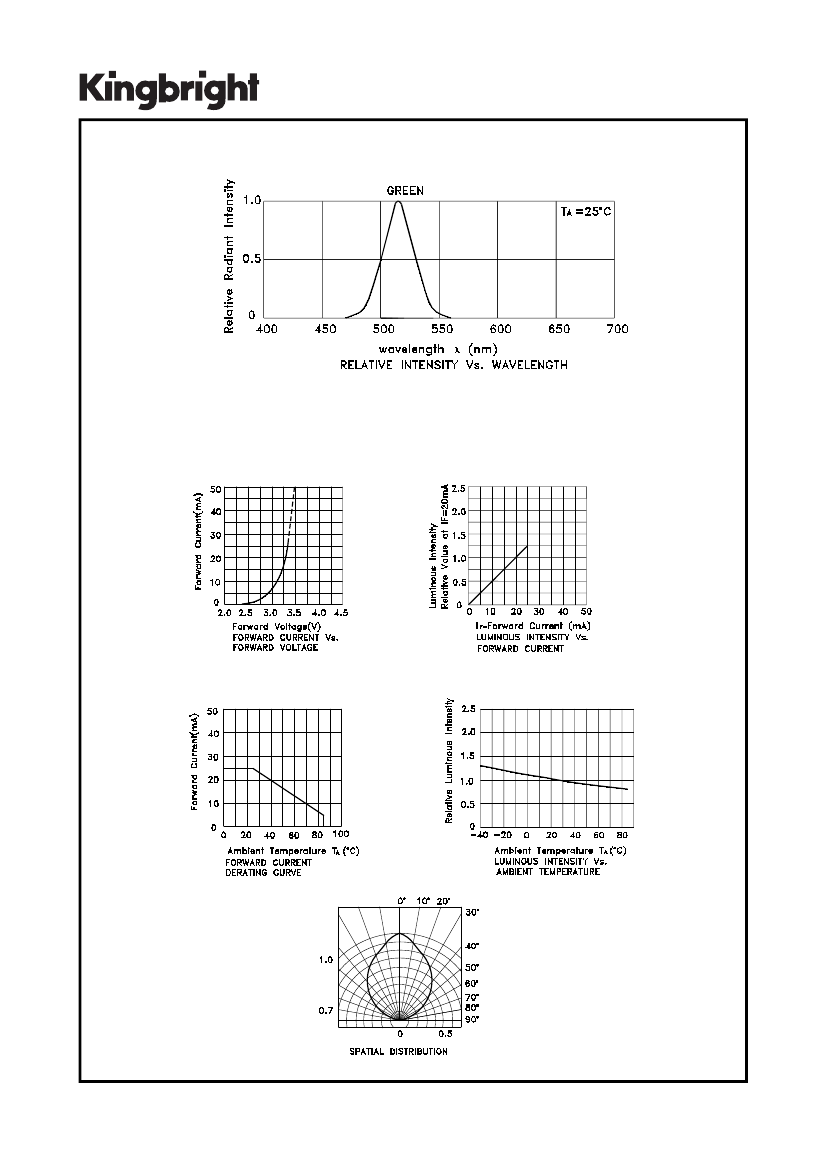

Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
515
525
30
45
3.3
4.1
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Green
102.5
25
150
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAH3759
APPROVED: WYNEC
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/26/2009
DRAWN: X.J.Guo
PAGE: 2 OF 5
ERP: 1204000530
APHK1608ZGC

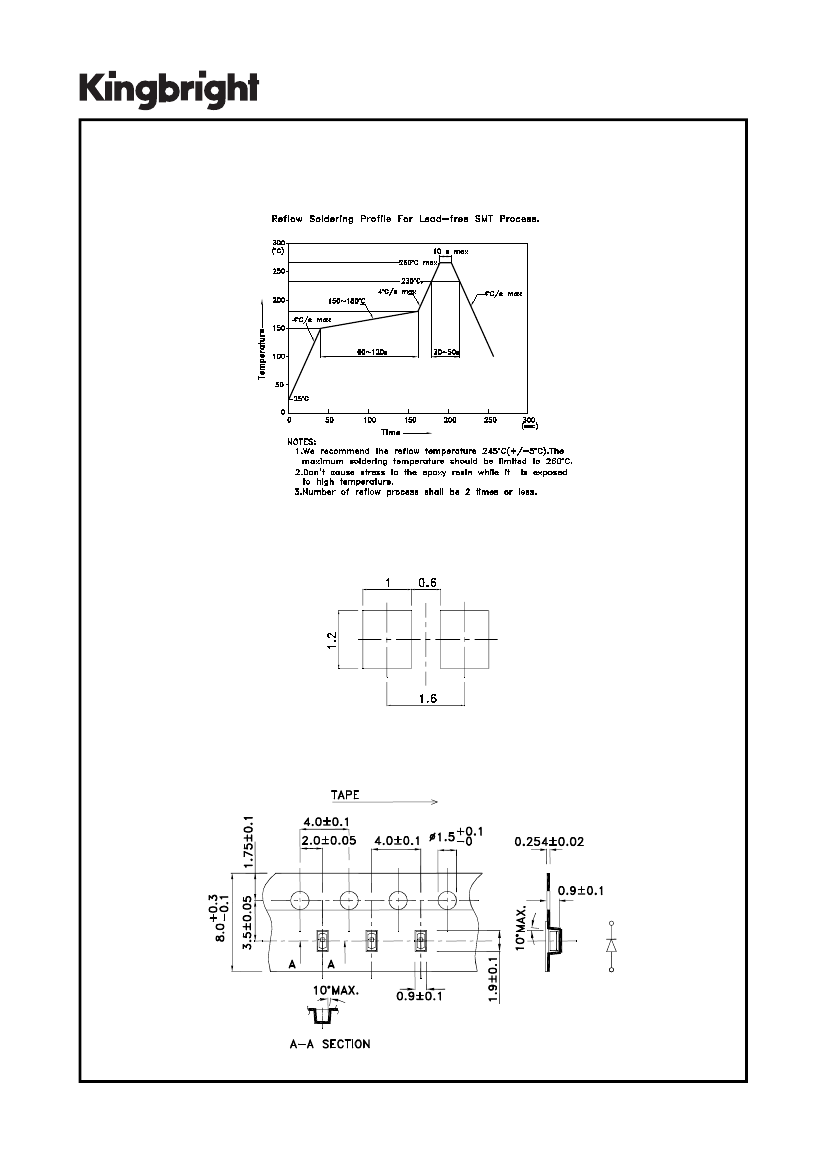

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Tape Dimensions
(Units : mm)
SPEC NO: DSAH3759
APPROVED: WYNEC
REV NO: V.2
CHECKED: Allen Liu
DATE: MAR/26/2009
DRAWN: X.J.Guo
PAGE: 4 OF 5
ERP: 1204000530
PCB Design
