LEDIL F’FORM OPTICS

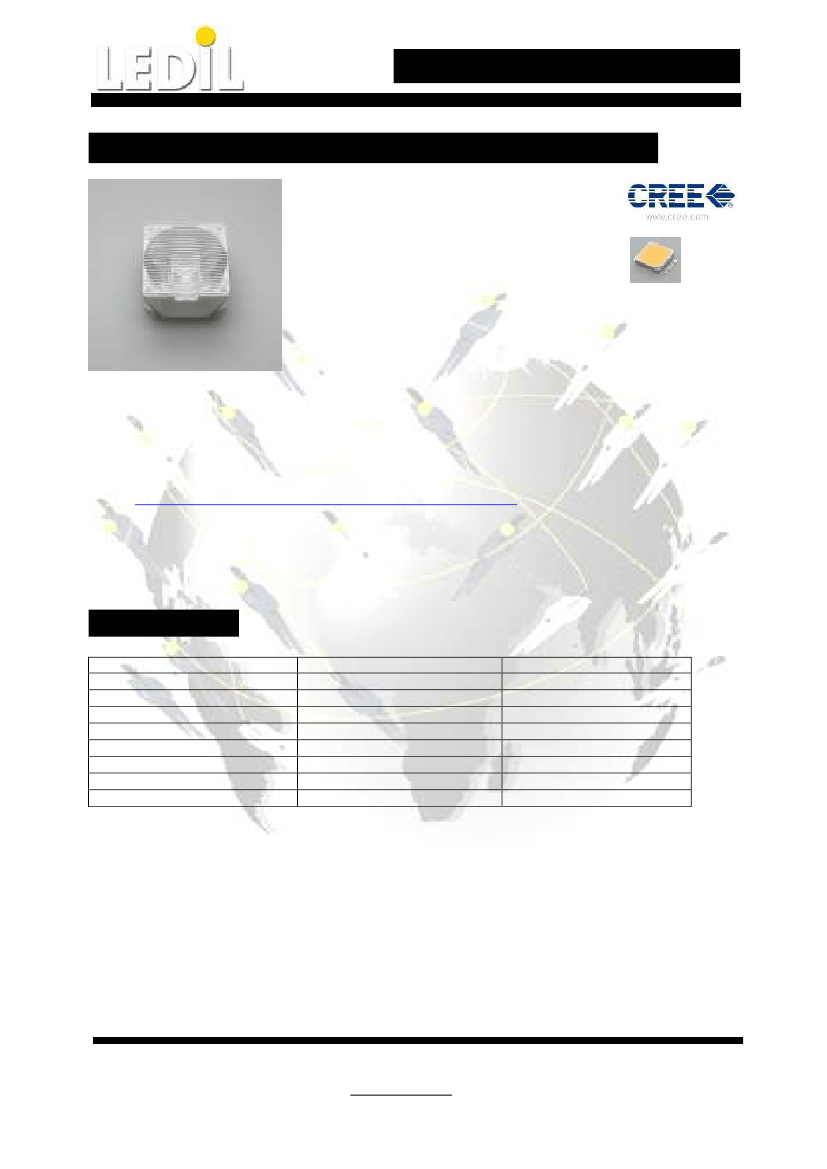

MX6 SQUARE lenses for CREE MX-6 LEDs
-
-
-
-
-
-
-
Specially designed for CREE MX-6 series of LEDs
Special care taken to make a uniform white or warm white illumination.
Lens material optical grade PC with high UV and temperature resistance(130°C/220°F)
Best available optical efficiency, up to >90%, with an extremely good cutoff of light
Integrated holder. Fastening to heat sink with a PU foam adhesive tape of automotive
grade. Please check fastening details from this link:
(http://www.ledil.com/datasheets/DataSheet_TAPE.pdf)
We advise customer to ensure the suitability and sufficiency of the bond in the end
product. For example, mechanical stress, vibration and holes on the surface of the
circuit boar weaken the strength of the tape.
Compact dimensions 21.6 x 21.6 mm. Square form enables easy build of matrix
without any gaps between lenses.
LENS TYPES
NAME

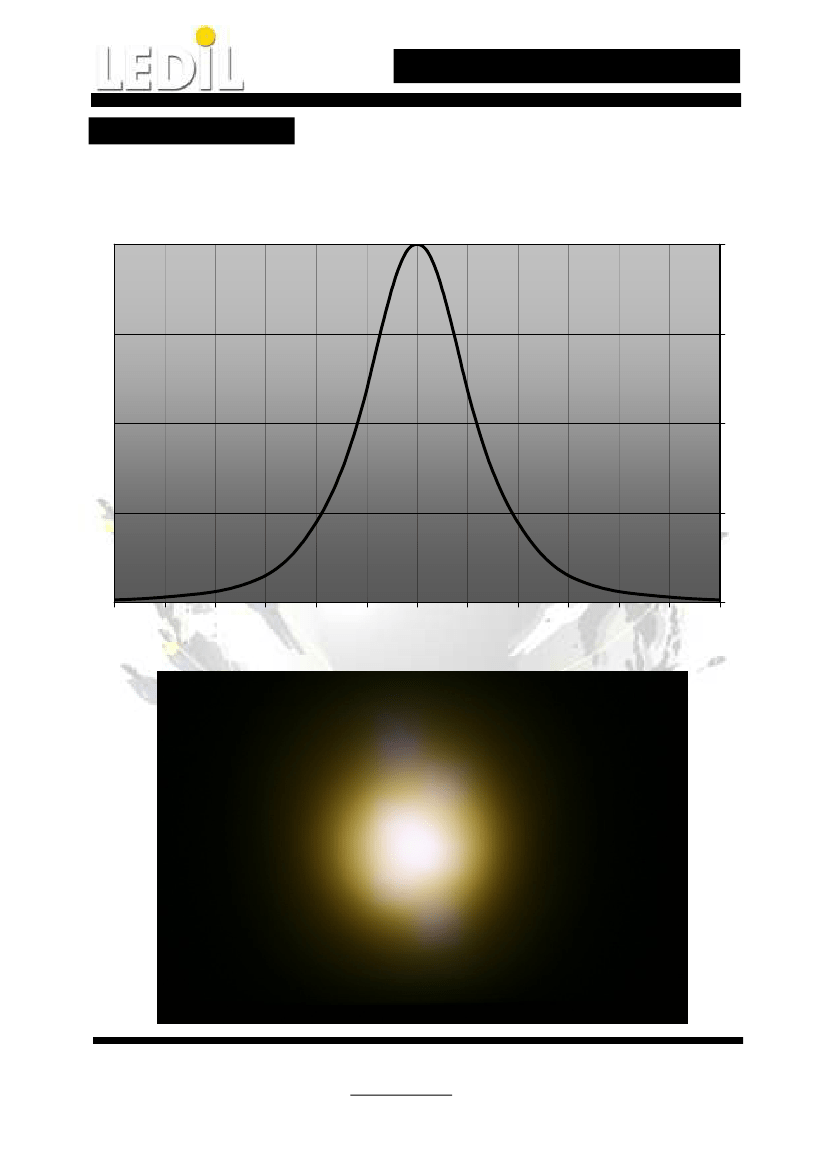

MX6 REAL SPOT*

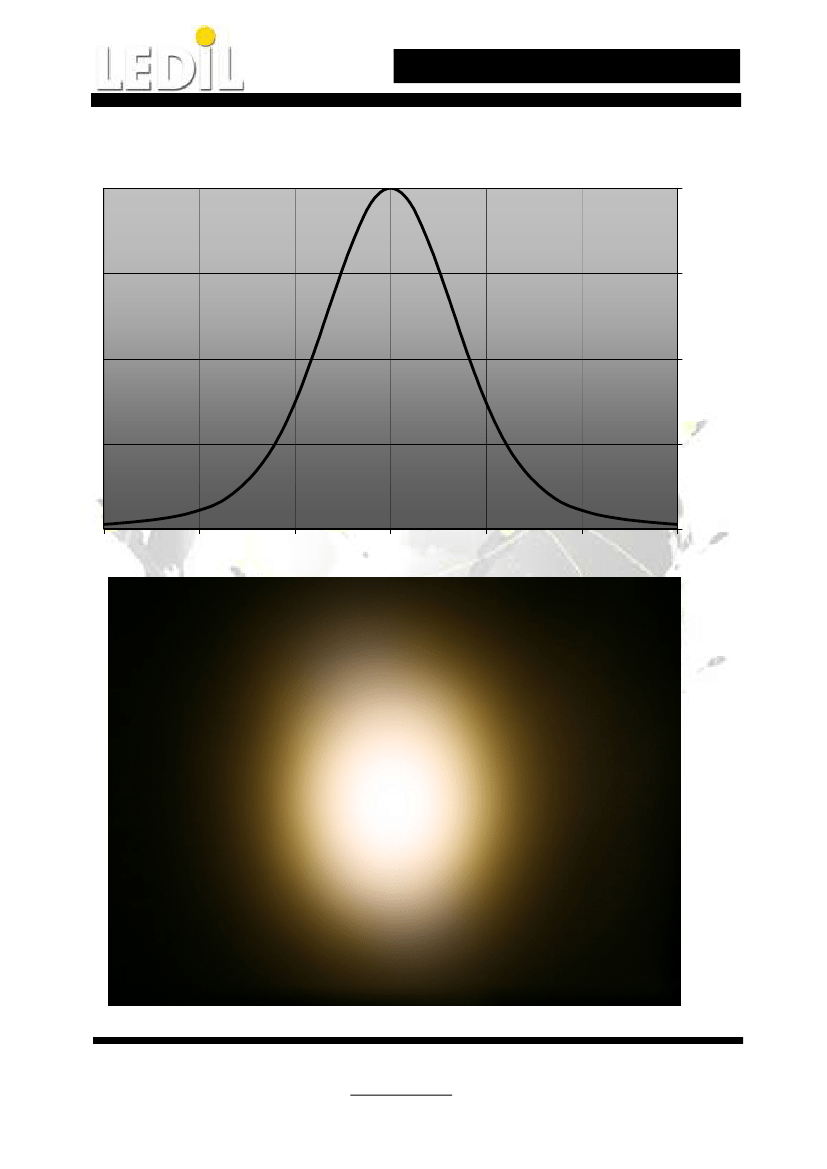

MX6 SMOOTH SPOT*

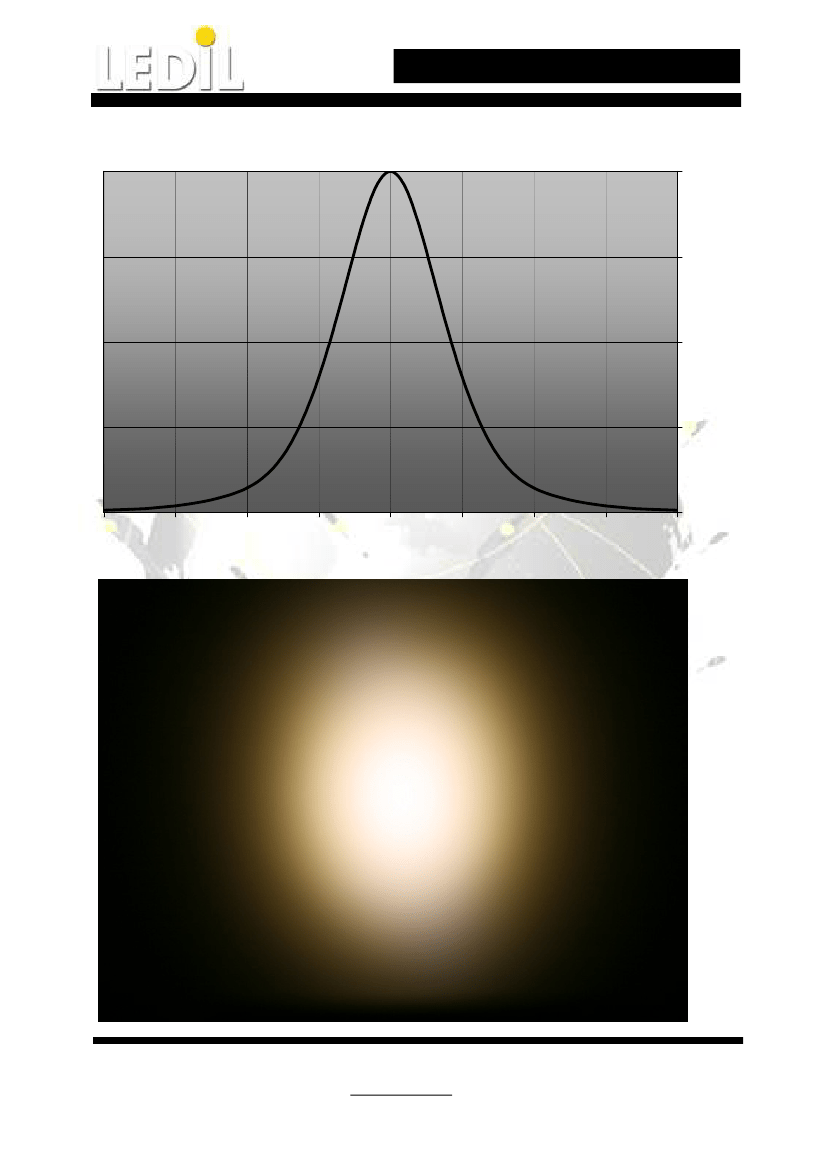

MX6 DIFFUSER

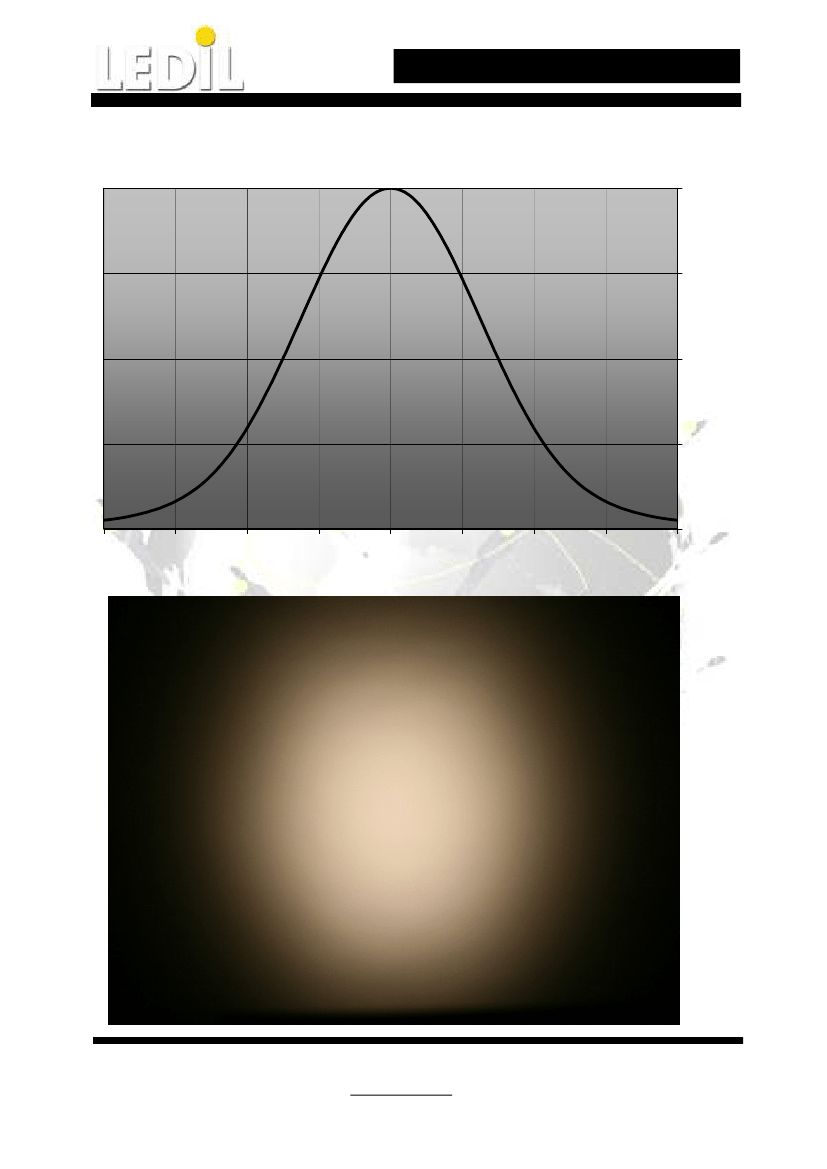

MX6 MEDIUM
MX6 OVAL
MX6 OVAL TURNED 90°
MX6 WIDE
MX6 WIDE VERSION 6
ORDERING CODE
FA10336_MX6-RS
FA10337_MX6-SS
FA10338_MX6-D
FA10339_MX6-M
FA10340_MX6-O
4FA11151_MX6-O-90
FA10344_MX6-W
FA10903_MX6-W-V6
FWHM Angle
±6°
±8.5°
±8.5°
±15°
±22°
x
±9°
±22°
x
±9°
coming soon
±33°
*) IMPORTANT NOTICE:
REAL SPOT
lens is a highly efficient pure collimator lens, which optically functions in an
excellent way, giving a high intensity. REAL SPOT lens also reveals the chip level optical
structure of the LED. We recommend REAL SPOT lens ONLY for applications, where light
intensity is of highest priority, while we do not recommend it for applications, where color
uniformity and aesthetics are of high importance.
SMOOTH SPOT
lens is a pure collimator lens with light mixing properties. It smoothens
the beam pattern and makes a uniform color distribution over the whole beam angle. Light
intensity is lower than for the REAL SPOT lens. SMOOTH SPOT lens is recommended for
white light applications, where pleasant, high-quality illumination is wished.
© Ledil Oy – PRELIMINARY - Subject to change without prior notice
Ledil Oy
Tehdaskatu 13
FIN-24100 SALO, Finland
www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
2011-03-04
