FP11084_LISA2-RS-CLIP

Description
Switching Voltage Regulators
CategoryLED optoelectronic/LED
File Size125KB,1 Pages
ManufacturerLedil
Websitehttp://www.ledil.com
Download Datasheet Parametric View All

FP11084_LISA2-RS-CLIP Online Shopping

Suppliers Part Number Price MOQ In stock
FP11084_LISA2-RS-CLIP - - View Buy Now

FP11084_LISA2-RS-CLIP Overview

Switching Voltage Regulators

FP11084_LISA2-RS-CLIP Parametric

Parameter NameAttribute value
Product CategoryLED Lighting Lenses Assemblies
ManufacturerLedil
RoHSDetails
TypeLens Assembly
For Use WithOSRAM Oslon SSL
Viewing Angle16 deg
PackagingBulk
ColorBlack
Diameter9.9 mm
Height6.6 mm
ShapeRound
Factory Pack Quantity100
Termination StyleAdhesive, Clips
Unit Weight0.014815 oz
D
C
B
R1

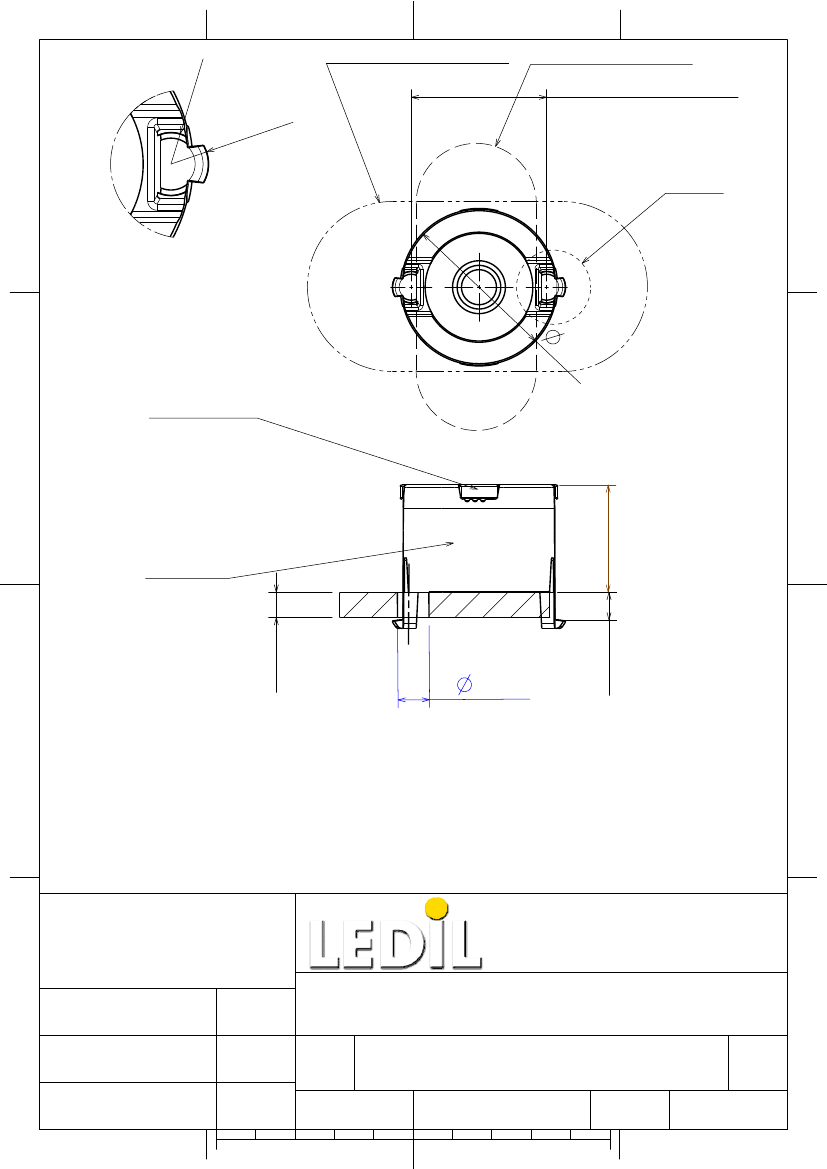

Lisa2-O-90 beam direction
Lisa2-O beam direction
8.6
4
.19
R1
c/c PCB
hole
A
4
A
Detail A
Scale: 8:1
9
Lens
.
9
3
Bottom view
Scale: 4:1
3
Holder
2
PCB hole
Materials:
Lens PMMA
Holder PC
1.76
1.6
PCB
6.7
Front view
Scale: 4:1
2
2
This drawing is our property.
It can't be reproduced
or communicated without
our written agreement.
Led
Teh
FIN
Fin
DRAWN BY
ah
20.7.2011
DATE
DATE
DATE
DRAWING TITLE
1
Datasheet Lisa2-clip16-OSL series Assy
DRAWING NUMBER
REV
CHECKED BY
sn
20.7.2011
19.10.2009
SIZE
1
DESIGNED BY
A4
SCALE
4:1 WEIGHT(g)
SHEET
2
1/1
hh
D
A
