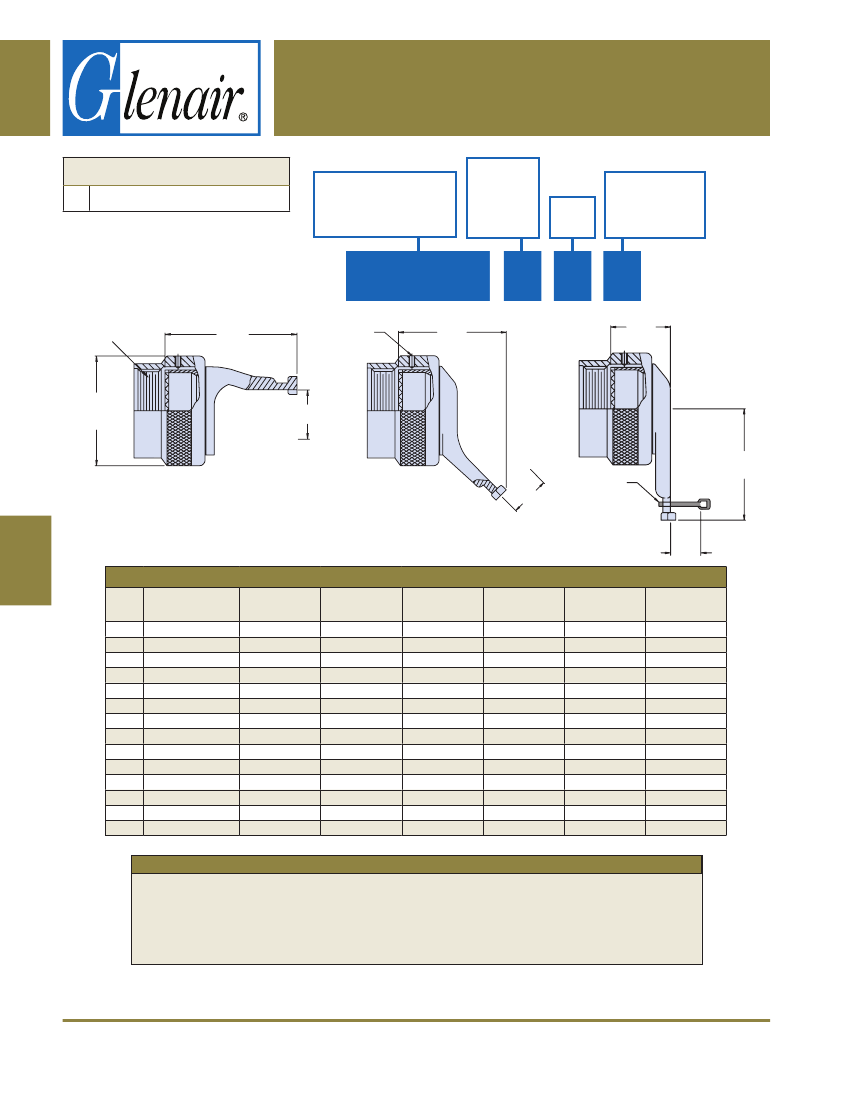

M83723/50
Straight, 45° and 90° Qwik-Ty
®
Strain Reliefs
Non-Self-Locking
Angular
Function
R
= Straight
B
= 45°
A
= 90°
E
Shell
Size
08
10
11
12
13
14
15
16
17
18
20
22
24
28
MIL-DTL-83723
CONNECTOR DESIGNATOR:
K
MIL-DTL-83723, Series II
Basic Part Number
M83723/50R
= Straight
M83723/50B
= 45°
M83723/50A
= 90°
Shell
Size
Finish
A
= Black Anodize
N
= Electroless
Nickel
M83723/50
A Thread
Typ.
F
Set
Screw
(Typ.)
G
R
22
N
H
D
Typ.
E
J
E
MS3367-1
Tie Strap or
Equivalent
(Typical)
E
TABLE I: Shell Size, Thread, Cable Entry and Backshell Dimensions
A Thread
Class 2B
.438 - 28 UNEF
.500 - 28 UNEF
.562 - 24 UNEF
.625 - 24 UNEF
.625 - 24 UNEF
.750 - 20 UNEF
.750 - 20 UNEF
.875 - 20 UNEF
.875 - 20 UNEF
1.000 - 20 UNEF
1.125 - 18 UNEF
1.250 - 18 UNEF
1.375 - 18 UNEF
1.625 - 18 UNEF
D Dia
Max
.620
.730
.730
.860
.860
.980
.980
1.110
1.110
1.220
1.350
1.470
1.590
1.970
E Max
Cable Entry
(6.1)
(7.5)
(9.5)
(10.2)
(10.2)
(12.2)
(12.2)
(15.3)
(15.3)
(18.3)
(21.9)
(24.6)
(27.5)
(31.5)
F
Max
1.060
1.060
1.060
1.120
1.120
1.300
1.310
1.300
1.300
1.360
1.500
1.620
1.680
1.710
(26.9)
(26.9)
(26.9)
(28.4)
(28.4)
(33.0)
(33.3)
(33.0)
(33.0)
(34.5)
(38.1)
(41.1)
(42.7)
(43.4)
G
Max
.740
.740
.740
.740
.740
2.010
2.020
2.010
2.010
2.170
2.250
2.250
2.330
2.330
(18.8)
(18.8)
(18.8)
(18.8)
(18.8)
(51.1)
(51.3)
(51.1)
(51.1)
(55.1)
(57.2)
(57.2)
(59.2)
(59.2)
H
Max
.710
.710
.710
.710
.710
.710
.710
.710
.710
.730
.740
.630
.630
.630
(18.0)
(18.0)
(18.0)
(18.0)
(18.0)
(18.0)
(18.0)
(18.0)
(18.0)
(18.5)
(18.8)
(16.0)
(16.0)
(16.0)
J
Max
.880
.940
.940
1.000
1.000
1.320
1.320
1.370
1.370
1.470
1.510
1.570
1.640
1.710
(22.4)
(23.9)
(23.9)
(25.4)
(25.4)
(33.5)
(33.5)
(34.8)
(34.8)
(37.3)
(38.4)
(39.9)
(41.7)
(43.4)
(15.7) .240
(18.5) .295
(18.5) .375
(21.8) .400
(21.8) .400
(24.9) .482
(24.9) .482
(28.2) .601
(28.2) .601
(31.0)
.722
(34.3) .862
(37.3) .970
(40.4) 1.082
(50.0) 1.241
APPLICATION NOTES
1.
2.
3.
4.
Assembly identified with manufacturer’s name and part number, space permitting.
For complete dimensions, see the applicable Military Specification.
Cable entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not
intended for inspection criteria.
Metric dimensions (mm) are in parentheses.
Dimensions in inches (millimeters) and are subject to change without notice.
Mil-Spec Backshells
U.S. CAGE Code 06324
Rev. 8.29.14
© 2013 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-6
E-Mail: sales@glenair.com
