HR22-12TJD-20P73 datasheet, PDF

Datasheet> All Categories > The connector> HR22-12TJD-20P73

HR22-12TJD-20P73: DescriptionHeaders u0026 Wire Housings REC CONT. M L/P; CategoryThe connector; File Size990KB，8 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

HR22-12TJD-20P73 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HR22-12TJD-20P73	-	-	View	Buy Now

HR22-12TJD-20P73 Overview

Headers u0026 Wire Housings REC CONT. M L/P

HR22-12TJD-20P73 Parametric

Parameter Name	Attribute value
Product Category	Standard Circular Connector
Manufacturer	Hirose
RoHS	Details
Product	Connectors
Number of Positions	20 Position
Contact Gender	Pin (Male)
Shell Size	12
Mounting Style	Panel
Termination Style	Solder
Contact Plating	Silver
Shell Material	Metal
Packaging	Bulk
Current Rating	2 A
Shell Plating	Nickel
Shell Style	Jack
Factory Pack Quantity	1
Voltage Rating	100 V

Preview

Download Datasheet

View All

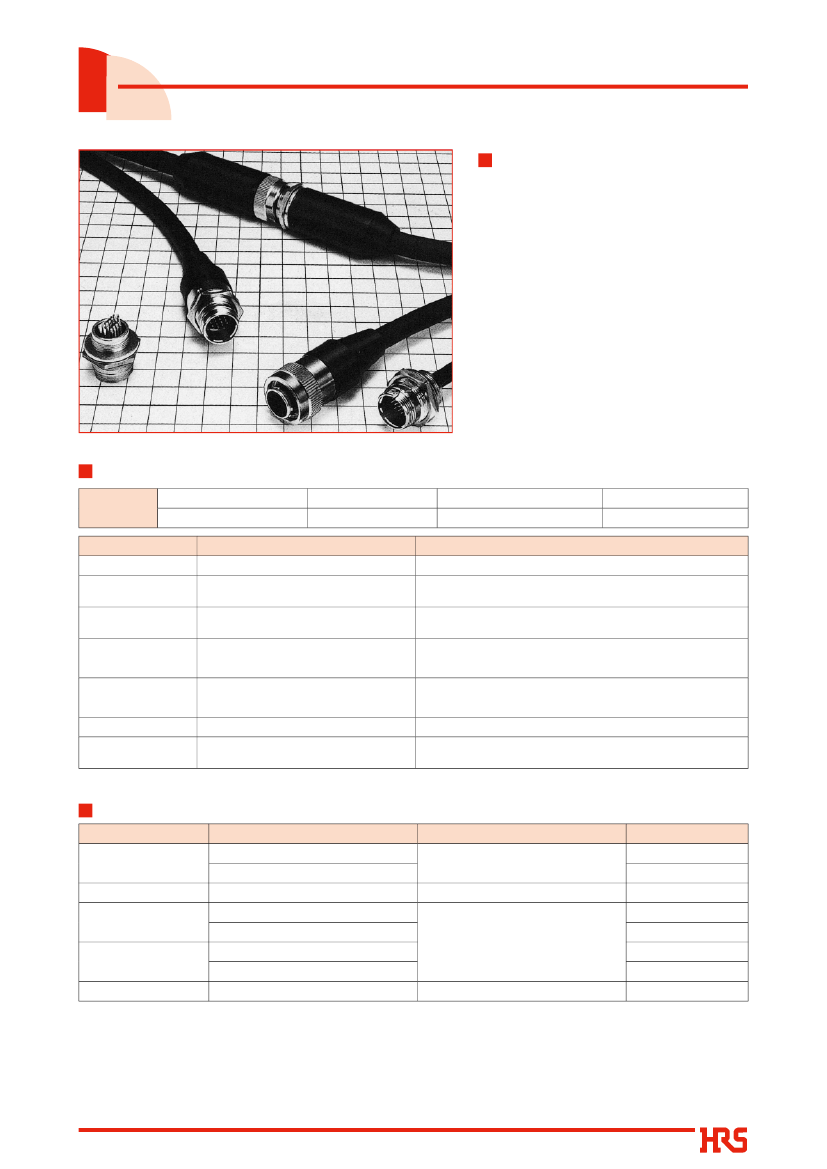

High Performance, Miniature Circular Connectors

HR22 Series

Features

·Both waterproof and non-waterproof

types are available. (Waterproof and non-

waterproof connectors can be mated with

each other if needed, but will no longer

result in a waterproof connection)

·Waterproof performance

The HR22 waterproof type is IP67 and

IP68 rated when mated.

IP67: Left at a water depth of 1 m for 30 minutes

IP68: Left at a water depth of 2 m for 14 days

Product speciﬁcations

Ratings

Item

Rated current

Rated voltage

100V AC, 140V DC

Speciﬁcations

·Both crimp and solder type termination

are available. Termination style can be

chosen as required by your specific

application.

·The receptacle features a jam nut

configuration at the front, which allows

for easy panel mounting.

·The jack connector can also be used as

a panel jack.

Operating temperature range

Storage temperature range

Conditions

Measured at DC 1A

Measured at DC 100V

Measured at AC 300 V for one minute

-25ç to +85℃

-10ç to +60℃

1. Contact resistance 20mø max.

2. Insulation

1,000 Mø min.

resistance

3. Withstanding

No ﬂashover or dielectric breakdown.

voltage

4. Vibration

resistance

5. Shock resistance

6. Mating cycles

7. Resistance to

water pressure

There shall be no electrical No electrical 10 to 500 Hz/cycle, amplitude: 0.75 mm, acceleration- 98 m/s

3 axis directions, 2 hours each

discontinuity for 10 µs or greater.

No electrical discontinuity for 10 µs or

greater.

Contact resistance: 20 mø max.

No water penetration into the connector.

duration: 11 ms, 3 axis directions,

Acceleration: 490 m/s

，

3 times each

100 times

Mated connectors left in Water at a depth of 1.8 m for 48

hours.

Materials

Items

Plated shell

Insulator

Male contact

Female contact

Hood and bushing

Material

Brass

Zinc alloy

PBT resin

Brass (Soldering)

Phosphor bronze (Crimping)

Beryllium copper (Soldering)

Phosphor bronze (Crimping)

Acrylonitrile-butadiene rubber

Black

Silver plating

Finish

Nickel plating

Black

Remarks

――――

UL94V-0

――――

2014.11w
