3.96mm Pitch Connector Directly Mounted on Board
DF6 Series
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

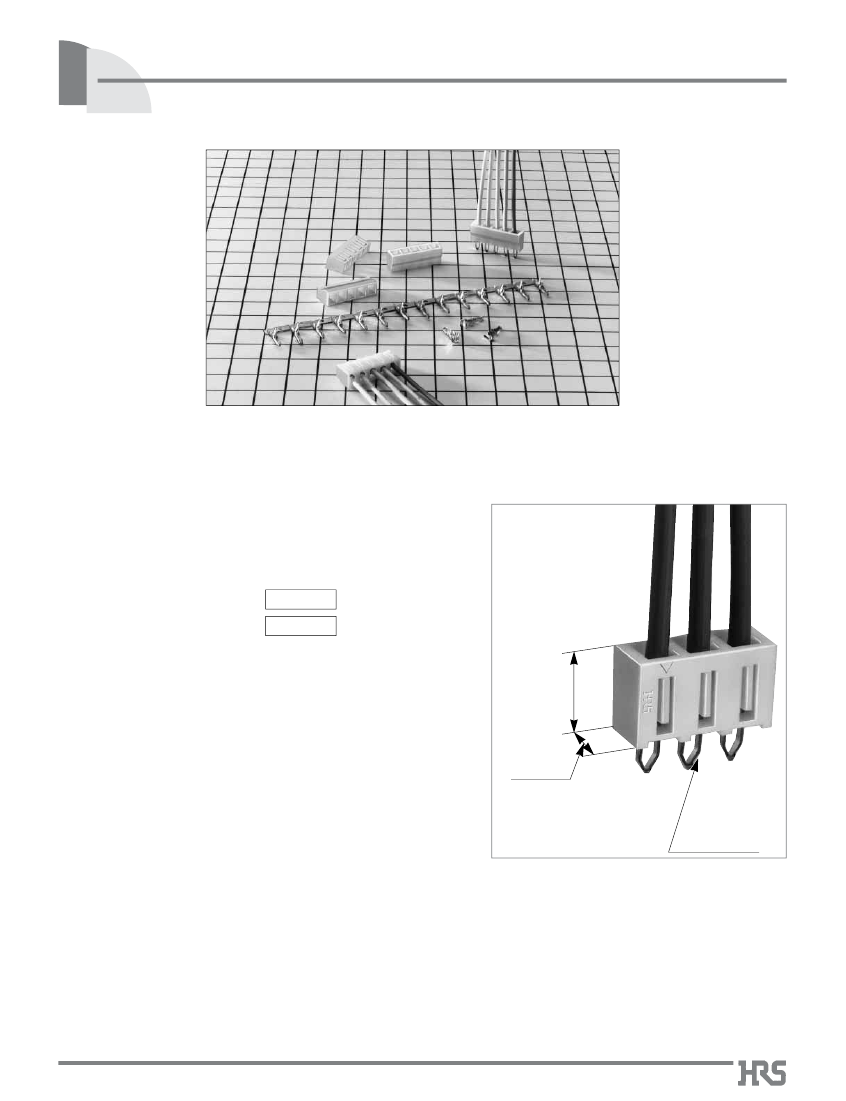

■Features
1. Service Efficiency Up
Conventional thick cables are directly mounted on the
board piece by piece, but connecterization has achieved
soldering services in a batch. This product enhances
soldering service efficiency.
2. Miniaturization
This product achieves miniaturization for thick cables.
Mounting height on board
Width
:
:
7.5mm
5.0mm
3. Board Prefixed Mechanism
Since the connector is softly press-fitted to the board for
insertion, it can be prefixed to the board.
Height: 7.5mm
■Applications
Secondary power supply units for various equipment
width: 4.6mm
Prefixed mechanism
B129
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
on Board
on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3.Contact Resistance
4.Vibration
6.Temperature Cycle
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes
➝15
to 35ç: 10 minutes➝85ç: 30 minutes➝ 5 to 35ç: 10 minutes ) 5 cycles
Flow: 250ç for 10 seconds
Manual soldering: 300ç for 3 seconds
5.Humidity
(Steady state) No damage, cracks, or parts looseness.
7. Resistance to Soldering heat
No deformation of components affecting performance.
Note 1: The rated current will be changed according to cable sizes for use.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and specifications for
a specific part number shown.
■Material
Product
Crimping Plug
Crimping Contact for Plug
Part
Insulator
Brass
Material
Polyamide
Copper Alley
Finish
White
Tin plated
Remarks
UL94V-0
________
■Ordering
Information
●Crimping
Plug
DF6
q
q
Series Name
e
Connector type
P: Plug
: DF 6
-
*
P - 3.96 C
w
e
r
t
r
Contact pitch: 3.96mm
t
C: Crimping plug
w
Number of contacts: 1~8, 10
●Crimping
Contact
DF6A - 1822 PCF
q
q
Applicable cable type
None : Jacket dia. 1.5mm to 2.2mm
UL 1007
A
: Jacket dia. 2.2mm to 2.9mm
UL 1015
w
Applicable cable size
1822 : AWG#18~#22
w
e
e
Packaging type
PCF: Plug contact, reel packaging
SC: Plug contact, bag packaging
B130
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

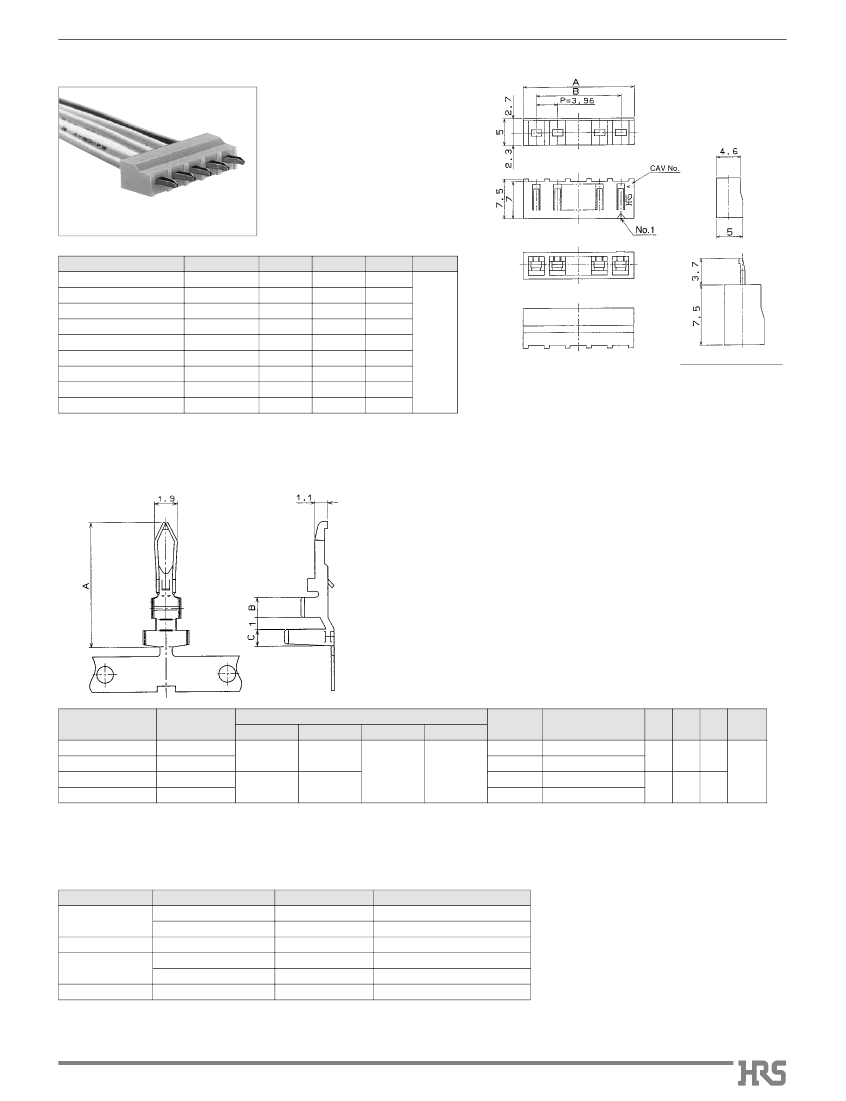

DF6 Series●3.96mm Pitch Connector Directly Mounted on Board
■Precrimping
Plug
Photo: Contact Inserted
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part Number
DF6- 1P-3.96C
DF6- 2P-3.96C
DF6- 3P-3.96C
DF6- 4P-3.96C
DF6- 5P-3.96C
DF6- 6P-3.96C
DF6- 7P-3.96C
DF6- 8P-3.96C
DF6-10P-3.96C
CL No.
546-0001-1
546-0002-4
546-0003-7
546-0004-0
546-0005-2
546-0006-5
546-0007-8
546-0008-0
546-0011-5
Number of Contacts
1
2
3
4
5
6
7
8
10
A
4.92
8.88
12.84
16.80
20.76
24.72
28.68
32.64
40.56
_____
3.96
7.92
11.88
15.84
19.80
23.76
27.72
35.64
B
RoHS
YES
Contact View for Insertion
Note: A packaging quantity is delivered by the bag unit (100 pcs.).
■Crimping
Contact
●Slip
length
DF6-1822PC (F): 2.1mm
to
2.6mm
DF6A-1822PC (F): 2.3mm
to
2.8mm
●Applicable
through-hole: 1.8
+0.15
0
Part Number
DF6 -1822PCF(05)
DF6 -1822PC(05)
DF6A-1822PCF(05)
DF6A-1822PC(05)
CL No.
546-0009-3-05
546-0010-2-05
546-0013-0-05
546-0014-3-05
UL style
1007
1015
Applicable Cable
Packaging Type
Jacket dia. AWG size Contact Construct
Reel
1.5
to
2.2mm AWG 18 34 cores/0.18mm
Bag
AWG 20 21 cores/0.18mm
Reel
2.2
to
2.9mm AWG 22 17 cores/0.16mm
Bag
Quantity
5,000
100
3,000
100
A
B
C
1.2
RoHS
10.2 1.5
10.5 1.7
YES
1.4
Note 1. The applicable cable conductor is a tin plated and annealed copper wire.
Note 2. If other cables are used instead of the applicable cable, contact the Hirose Sales Department.
BApplicable
Crimping Tools
TypeItem
Applicator
Press unit
Manual crimping
tool
Extraction tool
Part Number
AP105-DF6-1822P
AP105-DF6A-1822P
CM-105
DF6 -TA1822HC
DF6A-TA1822HC
DF-C-PO(A)
CL No.
901-4505-9
901-4520-2
901-0005-4
550-0174-9
550-0222-0
550-0170-8
Applicable Contact
DF6 -1822PCF(05)
DF6A-1822PCF(05)
________
DF6 -1822PC(05)
DF6A-1822PC(05)
DF6/DF6A-1822PC(F)(05)
Note: If any trouble has been caused due to other tools, which are not designated by Hirose, Hirose never guarantee any products.
B131
