DE7F: DescriptionXLR Connectors 7P F XLR NKL/SLV S/CUP DE; CategoryThe connector; File Size603KB，2 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric Compare View All

DE7F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DE7F	-	-	View	Buy Now

DE7F Overview

XLR Connectors 7P F XLR NKL/SLV S/CUP DE

DE7F Parametric

Parameter Name	Attribute value
Product Category	XLR Connectors
Manufacturer	Switchcraft
RoHS	Details
Product	Connectors
Standard	Standard XLR
Number of Positions	7 Position
Gender	Female
Termination Style	Solder Cup
Mounting Style	Chassis (Panel)
Contact Plating	Silver
Contact Material	Copper Alloy
Factory Pack Quantity	25

Preview

Download Datasheet

View All

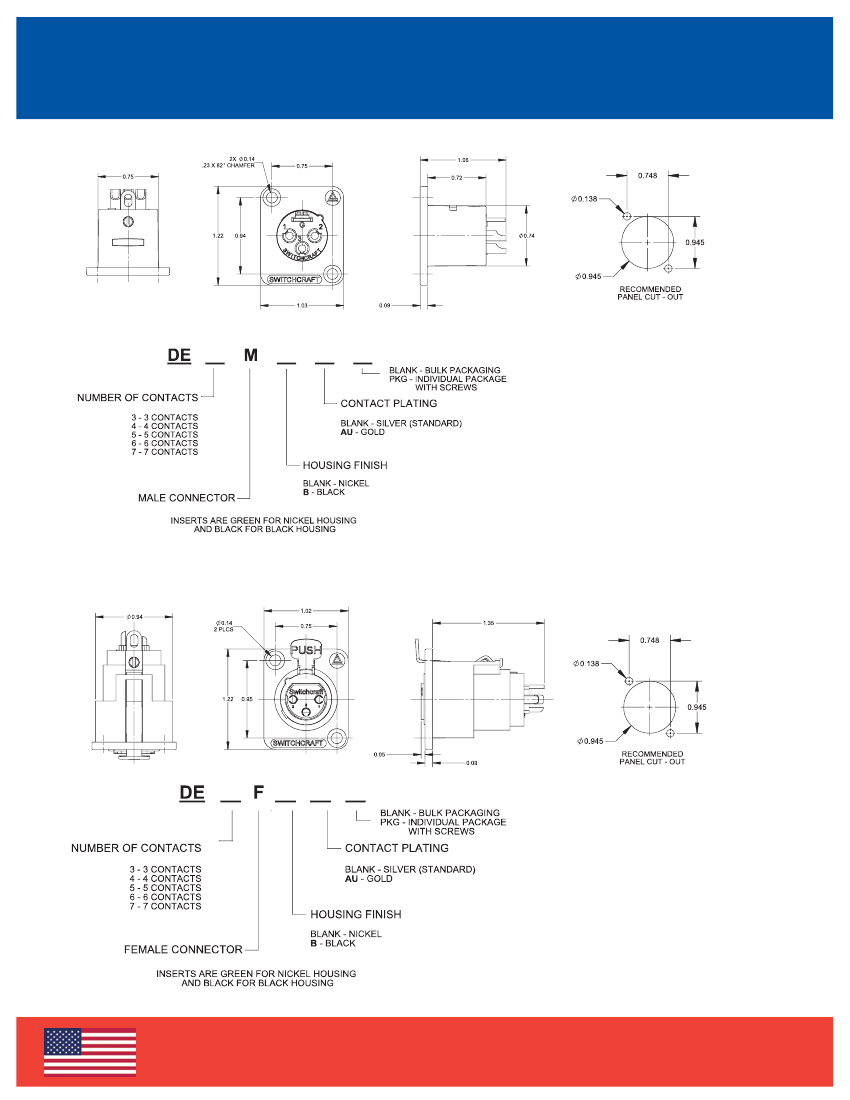

DE sEriEs panEl mount xlr connEctors

NEW PRODUCT BULLETIN 603

FEaturEs & BEnEFits

• Same high quality connectors as our popular

D Series XLR, except both male and female

versions utilize the same size housing,

simplifying installation and modification.

• Rugged metal construction.

• Available in nickel or black finish.

• Available with 3, 4, 5, 6 or 7 contacts,

plated in silver or gold.

• Chassis ground terminal feature comes

standard with all versions.

• RoHS Compliant.

• The perfect match for our QGPK Series of

I/O panels and our WP Series of wall-plates.

More info available on our website.

applications

• Communications equipment

• Wall plates

• Custom I/O panels

• Pro audio equipment

CONXALL • 601 E Wildwood • Villa Park, IL 60181 • 630-834-7504

Please visit www.conxall.comIL 60630most up-to-date product specifications. Made in USA.
