M80-5662005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-5662005

M80-5662005: DescriptionDevelopment Boards u0026 Kits - ARM STEMlab 125-14 Starter Kit; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5662005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5662005	-	-	View	Buy Now

M80-5662005 Overview

Development Boards u0026 Kits - ARM STEMlab 125-14 Starter Kit

M80-5662005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: M80-1940005; M80-1950005
body width	0.262 inch
subject depth	0.506 inch
body length	1.181 inch
Body/casing type	JACK
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	20
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

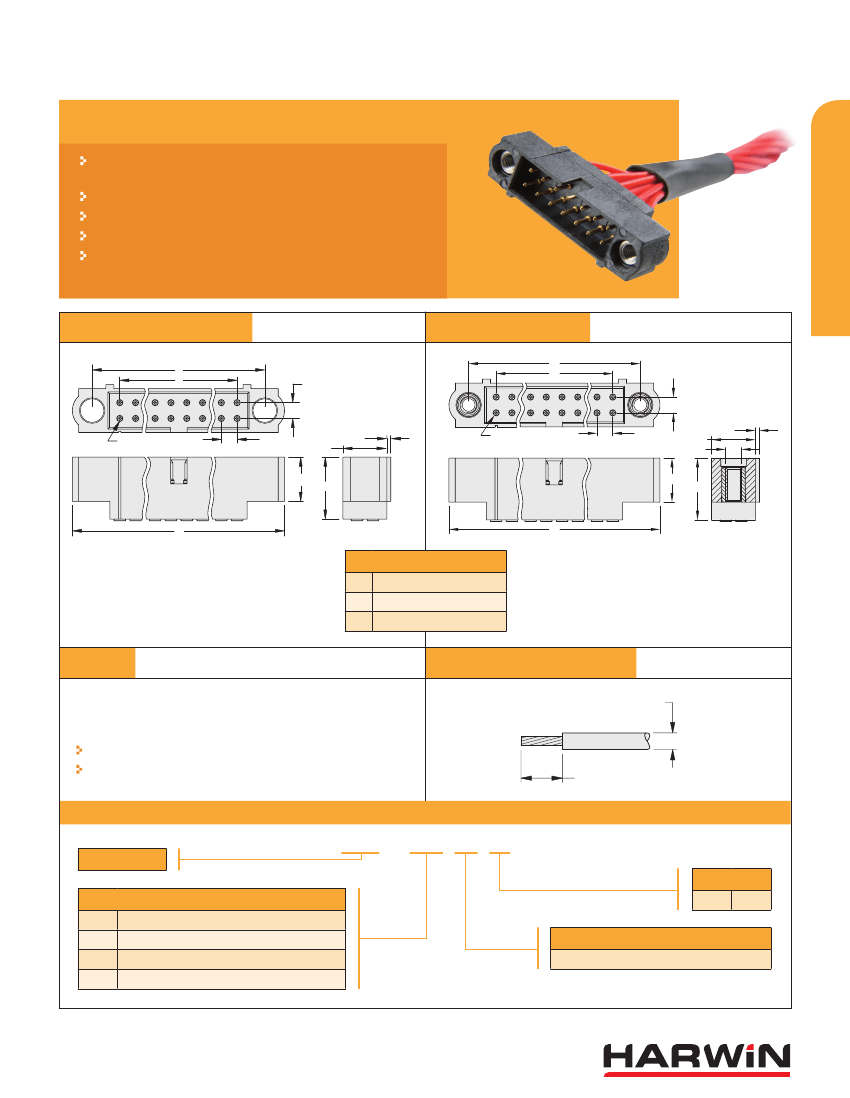

Datamate J-Tek Connectors

Male Crimp Kit

DATAMATE J-TEK

WITH JACKSCREWS

2.00

No.1 contact

2.00

5.55

5.60

0.50

7.85

Part numbers are for a complete kit of a housing and the

applicable number of contacts.

Jackscrews are assembled where specified.

Crimp contacts supplied loose.

Crimp contacts are rear insertable and replaceable.

Spare contacts are available.

WITHOUT JACKSCREWS

No.1 contact

2.00

5.55

5.60

0.50

7.65

CALCULATION

B + 12

Total no. of contacts - 2

B+7

TOOLS

Recommended Crimp Tool

– M22520/2-01

Positioner

– Z80-193

Contact Insertion/Removal Tool

– Z80-280

Spare contacts shown on following pages.

Instruction sheets available at

www.harwin.com/instructions.

WIRE STRIPPING DETAILS

Ø1.10 max

2.00

HOW TO ORDER

SERIES CODE

TYPE

570

571

560

561

Large Bore (22 AWG), without Jackscrews

Small Bore (24-28 AWG), without Jackscrews

Large Bore (22 AWG), with Jackscrews

Small Bore (24-28 AWG), with Jackscrews

M80 - 5XX XX 05

FINISH

Gold

TOTAL NO. OF CONTACTS

04, 06, 08, 10, 12, 14, 20, 26, 34, 42, 50

All dimensions in mm.

www.harwin.com

116

M80-5662005 Related Products

	M80-5662005	M80-5762005	M80-5661405	M80-5752605	M80-5751405
Description	Development Boards u0026 Kits - ARM STEMlab 125-14 Starter Kit	Headers u0026 Wire Housings MALE CRIMP WO/ JS 10+10 SM BORE GLD	Headers u0026 Wire Housings 2P HOUSING	Headers u0026 Wire Housings MALE CRIMP WO/ JS 13+13 LG BORE GLD	Headers u0026 Wire Housings MALE CRIMP WO/ JS 7+7 LG BORE GLD
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	COMPATIBLE CONTACTS: M80-1940005; M80-1950005	COMPATIBLE CONTACTS: M80-1940005; M80-1950005	COMPATIBLE CONTACTS: M80-1940005; M80-1950005	COMPATIBLE CONTACTS: M80-1940005; M80-1950005	COMPATIBLE CONTACTS: M80-1940005; M80-1950005
body width	0.262 inch	0.262 inch	0.262 inch	0.262 inch	0.262 inch
subject depth	0.506 inch	0.506 inch	0.506 inch	0.506 inch	0.506 inch
body length	1.181 inch	1.181 inch	0.945 inch	1.417 inch	0.945 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	LOOSE	LOOSE	LOOSE	LOOSE	LOOSE
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	20	20	14	26	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	24 AWG	24 AWG	24 AWG	22 AWG	22 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	22 AWG	22 AWG
