AG4803SS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> AG4803SS

AG4803SS: DescriptionDatacom Transformer, 10/100/1000 BASE-T Application(s), 1CT:1CT; 1CT:1CT, ROHS COMPLIANT; CategoryPower management transformer; File Size1MB，2 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

AG4803SS Overview

Datacom Transformer, 10/100/1000 BASE-T Application(s), 1CT:1CT; 1CT:1CT, ROHS COMPLIANT

AG4803SS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO
application	10/100/1000 BASE-T
high	7.5 mm
Insulation voltage	1500 V
length	28 mm
Installation features	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L28.0XB12.2XH7.5 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1CT:1CT
width	12.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

RoHS

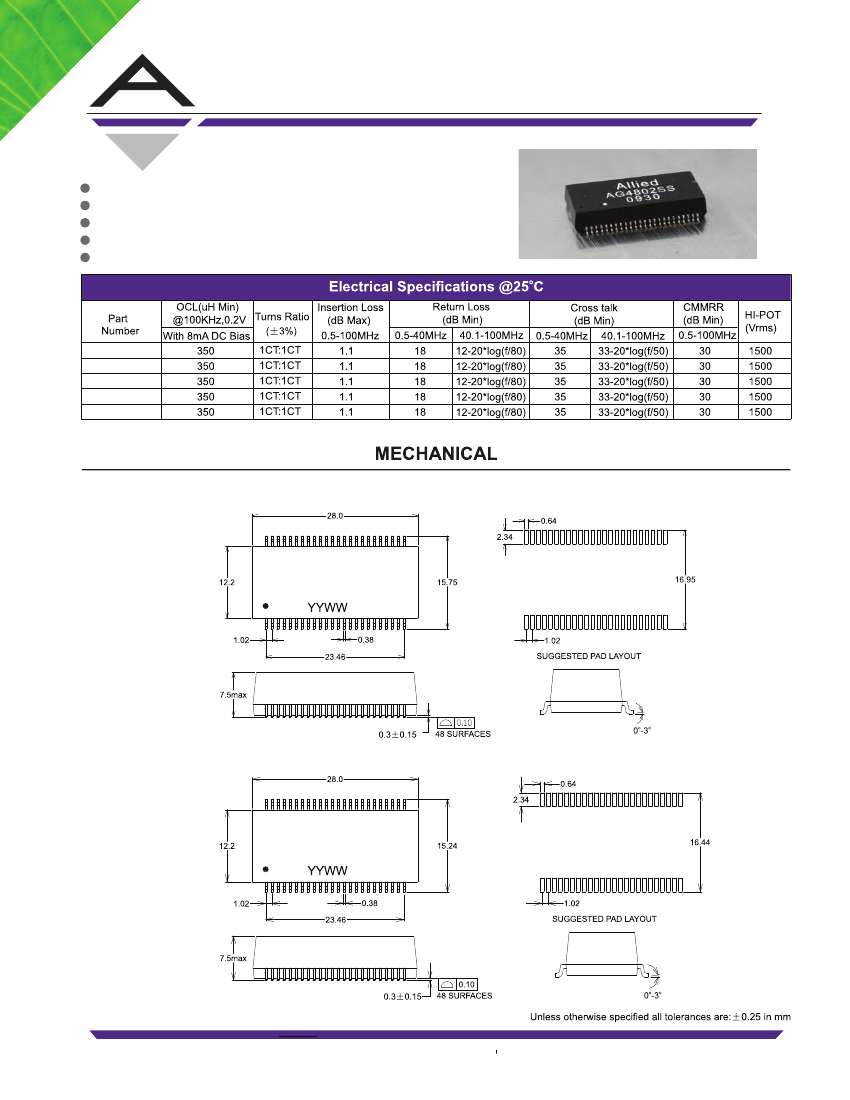

10/100/1000 BASE-T DUAL PORT SURFACE MOUNT MAGNETICS

Meets IEEE 802.3af & ANSI X 3.263

Surface mount, closed header construction

Many parts are PoE enabled

Standard operating temp: 0ºC to +70ºC (see footnote)

Industrial operating temp: -40ºC to +85ºC (see footnote)

AG4801S__

AG4802S__

AG4803S__

AG4808S__

AG4809S__

*Complete part number by inserting “S” for Standard Temp or “I” for Industrial Temp.

All specifications subject to change without notice.

AG4801S_, AG4802S_, AG4803S_

ALLIED

AG48XXS_

AG4809S_, AG4808S_

ALLIED

AG48XXS_

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 9/23/09

www.alliedcomponents.com
