MS27477Y20D41P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS27477Y20D41P

Preview

MS27477Y20D41P: DescriptionCircular MIL Spec Connector; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MS27477Y20D41P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS27477Y20D41P	-	-	View	Buy Now

MS27477Y20D41P Overview

Circular MIL Spec Connector

MS27477Y20D41P Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	17 weeks
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	TIN PLATED
Shell material	CARBON STEEL
Housing size	20
Termination type	SOLDER
Total number of contacts	41

Preview

Download Datasheet

View All

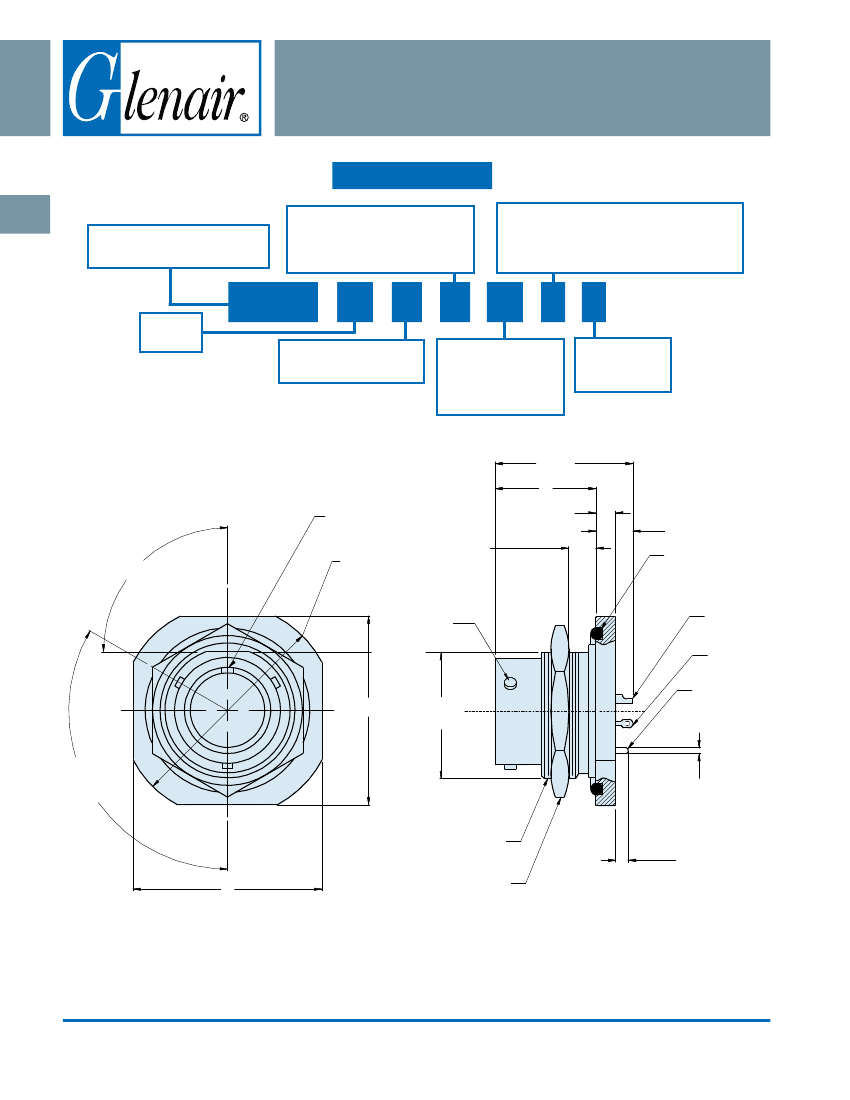

MIL-DTL-38999

Hermetic Connectors

MS27477

Jam Nut Mount Hermetic Receptacle

MIL-DTL-38999 Series II

How To Order:

MS

B

Shell Style

MS27477

-

Jam Nut Mount, Series II

Connector Material / Finish

D

- Carbon Steel - Fused Tin Finish

E

- Stainless Steel - Passivate Finish

N

- Stainless Steel - Nickel Finish

Contact Termination

P

- Pin, Solder Cup

S

- Socket, Solder Cup

X

- Pin, Eyelet

Z

- Socket, Eyelet

C

- Pin, PCB

D

- Socket, PCB

Flex Feedthrough

MS27477

Class

Y-

Hermetic

Y

10

N

35

P

A

Alternate Key

Position

A, B, C, D

(Omit for Normal)

Shell Size

8,10,12,14,16,18,20,22,24

Insert Arrangement

MIL-DTL-38999 Series II

Hermetic Inserts Per

MIL-STD-1560;

See Pages B-2 - B-4

L Max

F

Master

Key

B DIA

.105/.084

.109/.062

Panel

Thickness

Contrasting

Color Pin Ends

(3 Places)

EP Max (Pin)

ES Max (Socket)

O-Ring

90° 85°

Solder Cup

Contact (P)

Eyelet

Contact (X)

Feedthrough

Contact (C)

D

C

Flat

120°

BSC

TYP

P

(See Table II)

A Thread

.175/.125

D

Nut

Per MS27512

Dimensions in Inches (millimeters) are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-34

E-Mail: sales@glenair.com
