370HS003NF1304C3 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 370HS003NF1304C3

370HS003NF1304C3: DescriptionCircular MIL Spec Backshells; CategoryThe connector Connector bracket; File Size47KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

370HS003NF1304C3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	370HS003NF1304C3	-	-	View	Buy Now

370HS003NF1304C3 Overview

Circular MIL Spec Backshells

370HS003NF1304C3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
Is Samacsys	N
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	370-003
Material	ALUMINUM ALLOY
Military connector accessories name	BACKSHELL
Housing size	13
Base Number Matches	1

Preview

Download Datasheet

View All

370-003

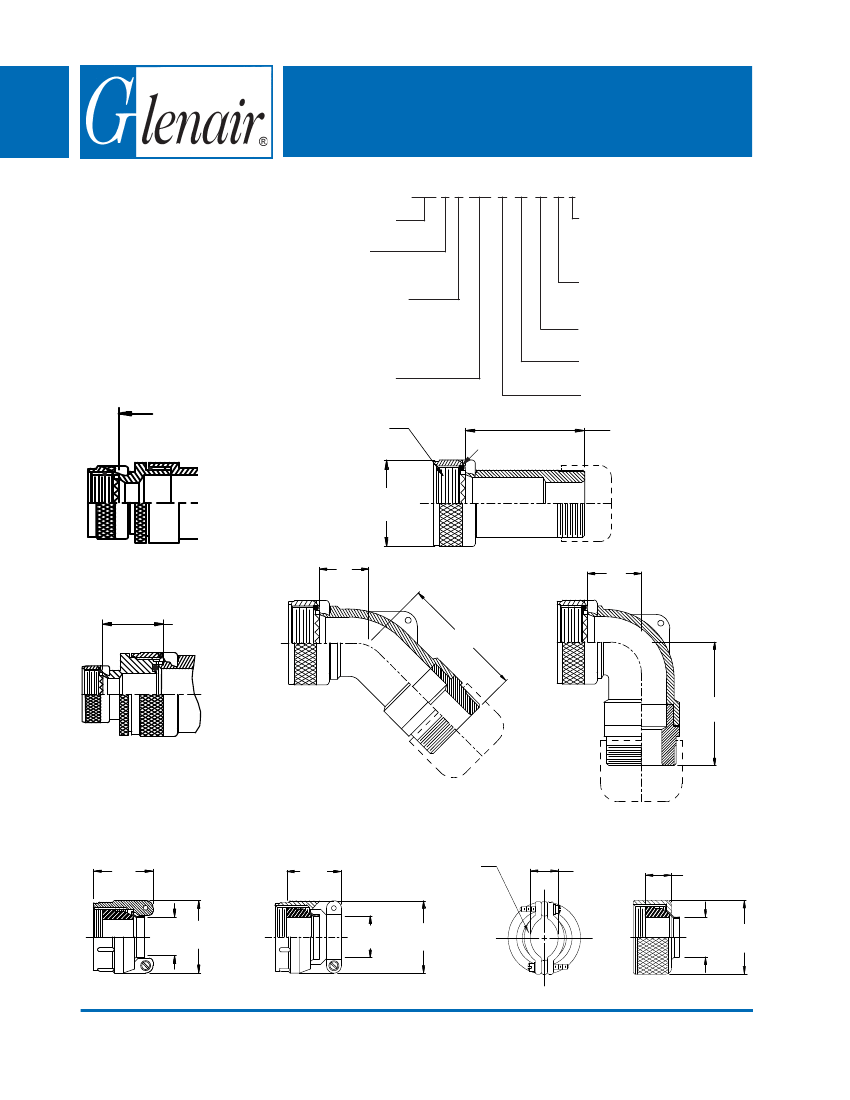

Water-Tight Cable Sealing Backshell

with Strain Relief

Low Profile - Rotatable Coupling

370 F S 003 M 16 10 C 6

CONNECTOR

DESIGNATORS

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(B, C, E)

Cable Entry (Tables IV, V)

Shell Size (Table I)

Finish (Table II)

A-F-H-L-S

ROTATABLE

COUPLING

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 6)

A Thread

(Table I)

O-Ring

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 6)

C Typ.

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

(Table III)

F (Table III)

H (Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE B

(Table IV)

STYLE C

Medium Duty

(Table IV)

Clamping

Bars

STYLE E

Medium Duty

(Table V)

N (See

Note 4)

Cable

Range

Cable

Range

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 37 - Page 14
