4113PCD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 4113PCD

4113PCD: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm,; CategoryWireless rf/communication Radio frequency and microwave; File Size47KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

4113PCD Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm,

4113PCD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compliant
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
JESD-609 code	e0
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

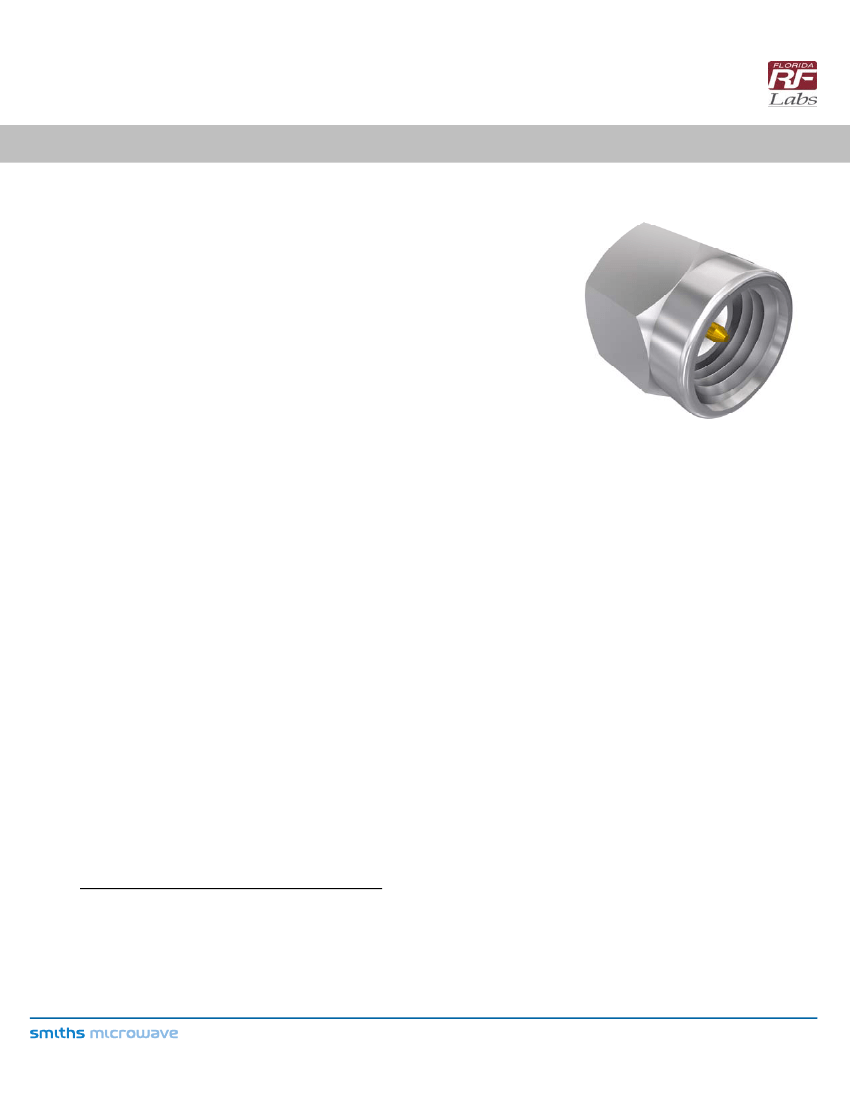

TERMINATION

COAXIAL DC-18 GHz SMA

DATA SHEET

FEATURES

Solderless Construction

Low VSWR

Rugged Construction

MIL-DTL-39030

High Reliability

PART SERIES: 4113PCD

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 1000085

EN 13-3827

Revision E

GENERAL DESCRIPTION

Florida RF Labs has a complete series of SMA, 3.5 mm and 2.9 mm interface compatible

coaxial terminations. These terminations have low VSWR and operate at frequencies from

DC to 26.5 GHz. They are ideal for both laboratory measurements and system use.

ORDERING INFORMATION

Part Identifier:

4113PCD

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

VSWR:

50 ohms

DC - 18 GHz

DC – 4.0 GHz

4.0 – 8.0 GHz

8.0 – 12.0 GHz

12.0 – 18.0 GHz

Input Power CW:

Peak Power:

1.04:1 Max

1.07:1 Max

1.08:1 Max

1.10:1 Max

1.0 watts @ 25°C heat sink, linearly derated to zero power at 125°C

10 watts for 10us pulse width @ 1% duty cycle

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

Standard Requirements:

-55˚C to +125˚C

+/-200 PPM / ˚C max

MIL-DTL-39030

3.0 MARKING

Unit Marking:

FRFL and 4113PCD, legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

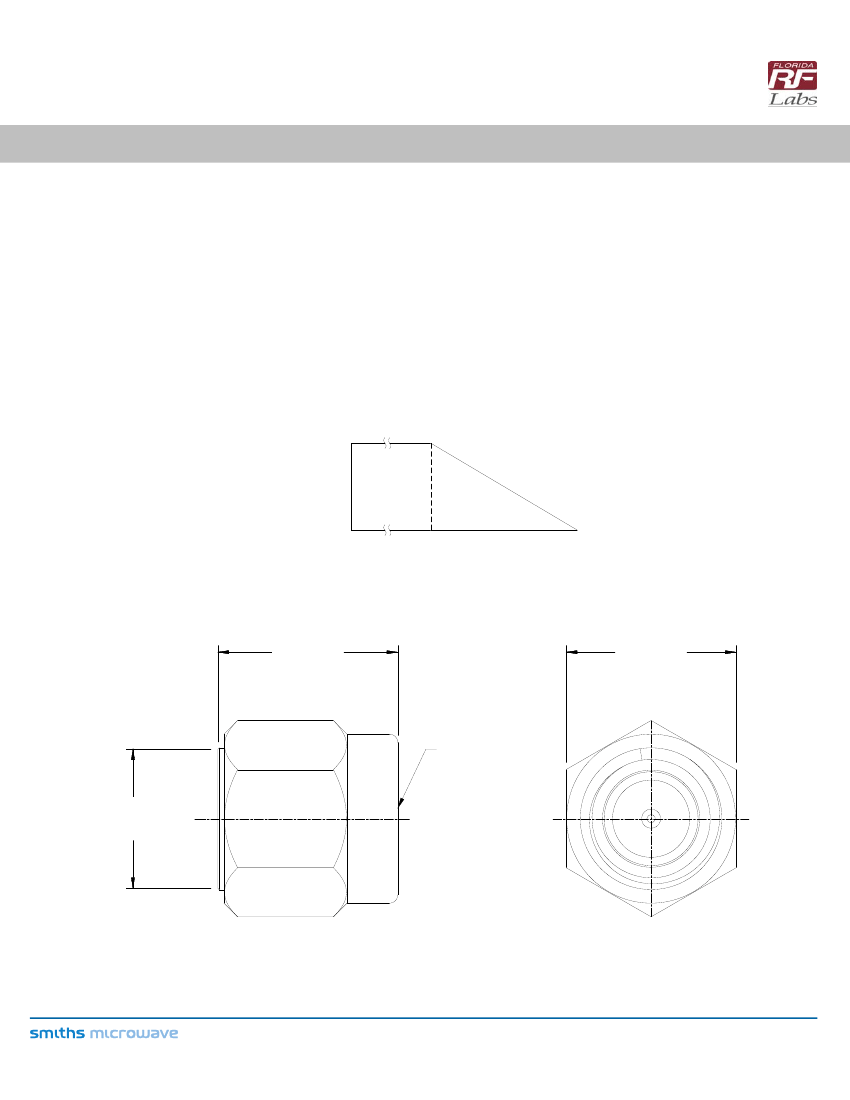

Visual and Mechanical Inspection for Conformance to Outline Drawing

Measure Resistance and VSWR

Data Retention – Standard

5.0 PACKAGING

Standard Packaging:

Tube

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

Form 423F113 Rev -

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified

4113PCD Related Products

	4113PCD
Description	RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm,
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compliant
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
JESD-609 code	e0
Maximum operating frequency	18000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.1
Base Number Matches	1
