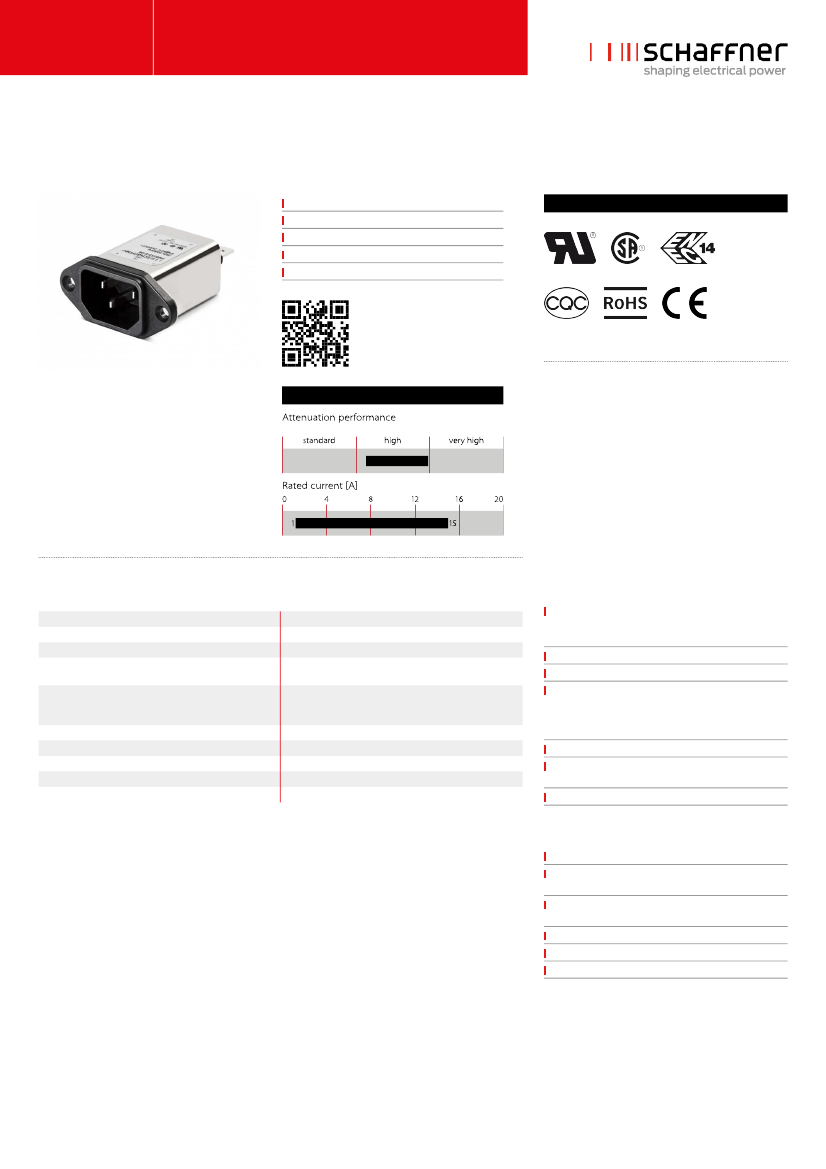

DATASHEET

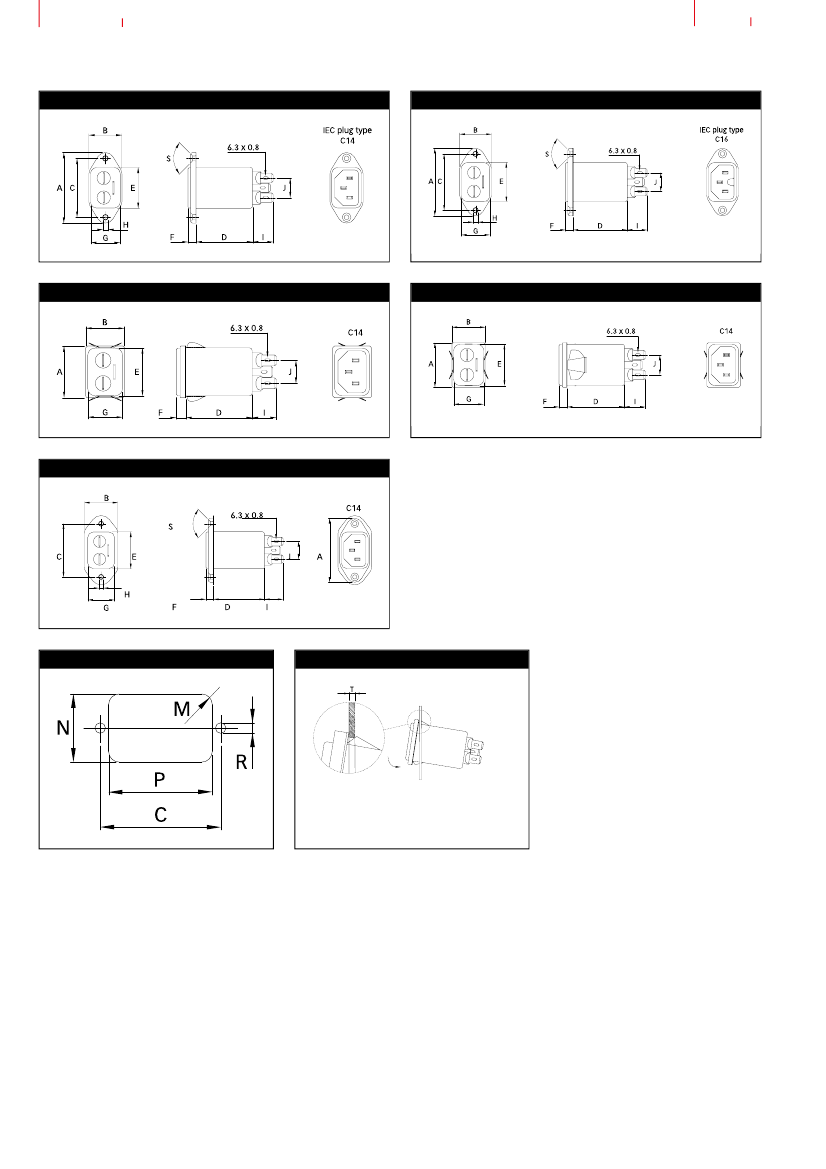

IEC Inlet Filters FN 9233
High Performance EMC/EMI Filter
Rated currents up to 15 A
Excellent attenuation performance
Complies with IEC/EN 60601-1
Snap-in versions (S and S1 type)
Hot inlet versions (HI type)
Approvals
(CQC except HI-types)
Performance indicators
The FN 9233 IEC inlet filter combines an excellent IEC
inlet and mains filter with excellent filter attenuation
in a small form factor. Choosing the FN 9233 product
line brings you the rapid availability of a standard
filter associated with the necessary safety
acceptances. Standard IEC connector filters are a
practical solution helping you to pass EMI system
approval in a short time. A wide selection on
amperage ratings, output connections, mounting
possibilities and filters for medical applications are
designed to offer you the desired solution. For types
with additional earth line choke please consult the
FN 9233 E data sheet.
Technical specifications
Maximum continuous operating voltage
Operating frequency
Rated currents
Approvals by rated current
High potential test voltage
250 VAC, 50/60 Hz
dc to 400 Hz
1 to 15 A @ 50°C
1 to 10 A (ENEC, CQC)
1 to 15 A (UL, CSA)
P –> PE 2000 VAC for 2 sec (standard types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 1000 VAC for 2 sec
IP 40 according to IEC 60529
-25°C to +85°C (25/85/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
UL 94 V-2 or better
2,540,000 hours
Features and benefits
Exceptional conducted attenuation performance,
based on chokes with high saturation resistance
and excellent thermal behavior
Rear/front or snap-in mounting
Optional earth line choke see FN 9233 E data sheet
Optional medical versions (B type) comply with the
requirements of IEC/EN 60601-1 for creepage and
clearance, leakage current and high potential
testing
Wide mounting flanges available
Different output connections offering maximum
flexibility for assembly
Custom-specific versions are available on request
Protection category
Temperature range (operation and storage)
Design corresponding to
Flammability corresponding to
MTBF @ 40°C/230 V (Mil-HB-217F)
Typical applications
Portable electrical and electronic equipment
Small to medium-sized machines and household
equipment
Single-phase power supplies, switch-mode power
supplies
Test and measurement equipment
Medical equipment
Rack mounting equipment
3
EMC/EMI Products
Schaffner Group
Datasheets
2016
Product selector

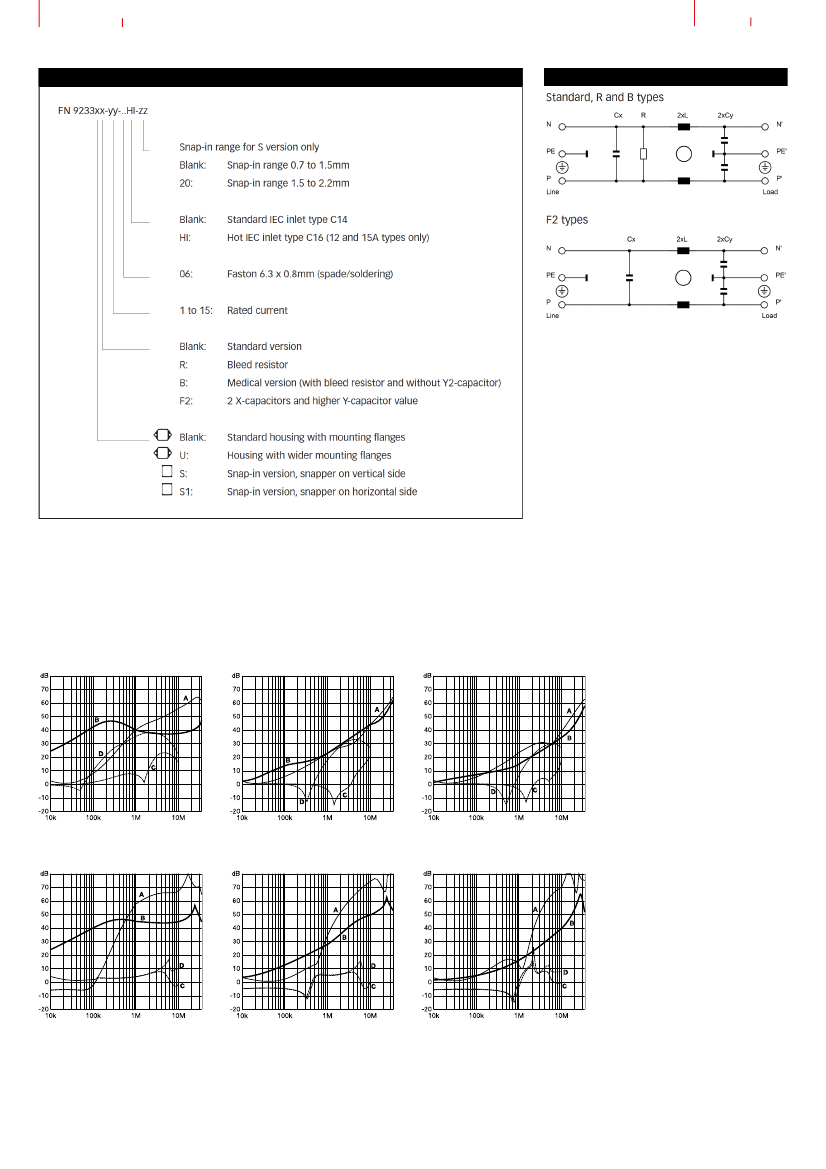

Typical electrical schematic
For example: FN 9233-15-06, FN 9233 S1B-10-06-20, FN 9233 R-12-06HI
Typical filter attenuation
Per CISPR 17; A=50 Ω/50 Ω sym; B=50 Ω/50 Ω asym; C=0.1 Ω/100 Ω sym; D=100 Ω/0.1 Ω sym
FN 9233: 1 and 3 A types
FN 9233: 6 to 10 A types
FN 9233: 12 and 15 A types
FN 9233 UF2: 1 and 3 A types
FN 9233 UF2: 6 to 10 A types
FN 9233 UF2: 12 and 15 A types
