Amphenol High Speed Interconnects
THE COMPANY
Amphenol is a global provider of interconnect solutions to the designers and manufacturers
of worldwide networking systems. With our design creativity and cost e ectiveness,
Amphenol leads the way in interconnect development for internet equipment,
infrastructure, enterprise networks, and appliances. Whether industry standard or speci c
designs are required, Amphenol provides customers with products capable of performing at
the leading edge of today’s high speed technology. Our expertise in understanding and
supporting our customers’ various design needs has earned Amphenol a reputation of
excellence and quality among the world’s leading users of high speed components.
NETWORKING
SERVERS
STORAGE
TELECOM
HIGH SPEED CONNECTORS
Amphenol o ers a full range of high speed connectors with data rates ranging from 1 Gbps
to 240 Gbps and beyond, meeting our customers’ various high speed connector
requirements. Products include the ExpressPort™ Series (SFP+, QSFP+, CXP), SFP, QSFP,
Mini-SAS, Mini-SAS HD, XFP, CFP2, and CFP4.
BENEFITS
•
•
•
•
•
•
•
•
Increased platform density for scaling improved performance in a de ned physical
space
Servers that can scale I/O and processing power independently
Racks of servers that can be managed as one autonomous unit
Servers that can share I/O resources
True “plug-and-play” I/O connectivity
Extensive range of SFP/IPF connector and cage solutions to support Fiber Channel,
In niband, Ethernet, and Gigabit technology
Next generation ExpressPort™ connectors provide premium level performance for
SFP+, CXP, and QSFP+ interfaces
Data speeds of ExpressPort™ connectors can reach up to 40 Gbps per channel
2

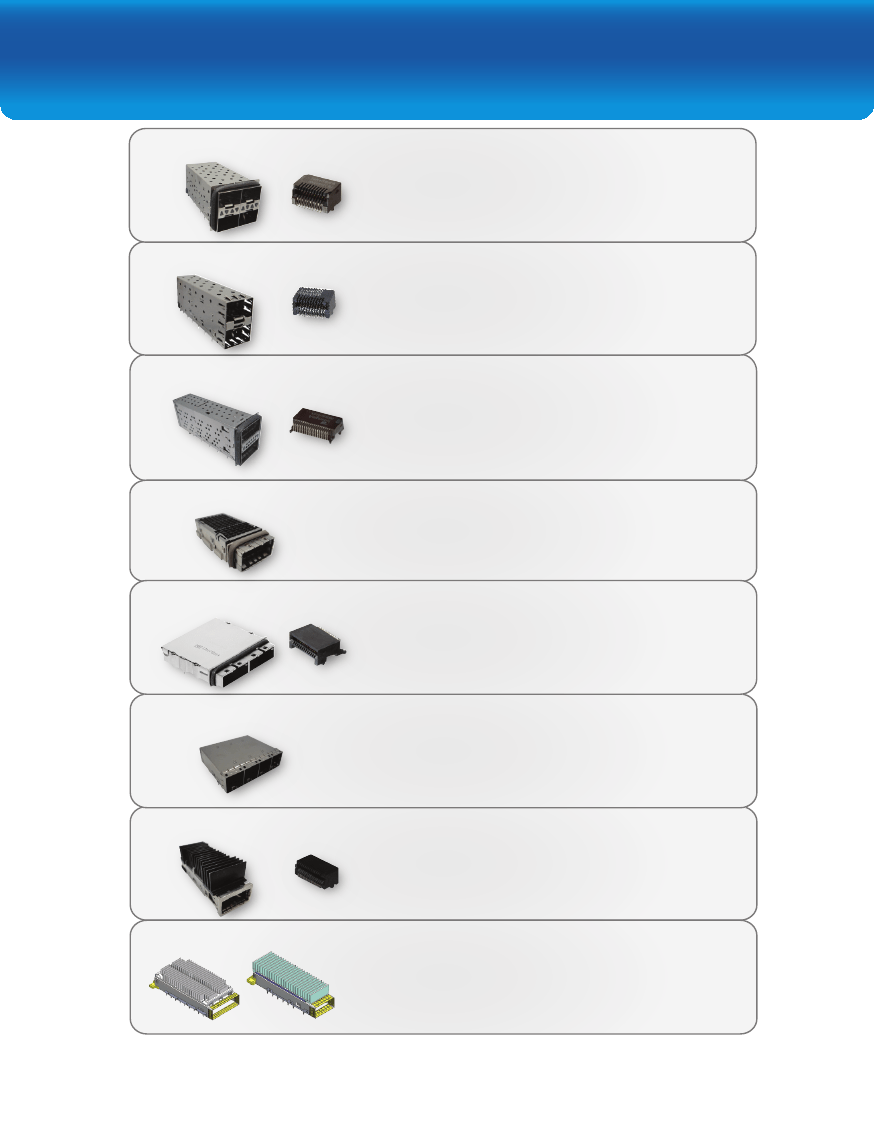

Table of Contents
ExpressPort SFP+ Series
UE76 Series
UE77 Series
UE86 Series
1xN Connector
1xN Cage
2xN Combo
4
4
6
SFP Series
UE75 Series
U77 Series
UE78/UE86 Series
1xN Connector
1xN Cage
2xN Combo
8
8
10
ExpressPort QSFP+ / E-Series / H-Series / QSFP Series
FS1 Series
U90 Series
U90 Series
1xN Connector
1xN Cage
2xN Combo
12
12
14
CXP Series
U91 Series
CXP Combo
16
Mini-SAS
FS1 Series
FSX Series
Connector
Cage
18
18
Mini-SAS HD
U92 Series
HD Combo
20
XFP Series
UE75 Series
U79 Series
Connector
Cage
22
22
CFP2 / CFP4
U99 Series
U98 Series
Telephone: (416)-291-4401
Connector
Cage
24
24
All speci cations are subject to change without notice.
Website: www.amphenol-highspeed.com
3
Email: cages@amphenol-highspeed.com
ExpressPort
TM
SFP+ 1xN
UE76-A20-3010T
Amphenol’s ExpressPort
TM
SFP+ 1xN connector, when combined with the ExpressPort
TM
SFP+ cage,
provides data transfer speeds of up to 25 Gbps. The design of the ExpressPort
TM
SFP+ connector
minimizes impedance discontinuities and re ections at high data rates, and provides a 10 to 20 dB
improvement in Near-End Crosstalk.
Amphenol’s unique ExpressPort
TM
SFP+ cage construction features EMI shielding available in the form of
metal spring ngers or elastomeric gaskets. These cages also eliminate ventilation holes near the front
of the cage to prevent potential catch points for the mating module EMI springs. Additional features
available include lightpipes (which can be purchased with cages or separately), heat sinks, and other
custom features.
U77-A441M-2081
U77-C1419-2001
U77-C261M-2081
Speci cation Highlights
The interconnect system is comprised of a cage
assembly which is used with 20-position SFP+
connectors complying with SFF-8081 and SFF-8083.
Ganged cages comply with industry standard
SFF-8433.
General Characteristics
•
RoHS Compliant
•
Industry Standard Footprint
•
Industry Standard EIA-364
Mechanical Characteristics
•
Accepts Multiple Transceivers per SFF-8431
•
Compliant Press-Fit Pins or Solder Tails (for 1x1
Cages)
•
Durability: 250 Mating Cycles min
Electrical Characteristics
•
Hot Swappable
•
Operating Voltage: 3.3 V
•
Operating Current: 0.5 A
•
Differential Impedance: 100 Ω +/- 10 Ω
•
DWV: 300 V AC
•
Insulation Resistance: 1000 MΩ min
•
Contact Resistance: 70 mΩ max
Packaging
•
Tape and Reel Packaging: Connector or 1x1 Cage
•
Tray Packaging: Cage of all Sizes
•
Bulk Packaging: Dust Cover
4
Materials
•
Cage
o
Base Material: Copper Alloy
o
Plating: Nickel or Tin
o
Light Pipe: Optical Grade Polycarbonate
o
Heat Sink: Aluminum Alloy
o
Heat Sink Clip: Stainless Steel
o
Dust Cover: Thermoplastic
•
Connector
o
Contact Base Material: Copper Alloy
o
Contact Plating: Gold on Mating Area, Gold
or Matte Tin on Termination
o
Housings: Glass Reinforced, Lead-Free Solder
Re ow Process Compatible Thermoplastic,
UL94V-0 Rated
Temperature Rating
•
Operating Temperature: -55°C to +85°C
•
Storage Temperature: -55°C to +105°C
Con gurations
(Rows x Ports per Row)
•
1x1
•
1x2
•
1x3
•
1x4
•
1x6
Options
•
Dust Cover
•
Round Light Pipe
•
Heat Sink
•
EMI Shielding
o
Metal Spring Fingers
o
Conductive Elastomeric Gasket
Ordering Information
U77-C461M-2081
UE76-A20-3000
ExpressPort
TM
SFP+ Connector
UE76
SERIES DESIGNATION (RoHS)
A
20
X
A
- R/A Single Surface Mount Connector
UE76
-
A 20
-
X X X X X
J
- Tape and Reel Packaging (480 per Reel)
T
- Tape and Reel Packaging (500 per Reel)
PACKAGING
X
STYLE
20
- 20 Positions
NUMBER OF POSITIONS
CONTACT PLATING
0
- Non Lubricated
1
- Lubricant Added
LUBRICANT OPTION
X
2
- 30 µ" Gold Plating on Mating Area; Gold Flash on Termination
3
- 30 µ" Gold Plating on Mating Area; Matte Tin Plating on Termination
5
- 15 µ" Gold Plating on Mating Area; Gold Flash on Termination
6
- 15 µ" Gold Plating on Mating Area; Matte Tin Plating on Termination
0
- Standard
1
- Resonance Cancelation Features
OPTION 2
X
0
- Standard
6
- 25 Gbps
OPTION 1
X
ExpressPort
TM
SFP+ Cage
U77
X
SERIES DESIGNATION (RoHS)
STYLE
U77
-
X X X X X
-
X X X X
1
- Tray Packaging (ACC Re-Packed)
T
- Tape and Reel Packaging (for 1x1 Only)
PACKAGING
X
A
- One Row
C
- One Row Cage; Light Pipe Combo (on Top)
E
- One Row Cage; Heat Sink Combo (Fin)
F
- One Row Cage; 1 degree Angle (1x1 Only)
X
1
- Single in Row
2
- Inline 1x2
3
- Inline 1x3
4
- Inline 1x4
6
- Inline 1x6
NUMBER OF PORTS IN ROW
0
- Standard
7
- Cage with Extra Bottom Spring Fingers,
No Bottom Mid G-Pins
8
- Cage with Half-Moon Mid G-Pins
9
- Cage with Extra Bottom Spring Fingers
and Half Moon Mid G-Pins
OPTION 1
X
X
3
- Metal Spring Fingers (No Bottom Latch Cover)
4
- Elastomeric Gasket
6
- Metal Spring Fingers (1 Piece Design Bottom Latch Cover)
CHASSIS GROUNDING
0
- Without Dust Cover
D
- With Dust Cover (Shipped Loose)
DUST COVER OPTION
X
X
1
- No Heat Sink / Light Pipe Option
2
- Heat Sink Option
3
- Light Pipe Option (for 1xN Cage Only)
HEAT SINK / LIGHT PIPE OPTION
1
- Bright Tin (for Wave Solder)
2
- Nickel
3
- Matte Tin (for Reflow 245 degrees)
PLATING
X
X
- Various Options Available
Consult Sales or Website for Details
PCB MOUNTING OPTION
X
Telephone: (416)-291-4401
All speci cations are subject to change without notice.
Website: www.amphenol-highspeed.com
5
Email: cages@amphenol-highspeed.com
