CTP4559-410 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTP4559-410

CTP4559-410: DescriptionGeneral Purpose Inductor, 18uH, 1 Element, Molybdenum Permalloy-Core,; CategoryPassive components inductor; File Size57KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

CTP4559-410 Overview

General Purpose Inductor, 18uH, 1 Element, Molybdenum Permalloy-Core,

CTP4559-410 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
core material	MOLYBDENUM PERMALLOY
DC Resistance	0.017 Ω
Nominal inductance(L)	18 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTP4559
Number of functions	1
Number of terminals	2
Maximum rated current	7.2 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Toroidal Inductors

Medium Current

CTP4559

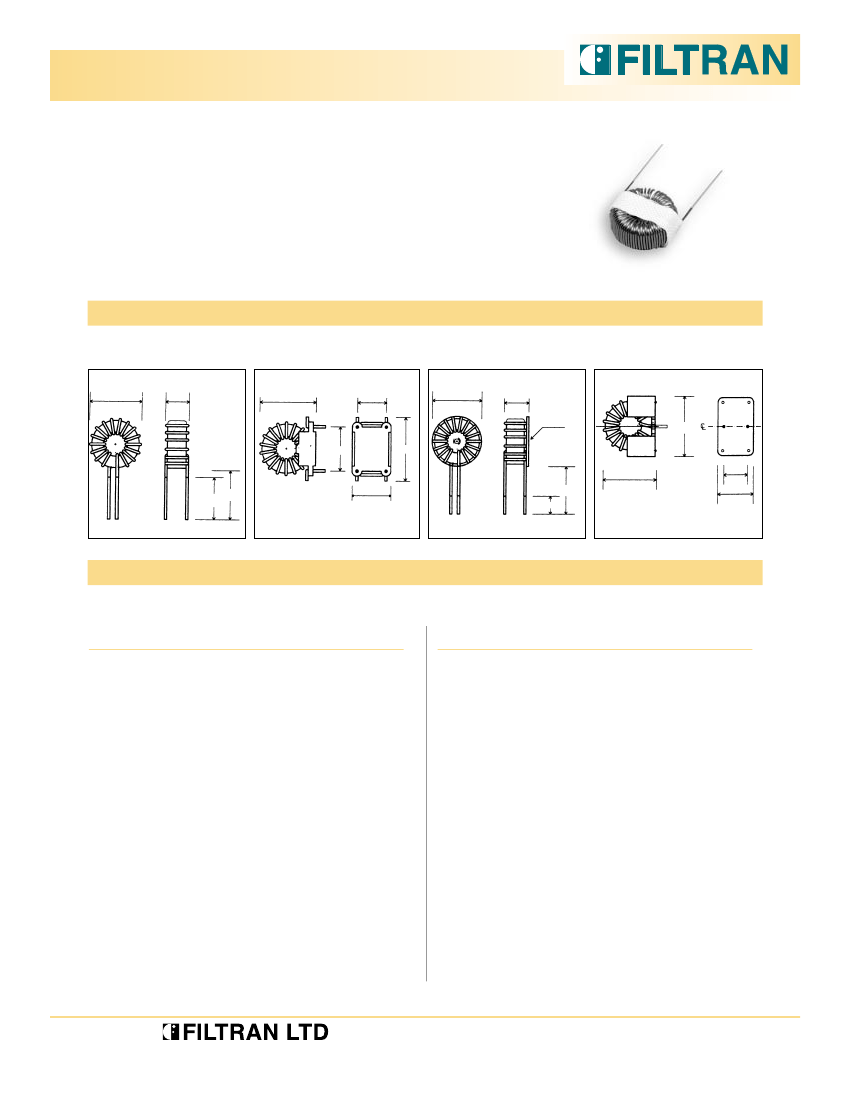

CTP4559 is a medium current inductor with the following data and features:

•

Core type:

0.68” o.d., Moly-Permalloy

Powder, perm 125.

•

Power rating:

0.86 watts for temp.

rise 50˚C.

•

Typical applications:

Switching Inductors in

Switch Mode Power

Supplies.

Four mounting styles are offered:

Flying leads (1.00”), for vertical

or horizontal mounting.

4-pin header, for vertical mounting.

Threaded center hole, flying leads

(2.00”).

2-pin header, for vertical mounting.

MECHANICAL

Style 1

0.85

0.33

Style 2

0.95

0.25

Style 3

0.85

0.45

Thread

#6-32

0.60

0.75

Style 4

0.83

0.95

0.80

1.00

0.67

2.00

0.50

0.30

0.45

ELECTRICAL SPECIFICATION

Ordering Information:

Substitute the style number for the asterisk (*). Example: CTP4559, Style 1, 56uH.

Part No.

Ind.

CTP4559 - (uH)

DCR

Ohms

Rated

Current

Amp. RMS

I (amp.)

@ Lsat.

10%

I (amp.)

@ Lsat.

25%

I (amp.)

@ Lsat.

50%

Part No.

Ind.

CTP4559 - (uH)

DCR

Ohms

Rated

Current

Amp. RMS

Order: CTP4559 - 116

I (amp.)

@ Lsat.

25%

I (amp.)

@ Lsat.

50%

I (amp.)

@ Lsat.

10%

* 01

* 02

* 03

* 04

* 05

* 06

* 07

* 08

* 09

* 10

* 11

* 12

* 13

* 14

* 15

* 16

3.3

3.9

4.7

5.6

6.8

8.2

0.005

0.006

0.008

0.009

0.010

0.011

0.015

0.017

0.018

0.020

0.022

0.024

0.027

0.029

13.5

13.0

12.5

12.0

10.2

9.7

9.3

8.9

7.5

7.2

6.8

6.5

6.2

6.0

5.7

5.5

9.7

8.9

8.1

7.4

6.7

6.1

5.6

5.1

4.5

4.1

3.7

3.4

3.1

2.8

2.6

2.3

14.5

13.3

12.1

11.1

10.1

9.2

8.3

7.6

6.8

6.2

5.6

5.1

4.6

4.2

3.8

3.5

24.2

22.2

20.2

18.5

16.8

15.3

13.9

12.7

11.3

10.3

9.4

8.4

7.6

7.0

6.4

5.9

* 17

* 18

* 19

* 20

* 21

* 22

* 23

* 24

* 25

* 26

* 27

* 28

100

120

150

180

220

270

330

390

470

560

0.032

0.035

0.038

0.053

0.074

0.103

0.113

0.159

0.219

0.303

0.332

0.362

5.2

5.0

4.7

4.0

3.4

2.9

2.8

2.3

2.0

1.7

1.6

1.5

2.1

1.9

1.8

1.6

1.4

1.3

1.2

1.1

1.0

0.9

0.8

0.7

3.2

2.9

2.6

2.4

2.1

2.0

1.8

1.6

1.4

1.3

1.2

1.1

5.3

4.8

4.4

4.0

3.6

3.3

3.0

2.7

2.4

2.2

2.0

1.9

CTP4559

An ISO 9001 Registered Company

229 Colonnade Road, Nepean, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.com

33-8
