CYM74A590PM-66C datasheet, PDF

Datasheet> All Categories > storage> storage> CYM74A590PM-66C

CYM74A590PM-66C: DescriptionCache SRAM Module, 64KX32, 15ns, CMOS; Categorystorage storage; File Size222KB，6 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CYM74A590PM-66C Overview

Cache SRAM Module, 64KX32, 15ns, CMOS

CYM74A590PM-66C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Reach Compliance Code	compliant
ECCN code	3A991.B.2.A
Maximum access time	15 ns
Other features	CAN ALSO BE OPERATED FROM 3.3V
Maximum clock frequency (fCLK)	66 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N160
memory density	2097152 bit
Memory IC Type	CACHE SRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	160
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX32
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM160
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3,5 V
Certification status	Not Qualified
Minimum standby current	3.13 V
Maximum slew rate	1.5 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

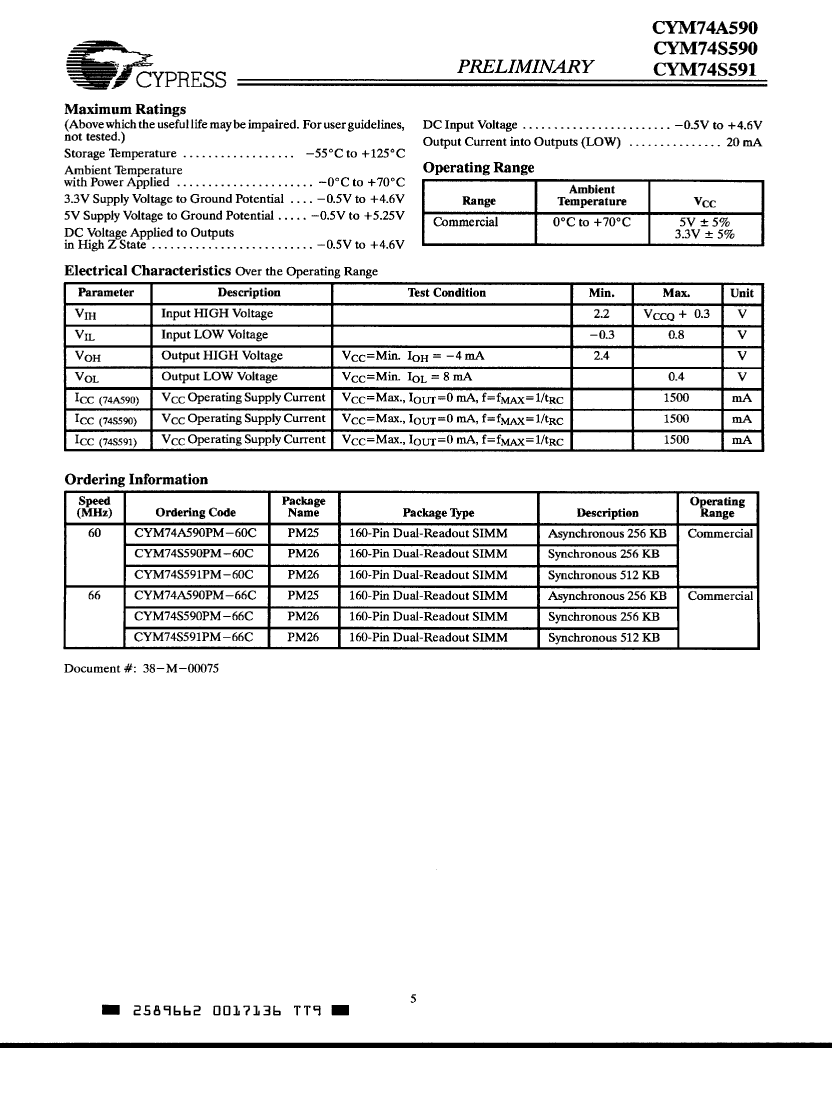

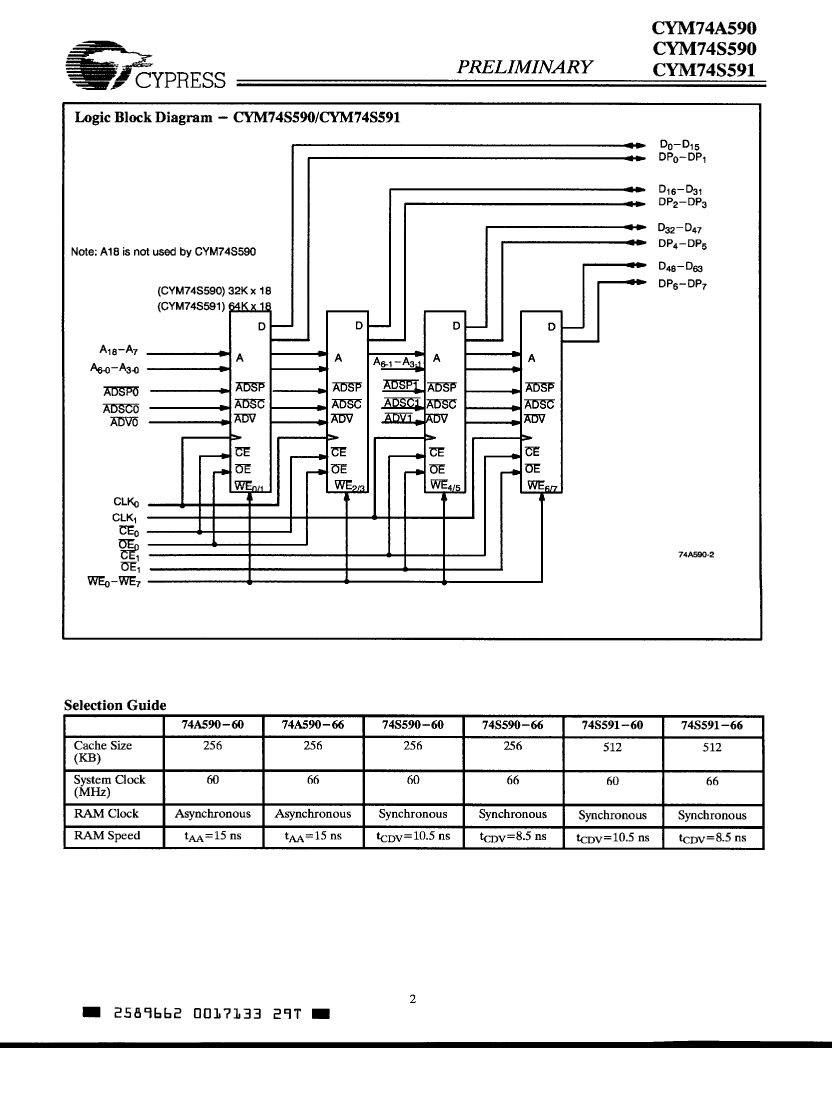

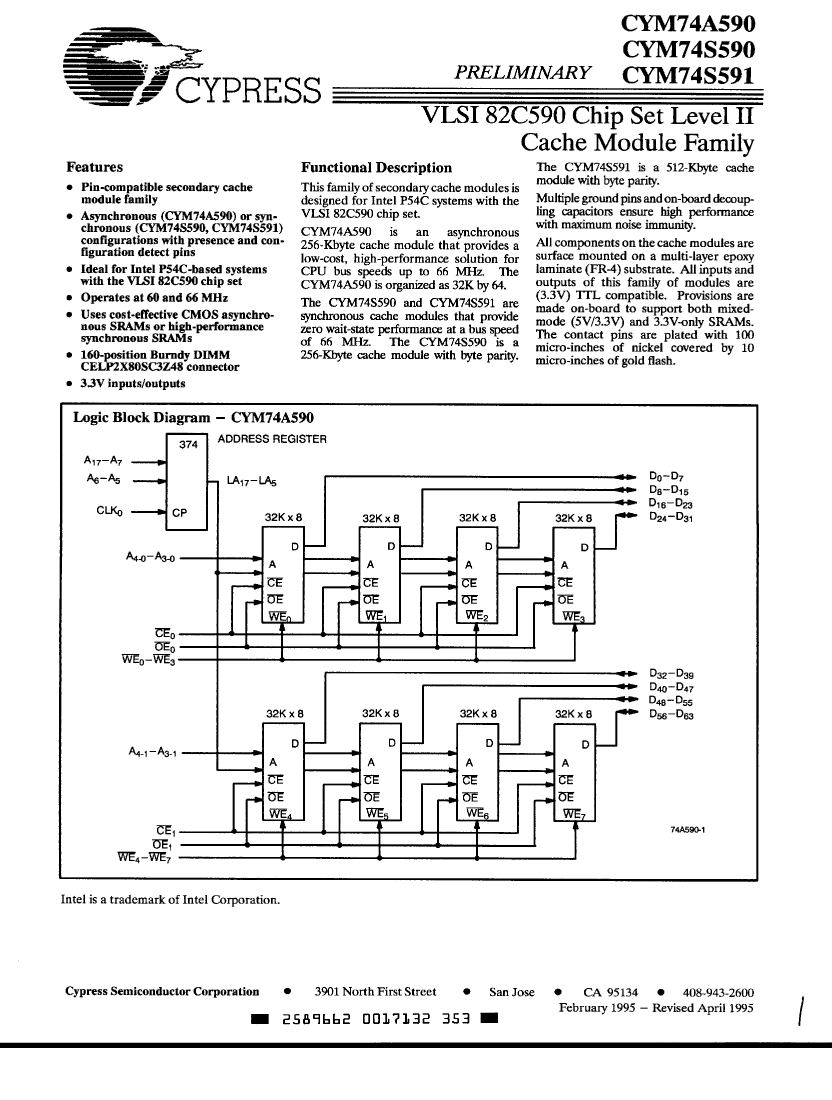

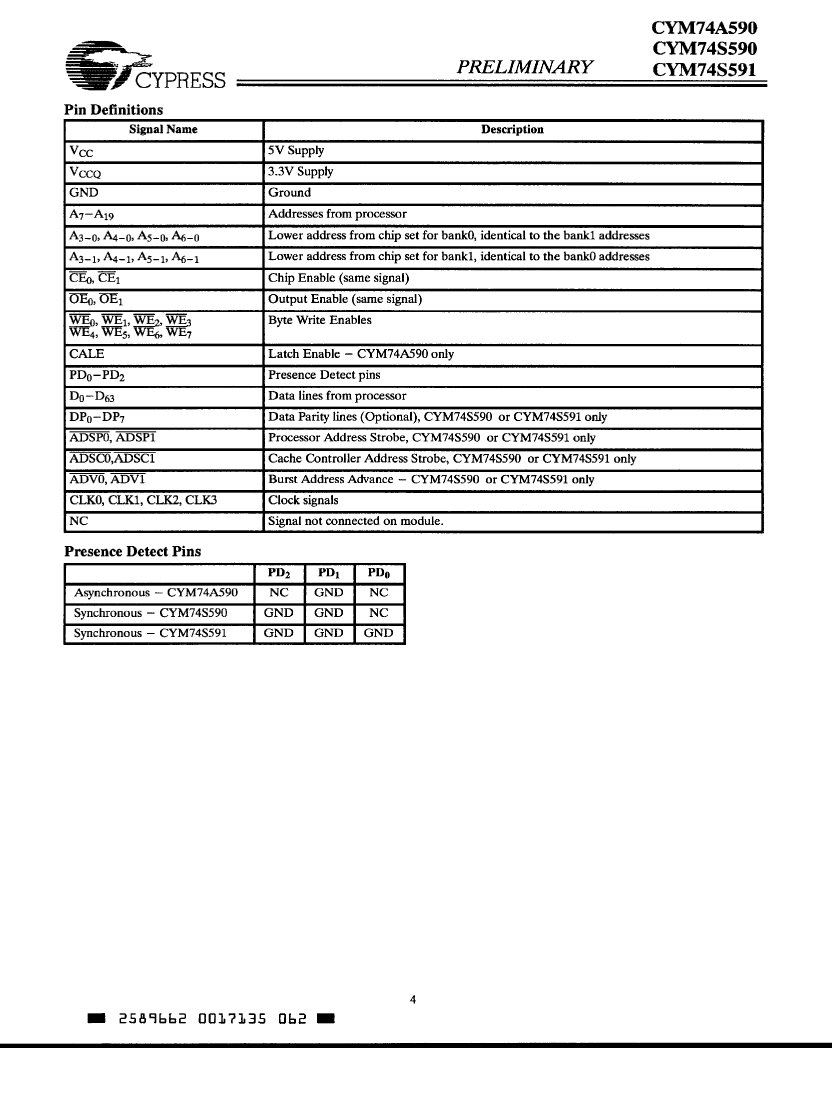

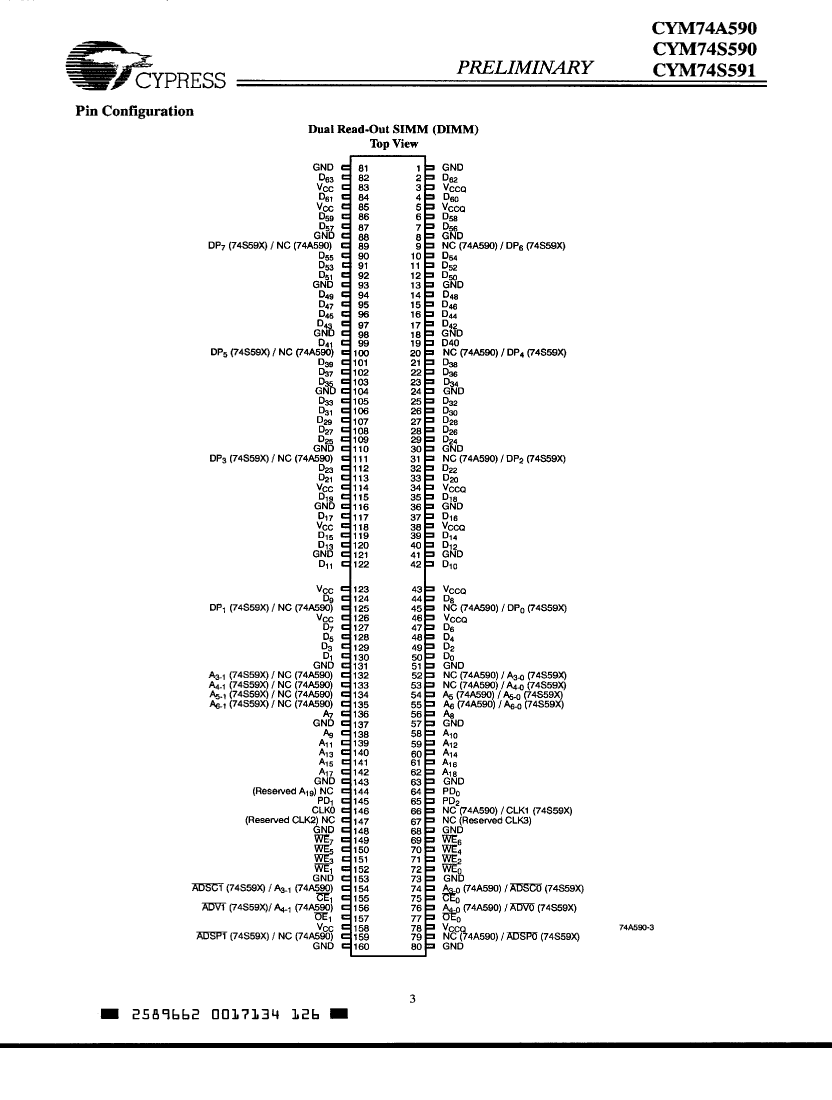

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CYM74A590PM-66C Related Products

	CYM74A590PM-66C	CYM74S591PM-66C	CYM74S591PM-60C	CYM74S590PM-66C	CYM74A590PM-60C	CYM74S590PM-60C
Description	Cache SRAM Module, 64KX32, 15ns, CMOS	Cache SRAM Module, 128KX36, 8.5ns, CMOS	Cache SRAM Module, 128KX36, 10.5ns, CMOS	Cache SRAM Module, 64KX36, 8.5ns, CMOS	Cache SRAM Module, 64KX32, 15ns, CMOS	Cache SRAM Module, 64KX36, 10.5ns, CMOS
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	15 ns	8.5 ns	10.5 ns	8.5 ns	15 ns	10.5 ns
Other features	CAN ALSO BE OPERATED FROM 3.3V	CAN ALSO BE OPERATED FROM 3.3V	CAN ALSO BE OPERATED FROM 3.3V	CAN ALSO BE OPERATED FROM 3.3V	CAN ALSO BE OPERATED FROM 3.3V	CAN ALSO BE OPERATED FROM 3.3V
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160
memory density	2097152 bit	4718592 bit	4718592 bit	2359296 bit	2097152 bit	2359296 bit
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	32	36	36	36	32	36
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	160	160	160	160	160	160
word count	65536 words	131072 words	131072 words	65536 words	65536 words	65536 words
character code	64000	128000	128000	64000	64000	64000
Operating mode	ASYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	ASYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX32	128KX36	128KX36	64KX36	64KX32	64KX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM160	DIMM160	DIMM160	DIMM160	DIMM160	DIMM160
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3.3,5 V	5 V	5 V	5 V	3.3,5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V
Maximum slew rate	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA	1.5 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
package instruction	-	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160
