M80-5600605 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-5600605

M80-5600605: CategoryThe connector The connector; File Size285KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5600605 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5600605	-	-	View	Buy Now

M80-5600605 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.238 inch
subject depth	0.309 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

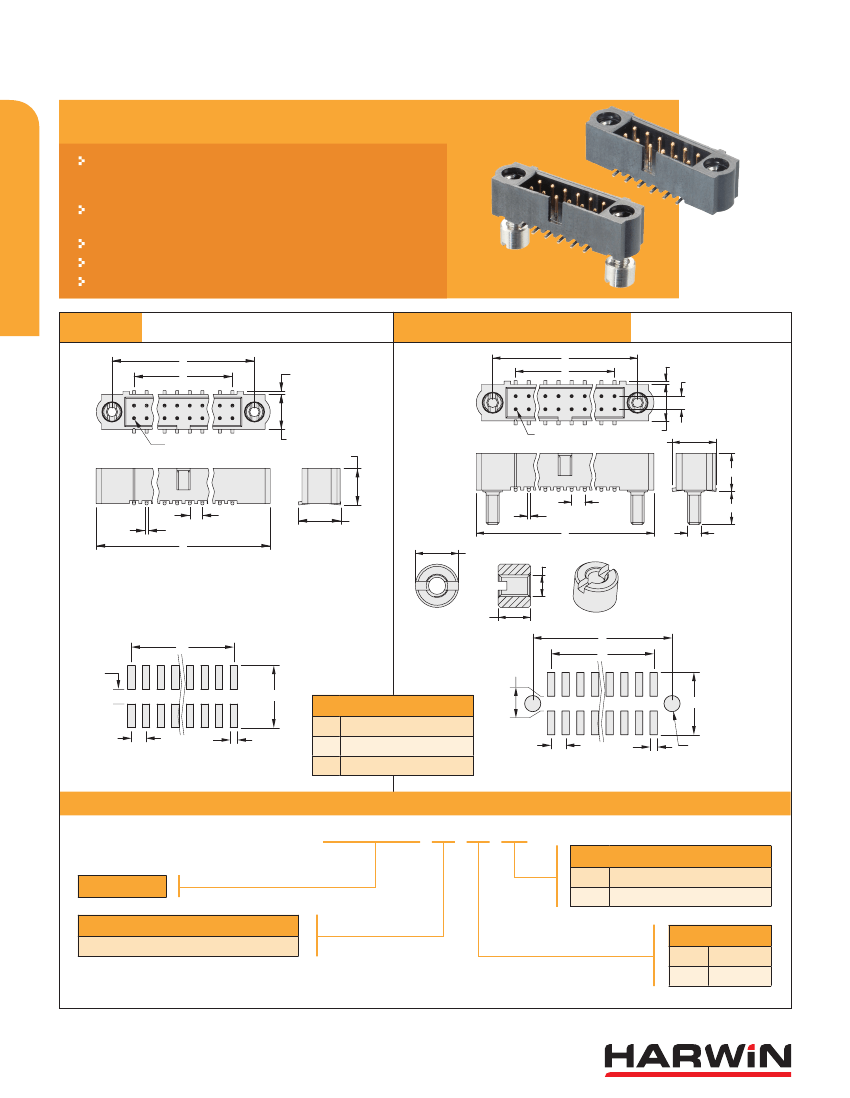

Datamate J-Tek Connectors

Male Vertical Surface Mount 101Lok

101Lok fixing gives secure, fast and simple mating; no special

tooling required. Just a simple 101-degree turn is required to fix

the connectors together.

Connectors mate with Datamate J-Tek female connectors with

applicable 101Lok fixings.

Board Mount provides PCB strain relief.

Gull wing SMT tails simplify inspection process.

Contact

datamate@harwin.com

for tape and reel options.

DATAMATE J-TEK

101LOK

0.50

101LOK WITH BOARD MOUNT

0.50

2.00

No.1 contact

5.55

No.1 contact

5.55

6.75

5.80

2.00

5.00

2.00

Ø0.50

6.75

Ø4.00

Ø0.50

Board Mount Nut,

2 per connector

3.00

2.00

8.50

2.00

CALCULATION

B + 12

Total no. of contacts - 2

B+7

2.00

1.00

8.50

2.00

1.00

Ø2.20

Recommended PC Board Pattern

HOW TO ORDER

M80 - 5S1 XX XX MX

JACKSCREW

SERIES CODE

TOTAL NO. OF CONTACTS

04, 06, 08, 10, 12, 14, 20, 26, 34, 42, 50

101Lok

101Lok with 5mm Board Mount

FINISH

Gold

Gold + Tin

All dimensions in mm.

www.harwin.com

113

M80-5600605 Related Products

	M80-5600605	M80-5602605
Description		Power to the Board 13+13 POS FEM +J/S 3mm TAIL TIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Harwin	Harwin
package instruction	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	not_compliant
ECCN code	EAR99	EAR99
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE
body width	0.238 inch	0.238 inch
subject depth	0.309 inch	0.309 inch
body length	0.63 inch	1.417 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	LOOSE	LOOSE
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Durability	500 Cycles	500 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation option 2	JACKSCREW	JACKSCREW
Installation type	CABLE	CABLE
Number of rows loaded	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP
Total number of contacts	6	26
UL Flammability Code	94V-0	94V-0
Maximum wire diameter	22 AWG	22 AWG
