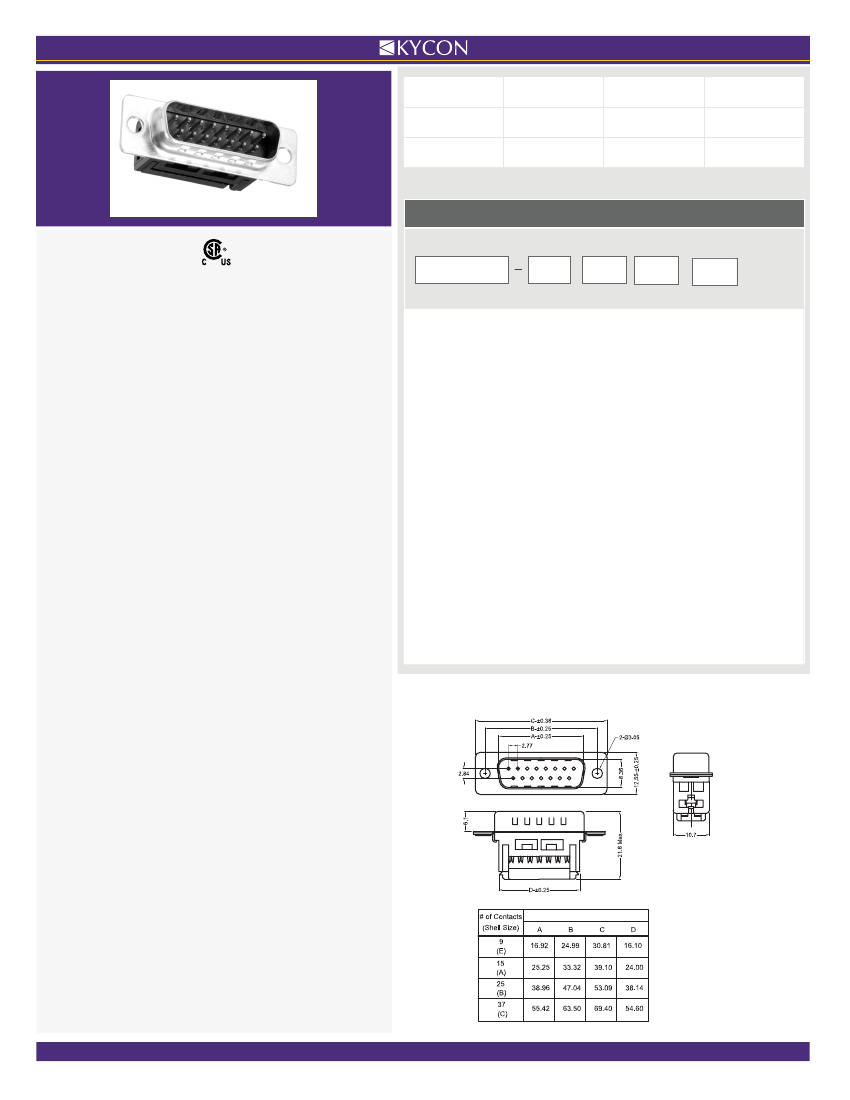

D-Sub Standard Connectors IDC 25P PLUG METAL BLACK
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Kycon |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | SHIELDED |
| body width | 0.494 inch |
| body length | 1.534 inch |
| Body/casing type | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 13 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| MIL compliance | NO |
| Plug contact pitch | 0.109 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | LOCKING |
| Installation type | CABLE AND PANEL |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | FLASH inch |
| Rated current (signal) | 2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 3/B |
| Termination type | IDC |
| Total number of contacts | 25 |
| K99X-25P-BLK | K99X-25S-BLK | K99X-9S-K-BLK | K99X-37S-K-BLK | K99X-15P-BLK | K99X-15P-K-BLK | K99X-15S-BLK | K99X-37P-BLK | |
|---|---|---|---|---|---|---|---|---|
| Description | D-Sub Standard Connectors IDC 25P PLUG METAL BLACK | D-Sub Standard Connectors IDC 25P RECPT METAL BLACK | Linear Voltage Regulators 5.0V 1.0A Positive | D-Sub Standard Connectors IDC METAL D-SUB 37P F-BUSHING BK | D-Sub Standard Connectors IDC 15P PLUG METAL BLACK | D-Sub Standard Connectors IDC 15P PLUG METAL BLACK W/BUSHING | D-Sub Standard Connectors IDC 15P RECPT METAL BLACK | D-Sub Standard Connectors 37P MALE BLACK IDC METAL |
| Maker | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon | Kycon |
| Reach Compliance Code | compliant | compliant | unknown | unknown | compliant | unknown | compliant | compliant |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Is it Rohs certified? | conform to | conform to | - | - | conform to | - | conform to | conform to |
| package instruction | ROHS COMPLIANT | ROHS COMPLIANT | - | - | ROHS COMPLIANT | - | ROHS COMPLIANT | ROHS COMPLIANT |
| ECCN code | EAR99 | EAR99 | - | - | EAR99 | - | EAR99 | EAR99 |
| Other features | SHIELDED | SHIELDED | - | - | SHIELDED | - | SHIELDED | SHIELDED |
| body width | 0.494 inch | 0.494 inch | - | - | 0.494 inch | - | 0.494 inch | 0.494 inch |
| body length | 1.534 inch | 1.534 inch | - | - | 0.994 inch | - | 0.994 inch | 2.182 inch |
| Body/casing type | PLUG | RECEPTACLE | - | - | PLUG | - | RECEPTACLE | PLUG |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | - | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | FEMALE | - | - | MALE | - | FEMALE | MALE |
| contact mode | STAGGERED | STAGGERED | - | - | STAGGERED | - | STAGGERED | STAGGERED |
| Contact resistance | 13 mΩ | 13 mΩ | - | - | 13 mΩ | - | 13 mΩ | 13 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | - | - | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | - | - | NO | - | NO | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | - | - | 1000VAC V | - | 1000VAC V | 1000VAC V |
| empty shell | NO | NO | - | - | NO | - | NO | NO |
| Filter function | NO | NO | - | - | NO | - | NO | NO |
| IEC compliance | NO | NO | - | - | NO | - | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | - | - | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | - | - | BLACK | - | BLACK | BLACK |
| MIL compliance | NO | NO | - | - | NO | - | NO | NO |
| Plug contact pitch | 0.109 inch | 0.109 inch | - | - | 0.109 inch | - | 0.109 inch | 0.109 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | - | - | MULTIPLE MATING PARTS AVAILABLE | - | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | - | - | NO | - | NO | NO |
| Installation option 1 | LOCKING | LOCKING | - | - | LOCKING | - | LOCKING | LOCKING |
| Installation option 2 | LOCKING | LOCKING | - | - | LOCKING | - | LOCKING | LOCKING |
| Installation type | CABLE AND PANEL | CABLE AND PANEL | - | - | CABLE AND PANEL | - | CABLE AND PANEL | CABLE AND PANEL |
| Number of rows loaded | 2 | 2 | - | - | 2 | - | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | - | - | 105 °C | - | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | - | -55 °C | - | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | - | - | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE |
| Plating thickness | FLASH inch | FLASH inch | - | - | FLASH inch | - | FLASH inch | FLASH inch |
| Rated current (signal) | 2 A | 2 A | - | - | 2 A | - | 2 A | 2 A |
| Guideline | UL, CSA | UL, CSA | - | - | UL, CSA | - | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN | TIN | - | - | TIN | - | TIN | TIN |
| Shell material | STEEL | STEEL | - | - | STEEL | - | STEEL | STEEL |
| Housing size | 3/B | 3/B | - | - | 2/A | - | 2/A | 4/C |
| Termination type | IDC | IDC | - | - | IDC | - | IDC | IDC |
| Total number of contacts | 25 | 25 | - | - | 15 | - | 15 | 37 |
| Manufacturer's serial number | - | K99X | K99X | K99X | K99X | K99X | K99X | K99X |
