PN18-12R-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PN18-12R-L

PN18-12R-L: DescriptionNon-Heat Shrink Tubing and Sleeves 1/4in BLACK 100ft 100ft SPOOL BLACK; CategoryThe connector; File Size608KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

PN18-12R-L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PN18-12R-L	-	-	View	Buy Now

PN18-12R-L Overview

Non-Heat Shrink Tubing and Sleeves 1/4in BLACK 100ft 100ft SPOOL BLACK

PN18-12R-L Parametric

Parameter Name	Attribute value
Product Category	Terminals
Manufacturer	Panduit
RoHS	Details
Product	Screw Terminals
Type	Ring
Stud / Tab Size	12.7 mm
Wire Gauge	22 AWG - 18 AWG
Termination Style	Crimp
Gender	-
Insulation	Insulated
Color	Red
Contact Plating	Tin
Contact Material	Copper
Contact Gender	-
Current Rating	-
Insulation Material	Nylon
Length	33.5 mm
Material	Copper
Maximum Bundle Diameter	-
Mounting Angle	-
Mounting Method	Screw
Factory Pack Quantity	50
Voltage Rating	600 V
Width	18.3 mm
Unit Weight	0.083211 oz

Preview

Download Datasheet

View All

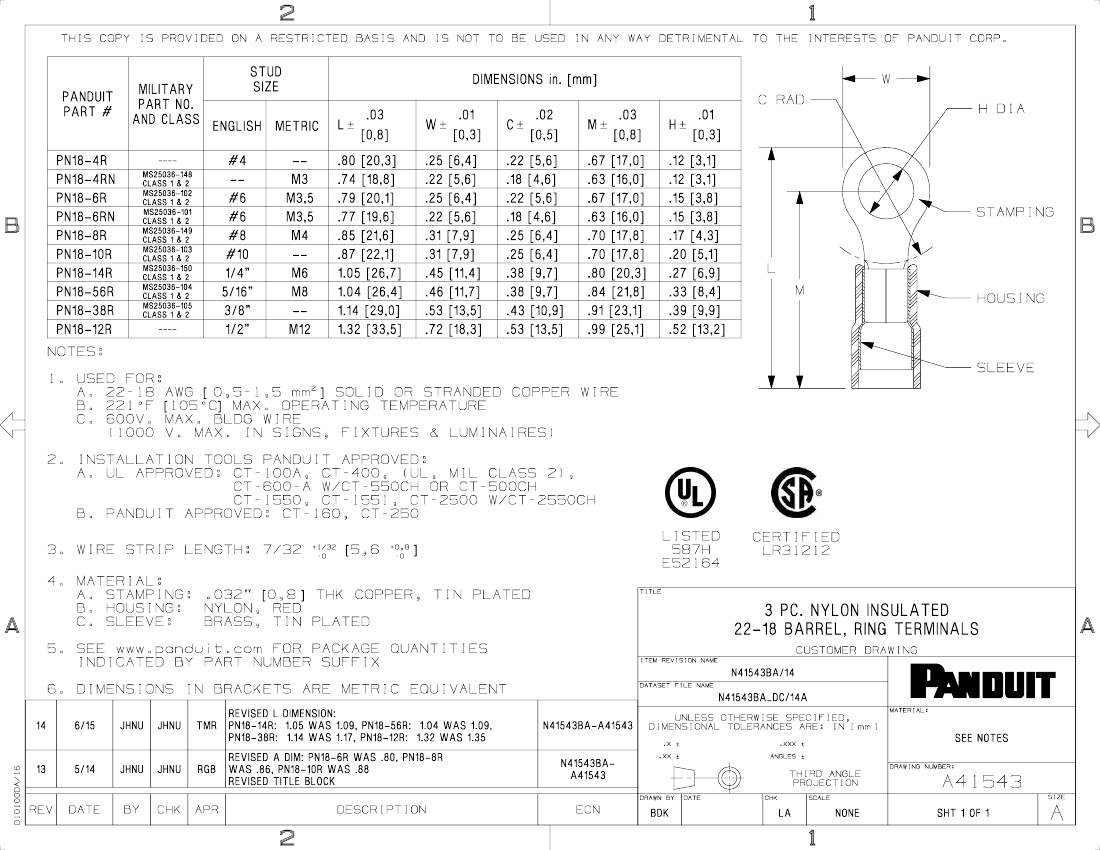

STUD

SIZE

ENGLISH

METRIC

DIMENSIONS

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

PANDUIT

PART

MILITARY

PART

NO.

AND

CLASS

----

MS25036-148

CLASS

& 2

in.

[mm]

C RAD

.03

[0,8]

.01

[0,3]

.02

[0,5]

.03

[0,8]

.01

H DIA

[0,3]

PN18-4R

PN18-4RN

PN18-6R

PN18-6RN

PN18-8R

PN18-10R

PN18-14R

PN18-56R

PN18-38R

PN18-12R

MS25036-102

CLASS

& 2

MS25036-101

CLASS

& 2

MS25036-149

CLASS

& 2

MS25036-103

CLASS

& 2

MS25036-150

CLASS

& 2

MS25036-104

CLASS

& 2

MS25036-105

CLASS

& 2

----

#10

1/4"

5/16"

3/8"

1/2"

M3,5

M12

.80

[20,3]

.74

[18,8]

.79

[20,1]

.77

[19,6]

.85

[21,6]

.87

[22,1]

1.05

[26,7]

1.04

[26,4]

1.14

[29,0]

1.32

[33,5]

.25

[6,4]

.22

[5,6]

.25

[6,4]

.22

[5,6]

.31

[7,9]

.31

[7,9]

.45

[11,4]

.46

[11,7]

.22

[5,6]

.18

[4,6]

.22

[5,6]

.18

[4,6]

.53

[13,5]

.72

[18,3]

.25

[6,4]

.25

[6,4]

.38

[9,7]

.38

[9,7]

.43

[10,9]

.53

[13,5]

.67

[17,0]

.63

[16,0]

.67

[17,0]

.63

[16,0]

.70

[17,8]

.70

[17,8]

.80

[20,3]

.84

[21,8]

.91

[23,1]

.99

[25,1]

.12

[3,1]

.12

[3,1]

.15

[3,8]

.15

[3,8]

.17

[4,3]

STAMPING

.20

[5,1]

.27

[6,9]

.33

[8,4]

.39

[9,9]

.52

[13,2]

HOUSING

NOTES:

1. USED FOR:

A. 22-18 AWG [ 0,5-1,5 mm

] SOLID OR STRANDED COPPER WIRE

B. 221 F [105 C] MAX. OPERATING TEMPERATURE

C. 600V. MAX. BLDG WIRE

(1000 V. MAX. IN SIGNS, FIXTURES & LUMINAIRES)

2. INSTALLATION TOOLS PANDUIT APPROVED:

A. UL APPROVED: CT-100A, CT-400, (UL, MIL CLASS 2),

CT-600-A W/CT-550CH OR CT-500CH

CT-1550, CT-1551, CT-2500 W/CT-2550CH

B. PANDUIT APPROVED: CT-160, CT-250

3. WIRE STRIP LENGTH: 7/32

+1/32

-0

SLEEVE

[5,6

+0,8

-0

]

TITLE

LISTED

587H

E52164

CERTIFIED

LR31212

4. MATERIAL:

A. STAMPING: .032" [0,8 ] THK COPPER, TIN PLATED

B. HOUSING: NYLON, RED

C. SLEEVE:

BRASS, TIN PLATED

5. SEE www.panduit.com FOR PACKAGE QUANTITIES

INDICATED BY PART NUMBER SUFFIX

6. DIMENSIONS IN BRACKETS ARE METRIC EQUIVALENT

REVISED

PC.

NYLON

INSULATED

22-18

BARREL,

RING

TERMINALS

CUSTOMER DRAWING

ITEM REVISION NAME

N41543BA/14

DATASET FILE NAME

N41543BA_DC/14A

MATERIAL:

DIMENSION:

N41543BA-A41543

6/15

JHNU

TMR

PN18-14R:

1.05

WAS

1.09,

PN18-56R:

1.04

WAS

1.09,

PN18-38R:

1.14

WAS

1.17,

PN18-12R:

1.32

WAS

1.35

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XXX

ANGLES

DRAWING NUMBER:

SEE

NOTES

D10100DA/16

5/14

JHNU

RGB

DIM:

PN18-6R

WAS

.80,

PN18-8R

WAS

.86,

PN18-10R

WAS

.88

REVISED

TITLE

BLOCK

N41543BA-

A41543

.XX

THIRD ANGLE

PROJECTION

DRAWN

A41543

SIZE

DATE

CHK

SCALE

REV

DATE

CHK

APR

DESCRIPTION

ECN

BDK

NONE

SHT
