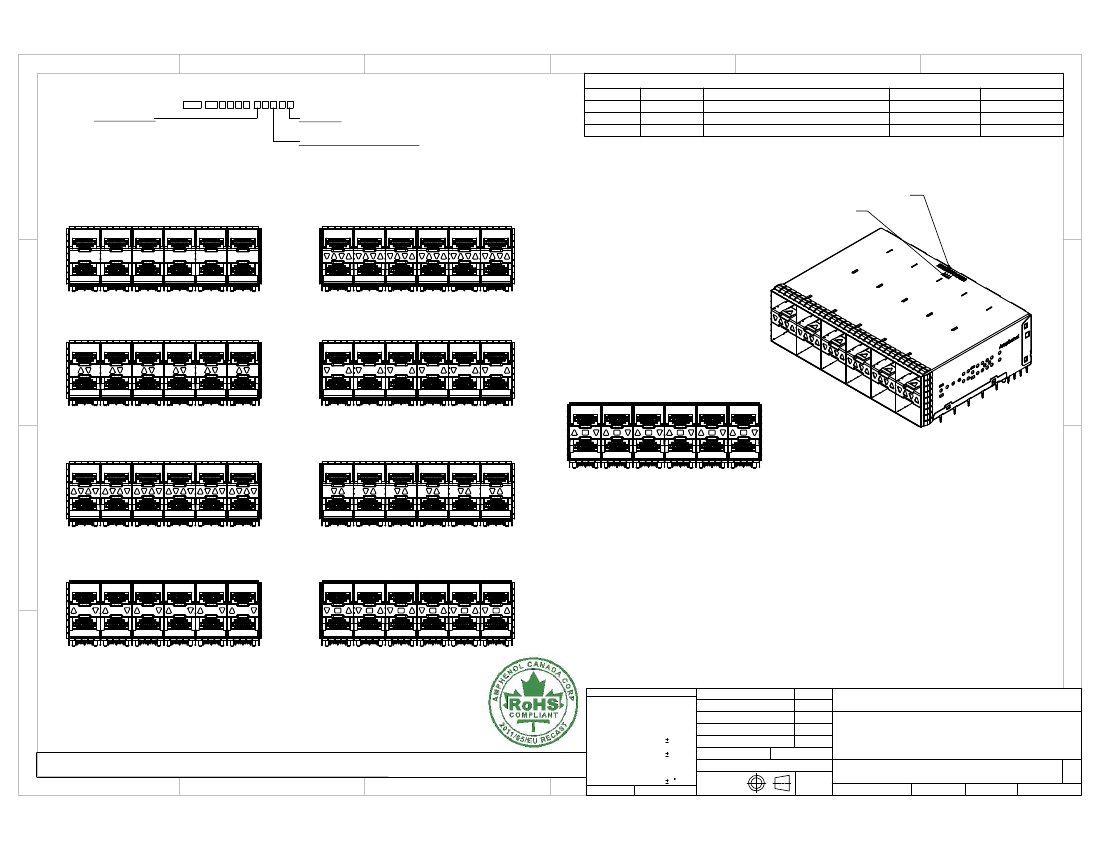

AMPHENOL PART NUMBER
CONFIGURATION
UE86 - 3G 6 6 2 0 - X 0 X 6 1
LIGHT PIPE OPTION
0 - NO LIGHT PIPE
1 - 4 LP PER 2X1, NORMAL ORIENTATION
2 - 2 INNER LP PER 2X1, NORMAL ORIENTATION
3 - 2 OUTER LP PER 2X1, NORMAL ORIENTATION
4 - 4 LP PER 2X1, REVERSING ORIENTATION
5 - 2 INNER LP PER 2X1, REVERSING ORIENTATION
6 - 2 OUTER LP PER 2X1, REVERSING ORIENTATION
7 - 3 LP PER 2X1, 2 OUTER LP, NORMAL ORIENTATION
8 - 3 LP PER 2X1, 2 OUTER LP, REVERSING ORIENTATION
PACKAGING
1 - TRAY PACKAGING (STACKED)
PLATING OPTIONS FOR CONNECTOR
2 - 30µ" GOLD PLATING ON MATING AREA
15~100µ" MATTE TIN ON TERMINATION
3 - 30µ" GOLD PLATING ON MATING AREA
150~300µ" MATTE TIN ON TERMINATION
5 - 15µ" GOLD PLATING ON MATING AREA
15~100µ" MATTE TIN ON TERMINATION
6 - 15µ" GOLD PLATING ON MATING AREA
150~300µ" MATTE TIN ON TERMINATION
3
4
5
6

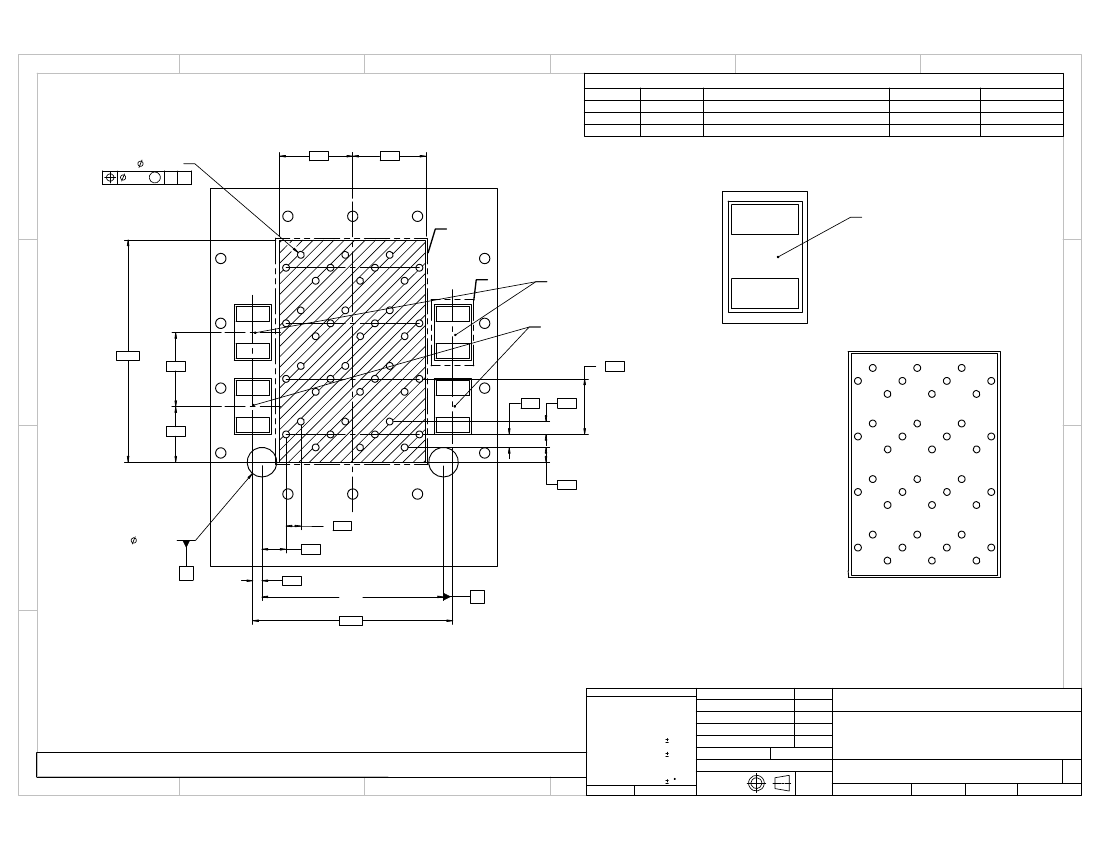

REV.
A
B
C
ECN
DESCRIPTION
INITIAL RELEASE
UPDATE PLATING OPTIONS
UPDATE NOTES
REVISIONS
DATE
02/12/2014
JUN 25/14
AUG 19/14
APPROVED
J. SI
J.SI
J.SI
A
A
PART NUMBER
(LAST DIGIT INDICATING
PACKAGING TYPE, NOT
PRINTED ON THE PART)
DATE CODE
NO LIGHT PIPES
UE86-3G6620-00361
B
4 LIGHT PIPES
UE86-3G6620-10361
B
2 INNER LIGHT PIPES
UE86-3G6620-20361
2 OUTER LIGHT PIPES
UE86-3G6620-30361
3 LIGHT PIPES UPSIDE DOWN
UE86-3G6620-80361
C
MATERIAL: (RoHS COMPLIANT)
4 LIGHT PIPES UPSIDE DOWN
UE86-3G6620-40361
2 INNER LIGHT PIPES UPSIDE DOWN
UE86-3G6620-50361
1.
2.
CAGE - PRESS FIT: COPPER ALLOY (NICKEL SILVER)
CONNECTOR - PRESS FIT:
- PLASTIC HOUSING: LCP, FLAMMABILITY RATING UL94-V0
- CONTACTS: PHOSPHOR BRONZE
LIGHT PIPE: CLEAR POLYCABONATE, FLAMMABILITY RATING UL94-V0
PACKAGING: TRAY PACKAGING
TEMPERATURE RANGE: -40°C TO +85°C
C
3.
4.
5.
2 OUTER LIGHT PIPES UPSIDE DOWN
UE86-3G6620-60361
D
3 LIGHT PIPES
UE86-3G6620-70361
UNLESS SPECIFIED OTHERWISE
DIMENSIONS ARE IN MILLIMETERS
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
0.25
0.15
N/A
1
DRAWN
CHECKED
M.E. APP'D
Q.A. APP'D
DWG APP'D
REF.
THIRD
ANGLE
PROJECTION
P. OU
J. SI
FEB10/14
FEB 12/14
Amphenol High Speed Interconnects
A Division of Amphenol Corp. www.amphenolcanada.com
J. SI
FEB 12/14
2X6 SFP ULTRAPORT WITH LIGHT PIPE
OPTIONS AND EMI SPRING FINGER
DWG. NO.
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR
USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
1
2
3
2 DECIMAL PLACE
3 DECIMAL PLACE
ANGULAR DEGREES
ENG. REL. NO.
MATERIAL AND FINISH
SEE NOTES
ECN Exxxxx
DO NOT
SCALE
DRAWING CODE ID NO.
P-UE86-3G6620-X0X61
03554
DWG SIZE:
REV
C
A4
SCALE:
2:3
SHEET 1 OF 5
1
2
3
4
5
6
REV.
A
B
C
A
ECN
DESCRIPTION
INITIAL RELEASE
UPDATE PLATING OPTIONS
UPDATE NOTES
REVISIONS
DATE
02/12/2014
JUN 25/14
AUG 19/14
APPROVED
J. SI
J.SI
J.SI
A
T20
T1
INNER LIGHT PIPE
OUTER LIGHT PIPE

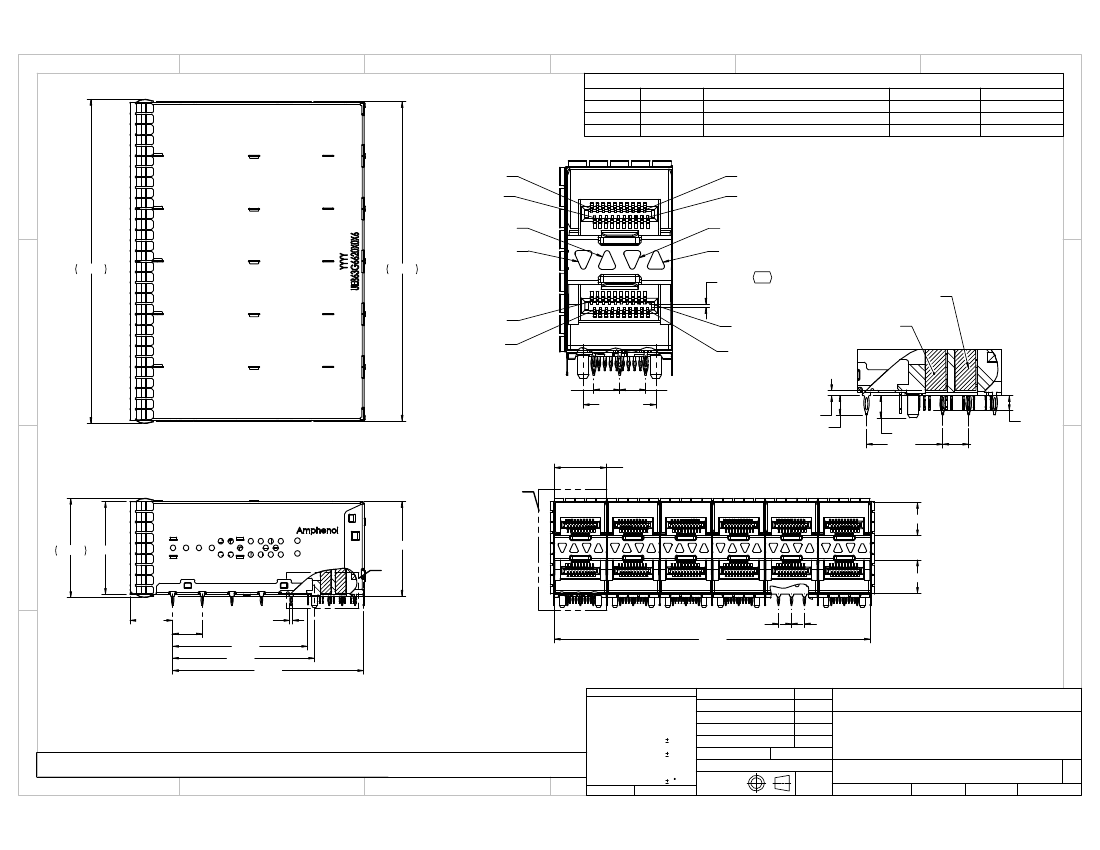

87.51
86.25
T11
T10
INNER LIGHT PIPE
OUTER LIGHT PIPE
+0.05
0.50 - 0.08 S T
(TYP.)
OUTER LIGHT PIPE
INNER LIGHT PIPE
(OR MIDDLE LIGHT PIPE)
B
B
B10
B11
B1
B20
3.50(TYP.)
MIDDLE PIN
9.80(TYP.)
3.50(TYP.)
MIDDLE PIN
DETAIL A
SCALE 2 : 1
0.70
2.60
3.00
10.29
2.01
3.50(TYP.)
14.00±0.10(TYP.)
DETAIL B
SCALE 2 : 1
A
C
25.50
8.95±0.15(TYP.)
C
26.76
25.00
B
8.95±0.15(TYP.)
11.50
8.00(TYP.)
0.75(TYP.)
36.45
38.29
51.57
UNLESS SPECIFIED OTHERWISE
DIMENSIONS ARE IN MILLIMETERS
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
0.25
0.15
N/A
1
3.50(TYP.)
REAR PIN
85.25
3.50(TYP.)
REAR PIN
D
DRAWN
CHECKED
M.E. APP'D
Q.A. APP'D
DWG APP'D
REF.
THIRD
ANGLE
PROJECTION
P. OU
J. SI
FEB10/14
FEB 12/14
Amphenol High Speed Interconnects
A Division of Amphenol Corp. www.amphenolcanada.com
J. SI
FEB 12/14
2X6 SFP ULTRAPORT WITH LIGHT PIPE
OPTIONS AND EMI SPRING FINGER
DWG. NO.
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR
USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
1
2
3
2 DECIMAL PLACE
3 DECIMAL PLACE
ANGULAR DEGREES
ENG. REL. NO.
MATERIAL AND FINISH
SEE NOTES
ECN Exxxxx
DO NOT
SCALE
DRAWING CODE ID NO.
P-UE86-3G6620-X0X61
03554
DWG SIZE:
REV
C
A4
SCALE:
1:1
SHEET 2 OF 5
1
2
3
4
5
6
86.75±0.10
A
C
REV.
A
B
C
ECN
DESCRIPTION
INITIAL RELEASE
UPDATE PLATING OPTIONS
UPDATE NOTES
1.70±0.90
REVISIONS
DATE
02/12/2014
JUN 25/14
AUG 19/14
APPROVED
J. SI
J.SI
J.SI
A
26.00±0.10
D
2.36
B
C
3.50±0.30
B
SECTION C-C
1.25
0.00±0.10
(BEZEL OPENING FLUSH
WITH TOP SIDE OF PCB)
C
C
88.00 MIN.
DETAIL D
SCALE 2 : 1
D
UNLESS SPECIFIED OTHERWISE
DIMENSIONS ARE IN MILLIMETERS
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
0.25
0.15
N/A
1
DRAWN
CHECKED
M.E. APP'D
Q.A. APP'D
DWG APP'D
REF.
THIRD
ANGLE
PROJECTION
P. OU
J. SI
FEB10/14
FEB 12/14
Amphenol High Speed Interconnects
A Division of Amphenol Corp. www.amphenolcanada.com
J. SI
FEB 12/14
2X6 SFP ULTRAPORT WITH LIGHT PIPE
OPTIONS AND EMI SPRING FINGER
DWG. NO.
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR
USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
1
2
3
2 DECIMAL PLACE
3 DECIMAL PLACE
ANGULAR DEGREES
ENG. REL. NO.
MATERIAL AND FINISH
SEE NOTES
ECN Exxxxx
DO NOT
SCALE
DRAWING CODE ID NO.
P-UE86-3G6620-X0X61
03554
DWG SIZE:
REV
C
A4
SCALE:
1:1
SHEET 3 OF 5
1
2
3
4
5
6
REV.
A
B
C
A
Y
12X
1.60±0.03
3.50
9.80
ECN
DESCRIPTION
INITIAL RELEASE
UPDATE PLATING OPTIONS
UPDATE NOTES
REVISIONS
DATE
02/12/2014
JUN 25/14
AUG 19/14
APPROVED
J. SI
J.SI
J.SI
A
X
3.50
E
NOTES:
1. 0.56 mm DIAMETER HOLES ARE
CHASSIS GROUND (99HOLES).
13.28
3X 3.50
0.50
COMPONENT
KEEP-OUT AREAS
1.72
B
58.00
6.29
B
4X 8.00
COMPONENT
KEEP-OUT AREAS
99X
0.56±0.05(TYP.)
0.10
M
X Y
C
4.50
7.125
6X 14.25
87.50
C

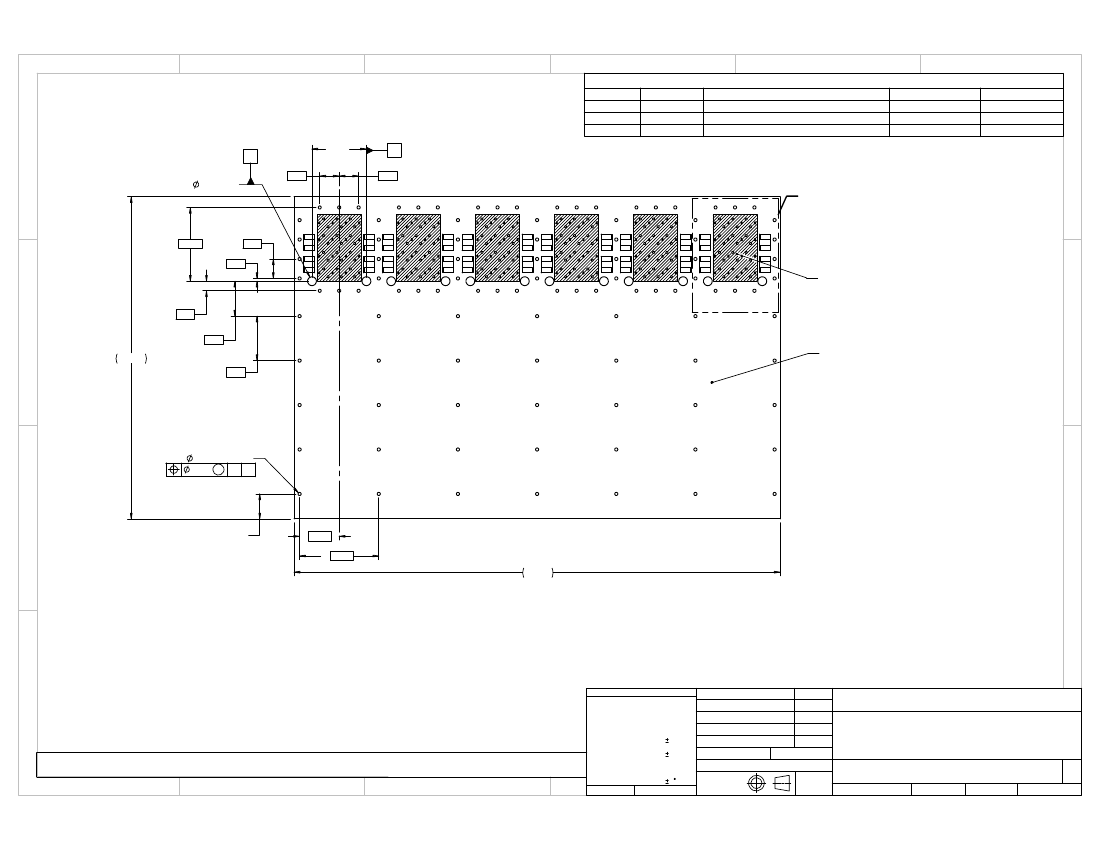

2X6 PCB LAYOUT
D
UNLESS SPECIFIED OTHERWISE
DIMENSIONS ARE IN MILLIMETERS
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
0.25
0.15
N/A
1
DRAWN
CHECKED
M.E. APP'D
Q.A. APP'D
DWG APP'D
REF.
THIRD
ANGLE
PROJECTION
P. OU
J. SI
FEB10/14
FEB 12/14
Amphenol High Speed Interconnects
A Division of Amphenol Corp. www.amphenolcanada.com
J. SI
FEB 12/14
2X6 SFP ULTRAPORT WITH LIGHT PIPE
OPTIONS AND EMI SPRING FINGER
DWG. NO.
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR
USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
1
2
3
2 DECIMAL PLACE
3 DECIMAL PLACE
ANGULAR DEGREES
ENG. REL. NO.
MATERIAL AND FINISH
SEE NOTES
ECN Exxxxx
DO NOT
SCALE
DRAWING CODE ID NO.
P-UE86-3G6620-X0X61
03554
DWG SIZE:
REV
C
A4
SCALE:
3:2
SHEET 4 OF 5
1
2
3
4
5
6
REV.
A
B
C
A
40X
0.37±0.05
3.95
3.95
ECN
DESCRIPTION
INITIAL RELEASE
UPDATE PLATING OPTIONS
UPDATE NOTES
REVISIONS
DATE
02/12/2014
JUN 25/14
AUG 19/14
APPROVED
J. SI
J.SI
J.SI
A
0.05
M
X Y
G
LED KEEP-IN ZONE (X4)
F
OUTER LIGHT PIPE
B
12.00
4.00
INNER LIGHT PIPE
(OR MIDDLE LIGHT PIPE)
DETAIL F
SCALE 10 : 1
3X 3.00
T20
T18
0.70
3.00
0.70
T2
T1
T3
B9
0.80
B10
B8
B7
B5
B6
B4
B2
T4
T6
B3
B1
T5
T7
T9
T8
T10
T19
T17
T15
T16
T14
T12
T13
T11
B
C
1.60±0.03
1.30
C
9X 0.80
B11
B13
B12
B14
B16
B15
B17
B18
B20
B19
Y
0.50
9.80
10.80
X
DETAIL G
SCALE 5 : 1
DETAIL E
SCALE 5 : 1
D
UNLESS SPECIFIED OTHERWISE
DIMENSIONS ARE IN MILLIMETERS
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
0.25
0.15
N/A
1
DRAWN
CHECKED
M.E. APP'D
Q.A. APP'D
DWG APP'D
REF.
THIRD
ANGLE
PROJECTION
P. OU
J. SI
FEB10/14
FEB 12/14
Amphenol High Speed Interconnects
A Division of Amphenol Corp. www.amphenolcanada.com
J. SI
FEB 12/14
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR
USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
1
2
3
2 DECIMAL PLACE
3 DECIMAL PLACE
ANGULAR DEGREES
ENG. REL. NO.
MATERIAL AND FINISH
SEE NOTES
ECN Exxxxx
2X6 SFP ULTRAPORT WITH LIGHT PIPE
OPTIONS AND EMI SPRING FINGER
DWG. NO.
DO NOT
SCALE
DRAWING CODE ID NO.
P-UE86-3G6620-X0X61
03554
DWG SIZE:
REV
C
A4
SCALE:
2:1
SHEET 5 OF 5
