87616-1001

Description
Board to Board u0026 Mezzanine Connectors 6P 24S 5P RECEPT RIGHT ANGLE
CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87616-1001 Online Shopping

Suppliers Part Number Price MOQ In stock
87616-1001 - - View Buy Now

87616-1001 Overview

Board to Board u0026 Mezzanine Connectors 6P 24S 5P RECEPT RIGHT ANGLE

87616-1001 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsYES
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialGLASS FILLED LIQUID CRYSTAL POLYMER
Termination typeSOLDER
Total number of contacts35
UL Flammability Code94V-0
Base Number Matches1

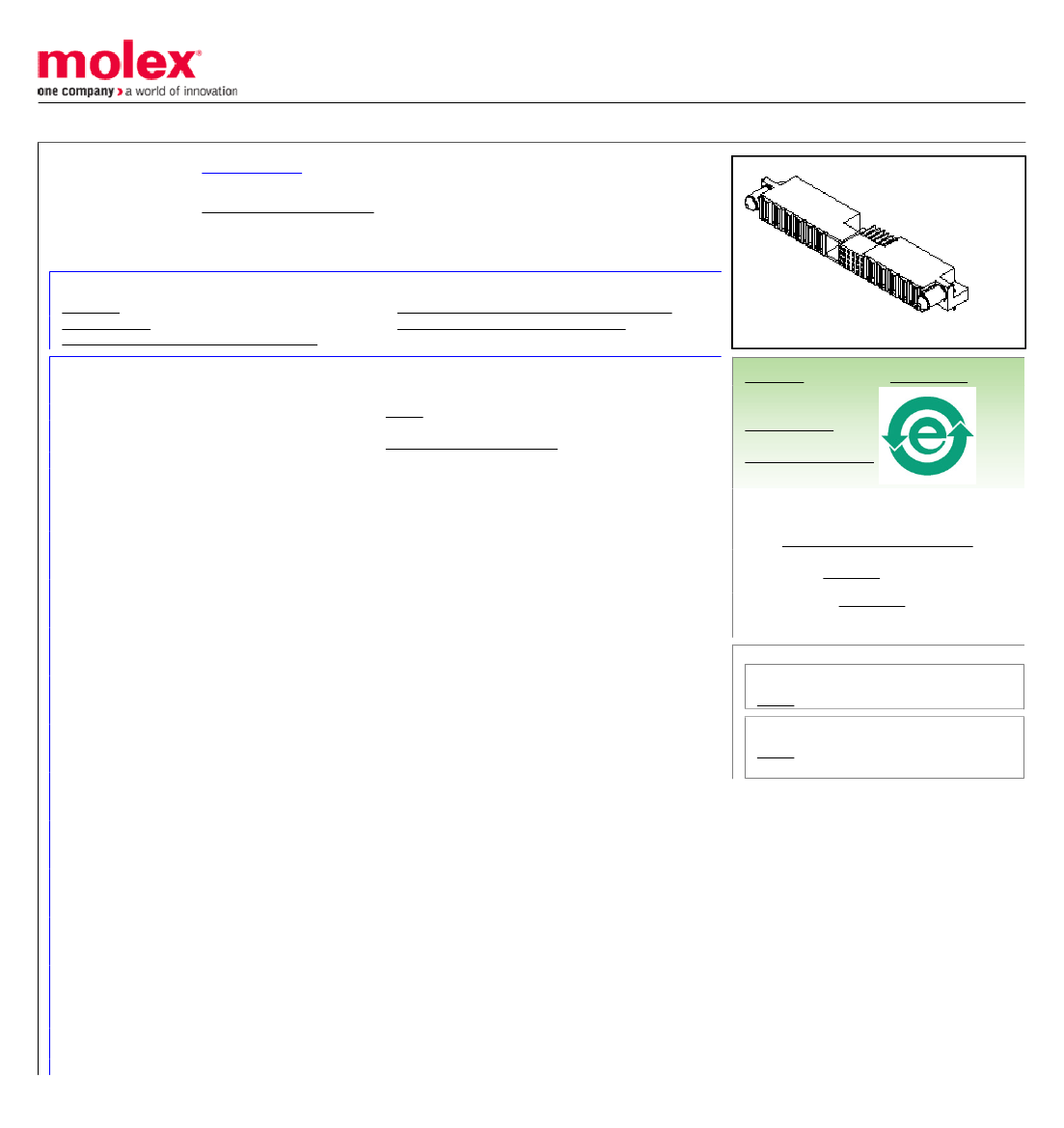

This document was generated on 10/11/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
87616-1001
Active
EXTreme PowerPlus™ (SSI)
6.35mm Pitch, Power, 2.54mm Pitch, Signal, EXTreme PowerPlus™ (SSI) MPS
Receptacle, Through Hole, Right Angle, 0.76µm Gold (Au) Plating, 35 Circuits, Power
Beta 6, Signal 24, Power Alpha 5, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87615-005 (PDF)
Application Specification AS-87631-018 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Series
General
Product Family
Series
Application
Overview
Product Name
UPC
PCB Receptacles
87616
Board-to-Board, Power
EXTreme PowerPlus™ (SSI)
EXTreme PowerPlus™
822348525904
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Guide to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
6p - 24s - 5p
35
35
Black
100
No
Yes
None
High Performance Alloy (HPA), Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
35.363/g
4
Right Angle
3.43mm
No
Yes
2.40mm
Tray
2.54mm, 6.35mm
0.762µm
2.540µm
Yes
Yes
N/A
-20°C to +70°C
Through Hole
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87616Series
Mates With
87615 EXTreme PowerPlus™ (SSI) MPS
Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A, 30A
50V DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
10
