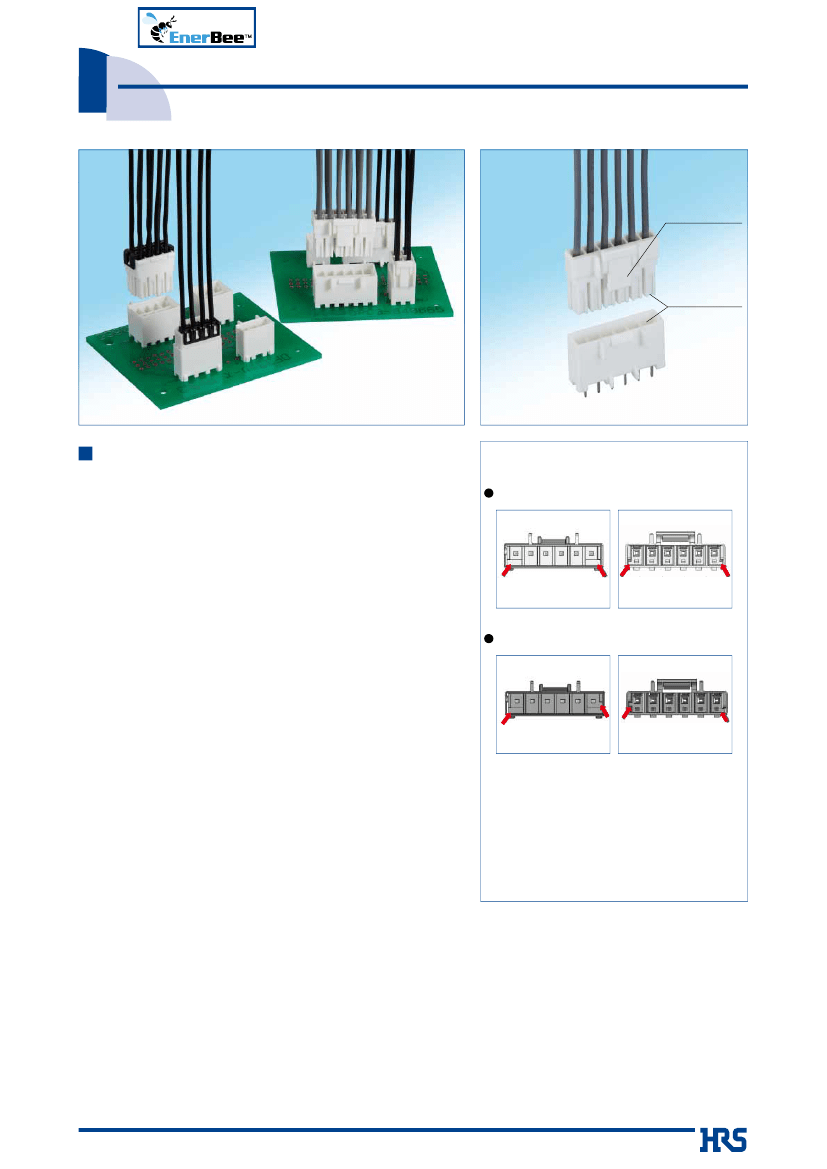

3.3mm Pitch Small Size Connectors for Internal Power Source
DF33C Series
Positive
Lock
Completely enclosed
locking system
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Protection from
shorts circuits
between adjacent
contacts
Fig.1
Features
1. 5 Amps capacity
When used with 20 AWG wire, this connector has a
maximum capacity of 5A.
(For rated current with other types of wires, please refer to
the table on the next page)
Keying for multiple use
Standard type (Resin: White)
2. Secure lock mechanism
Outer locking mechanism prevents accidental unmating due
to external shocks or drops. (Fig.1)
3. Incorrect mating prevention
Two different housings, a standard and R type, are available
to ensure mis-mating does not occur when using multiple
DF33C connectors on the same design. (Fig.2)
R type (Resin: Black)
4. Accurate board placement
Guide posts are used to help with board placement and
prevent incorrect mating to the PCB.
5. Supports resin sealing
Accepts resin sealing up to 6.5mm without affecting the
performance.
6. Short circuit prevention
The housing protects each contact by enclosing them in a “box”
which also makes each contact independent of each other.
This design prevents short circuits between adjacent contacts.
7. Excellent contact retention
A retainer is available to increase contact/cable retention and
to assure complete contact insertion. The retainer should
also be used when any mechanical stress cold be applied to
the cable.
* The image on the left show header (the board
dip side), the image on the right show the
socket (cabel side).
* This guide key position is indicated in position
facing the mating surface of the header.
Fig.2
8. Prevents solder cracking
To avoid solder crack, a glass-filled resin is used in the
header housing to decrease thermal shrinkage.
9. Easy mating operation
A clear tactile click is delivered upon the completion of the
mating process. This simplifies mating and increases work
efficiency, especially when operating in a noisy environment.
10. Glow Wire compliance (Compliant with IEC 60695-2-11)
2015.11t
1
DF33C Series●3.3mm Pitch Small Size Connectors for Internal Power Source
Product Specifications
Ratings
Rated
Current
(Note 1)
Rated
Voltage
Items
1. Contact Resistance
2. Insulation Resistance
3. Withstanding Voltage
4. Contact Insertion and
Extraction Forces
5. Durability
6. Vibration Resistance
7. Shock Resistance
8. Moisture-resistance
9. Temperature Cycles
10. Soldering Heat
Resistance
No. of rows No. of Contacts
1
2 to 6 contacts
2
4 to 12 contacts
20 AWG
5A
5A
22 AWG
5A
4A
Operating Temperature Range -35 to +85ç (Note 2)
Operating Humidity Range
40 to 80% (Note 3)
Storage Temperature Range -10 to +60ç (Note 4)
Storage Humidity Range
Conditions
Measured at 20mV or below and 1mA
Measured at DC 500V
Apply AC 1500V for one minute
Measured with a
30 mating cycles
Frequency 10-55Hz, half amplitude 0.75mm,
3 directions, 10 times each
Acceleration : 490m/s , 11ms, Semi-sinusoidal
3 direction 3 times each.
Left at temperature 40 ±2°C, humidity 90 to
95%, 96 hours
-55°C : 30 minutes
→
85°C : 30 minutes
5 cycles
Flow : 260°C, 10 sec.
Hand solder : Soldering
iron temperature,
300ç, 3 sec.
2
AC/DC 500V
Specifications
No more than 10mø (initially)
No less than 1,000Mø
No flashover or breakdown
0.5N Min, 4.5N Max
Contact Resistance : no more than 20mø
No electrical discontinuity of 1µs or greater
No electrical discontinuity of 1µs or greater
Contact Resistance : no more than 20mø
Insulation Resistance : no less than 500Mø
Contact Resistance : no more than 20mø
Insulation Resistance : no less than 1000Mø
The resin parts should withstand the temperature
and resist melting.
40 to 70% (Note 4)
0.5 ±0.002 steel pin
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note 1 : This is the maximum current rating while all pins are powered or used as all power lines.
If you split the current over multiple lines, please factor in your own safety margin. Please contact Hirose Electric for
inquiries on the assignment of pins and on the currents that can be delivered.
Note 2 : Includes temperature rise caused by current flow.
Note 3 : The connector should be completely dry. (no condensation present)
Note 4 : The term “storage” refers to the long-term storage condition of unused products before PCB mounting.
The operating temperature and humidity ranges are applied while in a non-energized state, while in transport or after PCB
mounting.
Materials / Finish
Product
Crimp socket
Crimp contact
Pin header
Retainer
Component
Insulator
Contact
Insulator
Contact
Insulator
Materials
PBT
Copper alloy
PBT
Brass
PBT
Finish
White (Note 1)
Tin plating
White (Note 1)
Tin plating
Black
UL rating
UL94V-0
- --- --- -
--- -- --
UL94V-0
- --- --- -
--- -- --
UL94V-0
Note 1 : Resin color of different guide key type (DF33CR) is black.
Product Number Structure
Connector
Contact
DF33C R − 2 S − 3.3 C
Series Name : DF33C
Guide key shape
None : Standard (Resin color : White)
R : Different guide key type
(Resin color : Black)
No. of contacts : 2 to 6 (single row product)
: 4 to 12 (double row product)
DF33A − 2022 SCF
Termination/terminal shape
C
: Crimp housing
DSA : Straight pin header
Blank : Retainer
Applicable wire size
2022 : 20 to 22 AWG
Packing type
SCF : Socket contact / reel
SC : Socket contact / pack
Connector type
S
: Single row socket
DS : Double row socket
P
: Single row pin header
DP : Double row pin header
RS : Single row retainer
RDS : Double row retainer
Contact pitch : 3.3 mm
2
DF33C Series●3.3mm Pitch Small Size Connectors for Internal Power Source
5.4 0.5

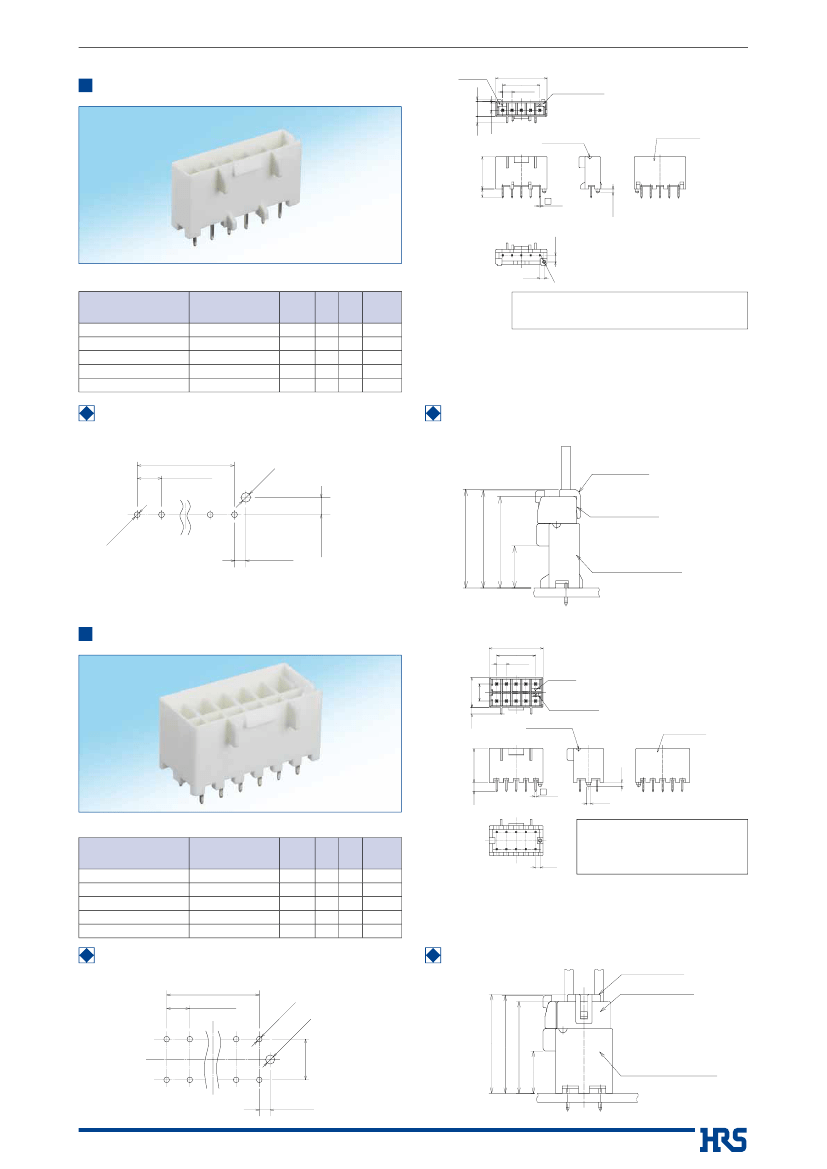

Single row straight pin header
CAV No.
A
B
P=3.3
HRS logo mark
2.2
2.6
Polarity mark
Lot No. mark
3
11.5
0.5
1.3
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Standard type (Resin: White)
Part No.
DF33C-2P-3.3DSA(24)
DF33C-3P-3.3DSA(24)
DF33C-4P-3.3DSA(24)
DF33C-5P-3.3DSA(24)
DF33C-6P-3.3DSA(24)
HRS No.
676-1131-2 24
676-1132-5 24
676-1133-8 24
676-1134-0 24
676-1135-3 24
No.of
Contacts
2
3
4
5
6
A
B
Packing
8.4 3.3 135pcs/tray
11.7 6.6 95pcs/tray
15.0 9.9 75pcs/tray
18.3 13.2 60pcs/tray
21.6 16.5 50pcs/tray
1.55
[Specification No.]
(24): Tin plating, tray package specification
R type
(Different guide key type. Resin color: Black)
Available upon request.
Please contact your local Hirose sales representative.
Recommended PCB layout
(Recommended PCB thickness t=1.6 ±0.1)
Ø1
.3
P=3.3±0.05
+
0
0 .1
Dimensions in mated condition
Application figure
DF33C-*RS-3.3
B±0.05
2.35
+
0.
0 05
DF33C(R)-*S-3.3C
2.35±0.05
17.6
17.4
-Ø
0.
8
1.55±0.05
16.3
*
7.5
DF33C(R)-*P-3.3DSA(24)
Note : The retainer can be used on both the standard and R type housings.
Double row, straight pin header
10.2
P=5.8
A
B
P=3.3
CAV No.
HRS logo mark
2.2
Polarity mark
Lot No. mark
2D19
DF33C-*RDS-3.3
DF33C(R)-*DS-3.3C
8
+
0.
0 05
11.5
0.5
3
Ø1.25
Standard type (Resin color: White)
Part No.
DF33C-4DP-3.3DSA(24)
DF33C-6DP-3.3DSA(24)
DF33C-8DP-3.3DSA(24)
DF33C-10DP-3.3DSA(24)
DF33C-12DP-3.3DSA(24)
HRS No.
676-1113-0 24
676-1114-3 24
676-1115-6 24
676-1116-9 24
676-1117-1 24
No.of
Contacts A
4
6
8
10
12
B
Packing
1.55
[Specification No.]
(24): Tin plating, tray package
specification
8.4 3.3 135pcs/tray
11.7 6.6 95pcs/tray
15.0 9.9 75pcs/tray
18.3 13.2 60pcs/tray
21.6 16.5 50pcs/tray
R type
(Different guide key type. Resin color: Black)
Available upon request.
Please contact your local Hirose sales representative.
Recommended PCB layout
(Recommended PCB thickness t=1.6 ±0.1)
B±0.05
P=3.3±0.05
*
-Ø
0.
+
0
0 .1
Application figure
Ø1
.3
17.6
17.4
5.8±0.05
16.3
7.5
1.3
DF33C(R)-*DP-3.3DSA(24)
1.55±0.05
Note : The retainer can be used on both the standard and R type housings.
2J18
.25
Ø1
3
DF33C Series●3.3mm Pitch Small Size Connectors for Internal Power Source

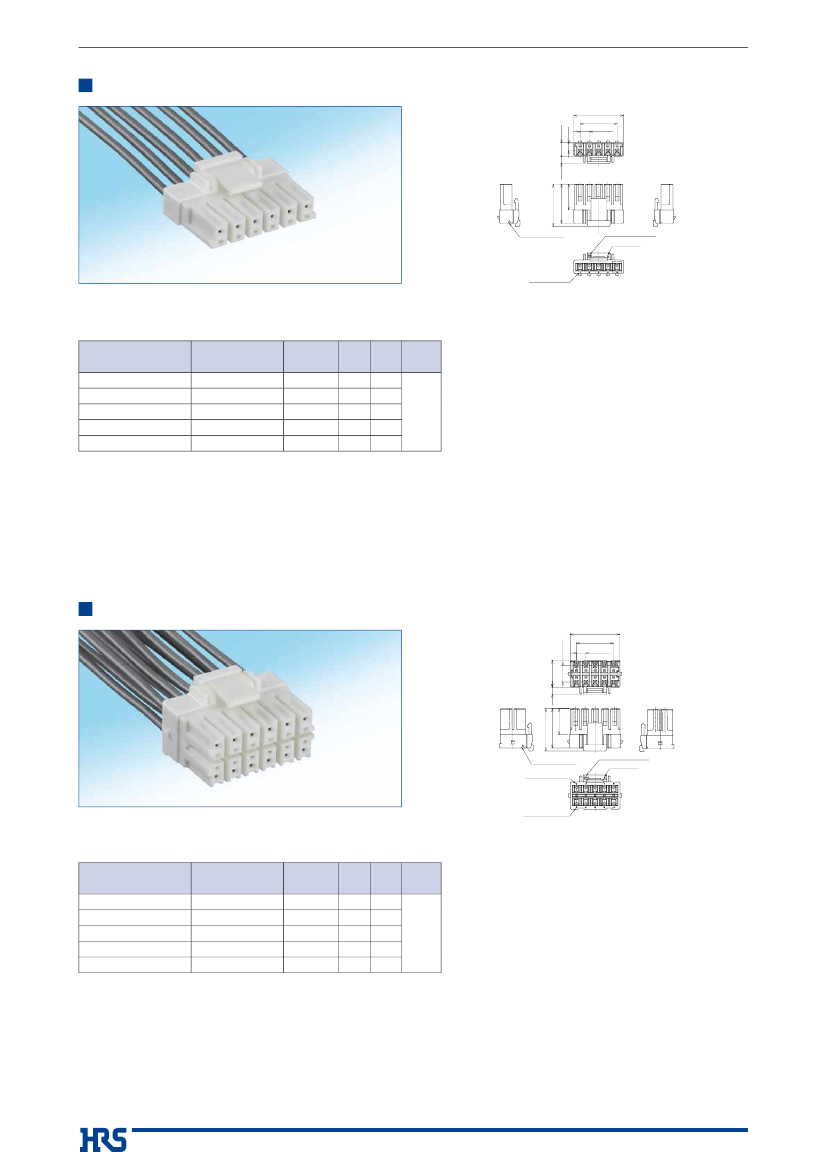

Single row socket
4.8
2.6
A
B
P=3.3
15.1
14
9.2
2.5
Polarity mark
HRS logo mark
CAV No.
Contact No.1
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Standard type (Resin color: White)
Part No.
DF33C-2S-3.3C
DF33C-3S-3.3C
DF33C-4S-3.3C
DF33C-5S-3.3C
DF33C-6S-3.3C
HRS No.
676-1136-6 00
676-1137-9 00
676-1138-1 00
676-1139-4 00
676-1140-3 00
No.of Contacts
2
3
4
5
6
A
B
Packing
*For the retainers, please refer to page 5.
7.8
3.3
11.1 6.6
100pcs/
14.4 9.9
pack
17.7 13.2
21.0 16.5
R type
(Different guide key type. Resin color: black)
Available upon request.
Please contact your local Hirose sales representative.
Double row socket
9.7
P=5.8
A
B
P=3.3
15.1
14
9.2
2.5
Polarity mark
Contact No.1
HRS logo mark
CAV No.
Contact No.2
Standard type (Resin color: White)
Part No.
DF33C-4DS-3.3C
DF33C-6DS-3.3C
DF33C-8DS-3.3C
DF33C-10DS-3.3C
DF33C-12DS-3.3C
HRS No.
676-1119-7 00
676-1120-6 00
676-1121-9 00
676-1122-1 00
676-1123-4 00
No.of Contacts
4
6
8
10
12
A
B
Packing
*For the retainers, please refer to page 5.
7.8
3.3
11.1 6.6
100pcs/
14.4 9.9
pack
17.7 13.2
21.0 16.5
R type
(Different guide key type. Resin color: black)
Available upon request.
Please contact your local Hirose sales representative.
4
DF33C Series●3.3mm Pitch Small Size Connectors for Internal Power Source

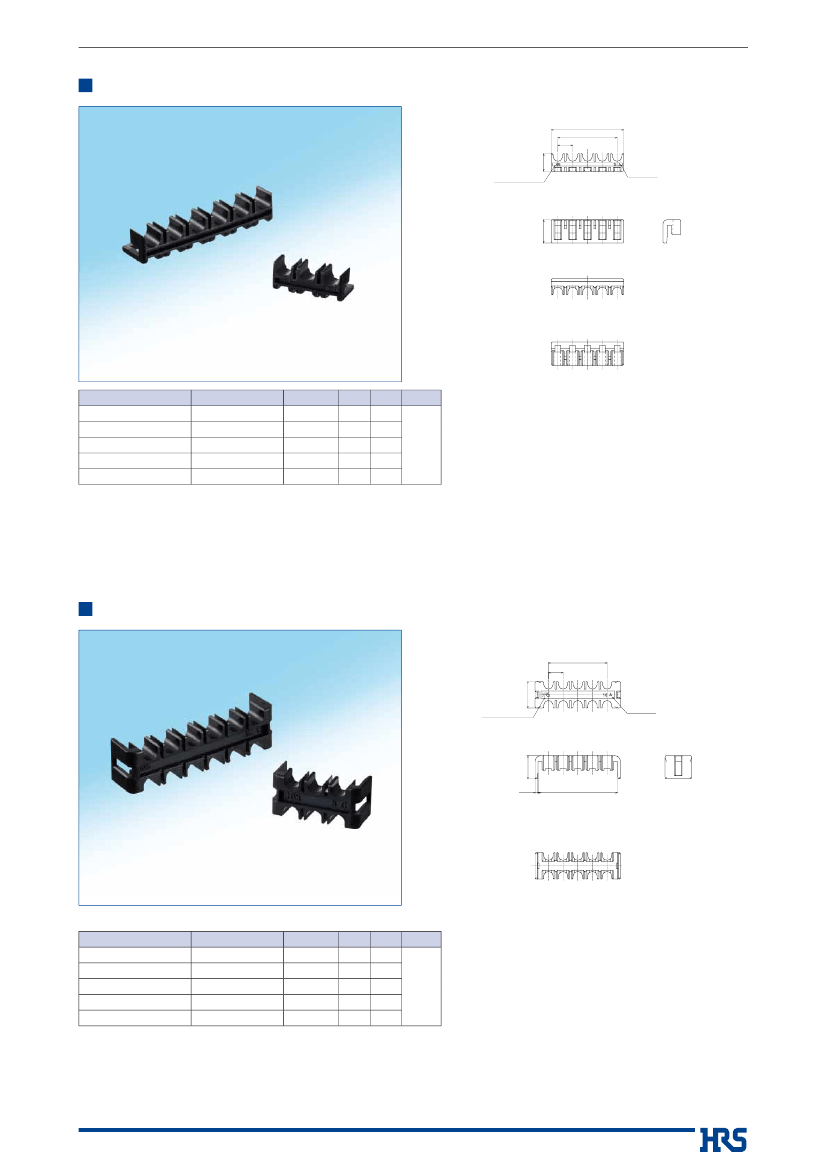

Single row retainer
P=3.3
3.95
A
B
HRS logo mark
CAV No.
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
DF33C-2RS-3.3
DF33C-3RS-3.3
DF33C-4RS-3.3
DF33C-5RS-3.3
DF33C-6RS-3.3
HRS No.
676-1141-6 00
676-1142-9 00
676-1143-1 00
676-1144-4 00
676-1145-7 00
No.of Contacts
2
3
4
5
6
A
B
Packing
6.2
3.3
9.5
6.6
100pcs/
12.8 9.9
pack
16.1 13.2
19.4 16.5
Double row retainer
A
P=3.3
5.95
5.2
HRS logo mark
CAV No.
5.2
0.65
B
Part No.
DF33C-4RDS-3.3
DF33C-6RDS-3.3
DF33C-8RDS-3.3
DF33C-10RDS-3.3
DF33C-12RDS-3.3
HRS No.
676-1125-0 00
676-1126-2 00
676-1127-5 00
676-1128-8 00
676-1129-0 00
No.of Contacts
4
6
8
10
12
A
3.3
6.6
9.9
13.2
16.5
B
Packing
8.0
11.3
100pcs/
14.6
pack
17.9
21.2
5
