MSM82C88-2GS datasheet, PDF - EEWORLD Datasheet

MSM82C88-2GS: DescriptionBUS CONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size421KB，10 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

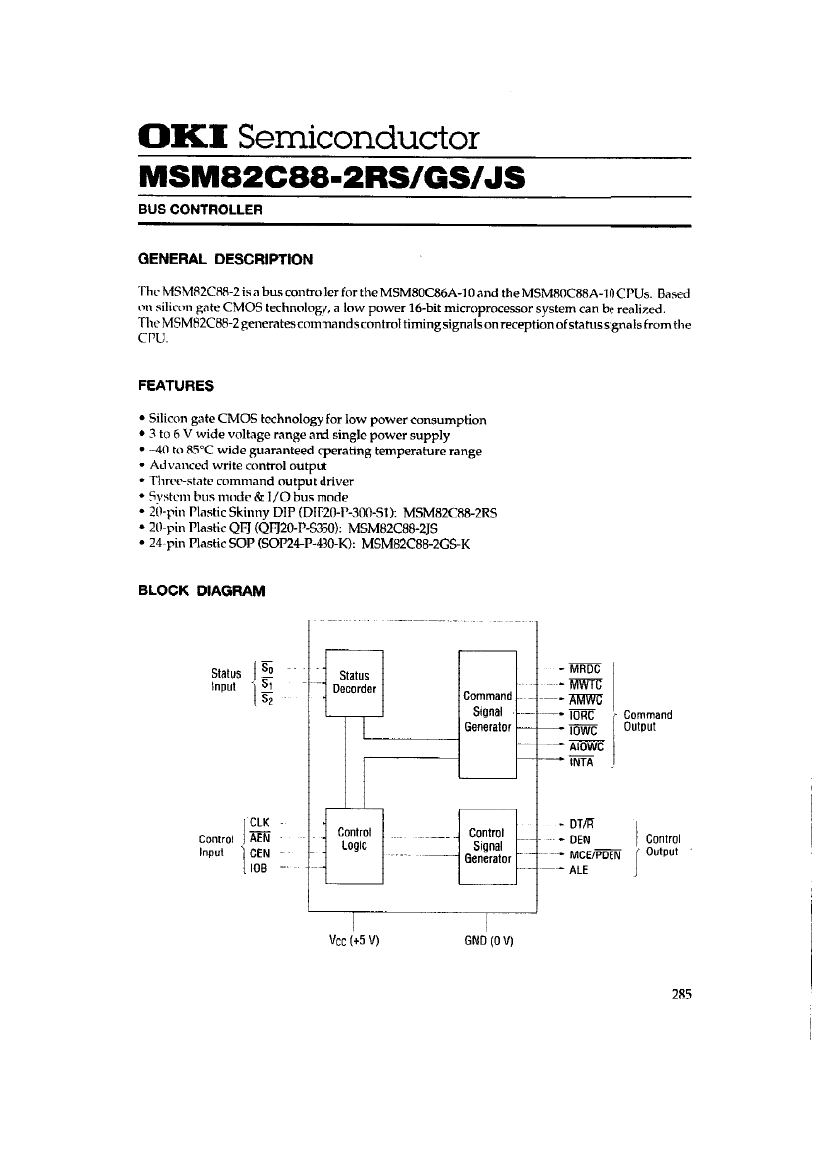

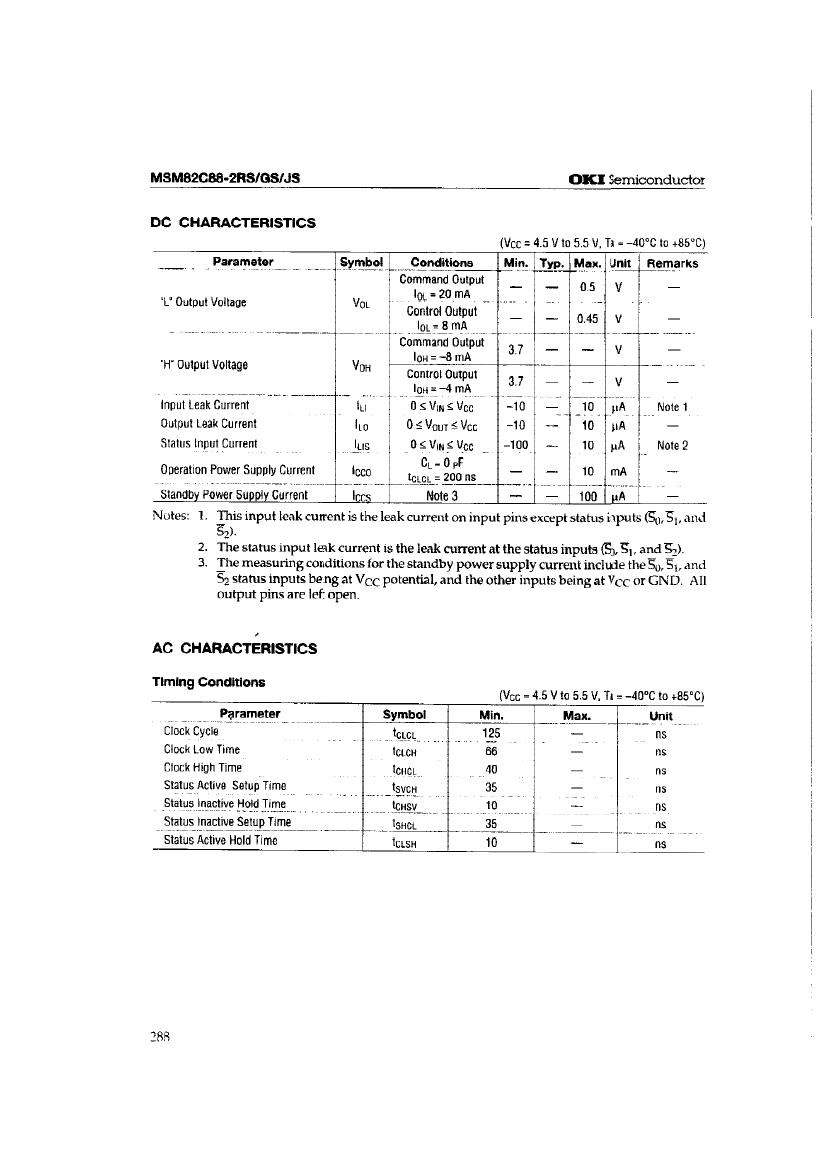

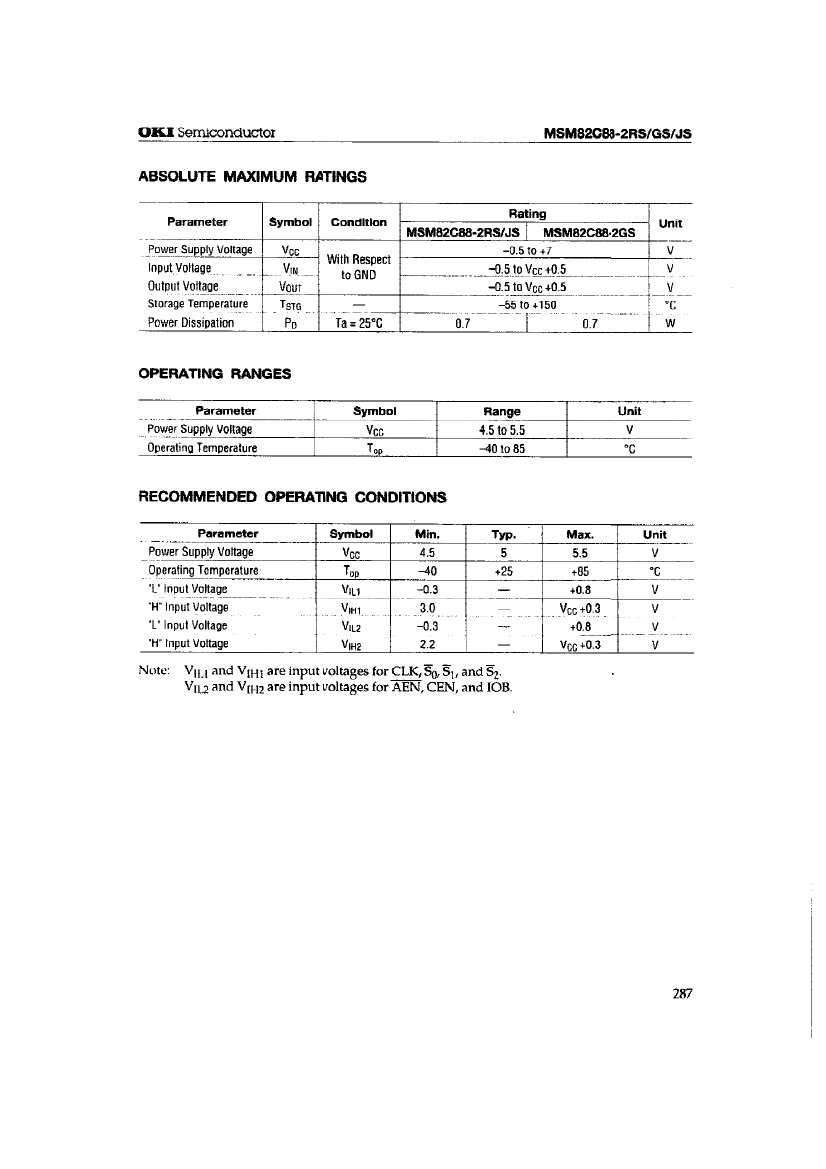

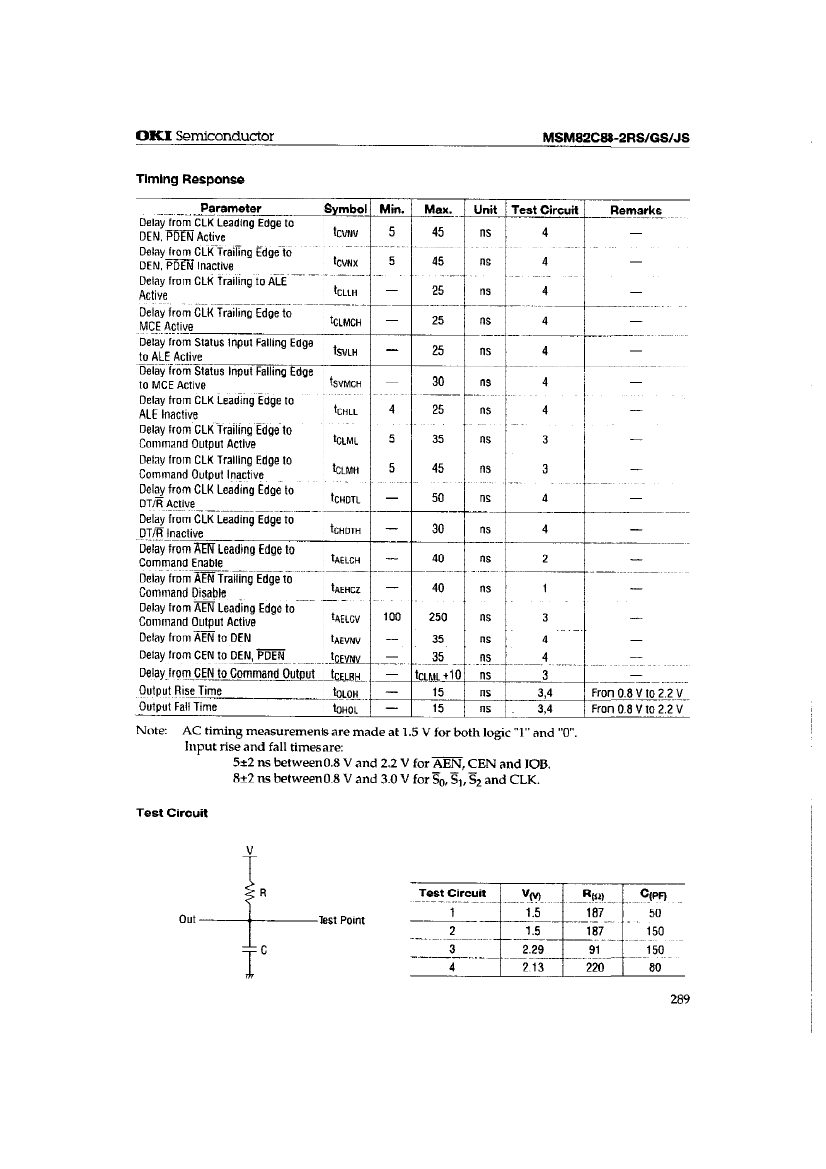

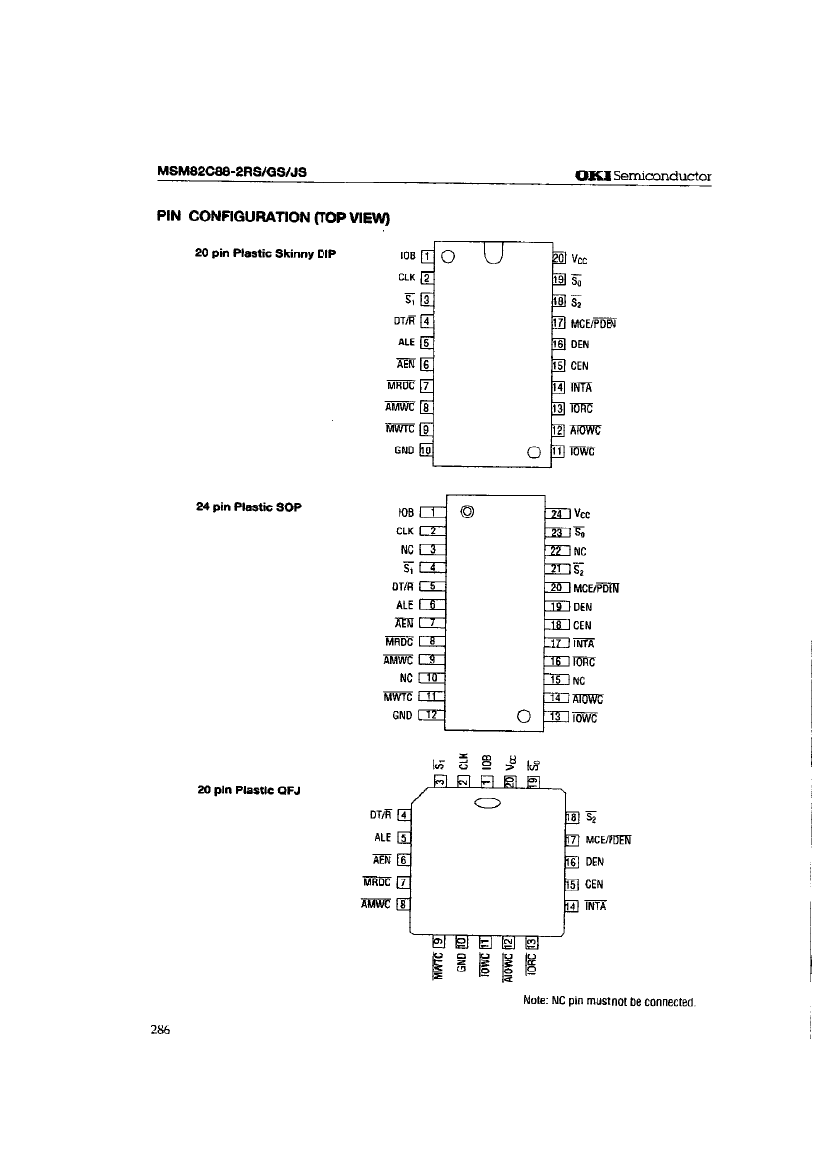

MSM82C88-2GS Overview

BUS CONTROLLER

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	SOIC
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknow
Bus compatibility	80C88; 80C86
maximum clock frequency	8 MHz
JESD-30 code	R-PDSO-G24
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR

	MSM82C88-2GS	MSM82C88-2RS
Description	BUS CONTROLLER	BUS CONTROLLER
Maker	OKI	OKI
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	24	20
Reach Compliance Code	unknow	unknow
Bus compatibility	80C88; 80C86	80C88; 80C86
maximum clock frequency	8 MHz	8 MHz
JESD-30 code	R-PDSO-G24	R-PDIP-T20
Number of terminals	24	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
