45985-4112: DescriptionHeavy Duty Power Connectors LPH Plug Assy RtAn 0 An 04 Pwr 12 Sig Std; CategoryThe connector The connector; File Size60KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

45985-4112 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	45985-4112	-	-	View	Buy Now

45985-4112 Overview

Heavy Duty Power Connectors LPH Plug Assy RtAn 0 An 04 Pwr 12 Sig Std

45985-4112 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.295 inch
subject depth	0.64 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
Contact resistance	15 mΩ
Contact style	HYBRID
Dielectric withstand voltage	1500VDC V
Durability	250 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	SOLDER

Preview

Download Datasheet

View All

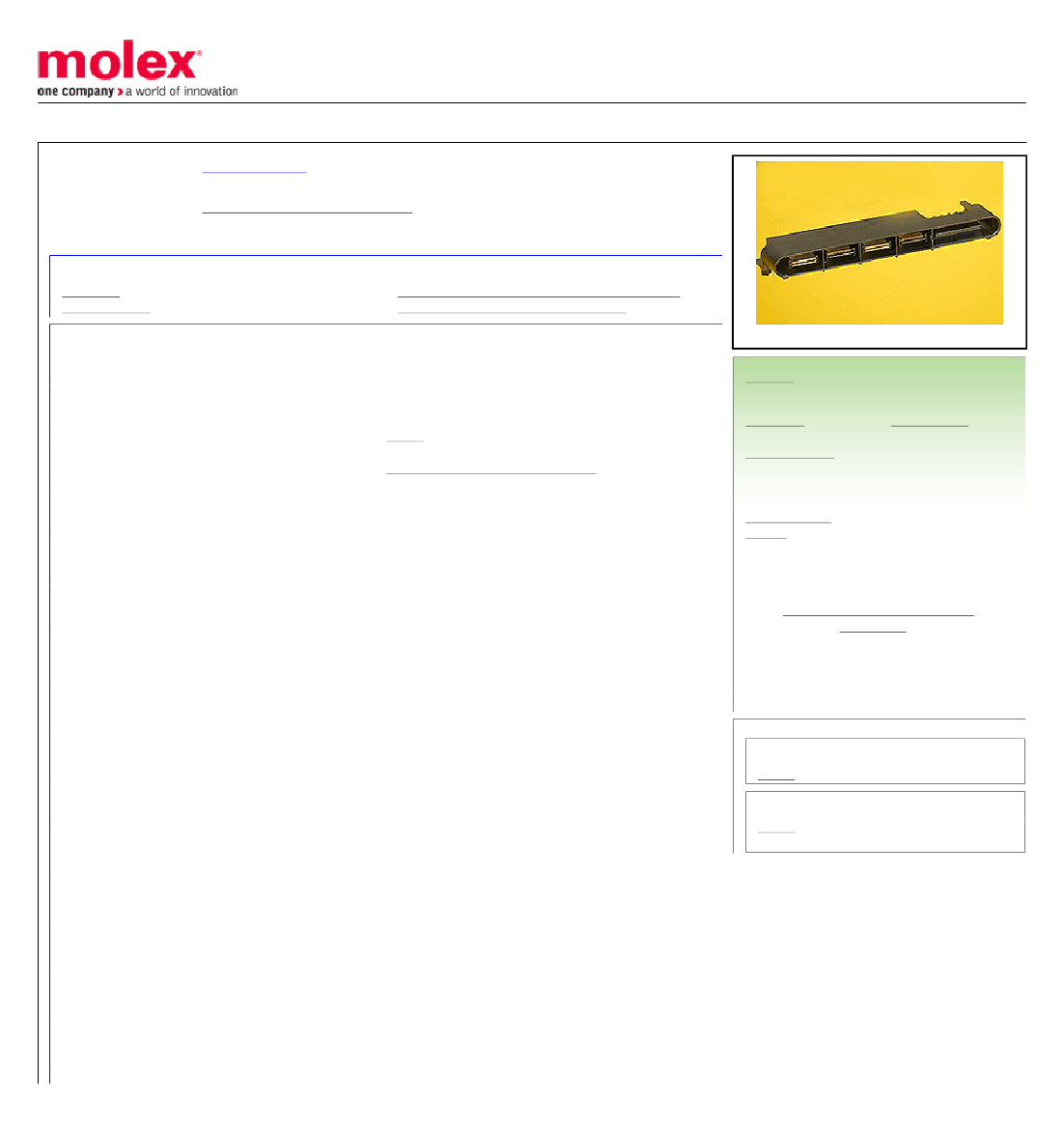

This document was generated on 12/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0459854112

Active

EXTreme LPHPower™ Connectors

EXTreme LPHPower Header, Right Angle, 4 Power Contacts, 12 Signal Contacts,

Select Gold (Au) Plating, for 2.36mm Thick PC Board

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

(p)ower-(s)ignal Configuration

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Product Specification PS-45984-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

45985

Board-to-Board, Power

EXTreme LPHPower™ Connectors

EXTreme LPHPower

822350776967

4p - 12s

No

16

Black

250

Yes

94V-0

No

None

No

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

5.679/g

2

Right Angle

3.60mm

No

None

2.36mm

Tray

1.27mm, 12.00mm

0.762µm

3.810µm

Yes

Fully

No

Yes

-40°C to +105°C

Through Hole

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

45985 Series

Mates With

45984 EXTreme LPHPower PCB

Receptacles
