350-066-0000N: DescriptionRF SMA Connector, Male, Panel Mount, Solder Terminal, Plug; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

350-066-0000N Overview

RF SMA Connector, Male, Panel Mount, Solder Terminal, Plug

350-066-0000N Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	35
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

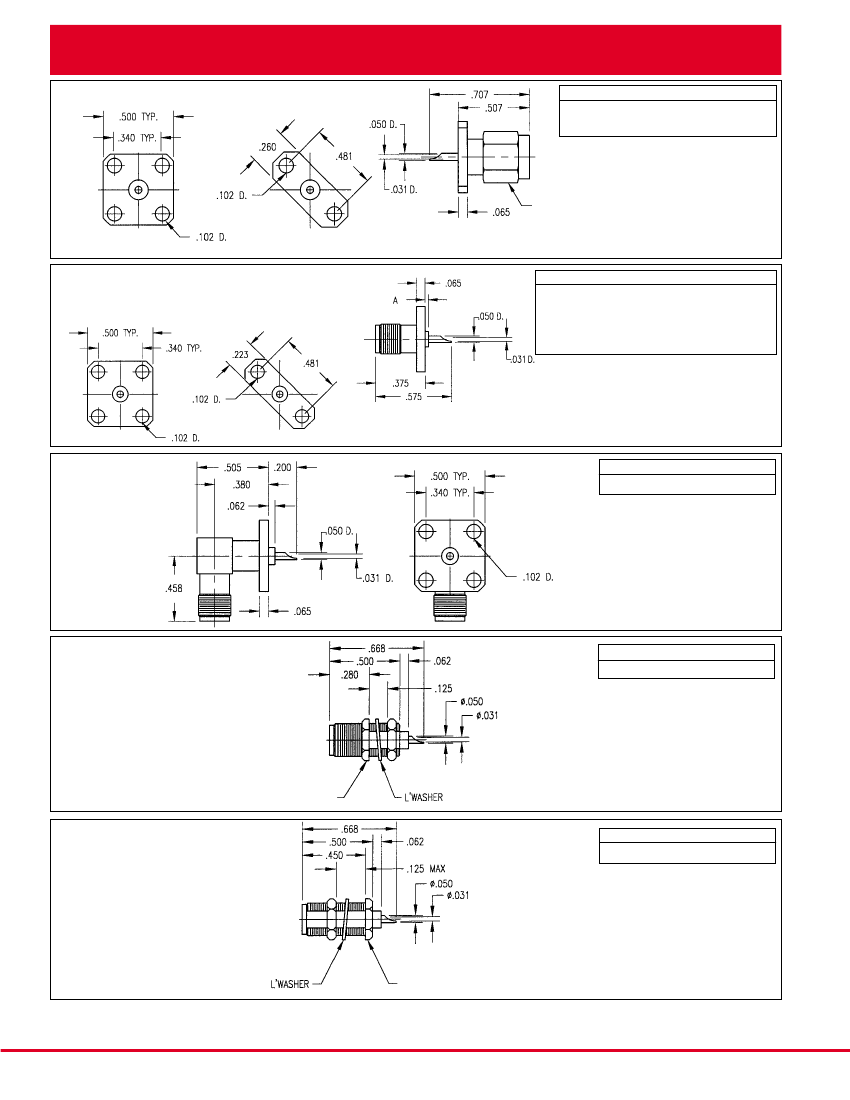

SMA Brass:

Receptacle, Solder Pot

Part Number

Mounting Hole Figure

350-065-0000H

No. 065

1

350-066-0000H

No. 066

2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

5/16 HEX

Straight Plug Flange Mount

Figure 1

Figure 2

Part Number

Mounting Hole

351-065-0000H

No. 065

351-066-0000H

No. 066

351-065-0001H

No. 065

351-066-0001H

No. 066

A Figure

.000 1

.000 2

.025 1

.025 2

Straight Jack Flange Mount

Figure 1

Figure 2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Right

Angle

Jack

Flange

Mount

Part Number

Mounting Hole

353-065-0000H

No. 065

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight

Bulkhead Jack

Front Mount

Part Number

Mounting Hole

351-075-0002H

No. 075

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

5/16 HEX TYP

Straight

Bulkhead

Jack, Rear

Mount

Part Number

Mounting Hole

351-075-0001H

No. 075

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

5/16 HEX TYP

Note: Dimensions shown in inches.

Winchester/Retconn

RF/20

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

350-066-0000N Related Products

	350-066-0000N	353-065-0000N	350-065-0000N
Description	RF SMA Connector, Male, Panel Mount, Solder Terminal, Plug	RF SMA Connector, Female, Panel Mount, Solder Terminal, Jack	RF SMA Connector, Male, Panel Mount, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	PLUG	JACK	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	MALE	FEMALE	MALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES
Manufacturer's serial number	35	35	35
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT
Maximum operating frequency	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1
Maker	Winchester Electronics	-	Winchester Electronics
