35362-0287 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 35362-0287

Preview

35362-0287: DescriptionHeaders u0026 Wire Housings 2 Ckt Housing Sherlock W-T-B; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35362-0287 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35362-0287	-	-	View	Buy Now

35362-0287 Overview

Headers u0026 Wire Housings 2 Ckt Housing Sherlock W-T-B

35362-0287 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.217 inch
subject depth	0.335 inch
body length	0.303 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	POLYAMIDE
Manufacturer's serial number	35362
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

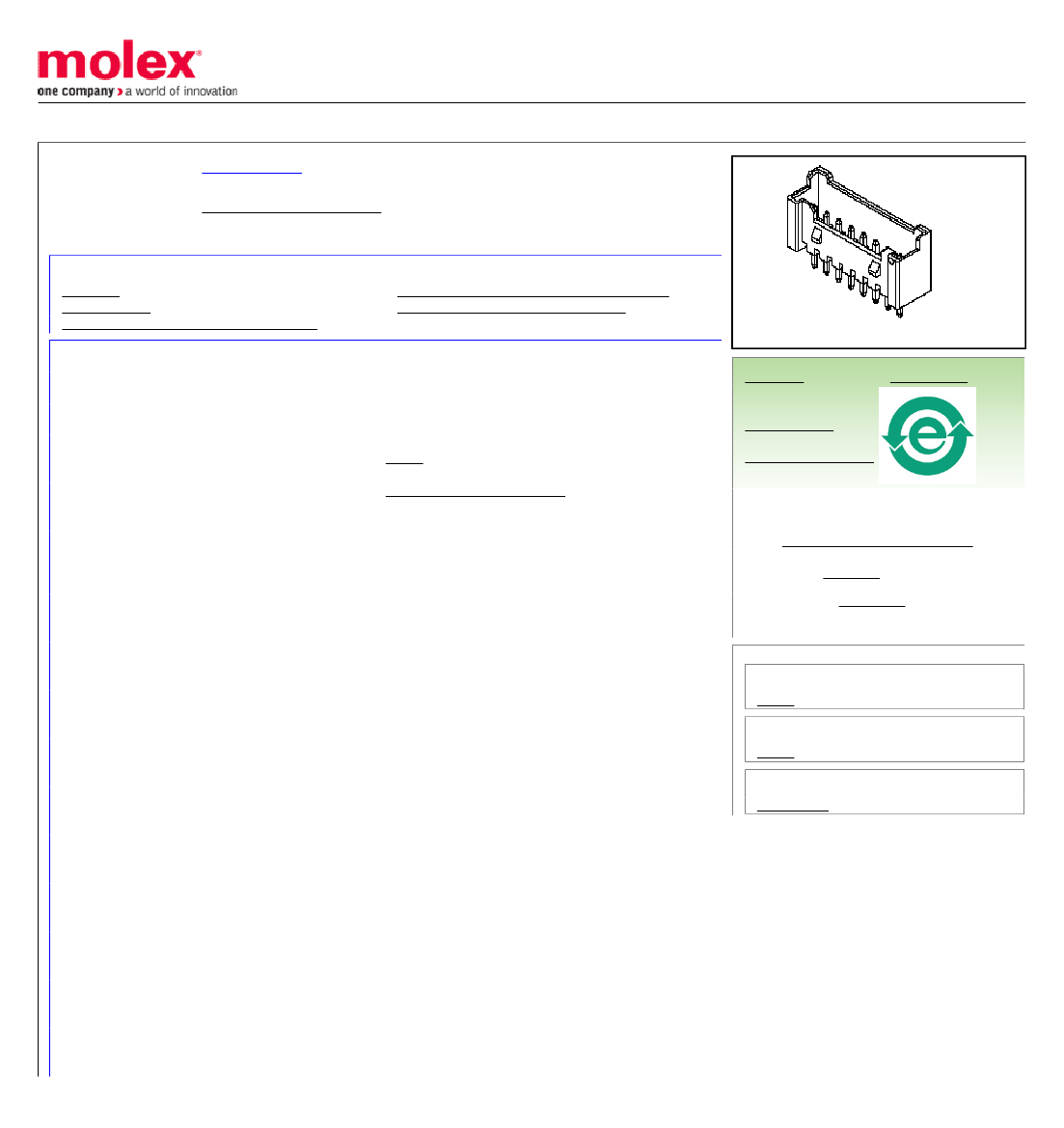

This document was generated on 10/09/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

35362-0287

Active

Sherlock™ Connector System

2.00mm Pitch Sherlock™ Wire-to-Board Header, Vertical, with Positive Lock, 2 Circuits,

without Kinked PC Tails, Red, Tube Packaging

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35507-003 (PDF)

Packaging Specification PK-35362-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

UL

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Headers

35362

Signal, Wire-to-Board

Sherlock™ Connector System

Sherlock™

822348262458

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

No

2

Red

30

No

94V-0

No

None

Yes

8.50mm

Tin

Nylon

0.206/g

1

Vertical

3.30mm

No

None

1.60mm

Tube

2.00mm

Yes

No

Partial

No

-40°C to +105°C

Through Hole

Search Parts in this Series

35362Series

Mates With

35507 Sherlock™ Wire-to-Board Housing

Use With

50212-8000 Terminal

Recommended Resources
