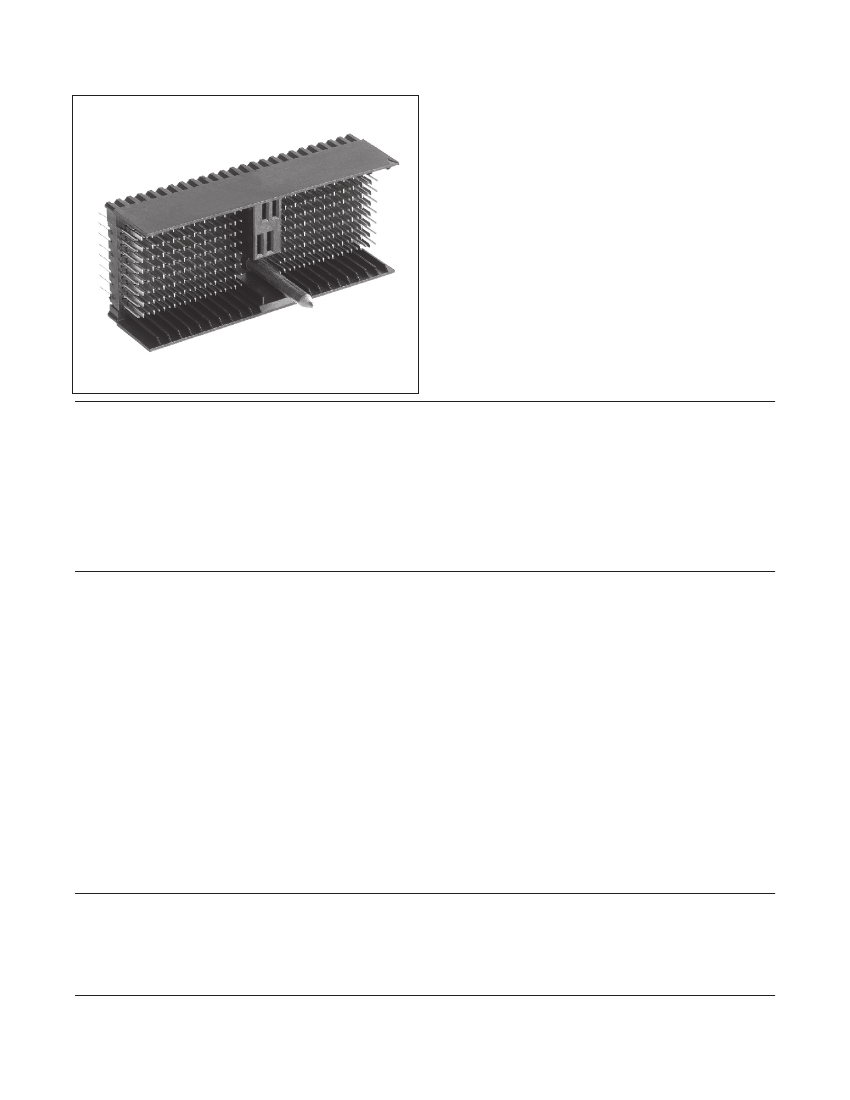

2 mm Type D, 176 Signal/4 Power Contacts, 8 Rows, Straight
•
•
•
•
•
•
•
•
HSHM Series
Up to 5 Gb/s data rates
Low crosstalk at high frequencies
50/100 Ω (single-ended /differential) impedance
Modular/scalable format IEC 61076-4-101
101 mated lines per linear inch
Four integrated 8.25 A power contacts
Integrated guide pin
End-to-end stackable with 8 row 3M
™
MetPak
™
HM
and HSHM headers
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3mconnector.com for compliance information
Date Modified: April 29, 2011
TS-2080-C
Sheet 1 of 3
Physical
Insulation:
Material: High Temperature Thermoplastic (LCP)
Flammability: UL 94V-0
Contact:
Material: Copper Alloy
Plating: See Ordering Information
Performance
Mechanical:
Normal Force (Nominal): 0.57 N [58 g] Signal, 0.74 N [75 g] Shield
Engagement Force (Nominal): 0.32 N [33 g] Signal, 0.22 N [22 g] Shield
Separation Force (Nominal): 0.20 N [20 g] Signal, 0.20 N [20 g] Shield
Wipe (Nominal, Shortest Contact): 2.67 mm [0.105 in] Signal, 1.57 mm [0.062 in] Shield
Mate/Unmate Cycles: 250
Application: This module is suitable for stand-alone use. (Refer to IEC-61076-4-101)
Electrical:
Data Rate: 5 Gb/s
Characteristic Impedance: 50
Ω
Single-ended, 100
Ω
Differential
Current Rating (Fully Loaded): 1 A @ 70° C Signal
Insulation Resistance: 10
4
MΩ @ 100 V
DC
Withstanding Voltage: 750 V
rms
Environmental
UL File No.: E68080
Temperature Rating:
-55° C to 125° C
MetPak is a trademark of 3M Company.
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M
™
MetPak
™

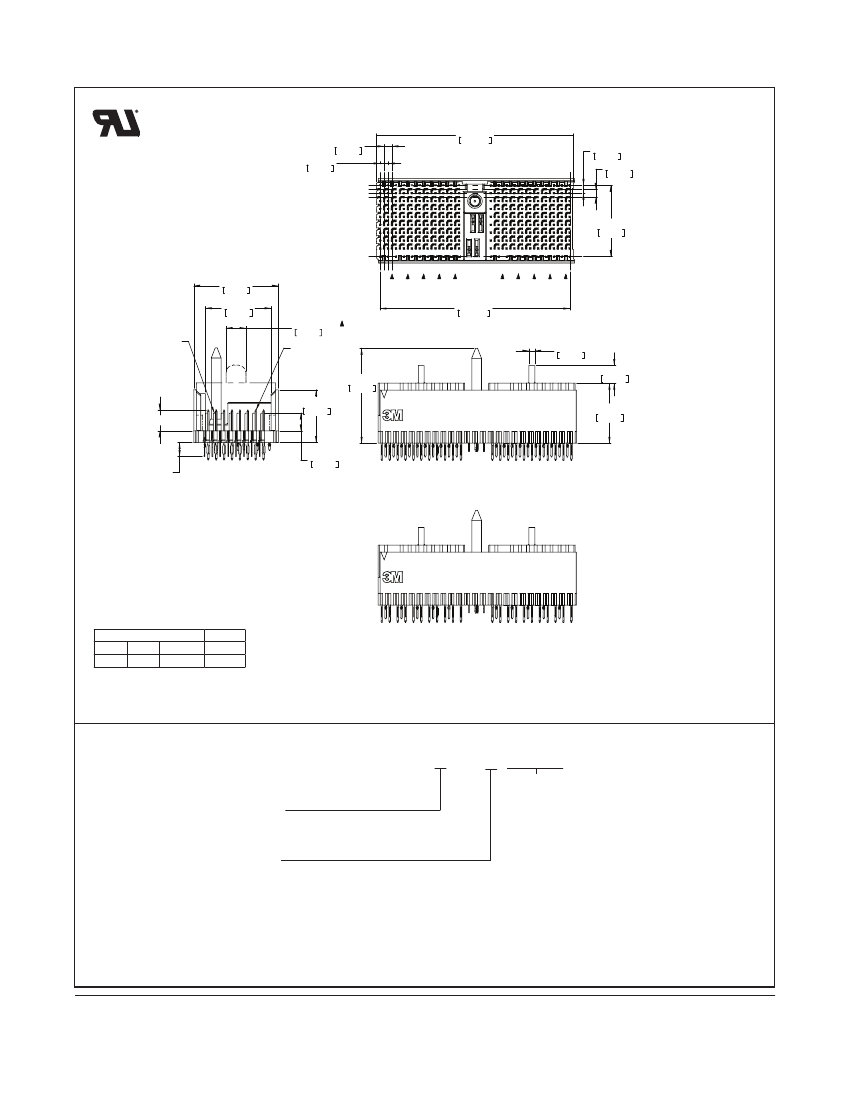

HSHM Press-Fit Power Header
2 mm Type D, 176 Signal/4 Power Contacts, 8 Rows, Straight
49.85
1.963
Pin positions
1
ROW I
ROW H
ROW G
ROW F
ROW E
ROW D
ROW C
ROW B
ROW A
ROW Z
HSHM Series
2.00
.079
2.00
.079
2 3
4 5
6 7
8
9 10 11
P1 P2 15 16 17 18 19 20 21 22 23 24 25
2.00
.079
2.00
.079
18.00
.709
21.40
.843
16.72
.658
Interstitial
Ground
Contacts
1 2
3 4
5 6
7 8
5.00
.197
Signal
contacts
Denotes shield column (tail only) omitted for the row
differential pair part
1.50
.059
24.0
.945
HSHM-HXXXXX-8XPX-XXXXX
REV X
XXYY
Shield positions
48.00
1.890
9 10
P3 P4
15 16 17 18 19 20 21 22 23 24
4.50
.177
15.15
.596
DIM A
13.40
.528
DIM B
DIM A = Pin mating length
DIM B = Tail length
4.50
.177
Coaxial, column differential and stripline configuration
shown with protective caps*
HSHM-HXXXXX-8XPX-XXXXX
REV X
XXYY
mm
(Inch)
Tolerance Unless Noted
mm
( ) Dimensions used for
Reference Only
0
±3
0.0
±0.3
0.00
±0.13
Row differential configuration
shown with protective caps*
* Caps to be removed after press-fit installation process
Ordering Information
High Speed Option:
4 = Coaxial, column differential and
stripline (75 Ω) applications
5 = Row differential applications
HSHM-H176DPWRX-8CPX- XXXXX
(rows I and Z not loaded)
Tail Length:
1 = 4.4 mm pin and 3.5 mm shield
2 = 2 mm pin and 2 mm shield
Standard Configuration
DIM A = 5.3 mm for rows A through H
For non--standard configurations contact sales representative
Plating μm [ μ” ]:
TG30 = 0.76 [30] Min. Au Contact Area
2.54 [100] Min. SnPb Terminal Area (RIA C2 & E2 apply)
1.27 [50] Min. Ni All over
Standard Option
TG30L = 0.76 [30] Min. Au Contact Area, Lubricated
2.54 [100] Min. SnPb Terminal Area (RIA C2 & E2 apply)
1.27 [50] Min. Ni All over
Typically higher make order quantities as compared to TG30.
TG50 = 1.27 [50] Min. Au Contact Area, Lubricated
2.54 [100] Min. SnPb Terminal Area (RIA C2 & E2 apply)
1.27 [50] Min. Ni All over
Non-Standard Option (Available with longer lead times and
higher make order quantities, MOQ)
TS-2080-C
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
HSHM Press-Fit Power Header
2 mm Type D, 176 Signal/4 Power Contacts, 8 Rows, Straight
HSHM Series
13.50
6.50
1.00
2.00
2.00
1.00
25
24
23
22
21
20
19
18
17
16
15
25
24
23
22
21
20
19
18
17
16
15
1X
Ø
DIM F
Ø
0.05
M
A B
Plated thru holes
348X
Ø
DIM E
Ø
0.10
M
A B
48.00
Plated thru holes
2X 2.00
24.00
11
10
9
8
7
6
5
4
3
2
1
I
H G F E D C B A Z
8X 1.50
16.50
B
23.90
22.10
A
I
1.50
H G F E D C B A Z
11
10
9
8
7
6
5
4
3
2
1

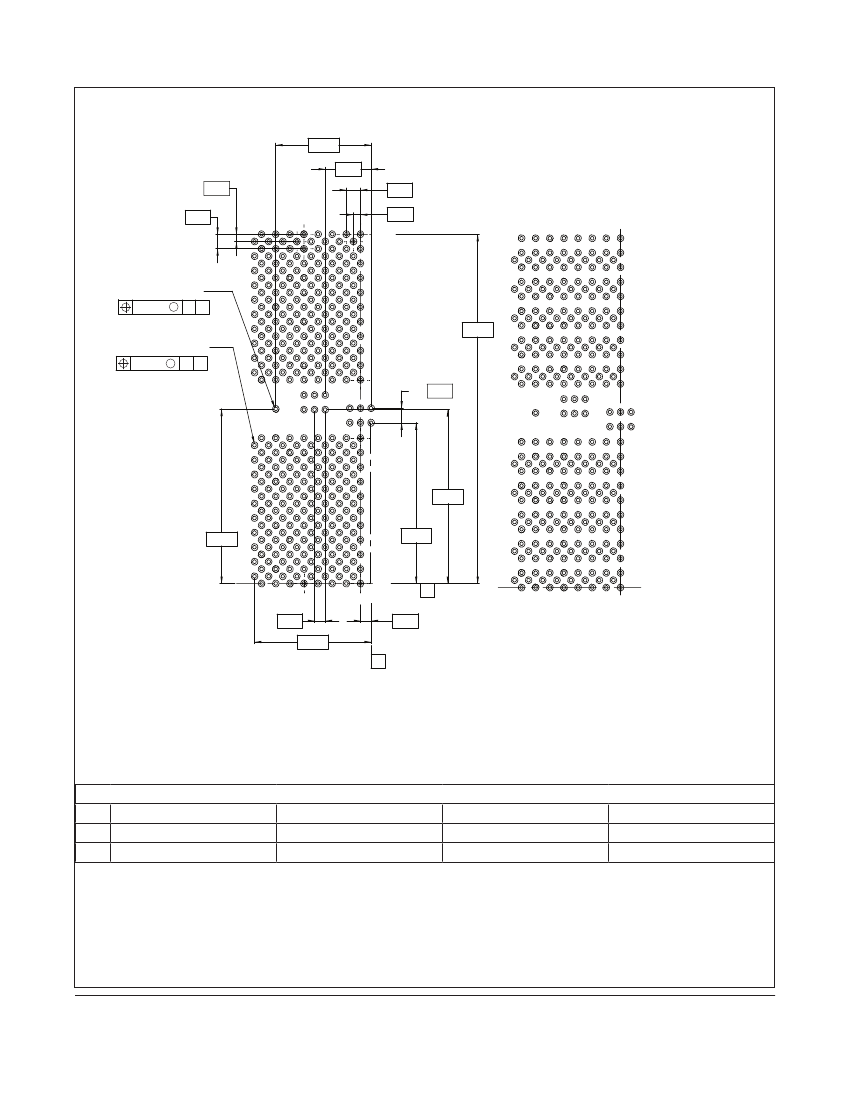

Recommended PCB hole mounting pattern for power Recommended PCB hole mounting pattern for row
center and single ended applications
differential applications
(Same geometry as left view without the ground vias)
Hole Plating Table mm [in.]
Dia.
E
F
Finished Hole Dia.
0.457 - 0.559 [.0180 - .0220]
0.690 - 0.790 [.0270 - .0310]
Cu. Thickness
0.025 - 0.045 [.0010 - .0018]
0.025 - 0.045 [.0010 - .0018]
SnPb Thickness
0.008 -0.018 [.0003 - .0007]
0.008 -0.018 [.0003 - .0007]
Drilled Hole Dia.
0.584 - 0.625 [.0230 - .0246]
0.810 - 0.860 [.0318 - .0339]
TS-2080-C
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
