35572-1500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35572-1500

35572-1500: DescriptionHeaders u0026 Wire Housings 2.5 WTB LOCK HSG 15CKT; CategoryThe connector The connector; File Size25KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

35572-1500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35572-1500	-	-	View	Buy Now

35572-1500 Overview

Headers u0026 Wire Housings 2.5 WTB LOCK HSG 15CKT

35572-1500 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: 57915-8001; 57915-9002
body width	0.252 inch
subject depth	0.394 inch
body length	1.575 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	5.3376 N
Minimum insulation diameter	0.045 inch
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

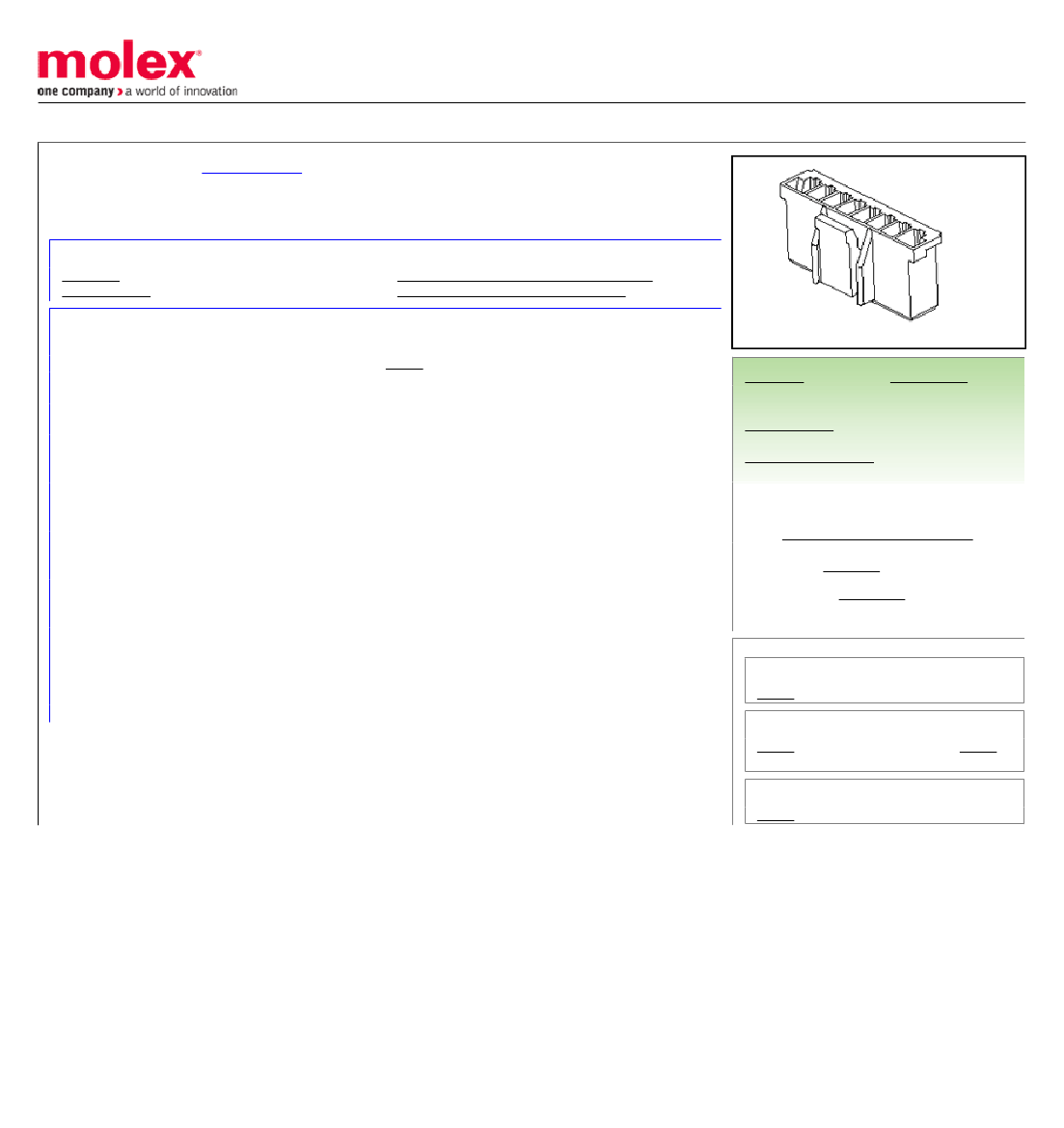

Preview

Download Datasheet

View All

This document was generated on 04/02/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

35572-1500

Active

2.50mm Pitch Wire-to-Wire and Wire-to-Board Housing, Positive Lock, Nylon 6/6

Material, 15 Circuits, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35572-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Housings

35572

Signal, Wire-to-Board, Wire-to-Wire

N/A

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

Physical

Breakaway

Circuits (maximum)

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Temperature Range - Operating

Female

None

Yes

Bag

2.50mm

-40°C to +105°C

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35572-001

SD-35572-001

Search Parts in this Series

35572Series

Mates With

35312 Vertical Shrouded Header, 35184

Plug Housing

Use With

57915 Wire-to-Board Terminal

This document was generated on 04/02/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
