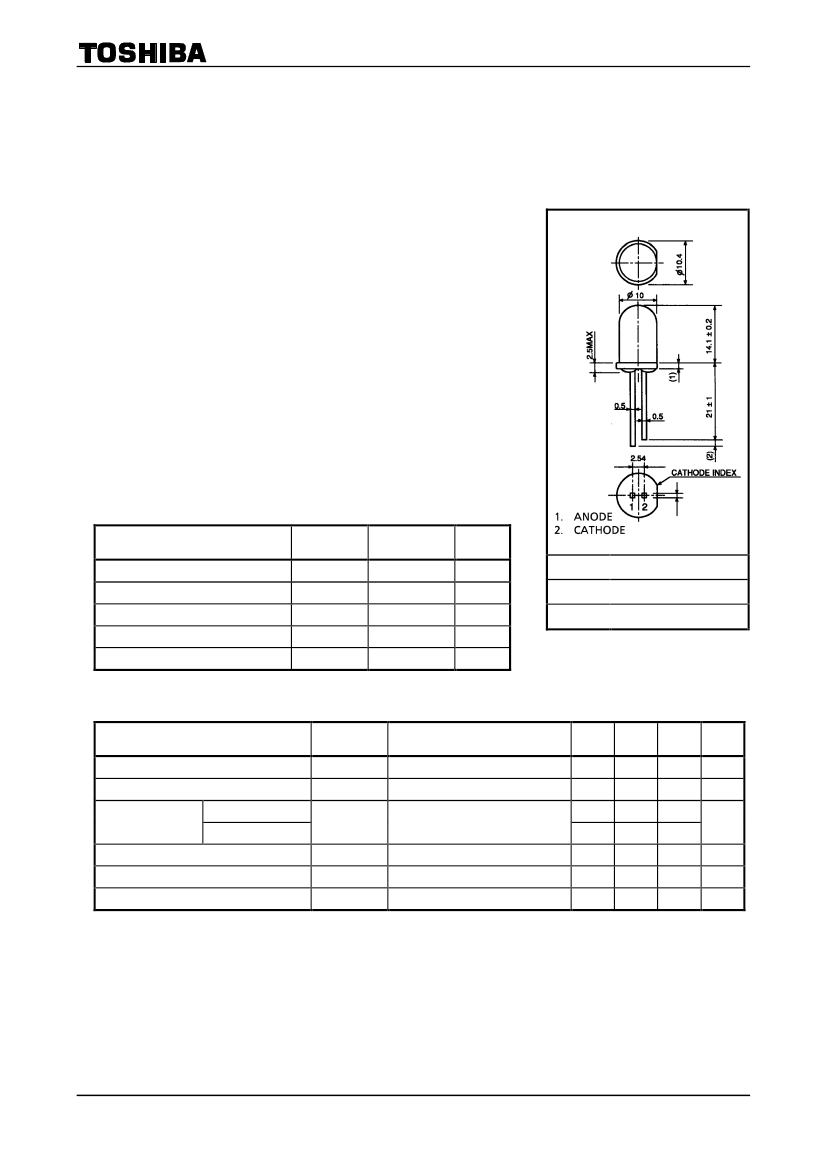

TLRH190P
TOSHIBA LED Lamp InGaAℓP Red Light Emission
TLRH190P
Panel Circuit Indicator
·
·
·
·
·
·
·
·
·
·
10 mm diameter
InGaAℓP red LED
All plastic mold type.
Colorless clear lens
Low drive current, high intensity red light emission
Recommended forward current: I
F
= 1~20mA (DC)
All plastic molded lens, provides an excellent on−off contrast ratio.
Fast response time, capable of pulse operation.
High power luminous intensity
Without stand−offs
Applications: Suitable for outdoor message signboard, safety
equipment.
Unit in mm
Maximum Ratings
(Ta = 25°C)
Characteristic
Forward current (DC)
Reverse voltage
Power dissipation
Operating temperature range
Storage temperature range
Symbol
I
F
V
R
P
D
T
opr
T
stg
Rating
50
4
125
-30~85
-40~120
Unit
mA
V
mW
°C
°C
JEDEC
EIAJ
TOSHIBA
Weight: 1.0 g
―
―
Electrical And Optical Characteristics
(Ta = 25°C)
Characteristic
Forward voltage
Reverse current
Luminous
intensity
TLRH190P
TLRH190P (WX)
Symbol
V
F
I
R
I
V
λ
P
∆λ
λ
d
Test Condition
I
F
= 20 mA
V
R
= 4 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20mA
(Note)
Min
¾
¾
4760
8500
¾
¾
¾
Typ.
1.9
¾
19000
¾
644
18
630
Max
2.5
50
¾
41400
¾
¾
¾
Unit
V
µA
mcd
nm
nm
nm
Peak emission wavelength
Spectral line half width
Dominant wavelength
(Note): Lamps are classified into the following ranks according to their luminous intensity.
Measurement tolerance for each limit is
±15%.
V: 5600−11200mcd, W: 10000−20000mcd, X: 18000−36000mcd.
1
2002-09-25

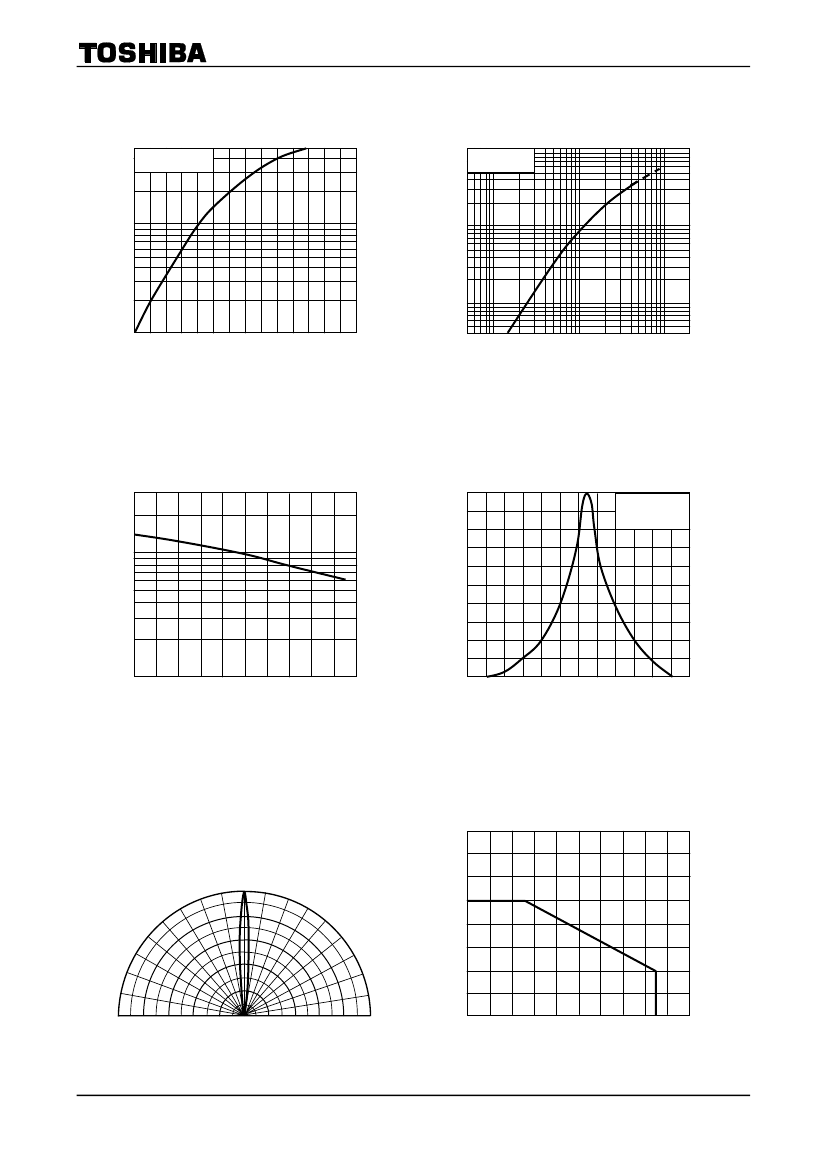

TLRH190P
Precaution
·
·
·
Please be careful of the followings
Soldering temperature: 260°C max
Soldering time: 3 s max
(Soldering portion of lead: Up to 2 mm from the body of the device)
If the lead is formed, the lead should be formed up to 5 mm from the body of the device without forming stress to
the resin. Soldering should be performed after lead forming.
This visible LED lamp also emits some IR light. If a photodetector is located near the LED lamp, please ensure
that it will not be affected by this IR light.
2
2002-09-25
