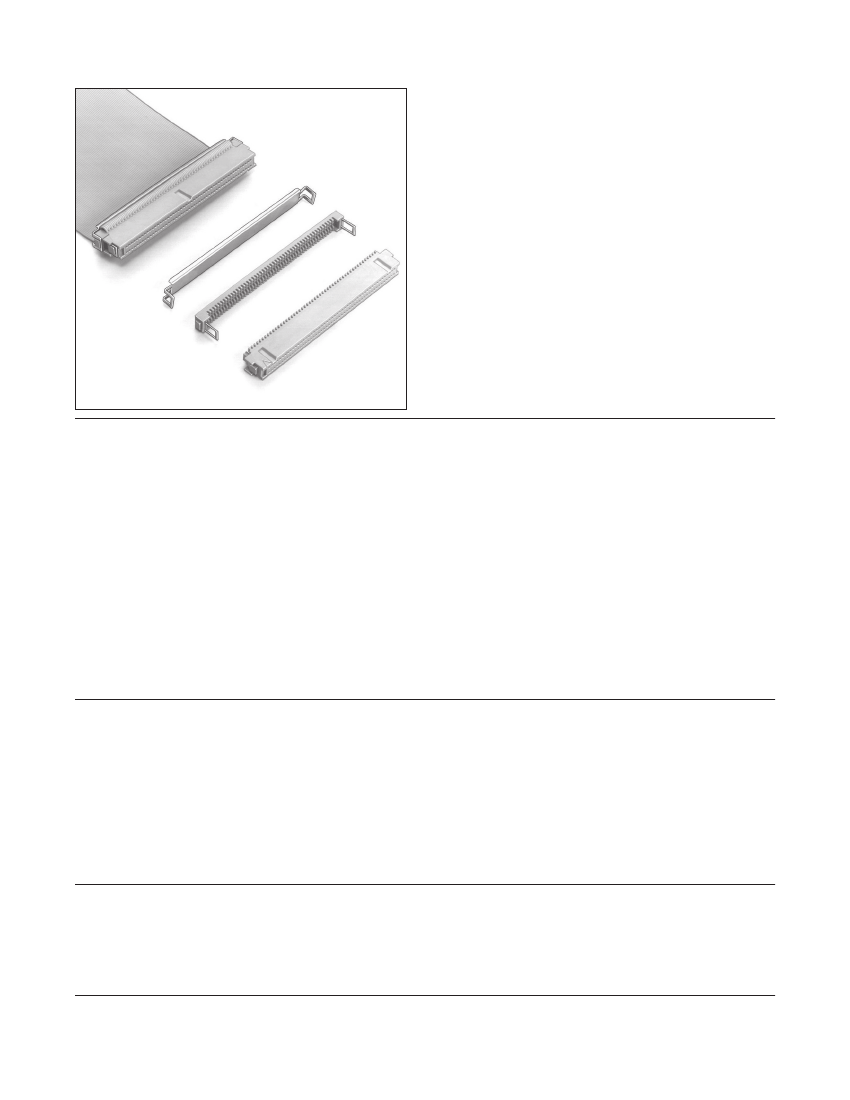

Rating Conditions: EIA-364-070 Method 2, 30 degrees C maximum temperature
rise, 20% derated. Reference appropriate 3M Product Specification for detailed
current derating curves.
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
500 V
RMS
at Sea Level
Current Rating:
3.00 A, 1 Contact Powered
Environmental
Temperature Rating:
-55°C to +105°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

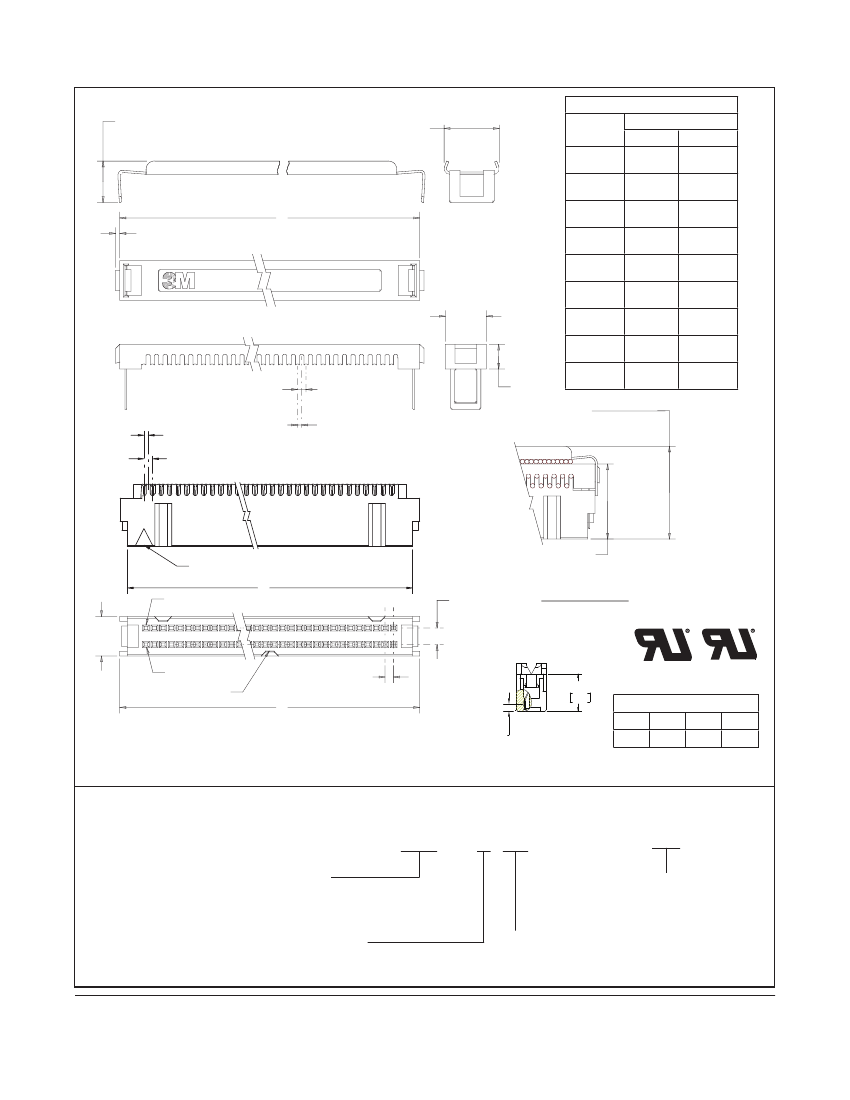

Tripolarized Wiremount Socket
.050" × .100" for .025" Pitch Cable
.23
±
.002
[ 5.8 ]
.30
±
.002
[ 7.6 ]
820 Series
Contact
Quantity
020
026
Table 1
Dimensions
A
.755
[ 19.18 ]
.905
[ 22.99 ]
1.155
[ 29.34 ]
1.255
[ 31.88 ]
1.505
[ 38.23 ]
1.755
[ 44.58 ]
1.955
[ 49.66 ]
2.255
[ 57.28 ]
2.755
[ 69.98 ]
B
.670
[ 17.02 ]
.820
[ 17.02 ]
1.070
[ 27.18 ]
1.170
[ 29.72 ]
1.420
[ 36.07 ]
1.670
[ 42.42 ]
1.870
[ 47.50 ]
2.170
[ 55.12 ]
2.670
[ 67.82 ]
.025 (2)
[ 0.64 ]
A
036
040
050
060
.24
[ 6.1 ]
068
080
.050
[ 1.27 ]
.025
[ 0.64 ]
.15
[ 3.8 ]
100
.56 Ref
[ 14.2 ]
(With Strain Relief)
.025
[ 0.64 ]
.050
[ 1.27 ]
Triangle Indicates
Position 1
B
Position 1
.24
[ 6.1 ]
.100
[ 2.54 ]
.46 Ref
[ 11.87 ]
(Without Strain Relief)
Assembled Height
C
Position 2
See Note 1
A
.05 REF.
.050 Ref
[ 1.2 ]
.30
7.6
Inch
[mm]
Tolerance Unless Noted
.0
.00
±.01
.000
±.005
Inch
±.1
Notes:
1. This polarization slot does not exist on the 20 position socket.
2. Recommended to be mated to the .050" X .100" 810XX series headers.
(CONTACT MATING POINT)
[ ] Dimensions for Reference Only
Ordering Information
Socket
82XXX - 600X - XX
Contact Quantity
(See Table 1)
(If Ordered Separately)
Strain Relief
3858-XXX
Contact Quantity:
See Table
Strain Relief:
0 = No Strain Relief
6 = With Strain Relief
Application tools: 3M
™
Press 3640 (or equivalent), 3M
™
Locator Plate 3443-113 , 3M
™
Platen 3442-45.
Plating suffix:
blank = tin lead U slots (App. E3 & C2 Apply)
RB = matte Sn U slots (App. E1 & C1 Apply) [Standard]
TS-0254-D
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
