The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
0.5 mm and 1 mm pitch, 1.8 mm / 2.4 mm above the board, Flip-Lock actuator,
Flexible Printed Circuit and Flexible Flat Cable ZIF connectors
FH31H / FH31S Series
FH31H Series: 1.8 mm high
1.8mm
4.0mm
44.
betw 9 mm (80
een r
einfo positions
rcem
)
ent fi
ttings
1.8mm

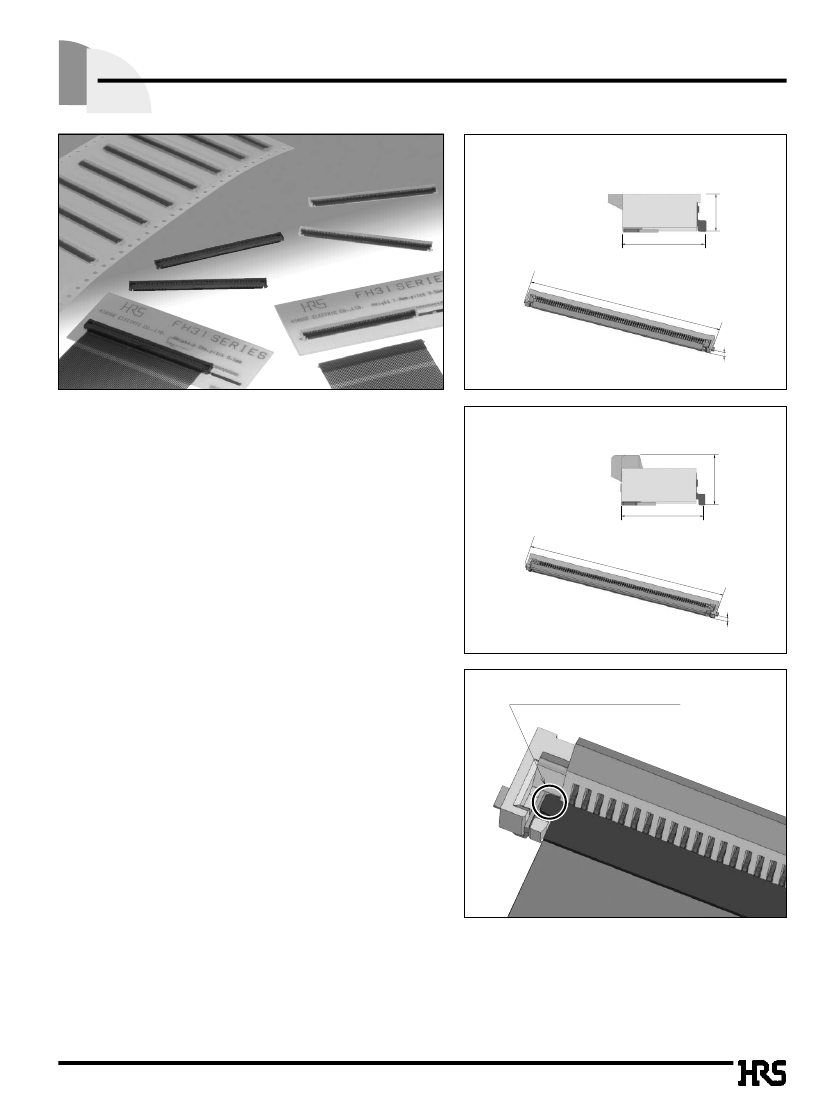

sFeatures
1. Decreased size
Board mounting space 4.0 mm wide.
* Reduced width: Approximately 38%
(compared with existing FH28H Series)
* Reduced PCB footprint: Approximately 40%
(compared with existing FH28H Series)
* Reduced height: Approximately 30%
(compared with existing FH28H Series)
FH31S Series: 2.4mm high
2.4mm
4.0mm
2. Rotating Flip–Lock actuator
Rotating actuator permits easy insertion and retention of the
FPC/FFC, assuring reliable electrical and mechanical
connection.
44.
betw 9 mm (80
een r
einfo positions
rcem
)
ent fi
ttings
2.4mm
3. Choice of required heights
In applications where space is available and multiple re-
insertions of the FPC/FFC are expected, the 2.4 mm high
connectors with stronger actuator may be selected, adding to
the ease of opening / closing of the connector.
FPC with or without the retention tabs
FFC without the retention tabs
4. Accepts standard FPC thickness
0.3mm thick standard Flexible Printed Circuit (FPC) can be
used.
5. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate
vacuum pick-up and placement.
Standard reel packaging contains 2500 connectors.
6. Halogen-free *
(FH31W series)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum,
Cl + Br combined-1,500ppm maximum
Br 900ppm or lower, Cl 900ppm or lower, Br + Cl 1,500ppm or lower
7. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH31H / FH31S Seriesq0.5 mm and 1 mm pitch, 1.8 mm / 2.4 mm above the board, Flip-Lock actuator, Flexible Printed Circuit and Flexible Flat Cable ZIF connectors
sSpecifications
Rating
Operating
-40 to +85°C (Note 1)
temperature range
Operating
Relative humidity 90% or
Voltage rating 50 Vrms AC/DC
humidity range
less (No condensation)
Current rating 0.5 A (Note 3)
Storage
-10 to +50°C (Note 2)
temperature range
Storage
Relative humidity 90% or
humidity range
less (No condensation)
Recommended FPC/FFC
Thickness: 0.3
±
0.05 mm, Gold plated
Conditions
100 V DC
150 Vrms AC / 1 minute
1 mA (DC or 1,000 Hz)
20 cycles
Frequency: 10 to 55 Hz,
single amplitude of 0.75 mm,
10 cycles in each of the 3 directions
Acceleration of 981m/s
2
, 6 ms duration,
sine half-wave, 3 cycles in each of the 3 axis
96 hours at 40ç and humidity of 90 to 95%
Temperature:-40ç➝+15ç to +35ç➝+85ç➝+15ç to +35ç
Time: 30➝ 2 to 3
➝
30➝ 2 to 3 minutes
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç ± 5ç for 5 seconds
Item
Specification
1.Insulation resistance 500 Mø min
2.Withstanding voltage No flashover or insulation breakdown
100 mø max.
3.Contact resistance
* Including FPC and FFC conductor resistance
Contact resistance: 100 mø max.
4.Durability
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
5.Vibration
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
6.Shock
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
7.Humidity
Insulation resistance: 50 Mø min.
(Steady state)
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
8.Temperature cycle
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
9.Resistance to
No deformation of components affecting
soldering heat
performance
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of connectors after board
mounting.
Note 3: When passing the current through all of the contacts, use 70% of the rated current.
sMaterials
Part
Material
LCP
Insulator
FH31S,FH31H:Polyamide
FH31HW:LCP
Contacts
Metal fittings
Phosphor bronze
Finish
FH31H: Color: Beige
FH31S: Color: Black
FH31H (64 pos.), FH31S: Color: Brown
FH31H (68 and 80 pos.): Color: Black
Gold plated
Pure tin plating
-----------------
-----------------
UL94V-0
Remarks
sOrdering
information
FH 31 H W - 56 (28) S B - 1 SH (05)
1
2
3
4
5
6
7
8
9
10
11
1
Series name:FH
2
Series No.: 31
3
H:1.8mm high
S:2.4mm high
4
Blank:Standard
W :halogen free
(Flame retardance UL94HB).
5
Standard type:Nomber of contacts (16 to 80)
Eccentric type:Number of contacts in 0.5mm
housing
Standard type:Blank
6
Eccentric type:Number of contacts
7
Contact alignment : S : single
8
Eccentric direction:
Blank:standard type
B:Eccentric type
9
Contact pitch:0.5mm,1mm
10
Contact type
SH:SMT horizontal mounting
11
Plating specifications:
(05) (06):Gold plated
(08):Partial gold plated
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH31H / FH31S Seriesq0.5 mm and 1 mm pitch, 1.8 mm / 2.4 mm above the board, Flip-Lock actuator, Flexible Printed Circuit and Flexible Flat Cable ZIF connectors

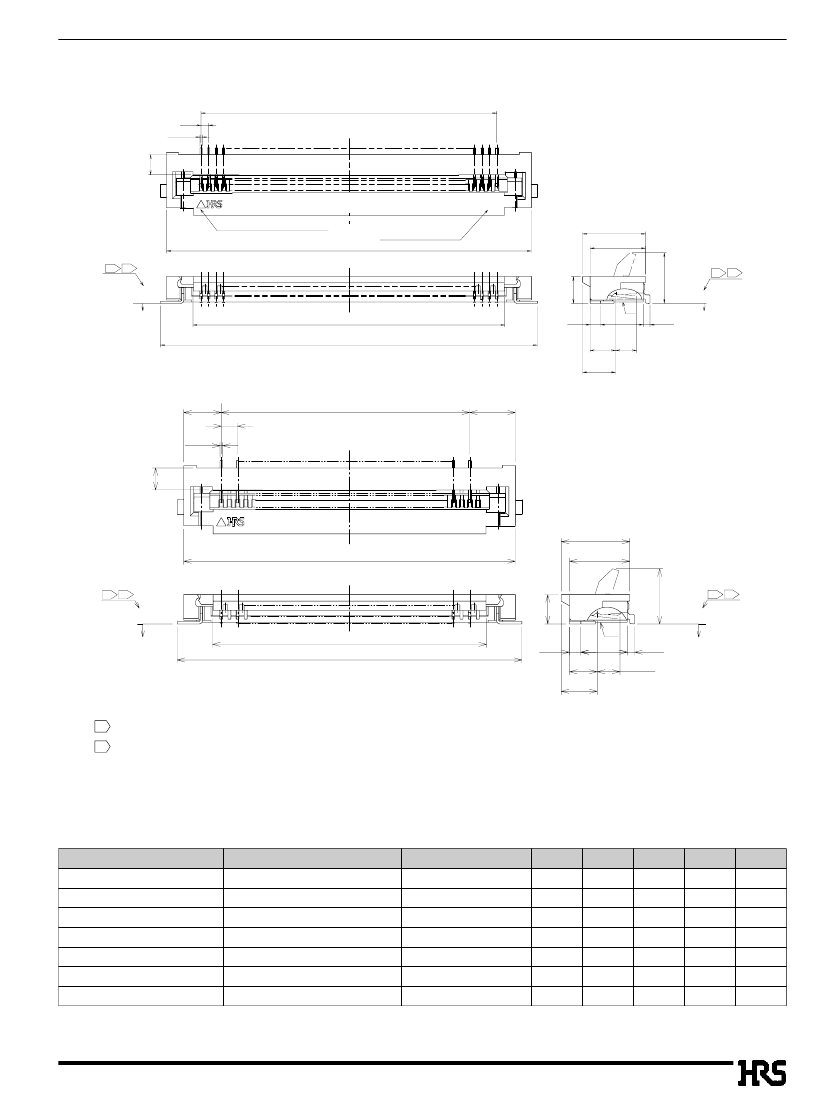

sDimensions
– FH31H (1.8 mm high)
A
0.5
(0.15 )
(1.35)
A**
Polarizing mark indicator
B
1
2
0
0.15MAX
Number of contacts
indicator
4.2
3.7
(3.4)
1
0
E
2.85
(1.7) (1.4)
(2.2)
0.45
0.15MAX
2
(C: FPC/FFC insertion slot dimension)
D
(0.5mm Pitch type)
(U)
1
(0.15)
(1.35)
A
(2.8)
A**
4.2
B
3.7
1.8
0.7
(3.4)
1
2
0
0.15MAX
(C: FPC/FFC insertion slot dimension)
D
1.8
1
0
2
0.7
(1.7)
(2.2)
E
2.85
0.45
(1.4)
0.15MAX
(1mm Pitch type)
Note 1 : The coplanarity of each terminal lead is within 0.1.
2 : The contact terminal lead area indicates the dimension from the E surface, the bottom surface of the insulator body.
3 : Packaged on tape and reel only. Check packaging specification.
4 : Slight variations in color of the plastic compounds do not affect form ,fit or function of the connector.
5 : After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
D
U
32.9
36.9
38.9
44.9
36.9
21.4
36.9
------
------
------
------
2.3
2.8
2.3
Part Number
FH31H-56S-0.5SH(08)
FH31H-64S-0.5SH(05)
FH31H-68S-0.5SH(06)
FH31H-80S-0.5SH(06)
FH31H-64(32)S-1SH(05)
FH31HW-16S-1SH
FH31HW-64(32)SB-1SH
CL No.
580-0610-0-08
580-0605-0-05
580-0604-8-06
580-0601-0-06
580-0612-6-05
580-0611-3-00
580-0612-6-00
Number of contacts
56
64
68
80
32
16
32
A
27.5
31.5
33.5
39.5
31
15
31
B
32.1
36.1
38.1
44.1
36.1
20.6
36.1
C
28.57
32.57
34.57
40.57
32.57
17.07
32.57
Tape and reel packaging (2,500 pieces/reel).
Order by number of reels.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH31H / FH31S Seriesq0.5 mm and 1 mm pitch, 1.8 mm / 2.4 mm above the board, Flip-Lock actuator, Flexible Printed Circuit and Flexible Flat Cable ZIF connectors
sDimensions
– FH31S (2.4 mm high)
A
0.5
(0.15)
(1.35)
A**
Polarizing mark indicator
B
1
2
0
0.15MAX
Number of contacts
indicator
4.2
3.7
(3.4)
1
0
2
2.4
(C: FPC/FFC insertion slot dimension)
D
0.7
(2.2)
E
2.85
(1.7) (1.4)
0.45
0.15MAX
Note 1 : The coplanarity of each terminal lead is within 0.1.
2 : The contact terminal lead area indicates the dimension from the E surface, the bottom surface of the insulator body.
3 : Packaged on tape and reel only. Check packaging specification.
4 : Slight variations in color of the plastic compounds do not affect form ,fit or function of the connector.
5 : After reflow, the terminal plating may change color, however this does not represent a quality issue.
Part Number
FH31S-64S-0.5SH(05)
FH31S-80S-0.5SH(08)
CL No.
580-0608-9-05
580-0607-6-08
Number of contacts
64
80
A
31.5
39.5
B
36.1
44.1
All dimensions: mm
C
D
32.57
40.57
36.9
44.9
Tape and reel packaging (2,500 pieces/reel).
Order by number of reels.
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH31H / FH31S Seriesq0.5 mm and 1 mm pitch, 1.8 mm / 2.4 mm above the board, Flip-Lock actuator, Flexible Printed Circuit and Flexible Flat Cable ZIF connectors
sRecommended
PCB mounting pattern and metal mask dimensions
A
(V)
0.7±0.05
0.7±0.05
0.3±0.03 (Land)
0.25±0.01(Metal mask)
0.5±0.05
3.7±0.05
Recommended
metal mask thickness: t=0.12
A±0.05
0.3±0.03(Land)
0.25±0.01(Metal mask)
1±0.05
(1.8)
Recommended
metal mask thickness:t=0.12
3.7±0.05
1.3±0.05
1.3±0.05
Outline of the connector
J±0.1
H±0.1
Outline of the connector
J±0.1
H±0.1
(0.5mm Pitch type)
(1mm Pitch type)
sRecommended
FPC/FFC Dimensions
G±0.1
F±0.07
A±0.05
0.5±0.07
0.9±0.1
1.3±0.1
2-
R0
.2
0.5±0.03
2-R
0.2M
R0
2-
0.5
M
.2
AX
AX
Covering film layer
(0.5mm Pitch type)
G±0.1
F±0.07
1±0.07
2-
R0
.2
2-
R0
.2
A±0.05
1±0.03
0.6±0.03
W±0.07
0.9±0.1
1.3±0.1
(Uncovered area)
0.5MIN.
Overlap
1 0.3±0.05
3MIN.(Stiffener)
2-
R0
2-
.2M
R0
0.5
M
.2
AX
AX
2±0.05
2.5MIN
(1mm Pitch type)
Note 1 :
Set the stiffener thickness to 0.188 (7.5mil) min.
