3M
TM

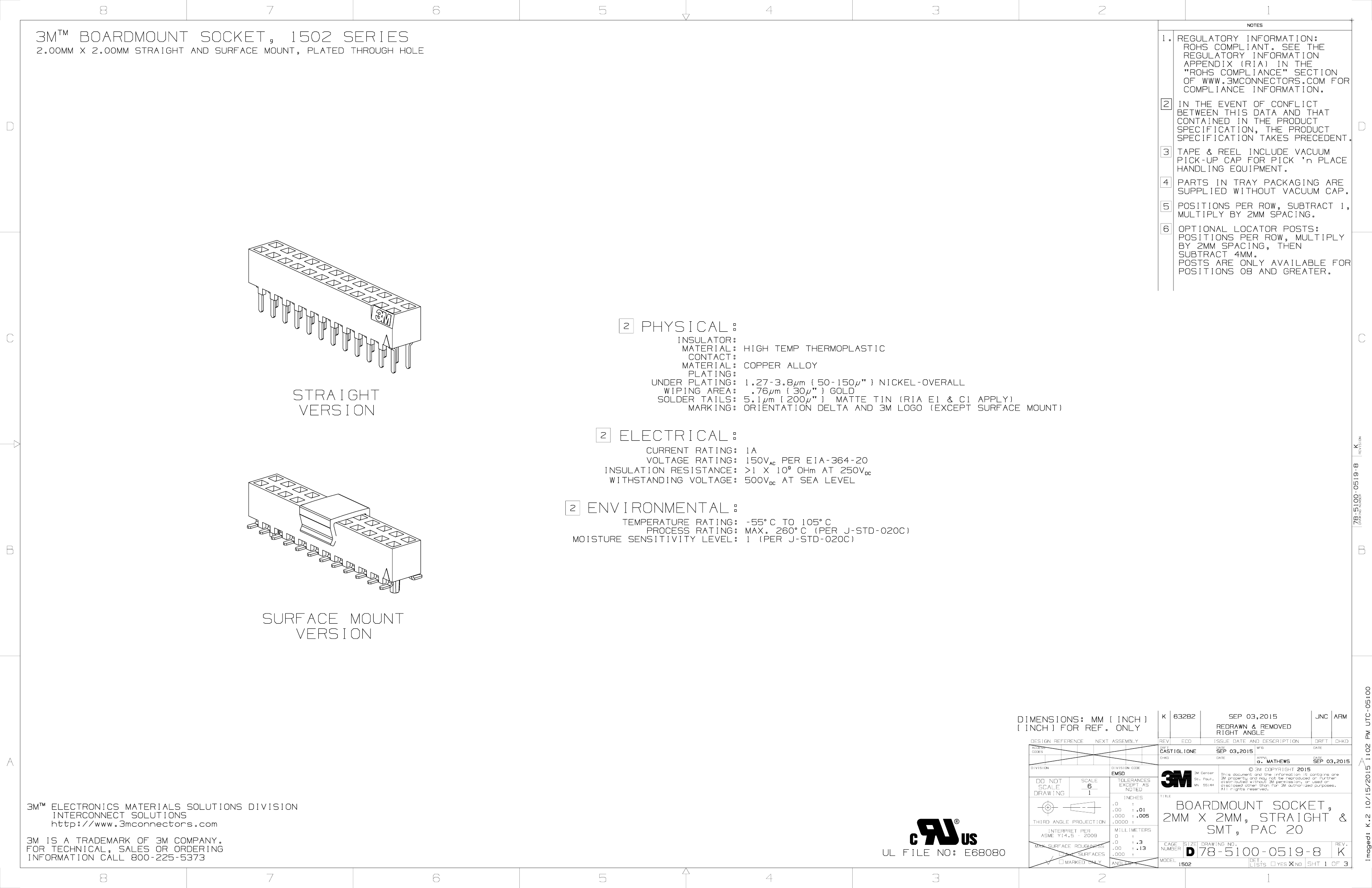

BOARDMOUNT SOCKET, 1502 SERIES
2.00MM X 2.00MM STRAIGHT AND SURFACE MOUNT, PLATED THROUGH HOLE
D
D
2
C
17
PHYSICAL:
INSULATOR:
MATERIAL:
CONTACT:
MATERIAL:
PLATING:
UNDER PLATING:
WIPING AREA:
SOLDER TAILS:
MARKING:
C
HIGH TEMP THERMOPLASTIC
B
D
IS
C
2
ENVIRONMENTAL:
TEMPERATURE RATING: -55 C TO 105 C
PROCESS RATING: MAX. 260 C (PER J-STD-020C)
MOISTURE SENSITIVITY LEVEL: 1 (PER J-STD-020C)
SURFACE MOUNT
VERSION
78-5100-0519-8
O
N
CURRENT RATING:
VOLTAGE RATING:
INSULATION RESISTANCE:
WITHSTANDING VOLTAGE:
1A
150V
AC
PER EIA-364-20
>1 X 10
9
OHm AT 250V
DC
500V
DC
AT SEA LEVEL
T
B
DRAWING NUMBER
REVISION
2
K
ELECTRICAL:
IN
U
E
STRAIGHT
VERSION
D
1/
COPPER ALLOY
1.27-3.8
m
{50-150 "} NICKEL-OVERALL
.76
m
{30 "} GOLD
5.1
m
[200 "] MATTE TIN (RIA E1 & C1 APPLY)
ORIENTATION DELTA AND 3M LOGO (EXCEPT SURFACE MOUNT)
DIMENSIONS: MM [INCH]
[INCH] FOR REF. ONLY
DESIGN REFERENCE
ACCESS
CODES
K
63282
SEP 03,2015
REDRAWN & REMOVED
RIGHT ANGLE
JNC
ARM
NEXT ASSEMBLY
REV
DRFT
ECO
ISSUE DATE AND DESCRIPTION
DATE
MFG
DRFT
DATE
DATE
CHKD
CASTIGLIONE
CHKD
SEP 03,2015
DATE
APPVL
A
a. MATHEWS
DIVISION
DIVISION CODE
SEP 03,2015
EMSD
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
6
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
3M
TM
ELECTRONICS MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
R
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
BOARDMOUNT SOCKET,
2MM
X 2MM, STRAIGHT &
SMT, PAC 20
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0519-8
DET.
LISTS
YES
NO
K
1
OF 3
1502
SHT
8
7
6
5
4
3
2
1
Imaged: K.2 10/15/2015 1:02 PM UTC-05:00
8
7
6
5
4
3
2
1
3M
TM

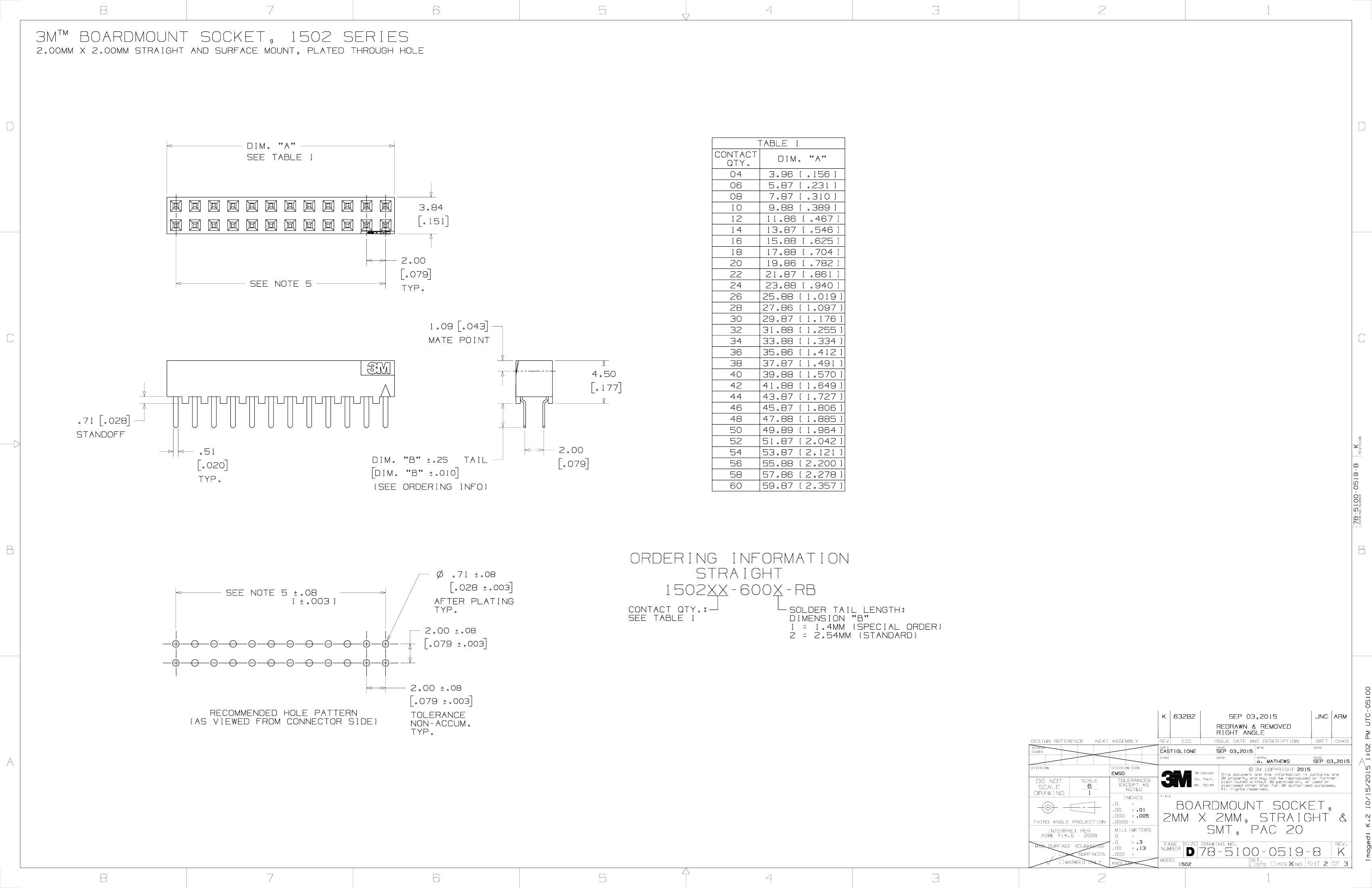

BOARDMOUNT SOCKET, 1502 SERIES
2.00MM X 2.00MM STRAIGHT AND SURFACE MOUNT, PLATED THROUGH HOLE
D
DIM. "A"
SEE TABLE 1
TABLE 1
CONTACT
DIM. "A"
QTY.
04
3.96 [.156]
06
5.87 [.231]
08
7.87 [.310]
10
9.88 [.389]
12
11.86 [.467]
14
13.87 [.546]
16
15.88 [.625]
18
17.88 [.704]
20
19.86 [.782]
22
21.87 [.861]
24
23.88 [.940]
26
25.88 [1.019]
28
27.86 [1.097]
30
29.87 [1.176]
32
31.88 [1.255]
34
33.88 [1.334]
36
35.86 [1.412]
38
37.87 [1.491]
40
39.88 [1.570]
42
41.88 [1.649]
44
43.87 [1.727]
46
45.87 [1.806]
48
47.88 [1.885]
50
49.89 [1.964]
52
51.87 [2.042]
54
53.87 [2.121]
56
55.88 [2.200]
58
57.86 [2.278]
60
59.87 [2.357]
D
3.84
.151
2.00
.079
SEE NOTE 5
TYP.
1.09 .043
C
17
MATE POINT
C
4.50
.177
.71 .028
STANDOFF
.51
.020
TYP.
DIM. "B"
DIM. "B"
.25
.010
IN
U
E
D
1/
(SEE ORDERING INFO)
B
.71
SEE NOTE 5
.08
[ .003]
.028
.08
.003
D
IS
C
ORDERING INFORMATION
STRAIGHT
1502XX-600X-RB
CONTACT QTY.:
SEE TABLE 1
SOLDER TAIL LENGTH:
DIMENSION "B"
1 = 1.4MM (SPECIAL ORDER)
2 = 2.54MM (STANDARD)
AFTER PLATING
TYP.
2.00
.079
.08
.003
.079
RECOMMENDED HOLE PATTERN
(AS VIEWED FROM CONNECTOR SIDE)
.003
K
63282
SEP 03,2015
REDRAWN & REMOVED
RIGHT ANGLE
DESIGN REFERENCE
ACCESS
CODES
TOLERANCE
NON-ACCUM.
TYP.
NEXT ASSEMBLY
JNC
ARM
REV
DRFT
ECO
ISSUE DATE AND DESCRIPTION
DATE
MFG
DRFT
DATE
DATE
CHKD
CASTIGLIONE
CHKD
SEP 03,2015
DATE
APPVL
A
a. MATHEWS
DIVISION
DIVISION CODE
SEP 03,2015
EMSD
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
6
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
BOARDMOUNT SOCKET,
2MM
X 2MM, STRAIGHT &
SMT, PAC 20
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0519-8
DET.
LISTS
YES
NO
K
2
OF 3
1502
SHT
8
7
6
5
4
3
2
1
Imaged: K.2 10/15/2015 1:02 PM UTC-05:00
2.00
.08
78-5100-0519-8
TAIL
O
N
.079
T
2.00
B
DRAWING NUMBER
REVISION
K
8
7
6
5
4
3
2
1
3M
TM
BOARDMOUNT SOCKET, 1502 SERIES
TABLE 1
CONTACT
QTY.
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
DIM. "A"
3.96 [.156]
5.87 [.231]
7.87 [.310]
9.88 [.389]
11.86 [.467]
13.87 [.546]
15.88 [.625]
17.88 [.704]
19.86 [.782]
21.87 [.861]
23.88 [.940]
25.88 [1.019]
27.86 [1.097]
29.87 [1.176]
31.88 [1.255]
33.88 [1.334]
35.86 [1.412]
37.87 [1.491]
39.88 [1.570]
41.88 [1.649]
43.87 [1.727]
45.87 [1.806]
47.88 [1.885]
49.89 [1.964]
51.87 [2.042]
53.87 [2.121]
55.88 [2.200]
57.86 [2.278]
59.87 [2.357]
TAPE
WIDTH
N/A
N/A
24 MM
24 MM
24 MM
24 MM
24 MM
44 MM
44 MM
44 MM
44 MM
44 MM
44 MM
44 MM
56 MM
56 MM
56 MM
56 MM
56 MM
56 MM
72 MM
72 MM
72 MM
72 MM
72 MM
72 MM
72 MM
88 MM
88 MM
ORDER
CODE
N/A
N/A
WB
WB
WB
WB
WB
WD
WD
WD
WD
WD
WD
WD
WE
WE
WE
WE
WE
WE
WF
WF
WF
WF
WF
WF
WF
WG
WG
REVISION
DRAWING NUMBER

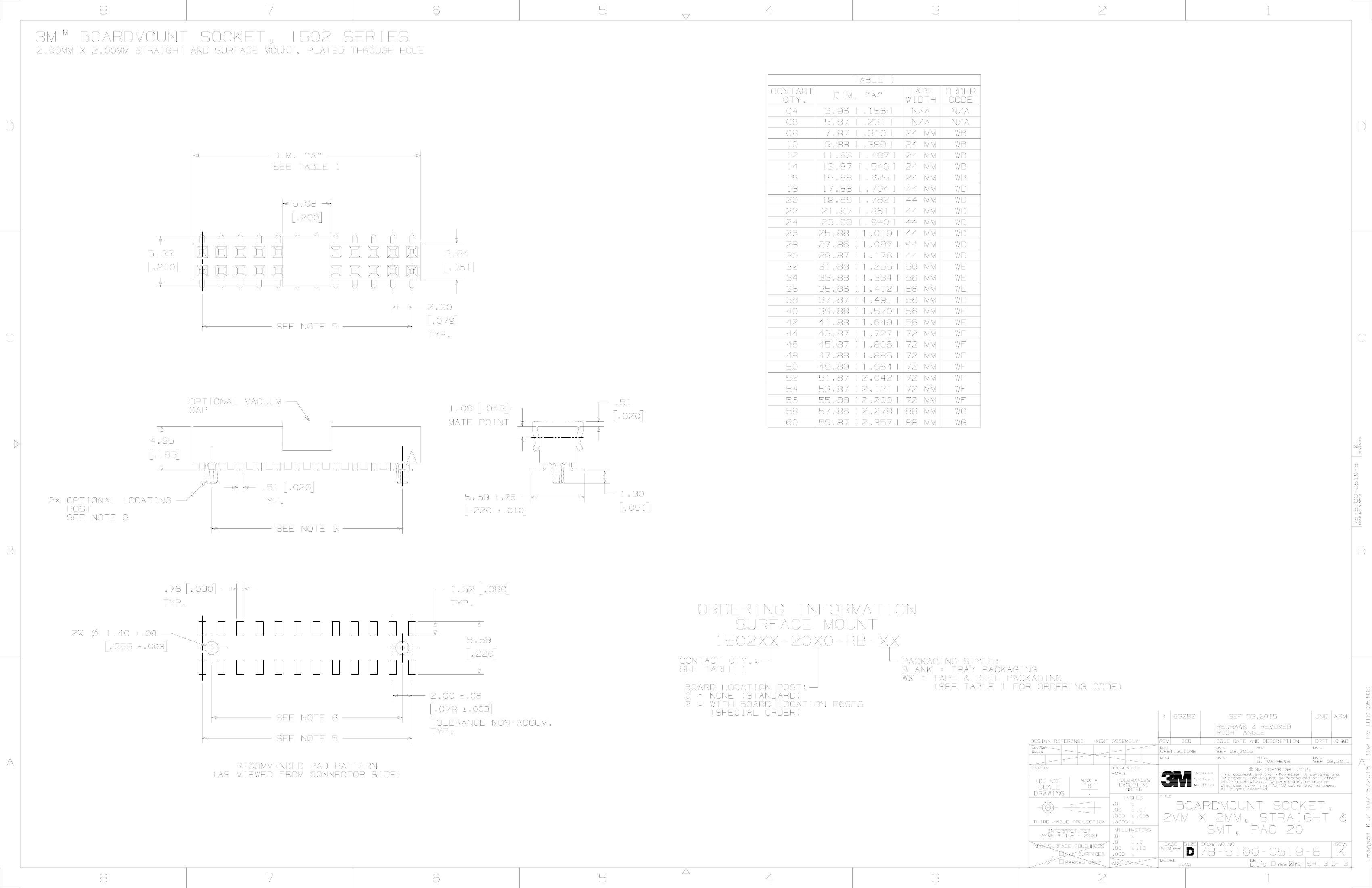

2.00MM X 2.00MM STRAIGHT AND SURFACE MOUNT, PLATED THROUGH HOLE
D
DIM. "A"
SEE TABLE 1
D
5.08
.200
5.33
.210
3.84
.151
2.00
SEE NOTE 5
.079
TYP.
C
17
C
OPTIONAL VACUUM
CAP
1.09 .043
MATE POINT
.51
.020
.183
T
.51 .020
2X OPTIONAL LOCATING
POST
SEE NOTE 6
TYP.
SEE NOTE 6
5.59
.220
.25
.010
IS
C
1.30
.051
B
.76 .030
TYP.
1.52 .060
TYP.
D
2X
1.40
.055
.08
.003
5.59
.220
ORDERING INFORMATION
SURFACE MOUNT
1502XX-20X0-RB-XX
CONTACT QTY.:
SEE TABLE 1
BOARD LOCATION POST:
0 = NONE (STANDARD)
2 = WITH BOARD LOCATION POSTS
(SPECIAL ORDER)
PACKAGING STYLE:
BLANK = TRAY PACKAGING
WX
= TAPE & REEL PACKAGING
(SEE TABLE 1 FOR ORDERING CODE)
78-5100-0519-8
K
63282
SEP 03,2015
REDRAWN & REMOVED
RIGHT ANGLE
DESIGN REFERENCE
ACCESS
CODES
O
N
K
JNC
ARM
NEXT ASSEMBLY
REV
DRFT
4.65
IN
U
E
D
1/
B
2.00
.079
SEE NOTE 6
SEE NOTE 5
.08
.003
TOLERANCE NON-ACCUM.
TYP.
ECO
ISSUE DATE AND DESCRIPTION
DATE
MFG
DRFT
DATE
DATE
CHKD
CASTIGLIONE
CHKD
SEP 03,2015
DATE
APPVL
A
RECOMMENDED PAD PATTERN
(AS VIEWED FROM CONNECTOR SIDE)
a. MATHEWS
DIVISION
DIVISION CODE
SEP 03,2015
EMSD
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
6
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
BOARDMOUNT SOCKET,
2MM
X 2MM, STRAIGHT &
SMT, PAC 20
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0519-8
DET.
LISTS
YES
NO
K
3
OF 3
1502
SHT
8
7
6
5
4
3
2
1
Imaged: K.2 10/15/2015 1:02 PM UTC-05:00
