M80-4211401 datasheet, PDF - EEWORLD Datasheet

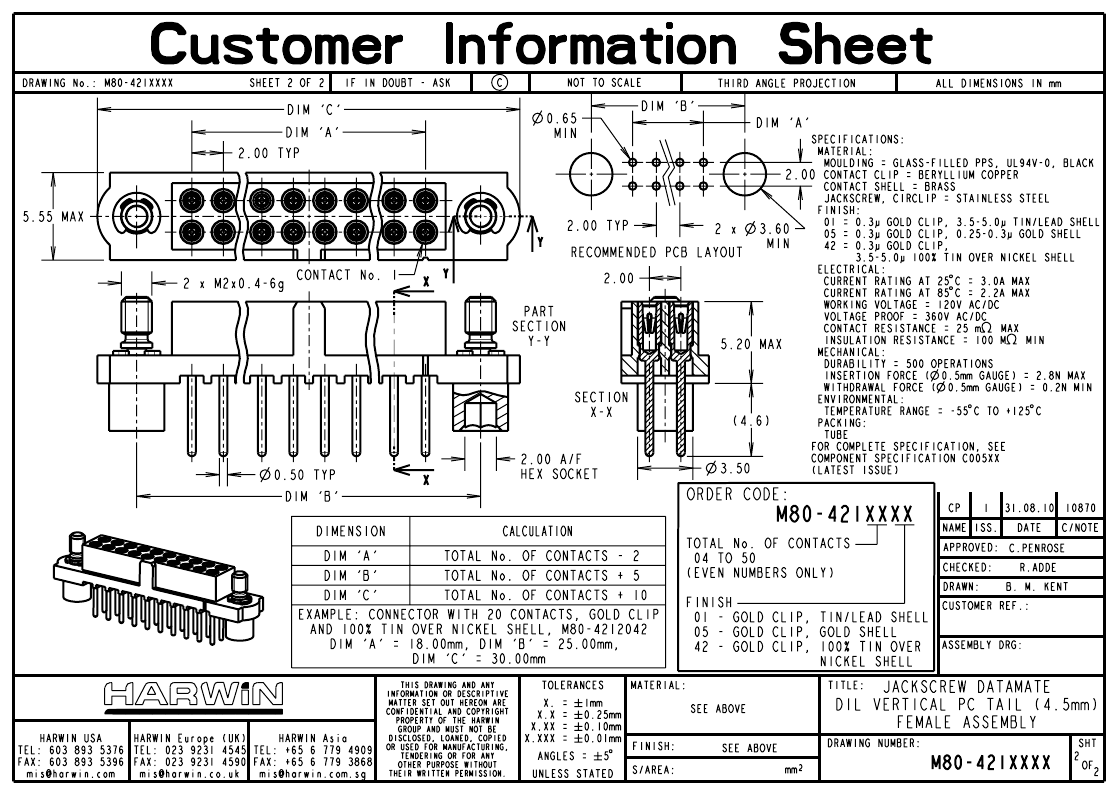

M80-4211401: DescriptionHeaders u0026 Wire Housings 7+7 Way Female PC 4.5MM + HEX SKT J/S; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-4211401 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4211401	-	-	View	Buy Now

Headers u0026 Wire Housings 7+7 Way Female PC 4.5MM + HEX SKT J/S

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
Board mount options	HOLE .138-.163
body width	0.219 inch
subject depth	0.205 inch
body length	0.945 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	11u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.181 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	.199882 N

	M80-4211401	BLU1206P-4422-DT50	M80-4212001
Description	Headers u0026 Wire Housings 7+7 Way Female PC 4.5MM + HEX SKT J/S	Res,SMT,Thin Film,44.2K Ohms,150WV,.5% +/-Tol,50ppm TC,1206 Case	Headers u0026 Wire Housings 10+10 Way Female PC 4.5MM + HEX SKT J/S
Reach Compliance Code	compliant	compliant	-
ECCN code	EAR99	EAR99	-
Maximum operating temperature	125 °C	155 °C	-
