35022-0007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35022-0007

35022-0007: DescriptionCommon Mode Chokes / Filters 100uH 150mA -30%/50% 5.2x3.2mm SMD; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35022-0007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35022-0007	-	-	View	Buy Now

35022-0007 Overview

Common Mode Chokes / Filters 100uH 150mA -30%/50% 5.2x3.2mm SMD

35022-0007 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: 35021-1201; 35021-1301; 35021-1310; 35044-9101; 35044-9102, LOW PROFILE, SOLDERED DIRECTLY TO THE BOARD
body width	0.116 inch
subject depth	0.232 inch
body length	0.748 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	35022
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

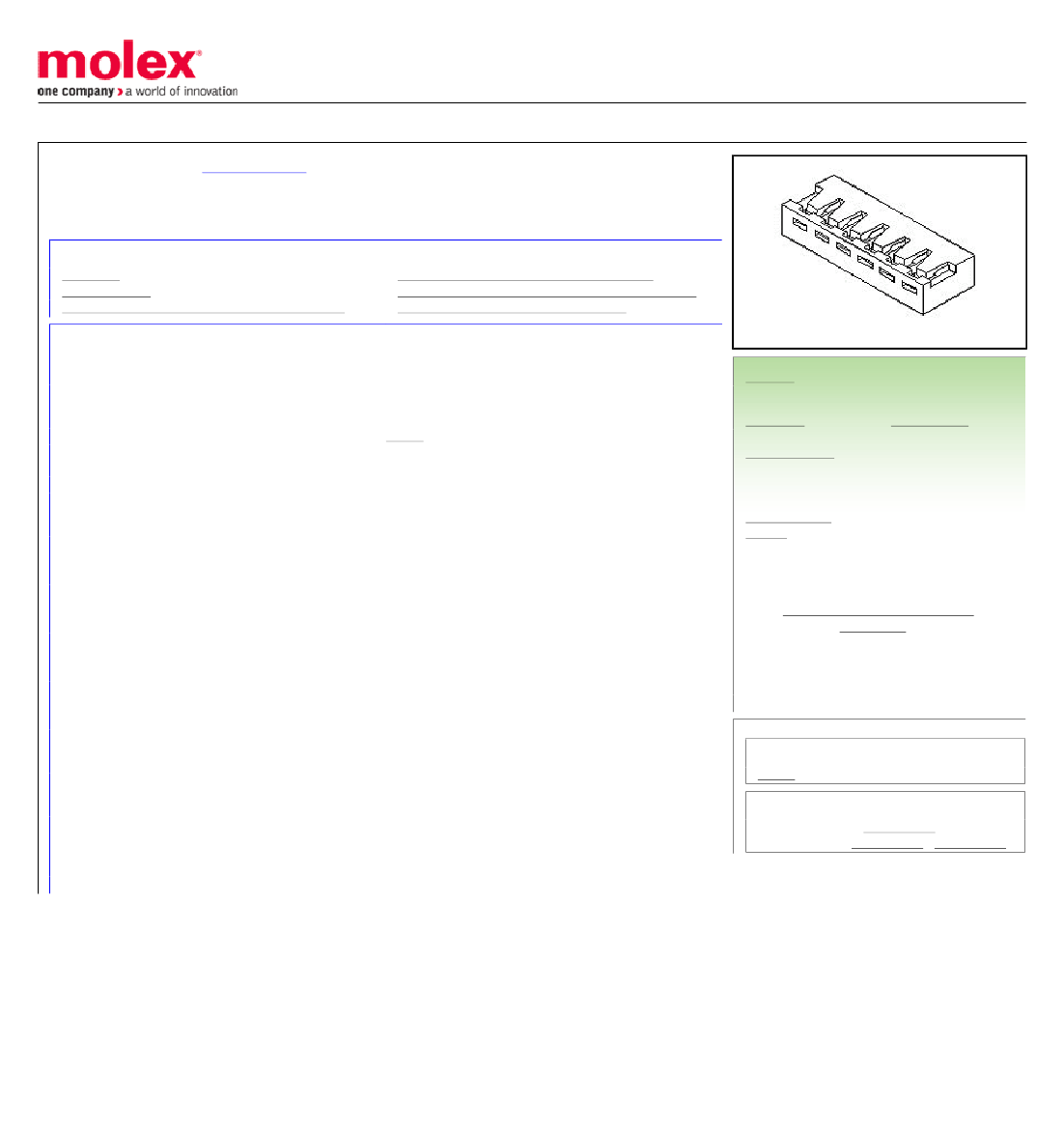

Preview

Download Datasheet

View All

This document was generated on 10/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0350220007

Active

2.50mm Pitch Board-in Crimp Housing, 2.95mm Height, Right Angle and Vertical, 7

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35021-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Product Specification PS-35022-003 (PDF)

Packaging Specification PK-35022-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

Crimp Housings

35022

Signal

Board-in

800754374590

Natural

94V-0

Plug

None

Nylon

0.178/g

Bag

2.50mm

-40°C to +105°C

N/A

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

35022 Series

Use With

Straight Terminal 35044-9105 <br>Right

Angle Terminal 35021-1001 , 35021-1160

PK-35022-001-001

PS-35021-001-001, PS-35022-003

SD-35022-00**

This document was generated on 10/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
