AOLL1-240-24AD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> AOLL1-240-24AD

AOLL1-240-24AD: DescriptionLED Power Supplies 240W 24V 10A LED Driver Adj Output; CategoryPower/power management; File Size1MB，4 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

AOLL1-240-24AD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AOLL1-240-24AD	-	-	View	Buy Now

AOLL1-240-24AD Overview

LED Power Supplies 240W 24V 10A LED Driver Adj Output

AOLL1-240-24AD Parametric

Parameter Name	Attribute value
Product Category	LED Power Supplies
Manufacturer	ETA-USA
RoHS	Details
Operation Mode	Constant Current (CC)
Output Current-Channel 1	10 A
Output Voltage-Channel 1	24 V
Output Power	240 W
Input Voltage	90 VAC to 264 VAC
Dimming	With Dimming
Number of Outputs	1 Output
Mounting Style	Chassis
Open Frame/Enclosed	Enclosed
Product	LED Power Supplies
Factory Pack Quantity	1

Preview

Download Datasheet

View All

ETA-USA

AOLL1-240

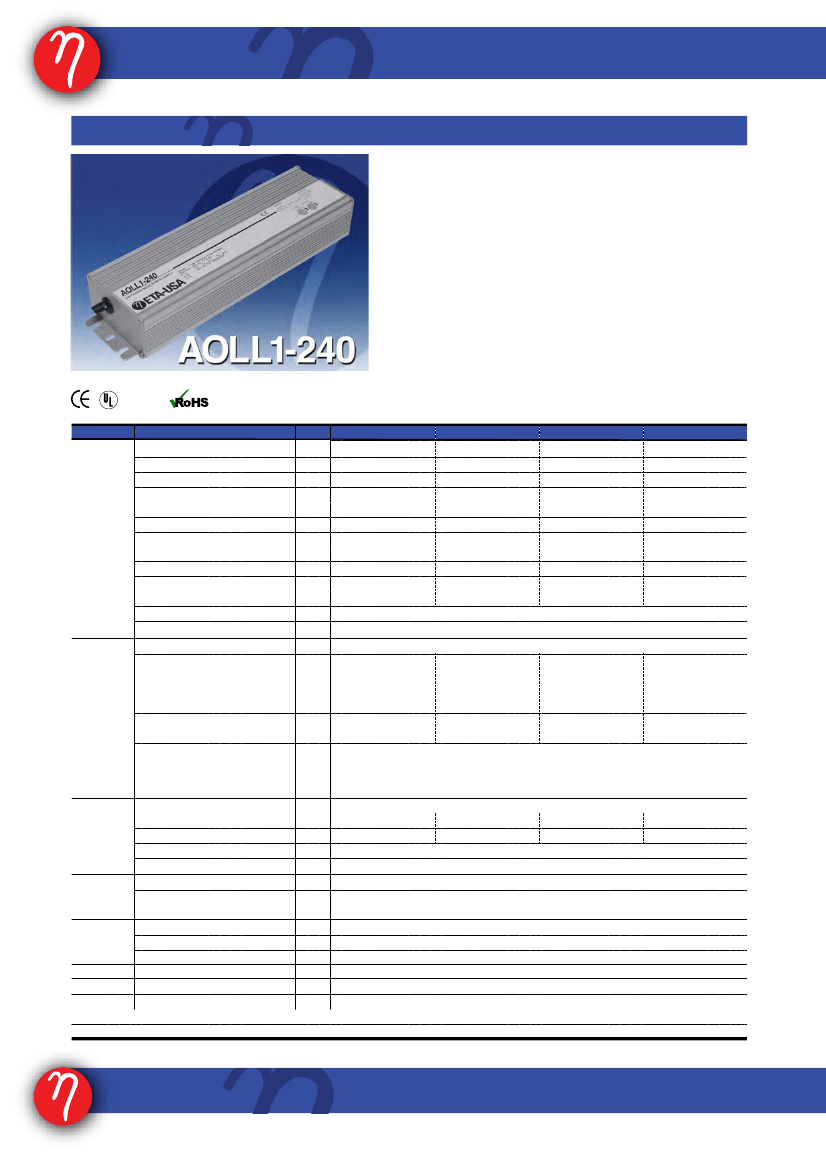

240W Exterior LED Driver

FEATURES:

Universal AC input 90~264 VAC

Built in active PFC

IP66 or IP67 for damp locations designed for

outdoor use

Wide Temp -40 ~ +70℃ range

Adjustable output voltage and current

UL 8750 safety (Pending)

Warranty: 4 years

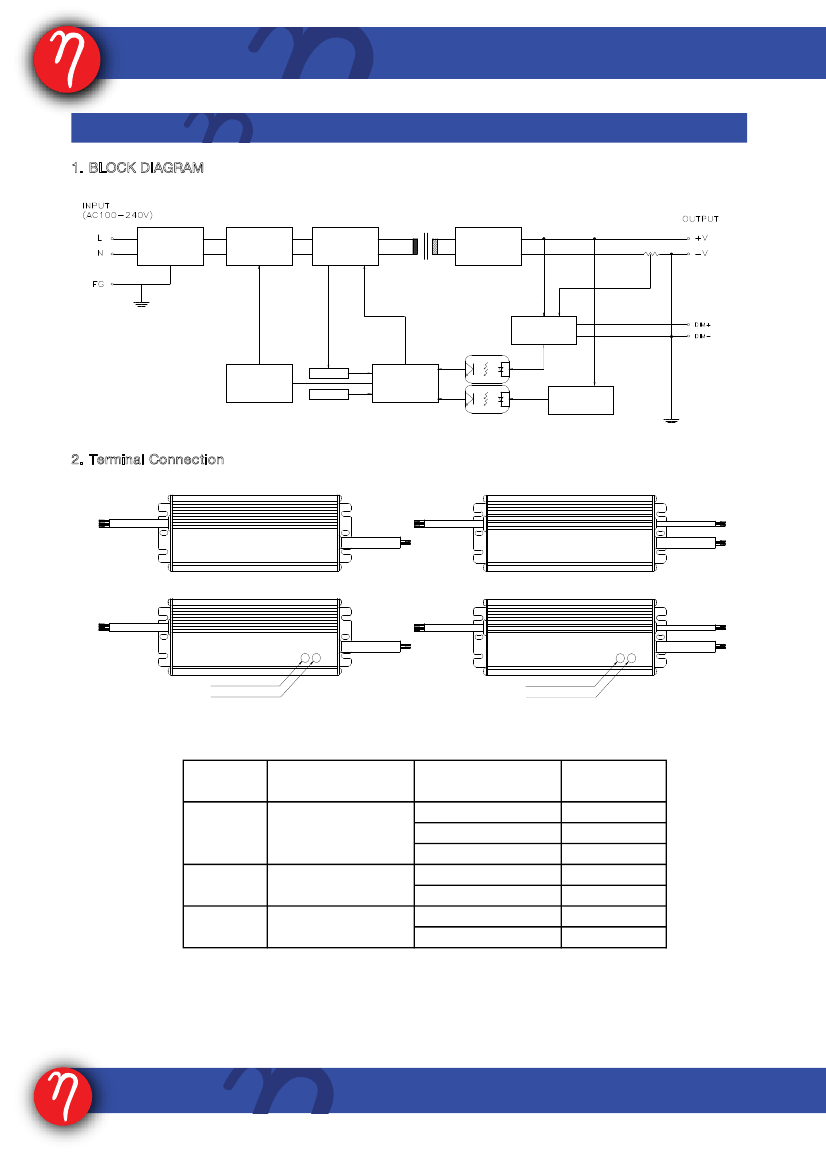

Output voltage and constant current level

can be adjusted through potential meter.

Constant current level adjustable through

output cable with 1~10Vdc.

Pending

OUTPUT

MODEL/CHANNEL

Norminal Voltage

Setting Voltage Range

Voltage ADJ. Range *note1

Norminal Current

Current ADJ. Range *note1

Line Regulation

Load Regulation

Temperature Drift

Ripple Max.

Ripple & Noise Max 1.

Ripple & Noise Max 2. *note2

Turn-on Time Typ.

Hold-up Time Typ.

[V]

[A]

[mV]

[ms]

Unit

[V]

[A]

[%]

[mV]

[A]

[mV]

[ms]

[mA]

[V]

[ms]

[A]

[V]

[A]

[%]

AOLL1-240-12

11.8 ~ 12.1

10.8 ~ 13.5

16.0

8.0 ~ 16

120

180

120

150

600

AOLL1-240-24

AOLL1-240-48

1000 (AC IN 100V, Io=100%)

23.7 ~ 24.3

22.0 ~ 27.0

10.0

5.0 ~ 10

120

360

120

150

600

47.5 ~ 48.5

43.0 ~ 53.0

5.0

2.5 ~ 5

240

720

150

250

800

1000 (AC IN 100V, Io=100%)

17 (AC IN 100V, Io=100%)

INPUT

Function

Electrical

Isolation

Typ. Voltage, Frequency

Current Typ.

110V

220V

Efﬁciency Typ.

110V

220V

Power factor Typ.

110V

220V

Inrush Current Typ.

110V

[A]

220V

Leakage Current Max. 110V

[mA]

mm/g

220V

Over Voltage Protection

Over Current Protection[Blank,D]

Over Current Protection[A,AD]

Short Circuit

Cooling / O.T.P

(1) Input - Output

(2) Input - F.G

(3) Output - F.G

4.0

2.5

AC100 - 240(AC 90-264, 50/60Hz(47 - 63) or DC127-370V (Universal Input)

4.0

2.5

93.5

0.99

0.98

4.0

2.5

0.99

0.98

95 ~ 110 %

50 ~ 100 %

Constant current limiting, recovers automatically after fault condition is removed

25 ( Ta=25℃ , Cold Start )

-40 ~ +75℃, 20 ~ 90% RH (Non Condensing)

45 ( Ta=25℃ , Cold Start )

3.5

68 x39 x 222

1280

3.5

Built to meet UL8750

110% ~ 160% of rating

Built to

95 ~ 110 %

meet EN55015

95 ~ 110

50 ~ 100 %

0.99

0.98

Environment

Operating temp. & Humidity

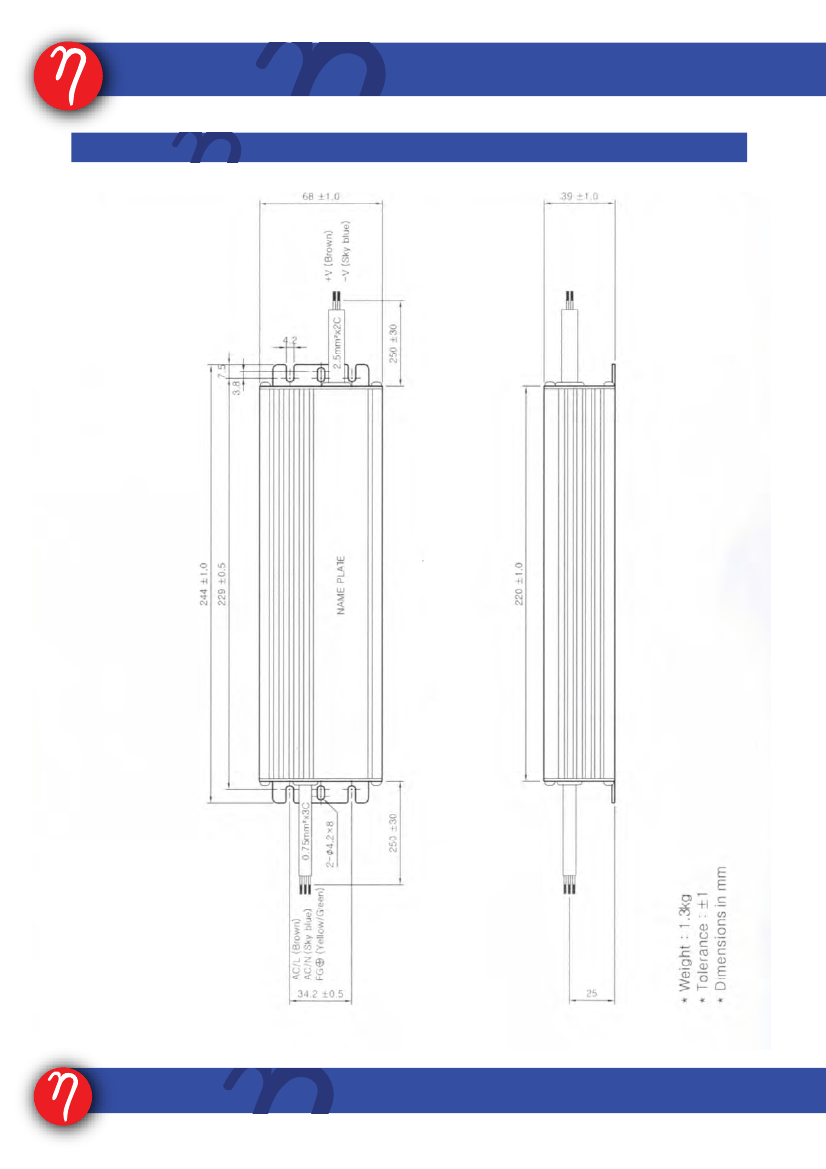

Dimension

Size(WxHxD) / Weight

Safety

Emission

Conducted Emission

*note1 : Type A,AD only

*note2 : Frequency 50/60Hz

Storage temp. & Humidity

Vibration

mm/g

Convection/Optional

AC 3.0KV 1min, cut-off: 20mA / DC 500V 100㏁

AC 2.0KV 1min, cut-off: 20mA / DC 500V 100㏁

AC 0.5KV 1min, cut-off:100mA / DC 500V 100㏁

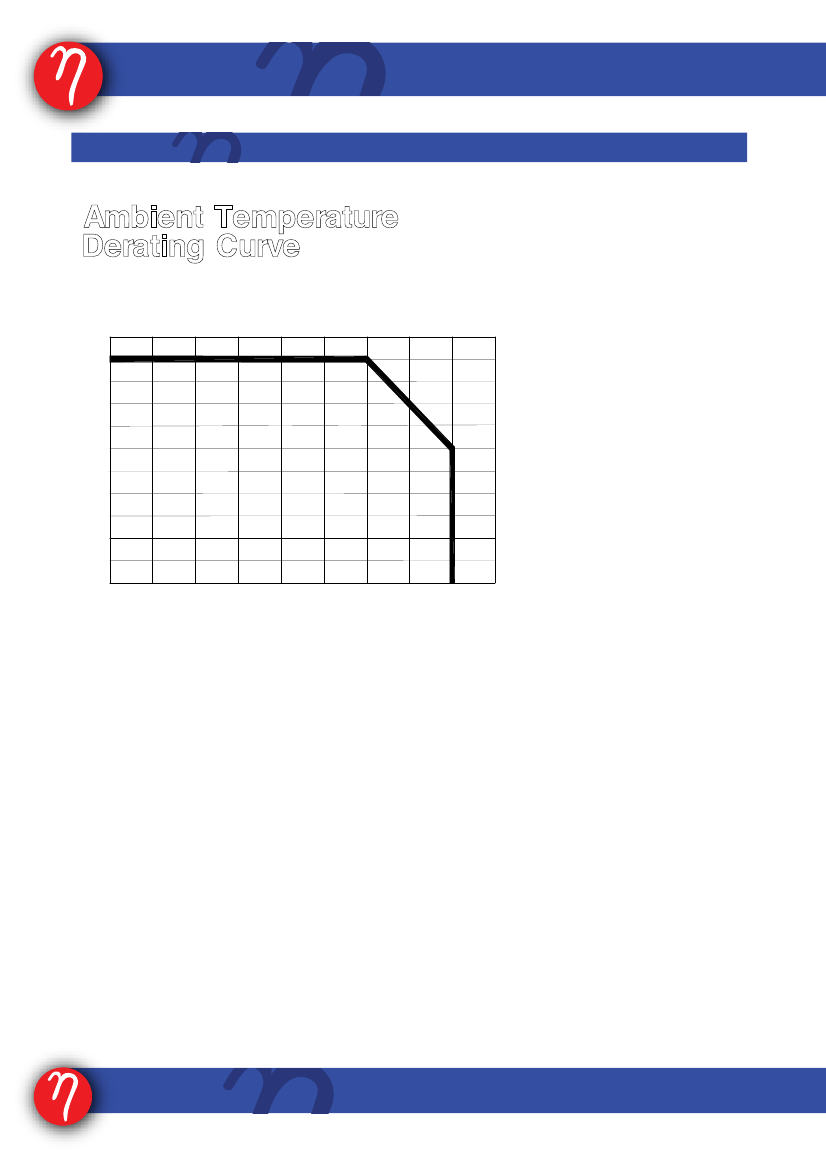

-40 ~ +70℃(Required Derating), 20 ~ 90%RH (Non Condensing)

-40 ~ +75℃, 20 ~ 90% RH (Non Condensing)

10~55Hz at 1G 3minutes period, 30minutes along X,Y and Z axis

68 x39 x 222

1280

CE Built to meet UL8750

Built to meet EN55015

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753

AOLL1-240-24AD Related Products

	AOLL1-240-24AD	AOLL1-240-12AD	AOLL1-240-48AD	AOLL1-240-36AD
Description	LED Power Supplies 240W 24V 10A LED Driver Adj Output	LED Power Supplies 240W 12V 16A LED Driver Adj Output	LED Power Supplies 240W 48V 5A LED Driver Adj Output	LED Power Supplies 240W 36V 6.7A LED Driver Adj Output
Product Category	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies
Manufacturer	ETA-USA	ETA-USA	ETA-USA	ETA-USA
RoHS	Details	Details	Details	Details
Operation Mode	Constant Current (CC)	Constant Current (CC)	Constant Current (CC)	Constant Current (CC)
Output Current-Channel 1	10 A	16 A	5 A	6.7 A
Output Voltage-Channel 1	24 V	12 V	48 V	36 V
Output Power	240 W	240 W	240 W	240 W
Input Voltage	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC
Dimming	With Dimming	With Dimming	With Dimming	With Dimming
Number of Outputs	1 Output	1 Output	1 Output	1 Output
Mounting Style	Chassis	Chassis	Chassis	Chassis
Open Frame/Enclosed	Enclosed	Enclosed	Enclosed	Enclosed
Product	LED Power Supplies	LED Power Supplies	LED Power Supplies	LED Power Supplies
Factory Pack Quantity	1	1	1	-

Recommended Resources

Door status detection circuit diagram

Photoelectric flashing light circuit

TDA7482 digital power amplifier circuit diagram

Optical coupling amplifier circuit

Novel factory timing circuit diagram

Simple sinusoidal oscillation
