TL2100-S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> TL2100-S

Preview

TL2100-S: DescriptionReal Time Clock 16K (2Kx8) 150ns; CategoryPower/power management; File Size110KB，1 Pages; ManufacturerTadiran Batteries; Websitehttp://www.tadiranbat.com/

Download Datasheet Parametric Compare View All

TL2100-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL2100-S	-	-	View	Buy Now

TL2100-S Overview

Real Time Clock 16K (2Kx8) 150ns

TL2100-S Parametric

Parameter Name	Attribute value
Product Category	Electronic Battery
Manufacturer	Tadiran Batteries
RoHS	Not Applicable
Battery Size	AA
Output Voltage	3.6 V
Capacity	2.1 Ah
Chemistry	Lithium
Termination Style	Pressure Contacts
Rechargeable/Non-Rechargeable	Non-Rechargeable
Application	UL Component Recognition
Diameter	4.4 mm
Height	50.5 mm
Operating Temperature Range	- 55 C to + 85 C
Packaging	Tray
Factory Pack Quantity	30
Type	Electronic Batteries
Unit Weight	0.620822 oz

Preview

Download Datasheet

View All

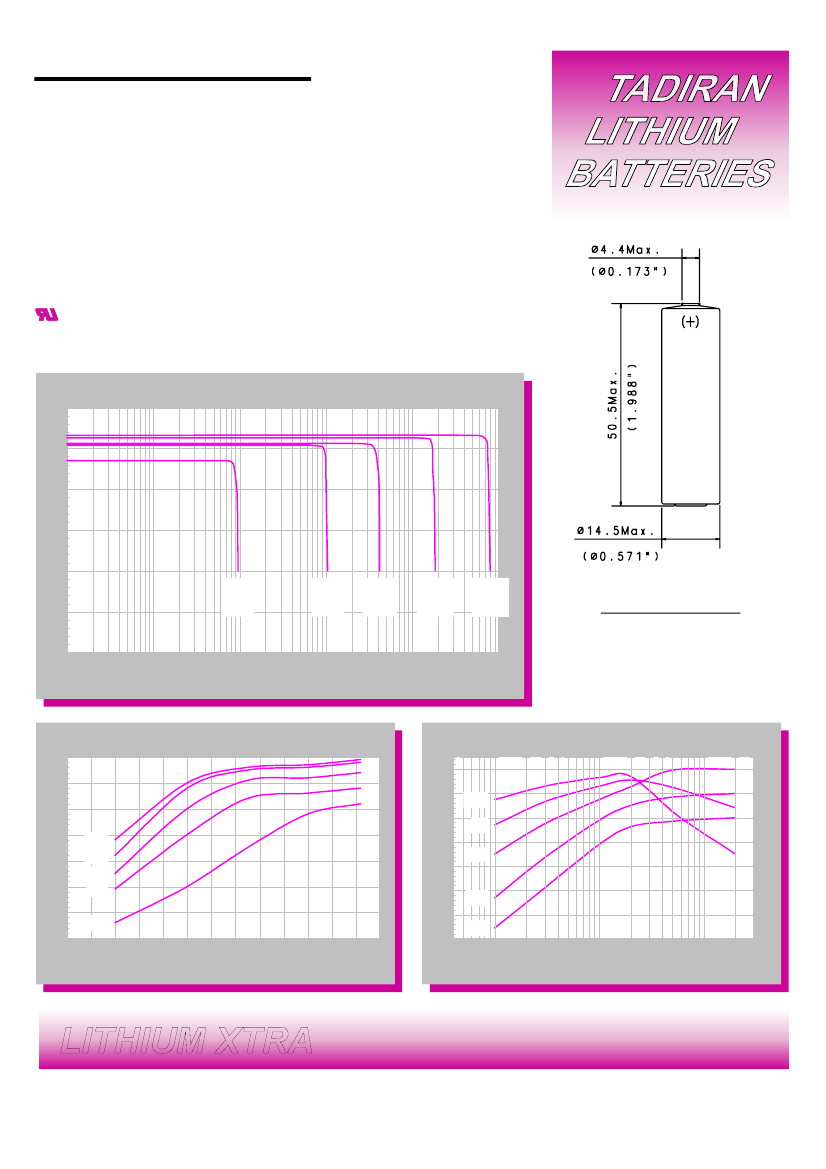

MODEL TL-2100

International size reference: AA, ER14505

TECHNICAL DATA

(Typical values @+25ºC for batteries stored for one year or less)

Nominal capacity @ 2 mA, to 2V

Rated voltage

Maximum recommended continuous current

Maximum pulse current capability

Weight

Volume

Operating temperature range

U.L. Component Recognition, MH 12193

2.1 Ah

3.6 V

120 mA

200 mA

17.6g (0.62 oz)

8 cc

-55ºC to +85ºC

Volts

4.0

DISCHARGE CHARACTERISTICS @ +25ºC

3.5

3.0

2.5

2.0

200

Ω

~16 mA

(1.6 Ah)

1.8 KΩ

~2 mA

(2.1 Ah)

6.8 KΩ

~0.5 mA

(2.1 Ah)

36 KΩ

~0.1 mA

(1.85 Ah)

180 KΩ

~20

µA

(1.60 Ah)

1.5

AVAILABLE TERMINATIONS

SUFFIX- /S STANDARD

15-5103-21500

15-5103-31500

15-5103-41500

15-5103-36500

15-5103-52500

15-5103-53500

SUFFIX- /T SOLDER TABS

SUFFIX- /P AXIAL PINS

1.0

1

10

100

1000

10000

100000

Hours

SUFFIX- /PT2 RADIAL PINS

SUFFIX- /TP POLARIZED TABS

SUFFIX- /PT POLARIZED TABS

Volts

3.7

3.6

3.5

3.4

3.3

3.2

3.1

3.0

-50

VOLTAGE VS. TEMPERATURE

Ah

2.1

1.9

1.7

-30°C

0°C

25°C

CAPACITY VS. CURRENT

10

µA

30

µA

200

µA

2 mA

1.5

1.3

1.1

0.9

72°C

50°C

16 mA

0.7

-30

-10

10

30

50

70

ºC

0.01

0.1

1

mA

LITHIUM XTRA

Note: Any presentations in this data sheet concerning performance are for information purpose only and are not construed as

warranties either expressed or implied, of future performance.

Rev. B 04/03

TL2100-S Related Products

	TL2100-S	TL2100-P	TL2100-PT	TL2100-T
Description	Real Time Clock 16K (2Kx8) 150ns	Electronic Battery AA 2.1Ah AXIAL LEADS	Electronic Battery AA 2.1Ah POLAR. TAB	Electronic Battery C 3V 5.0A PLAIN
Product Category	Electronic Battery	Electronic Battery	Electronic Battery	Electronic Battery
Manufacturer	Tadiran Batteries	Tadiran Batteries	Tadiran Batteries	Tadiran Batteries
RoHS	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Battery Size	AA	AA	AA	AA
Output Voltage	3.6 V	3.6 V	3.6 V	3.6 V
Capacity	2.1 Ah	2.1 Ah	2.1 Ah	2.1 Ah
Chemistry	Lithium	Lithium	Lithium	Lithium
Termination Style	Pressure Contacts	Axial Leads	Pressure Contacts	Pressure Contacts
Rechargeable/Non-Rechargeable	Non-Rechargeable	Non-Rechargeable	Non-Rechargeable	Non-Rechargeable
Application	UL Component Recognition	UL Component Recognition	UL Component Recognition	UL Component Recognition
Diameter	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Height	50.5 mm	50.5 mm	50.5 mm	50.5 mm
Packaging	Tray	Tray	Tray	Tray
Factory Pack Quantity	30	25	30	30
Type	Electronic Batteries	Electronic Batteries	Electronic Batteries	Electronic Batteries
Unit Weight	0.620822 oz	0.620822 oz	-	0.620822 oz
